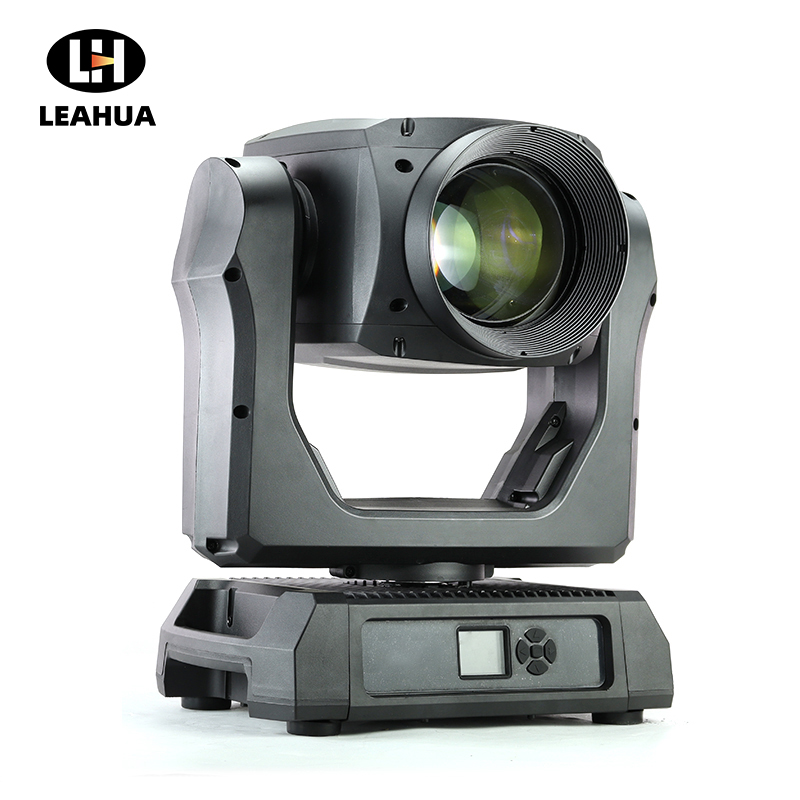

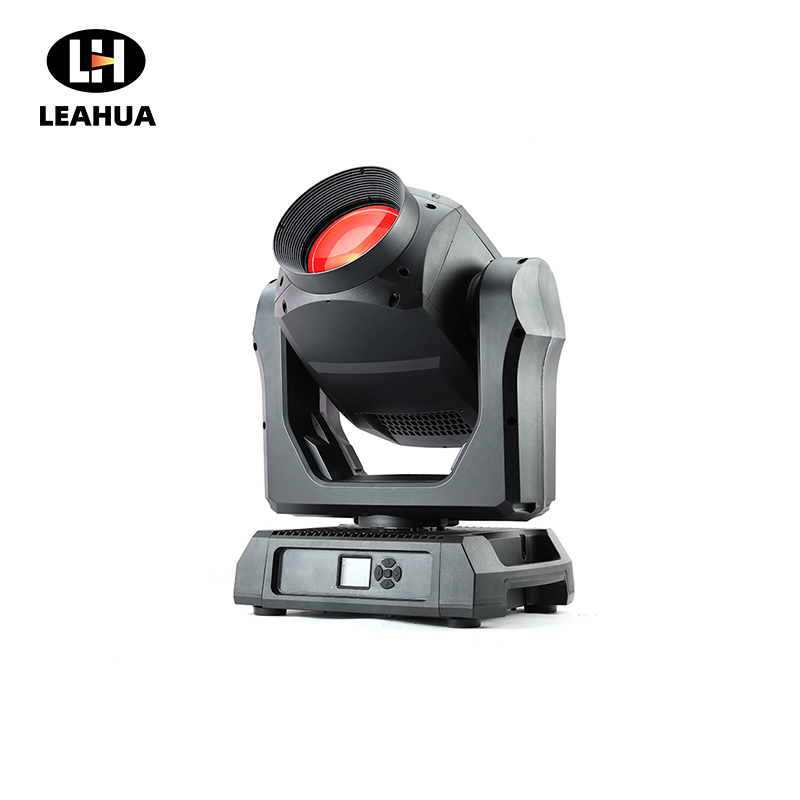

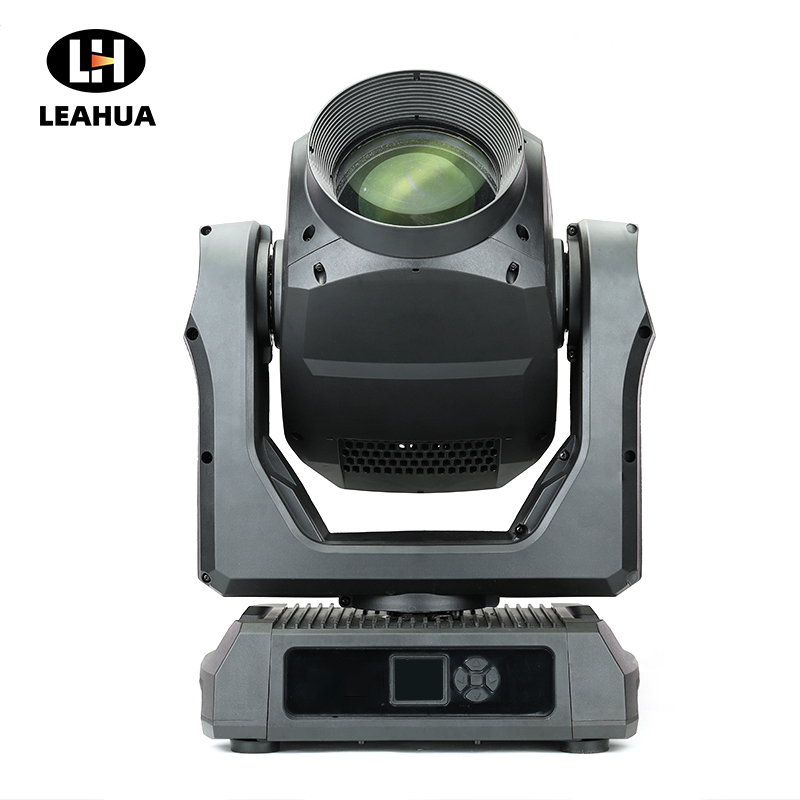

Cruiser Laser 200 Beam

Model No: LH -CL150
The Cruiser Laser 200 Beam, with 150W USHIO laser light source, 1.1 ° extreme beam, The body of die cast aluminum alloy and nylon glass fiber , and IP65 protection, has become the ultimate choice for creating stunning visual beams and dynamic effects in large-scale concerts, electronic music festivals, TV variety shows, and cultural tourism light and shadow shows.
Availability:
Quantity:
Inquiry Favorite

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Previous:
Next:
Cruiser Laser 200 Beam
Technical Specification
Photometrics
Dimensions
Video
Download

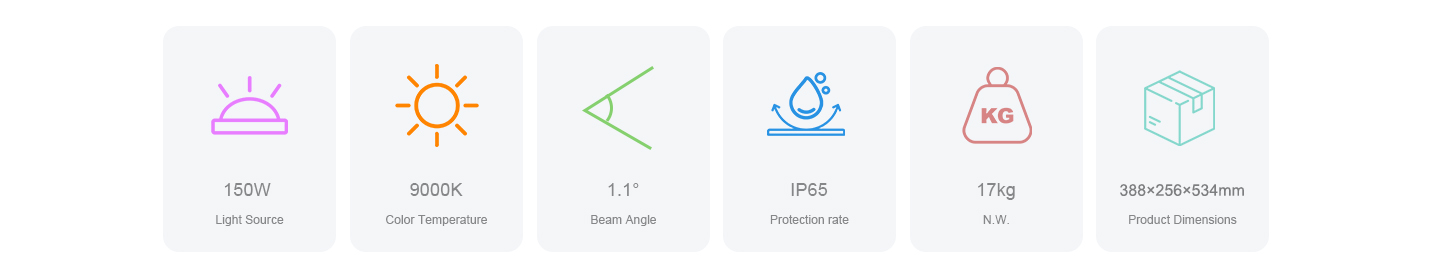

218G001


Technical Specification


Power

  • Input Voltage Range: AC100-240V 50/ 60Hz

  • Power Consumption: 220W

Color

  • Color Wheel 1: 22 colors(including 3 CTO filters)+open

  • Color Wheel 2: 7 color filter

Other Function

  • Dimming: 0-100% linear dimming system

  • Strobe: 0-20 F.P.S, speed adjustable

  • Focus: Electronic focus function

  • Cooling System: Low noise and efficient fan cooling system

Light Source

  • Light Source: 150W USHIO laser

  • Color Temperature Output of Fixture: 9000K

  • Life Expectancy: 12000 hours( factory rated)

Gobo

  • Static Gobo Wheel: 29 gobos+open

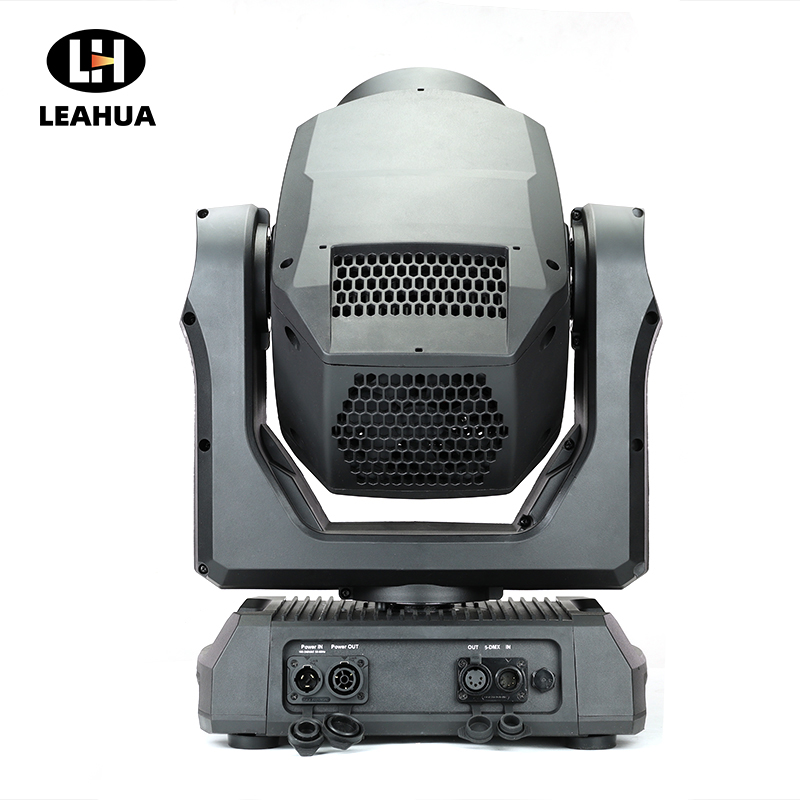

Connection

  • Power Connection: Powercon in/ out

  • Signal Connection: DMX 3-pin in / out

Beam Angle

  • Beam Angle: 0.93°

Prism

  • 1×8-facet circular prism 1×48-facet circular prism

Housing

  • Housing: Die-casting aluminum, nylon and glass fiber

  • Working Environment: -10℃-45℃

  • Protection Rate: IP65

Control

  • Display: LCD display

  • Control Mode: DMX512, master-slave, auto,RDM

  • Control Channel: 16CH

Frost

  • Frost: 1 frost filter

Physical information

  • Product Dimensions: 388×256×534mm

  • Net Weight: 17kg

Head Movement

  • Pan 540°, Tilt 270° 16bit with auto position correction

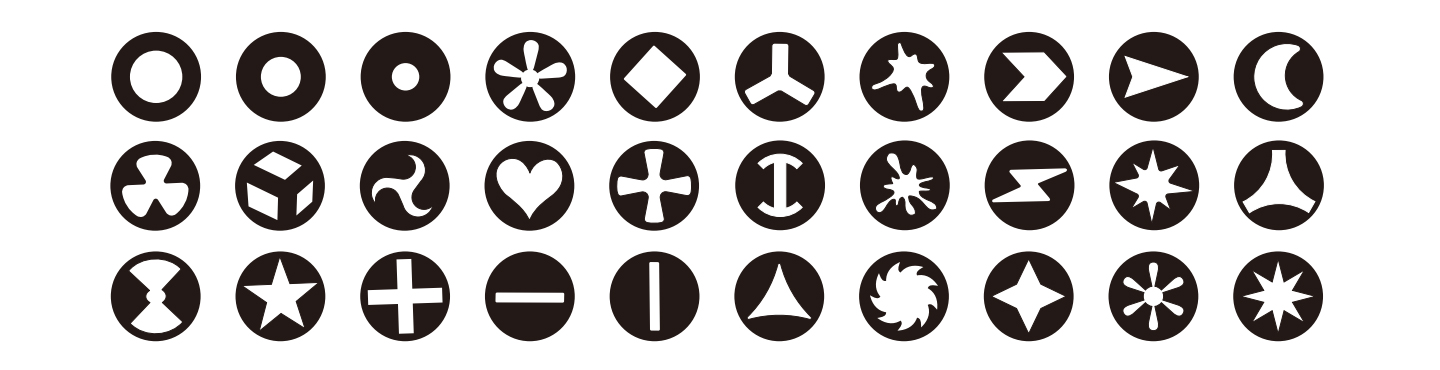

Static Gobo Wheel


Crusier-Laser-200-Beam1

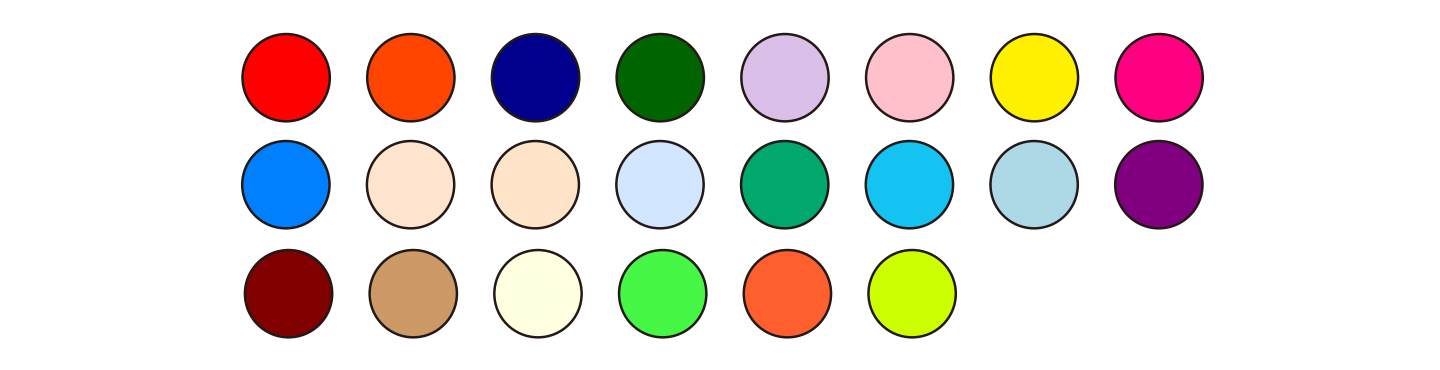

Colour Wheel


Crusier-Laser-200-Beam2

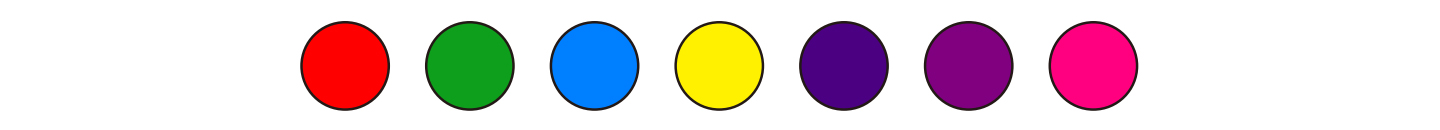

Colour Wheel 2


Crusier-Laser-200-Beam3

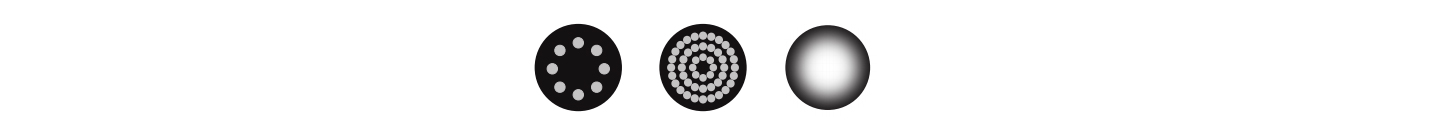

Prism & Frost


Crusier-Laser-200-Beam4

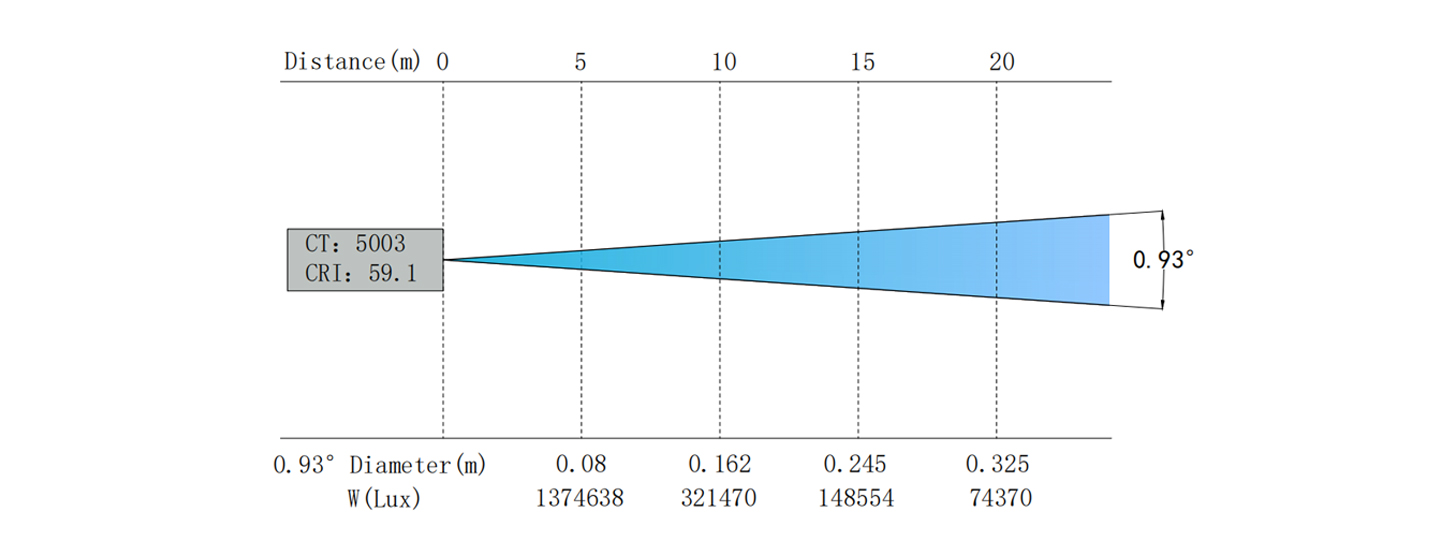

Photometrics

Crusier-Laser-200-Beam5

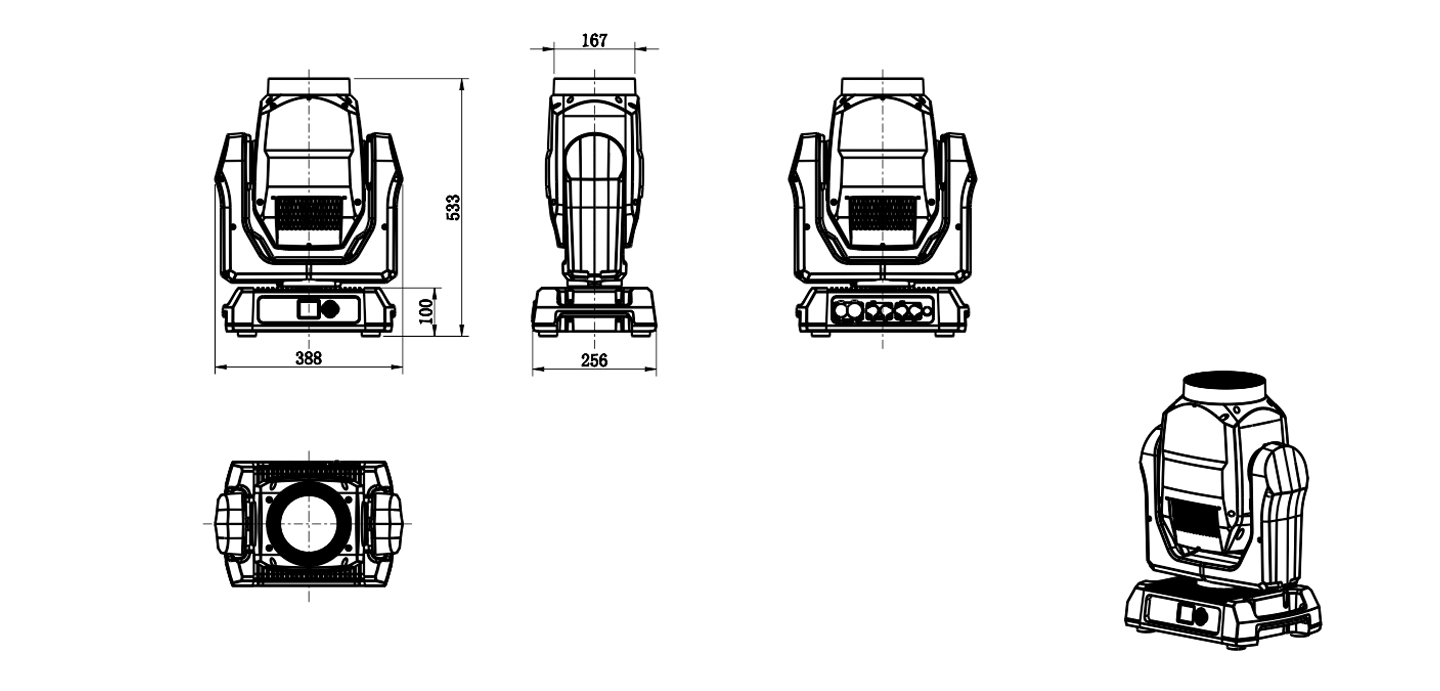

Dimensions


Crusier-Laser-200-Beam6


Video



Download
