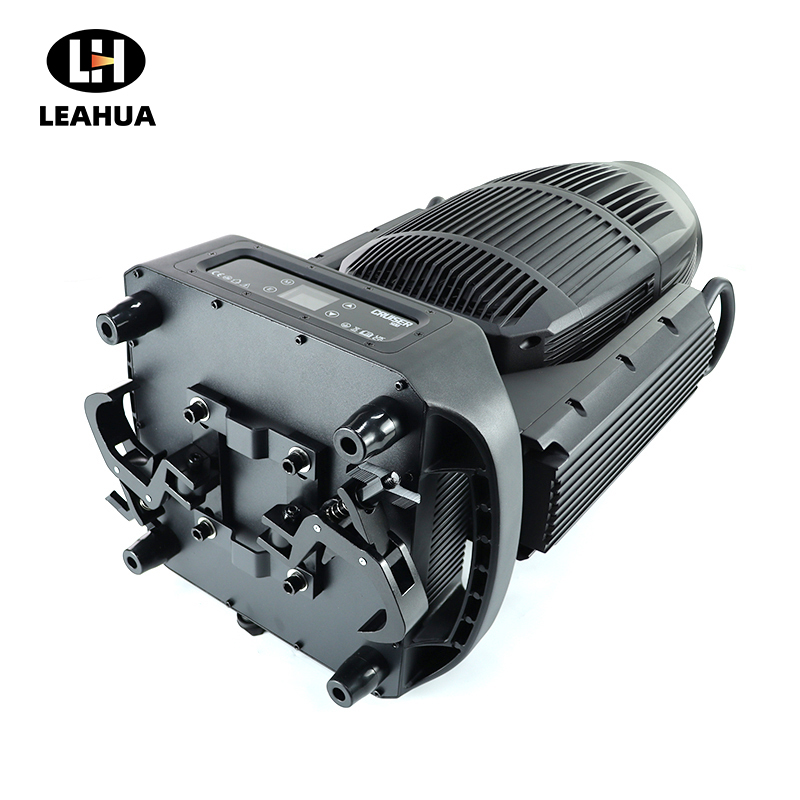

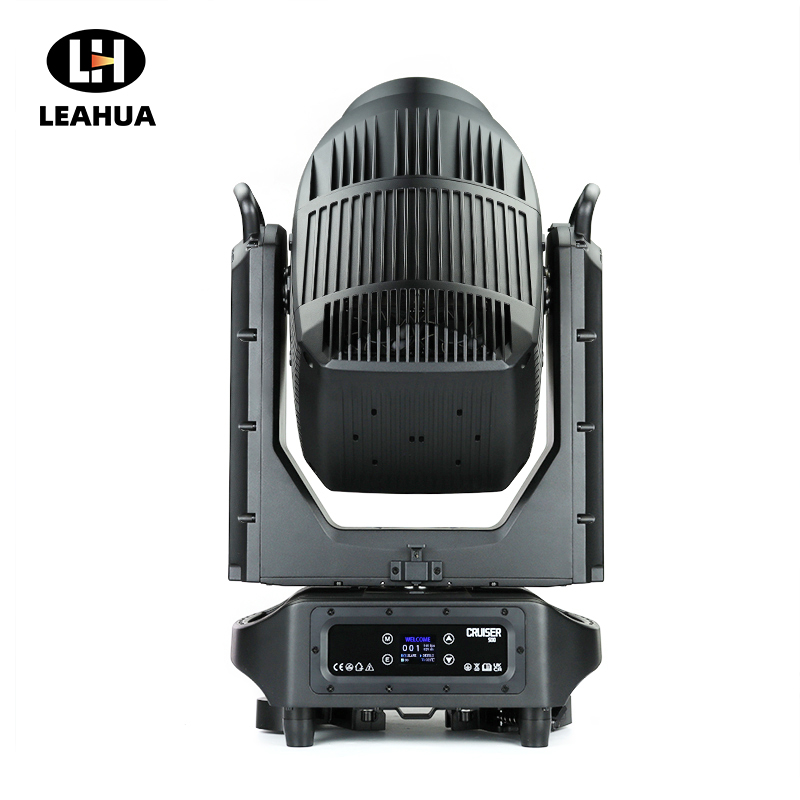

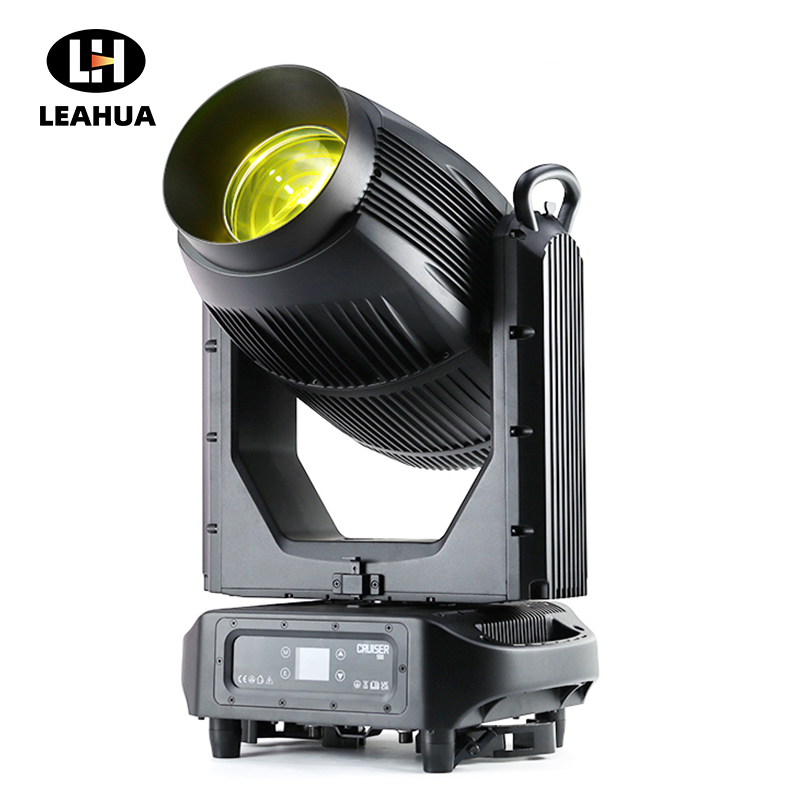

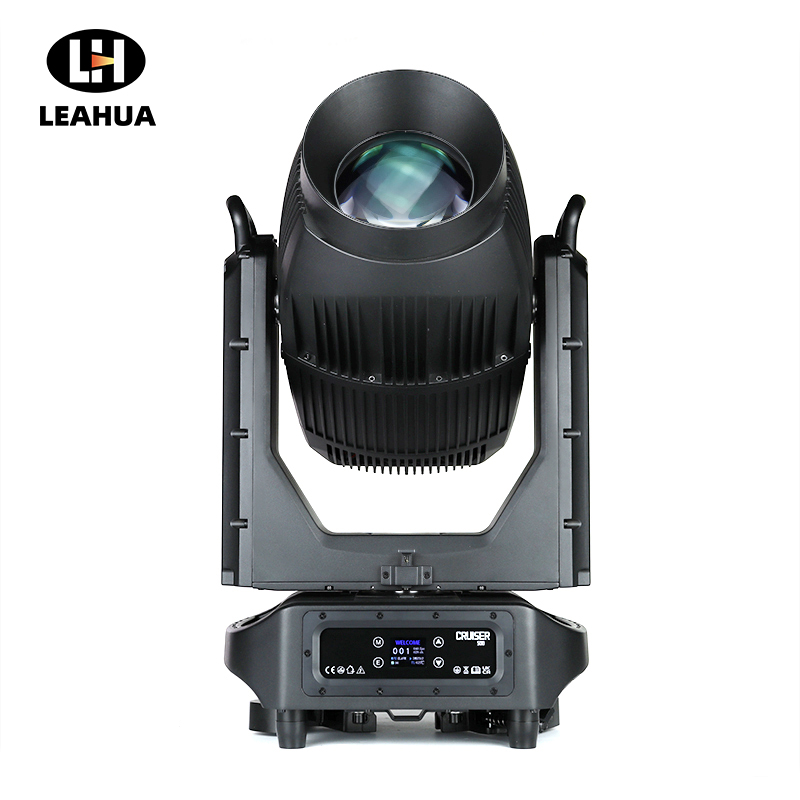

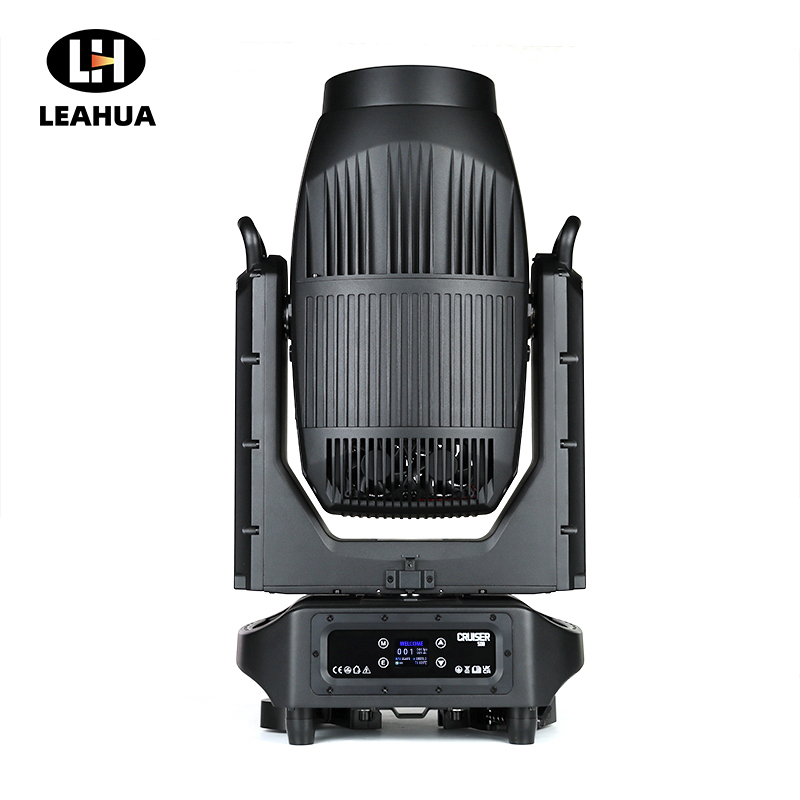

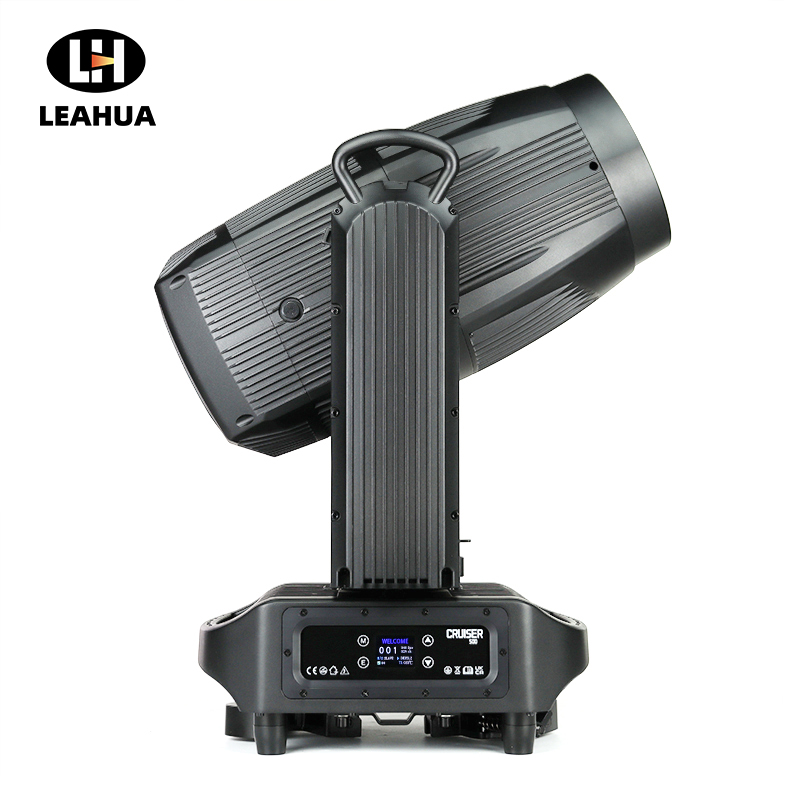

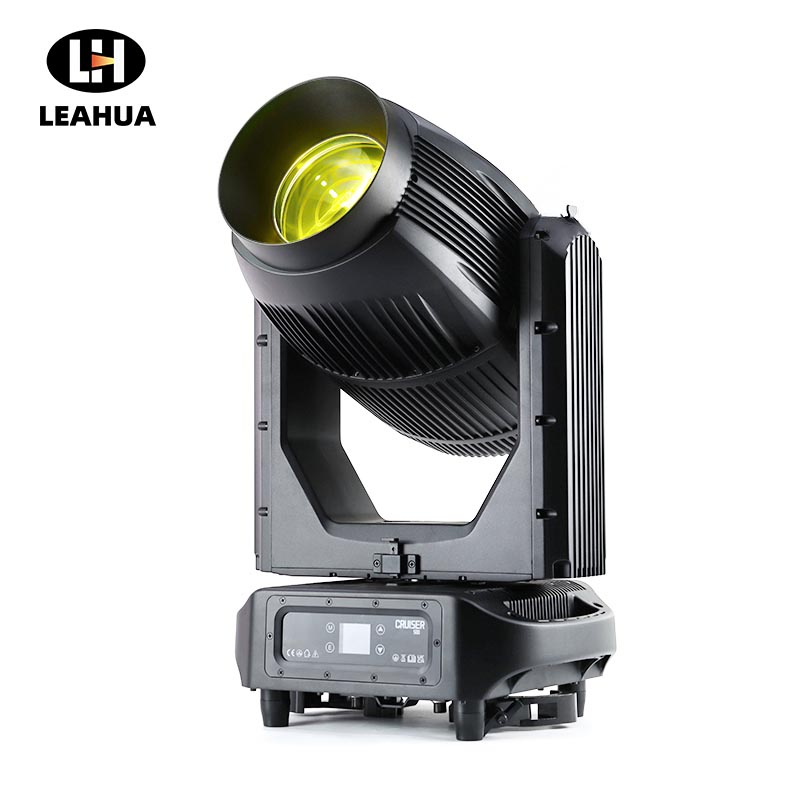

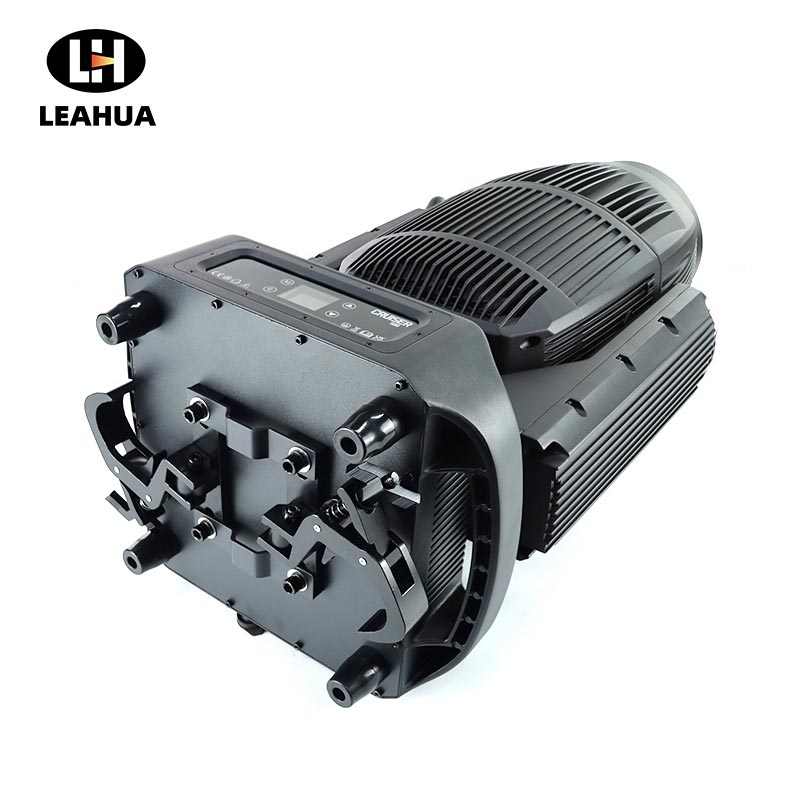

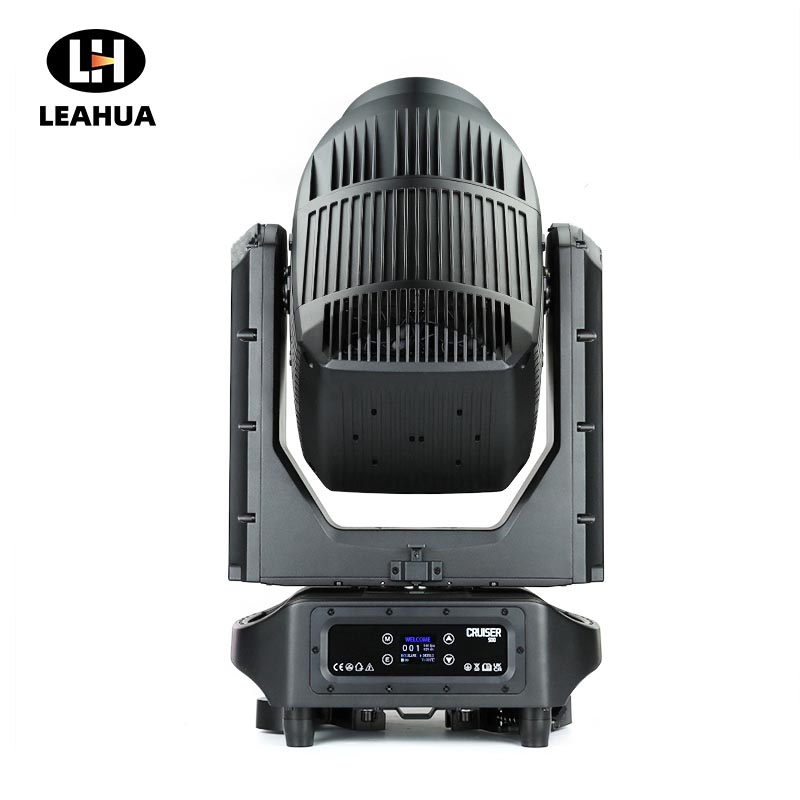

Cruiser LED 700 BWS

Model No: LH-C503
Cruiser LED 700 BWS combines a 500W white LED module .With magnesium alloy body and IP65 rating ,it delivers stunning, reliable performance for concerts, television, touring, and architectural applications.3°-45° Motorized Zoom Offers a versatile zoom range .Equipped with a 12-color wheel (plus open), linear CMY color mixing, a variable CTO (3200K-7200K) for full color temperature adjustment, 12 static and 7 rotating gobos, a effect wheel, and linear/circular prisms for rich texturing and dimension.Includes a frost filter for softening beam edges and creating smooth, even washes.
Availability:
Quantity:
Inquiry Favorite

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Previous:
Next:
Cruiser LED 700 BWS IP65 500W LED moving head light 500W BSW moving head light Waterproof moving head light
Technical Specification
Photometrics
Dimensions
Video
Download

218C105

Technical Specification


Power

  • Input Voltage Range: AC100-240V 50/ 60Hz

  • Power Consumption: 650W

Color

  • Color Wheel: 13 colors+open

  • CMY: Linear CMY color mixing

  • Variable CTO: 3200-7200K linearly adjustable

Other Function

  • Dimming: 0-100% linear dimming system

  • Strobe: 1-20 F.P.S, speed adjustable

  • Focus: Electronic focus function

  • Cooling System: Low noise and efficient fan cooling system

Light Source

  • Light source: 500W white LED module

  • Color Temperature Output of Fixture: 7200K

  • Life expectancy: 20000 hours( factory rated)

Gobo

  • Static Gobo Wheel: 12 gobos+open

  • Rotating Gobo Wheel: 7 gobos+open

Connection

  • Power Connection: Powercon in/ out

  • Signal Connection: DMX 3-pin + 5-pin in/ out

Zoom Range

  • Zoom angle: 3-45°

Effect

  • Effect Wheel: 1 dynamic effect wheel

Housing

  • Housing: Magnesium alloy body

  • Working Environment: -10℃-45℃

  • Protection Rate: IP65

Control

  • Display: LCD display

  • Control Mode:

    Dmx512,master-slave,auto,RDM

  • Control Channel: 29CH

Prism

  • 1×4-facet linear prism

  • 1×4-facet circular prism

Physical information

  • Product Dimensions 394.4×310×751mm

  • Net weight: 29kg

Head Movement

  • Pan/ Tilt: 540°/ 270° 16bit with auto position correction

Frost

  • Frost: 1 frost filter

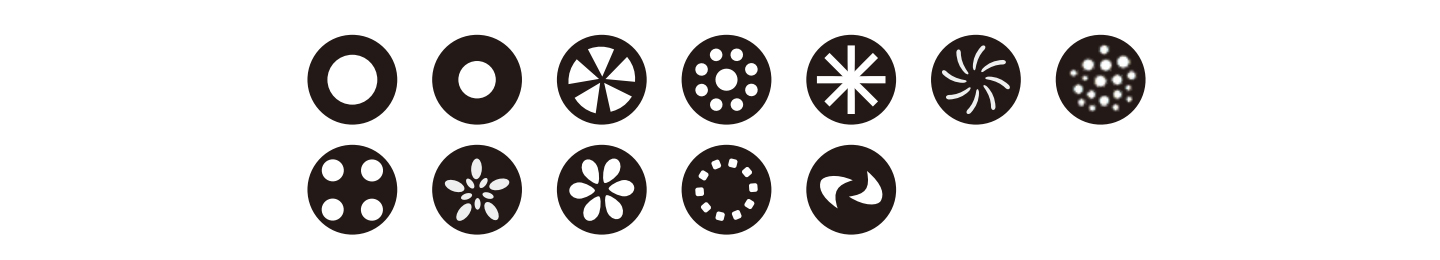

Static Gobo Wheel


Crusier-LED-700-BWS1

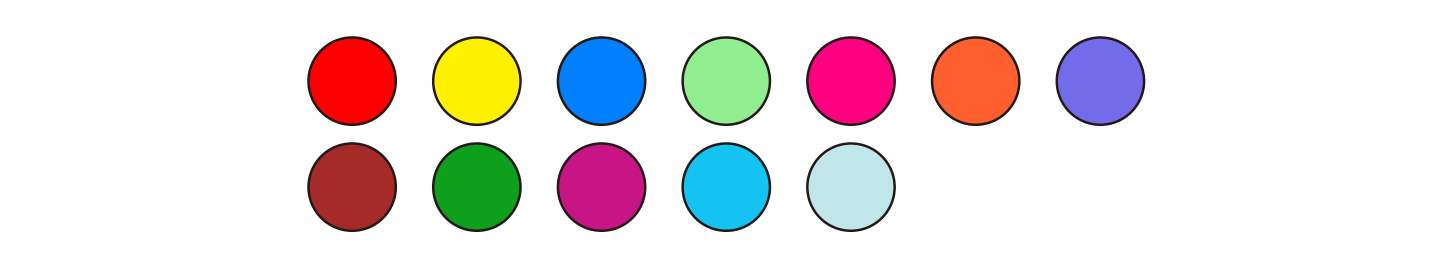

Colour Wheel


Crusier-LED-700-BWS2

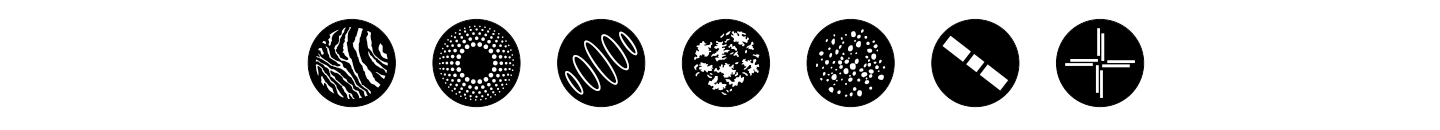

Rotating Gobo Wheel


Crusier-LED-700-BWS3


CMY & CTO


Crusier-LED-700-BWS4

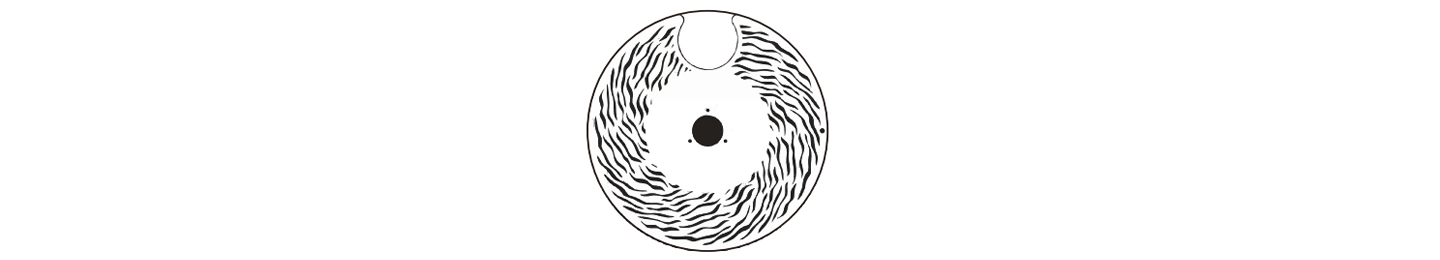

Animation Wheel & CTO


Crusier-LED-700-BWS5

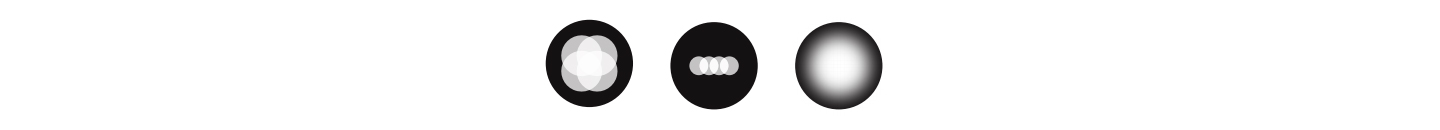

Prism & Frost


Crusier-LED-700-BWS6

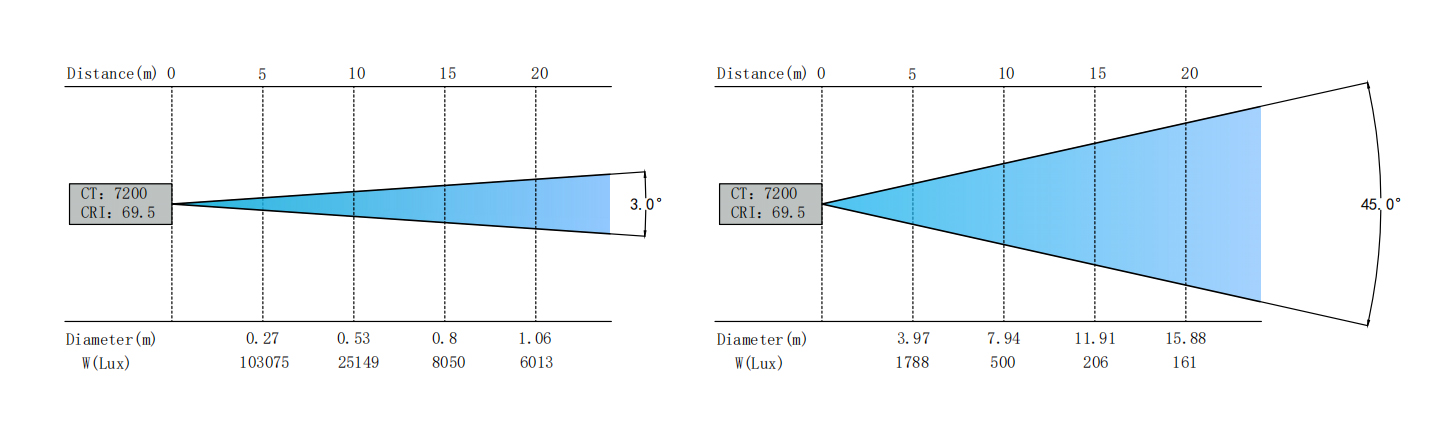

Photometrics

Crusier-LED-700-BWS7

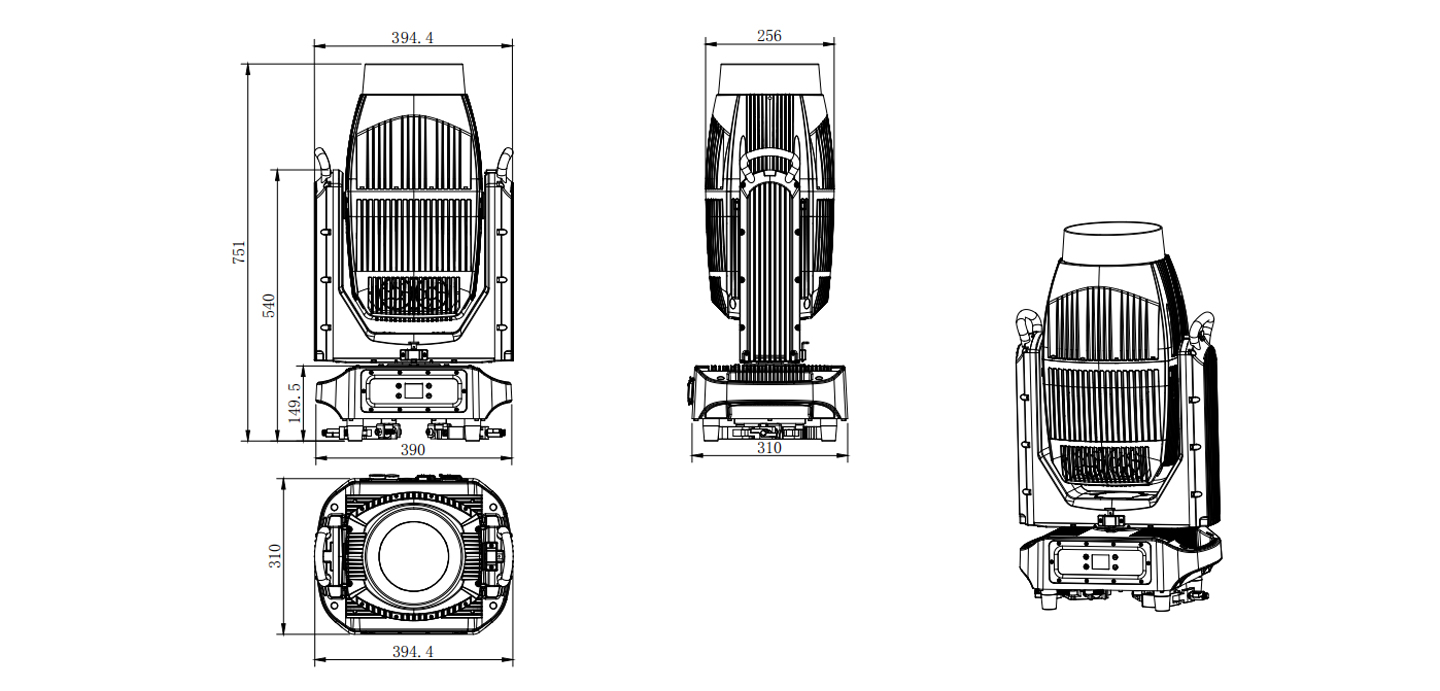

Dimensions


Crusier-LED-700-BWS8
