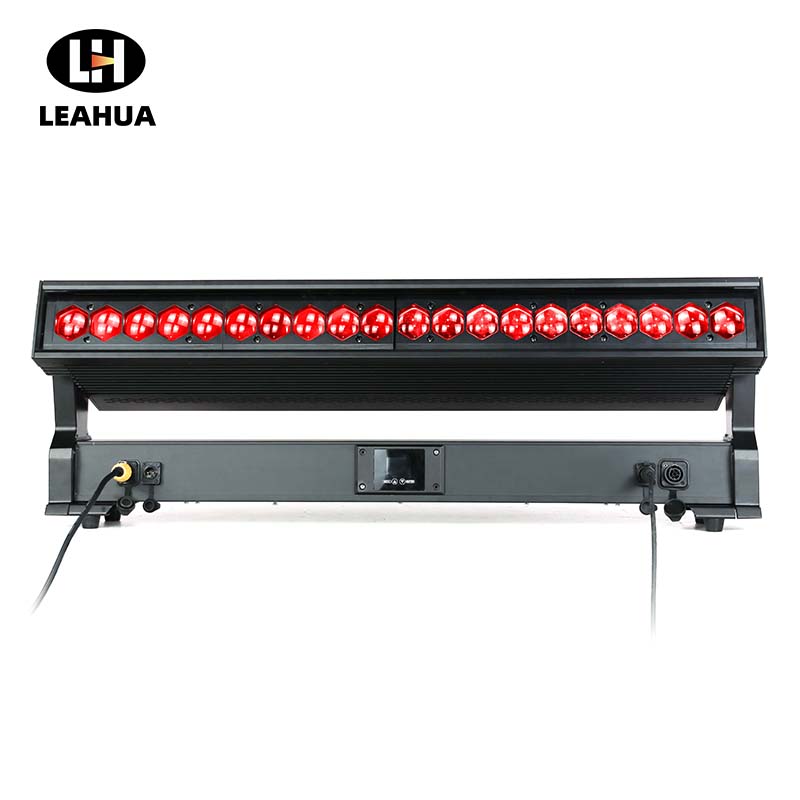

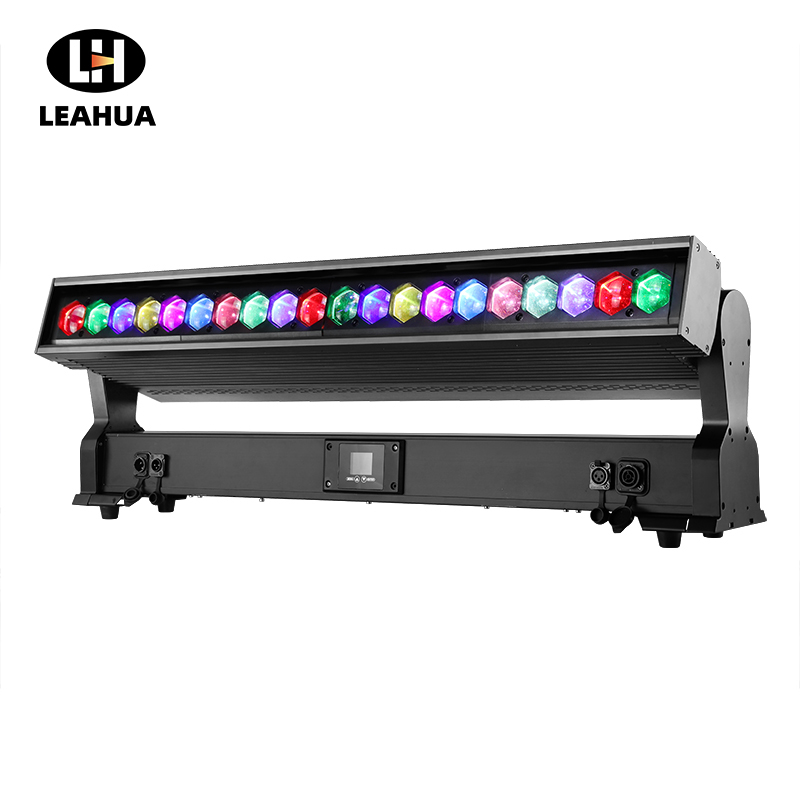

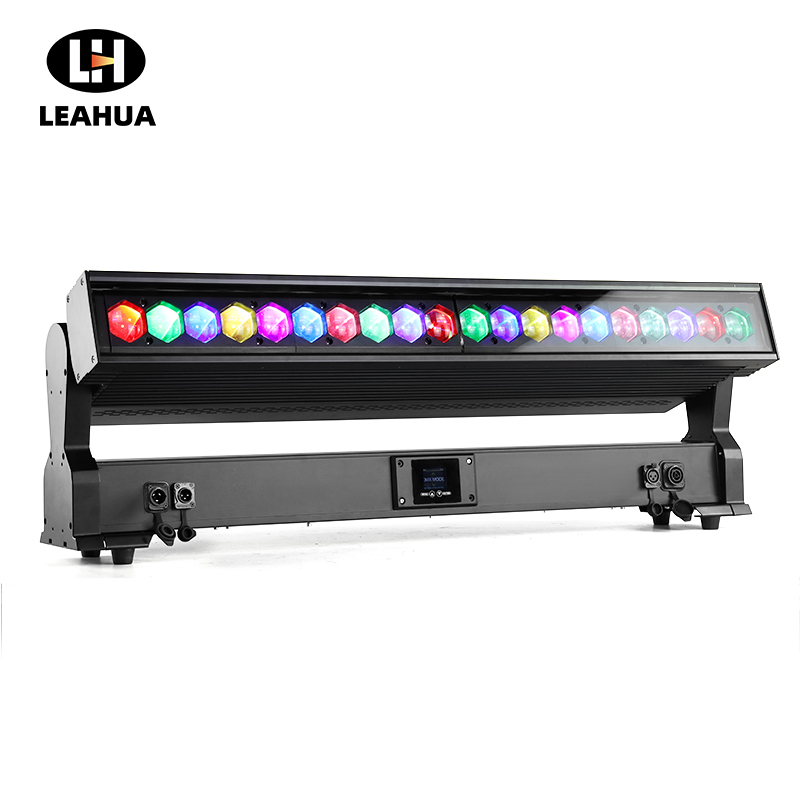

Starlink 20 presents twenty closely arranged 40W RGBW LEDs across a full-length moving head, creating a broad and visually commanding optical surface.
Every LED can be controlled individually, allowing designers to build colour chases, alternating patterns, gradients and directional animations across all twenty pixels. Its extended format gives these effects more room to travel, producing a clear sense of movement and a strong horizontal presence across concert stages, scenic structures and large lighting installations.

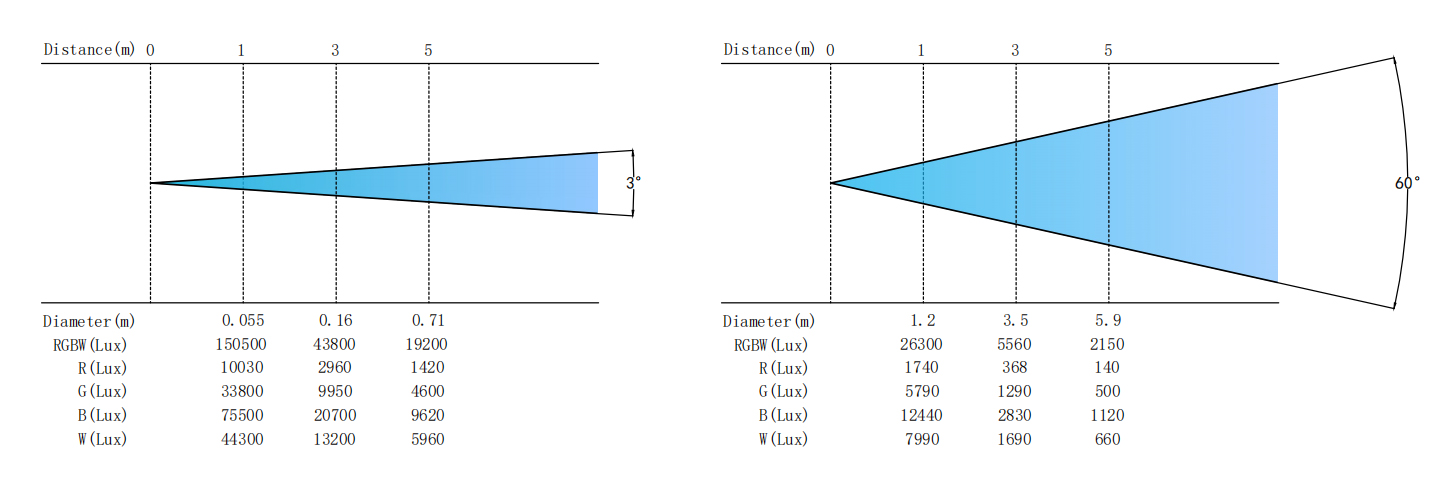

The optical system is divided into two independently controlled zones, with ten LEDs on the left and ten on the right. Each zone can move separately across the complete 3°–60° zoom range.
One side can project concentrated 3° aerial beams while the other simultaneously opens into a broad 60° wash. The two zones can also transition in opposite directions or move at different speeds, allowing contrasting beam shapes to coexist within the same fixture.
This dual-zone architecture gives designers more than a conventional beam-to-wash transition. It enables the width of the fixture to be divided, balanced and reshaped as part of the visual composition.
Pixel-level colour control and independent dual-zone zoom work together to create a flexible programming platform.
Designers can give all twenty pixels their own colours and intensities, then assign a different optical character to each half of the fixture. Defined pixel beams can produce structured aerial movement on one side while wide, blended colours create an immersive wash on the other.
From precise symmetrical looks to deliberately contrasting scenes, Starlink 20 brings colour, beam angle and movement together in ways that a conventional single-zone wash cannot.
The joining structure integrated into both arms allows multiple Starlink 20 fixtures to sit closely together, helping create a cleaner and more continuous visual array.
When several units are combined, pixel chases, colour transitions and animated patterns can travel naturally across a larger surface. The consistent spacing between adjacent fixtures makes Starlink 20 especially effective for lighting walls, long horizontal arrays and modular scenic installations.
A precision-moulded aluminium-alloy housing provides dependable IP65 protection against rain, dust and demanding production environments, making Starlink 20 suitable for both indoor and outdoor use.

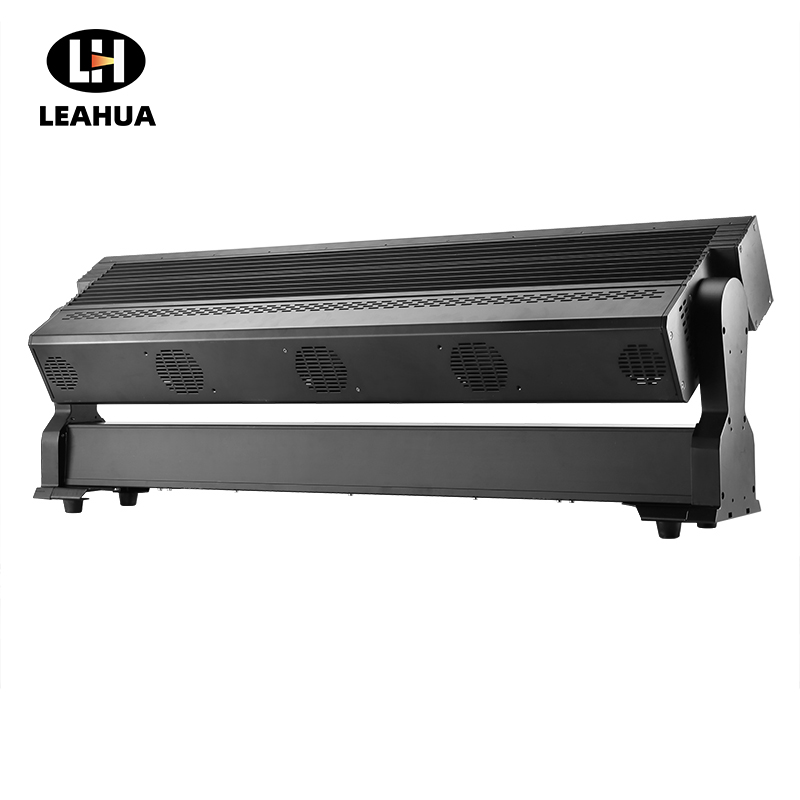

Its engineered thermal structure increases the available heat-dissipation area, helping maintain stable output, consistent colour performance and optical clarity during concerts, festivals, touring schedules and extended productions.
With twenty individually controlled 40W RGBW pixels, two independent 20:1 zoom zones and a seamless joining design, Starlink 20 transforms powerful beams, expansive washes and animated colour into one scalable visual system.
