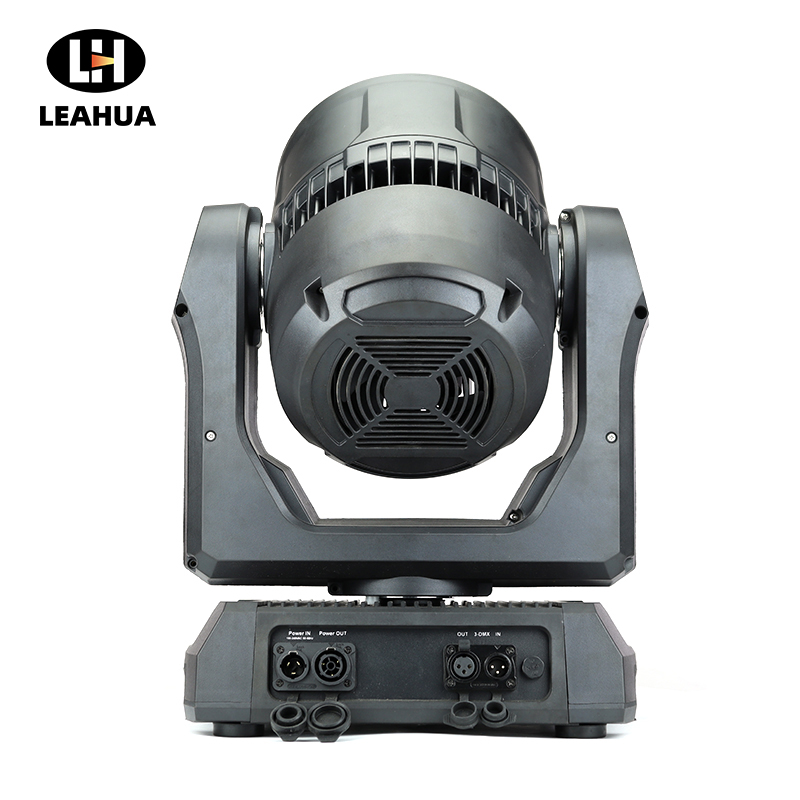

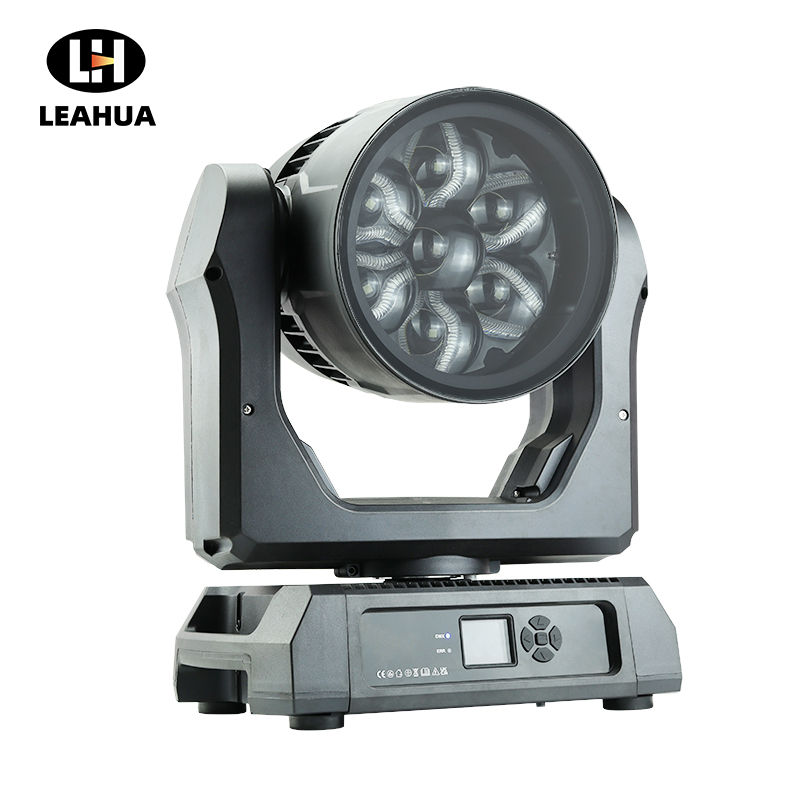

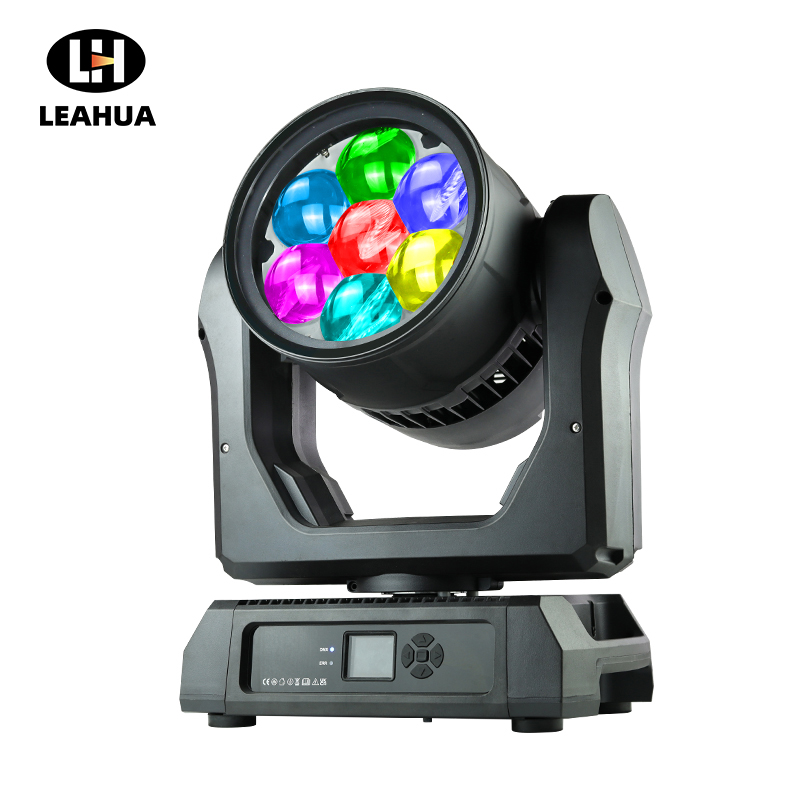

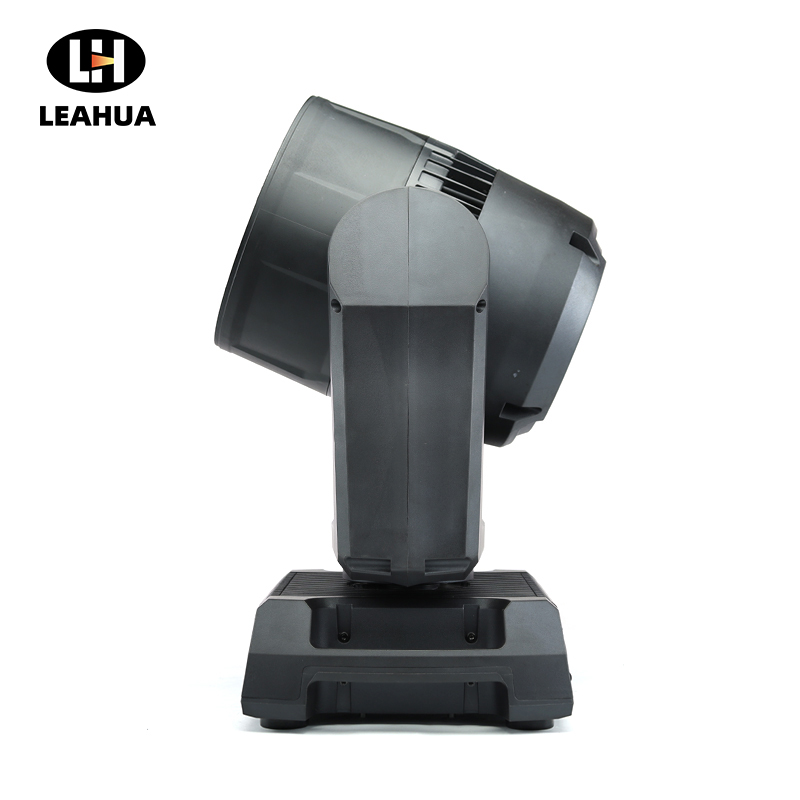

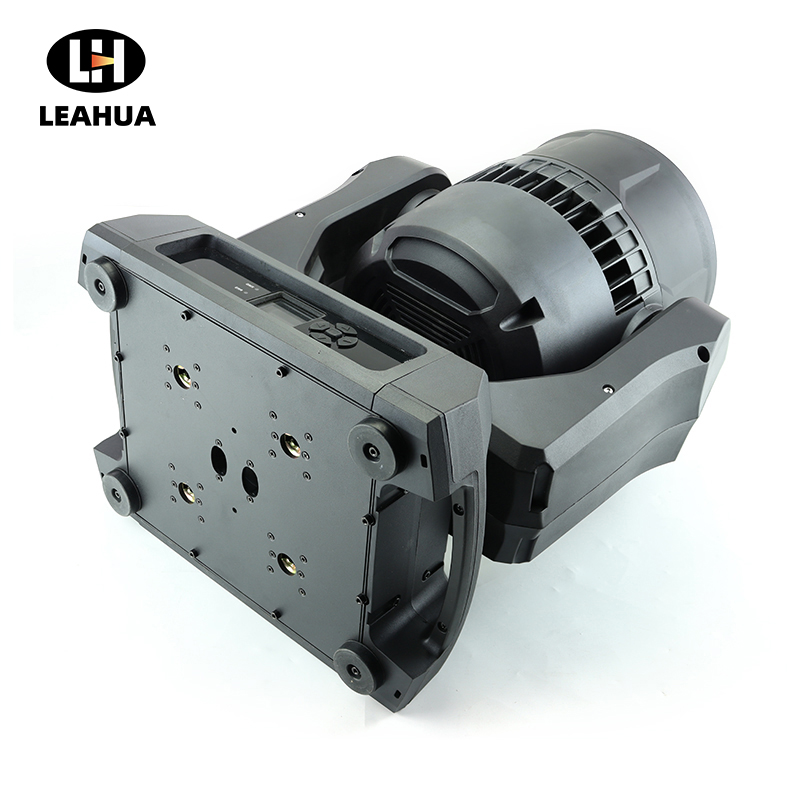

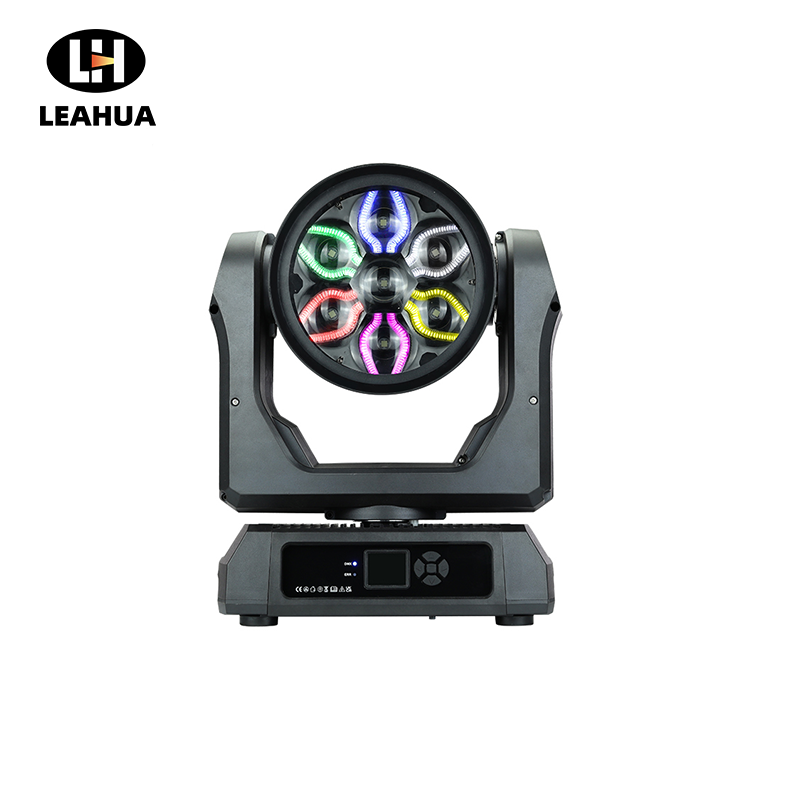

Maris 7W

Model Number: LH -M762
Maris 7W has 7 *60W RGBW LED and 132 auxiliary 0.12W IC magic LEDs (12 strips), enabling dynamic flowing effects around 6 outer main LEDs.​ It offers 4.8°-39.3° electric zoom. Key effects include 16-bit RGB mixing, 48 preset virtual color wheel, 1000K-12850K color temp adjustment.​It supports 540° horizontal/270° vertical scanning (16Bit fine-tuning + auto reset), IP65 protection, waterproof quiet fan, and die-cast aluminum heatsink.
Availability:
Quantity:
Inquiry Favorite

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Previous:
Next:
Maris 7W
Technical Specification
Photometrics
Dimensions
Video
Download

218C089IPB


Technical Specification


Power

  • Input Voltage Range: AC90-260V 50/ 60Hz

  • Power Consumption: 350W

Control

  • Display: LCD display

  • Control Mode: DMX512, master-slave, auto,  RDM

  • Control channel: 20/ 36/ 57/ 93CH

Housing

  • Housing: Die-casting aluminum, nylon and glass fiber

  • Working Environment: -10℃- 45℃

  • Protection Rate: IP65

Light Source

  • Light Source: 7×60W RGBW LED, 132×0.12W RGB LED

  • Variable CTO: 1000-13000K

  • Life Expectancy: 20000 hours ( factory rated )

Head Movement

  • Pan/ Tilt: 540°/ 270° 16bit with auto position correction

Connection

  • Power Connection: Powercon in/ out

  • Signal Connection: DMX 3-pin in / out

Zoom Range

  • Zoom Range: 4.8°-56.2°

Other Function

  • Dimming: 0-100% linear dimming system

  • Strobe: 1-20 F.P.S, Speed adjustable

  • Dynamic Effect: FX macros with control of foreground color, background color

  • Cooling System: Low noise and efficient fan cooling system

Physical Information

  • Product Dimensions: 388×252×492mm

  • Net Weight: 15kg

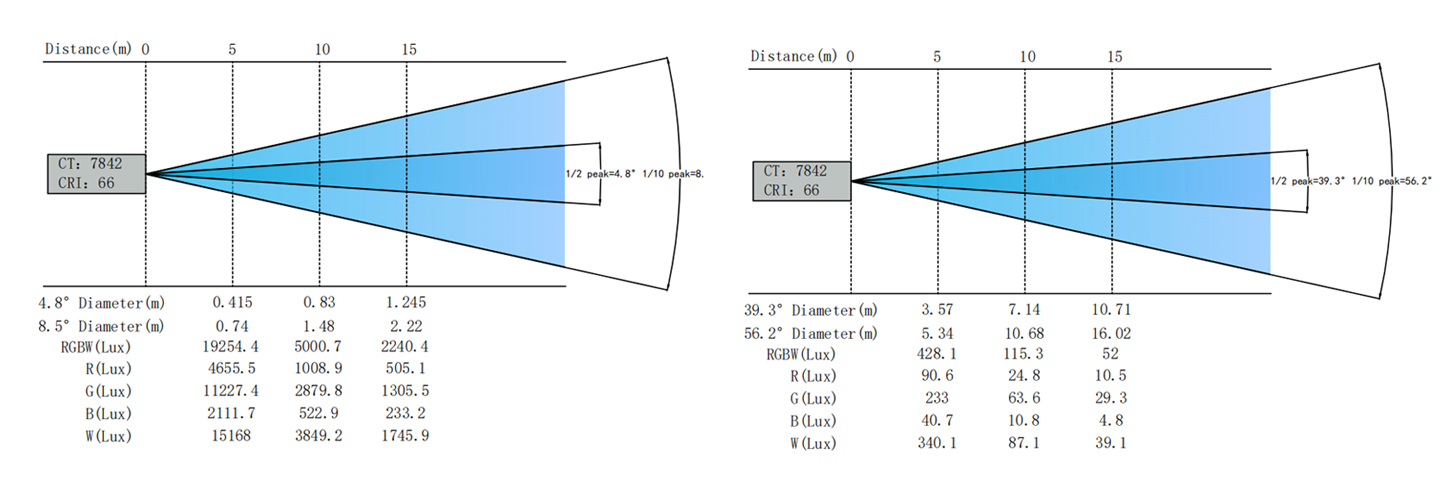

Photometrics

Maris-7W1

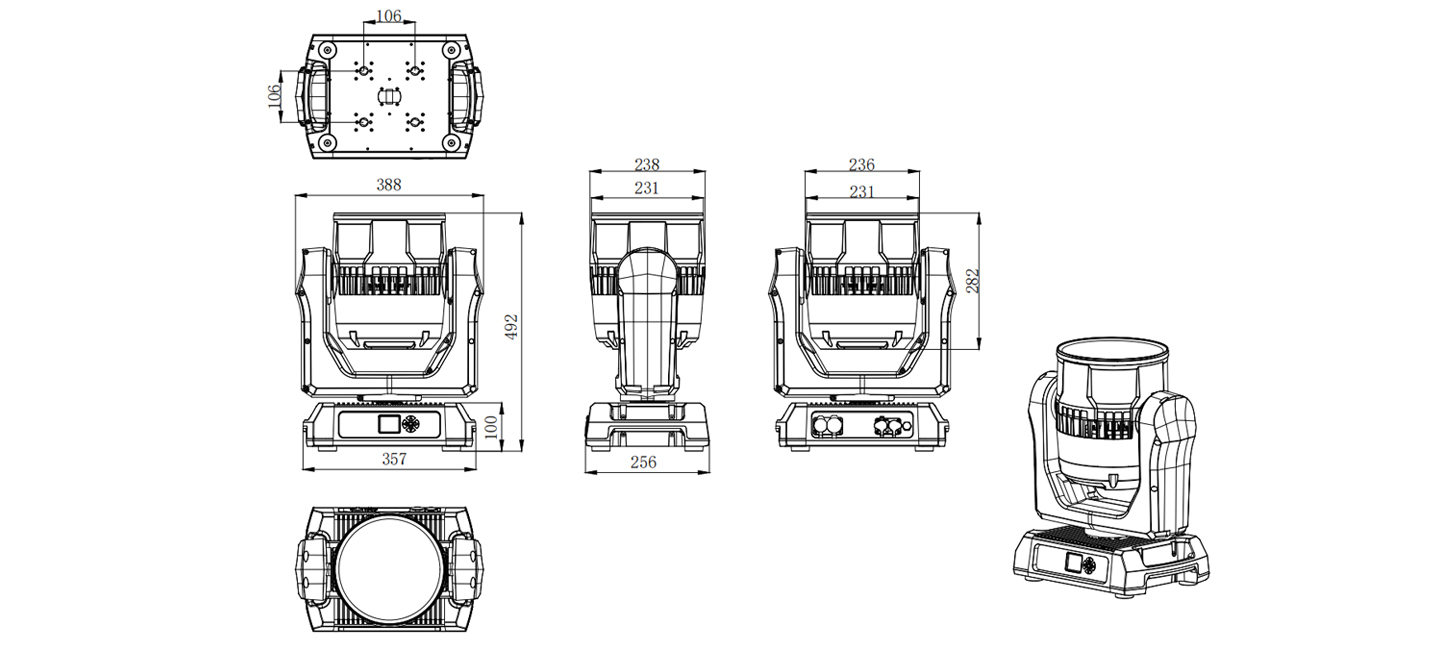

Dimensions


Maris-7W2


Video



Download

Related Products

Maris Max
Maris Max
Maris 7
Maris 7
Maris Pro
Maris Pro

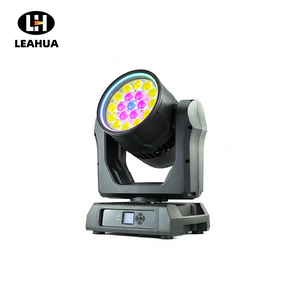

Maris 19
