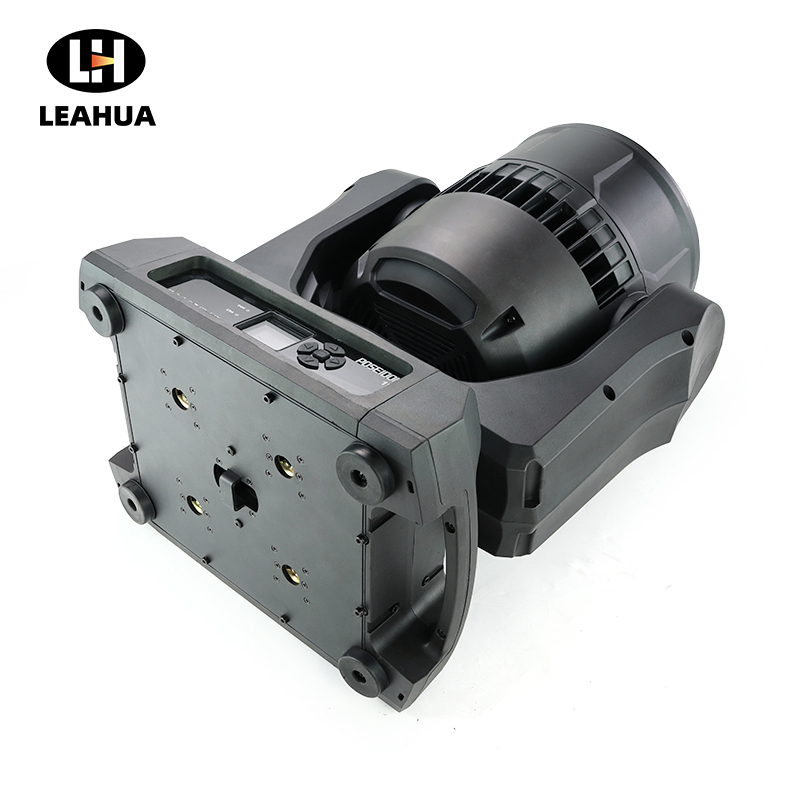

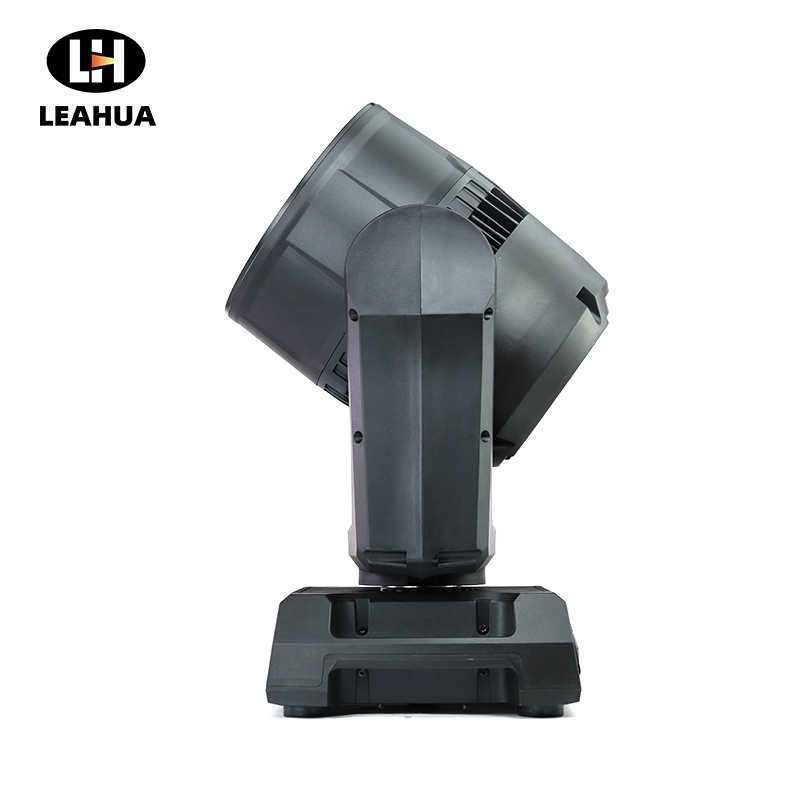

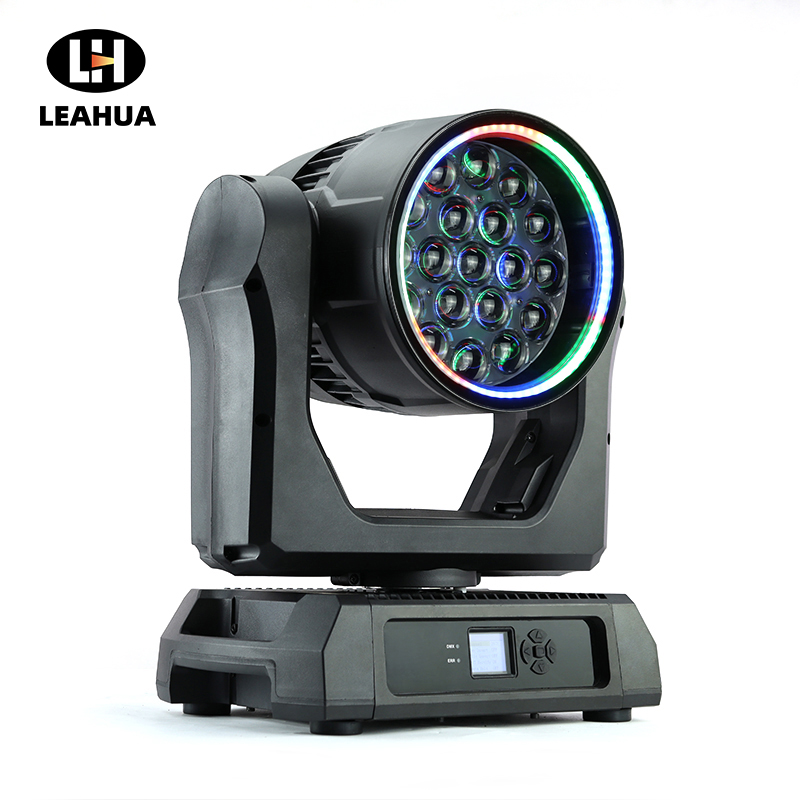

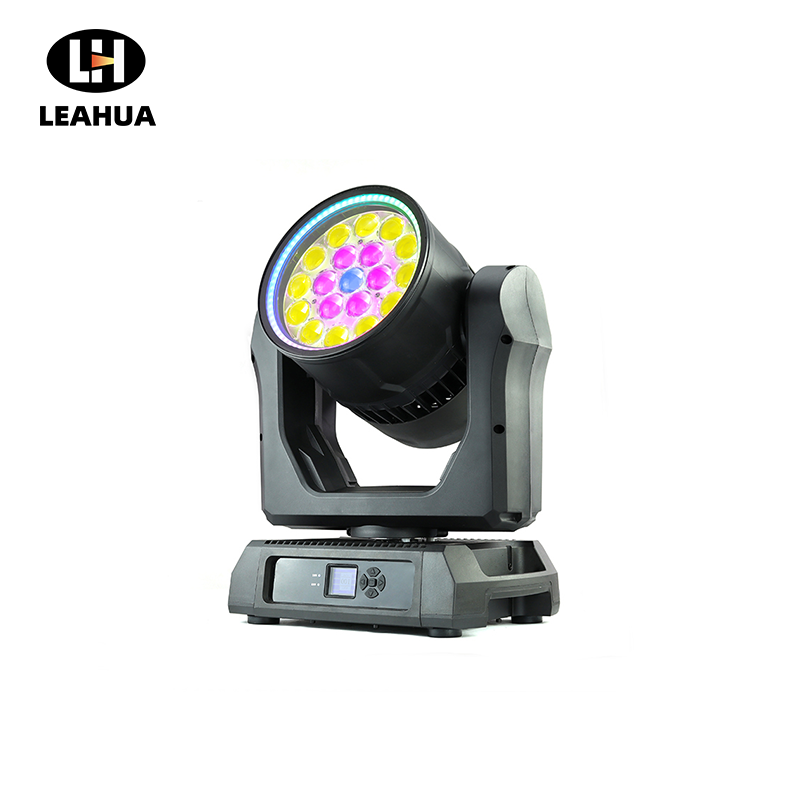

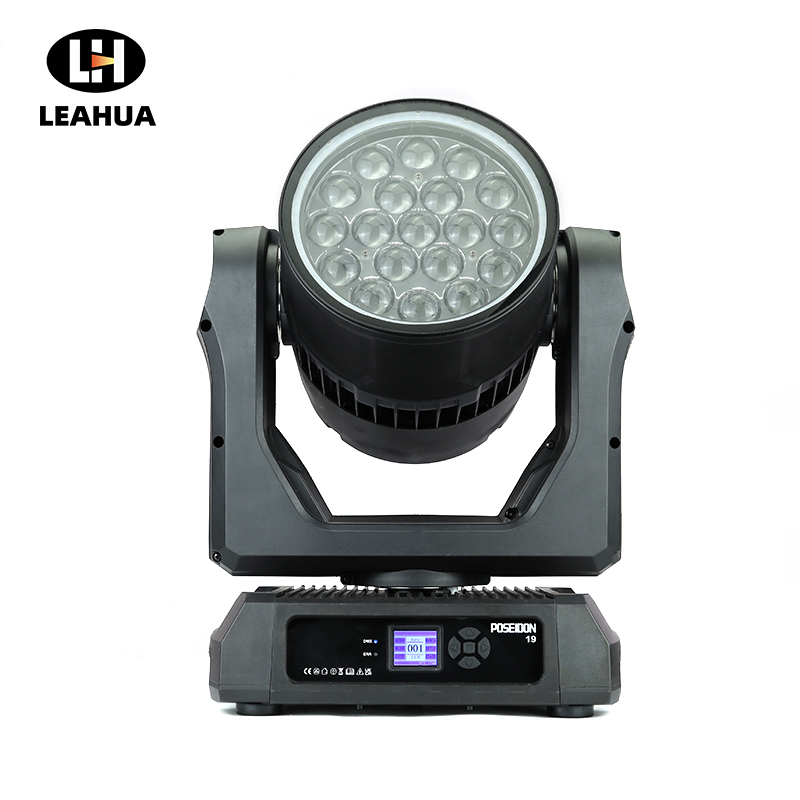

Maris 19

Model No: LH -M1920
Maris 19 is a powerful 19X20W LED fixture that masterfully combines a sharp zoom beam with a uniform RGBW wash. It features three independently controlled LED rings, enabling stunning layered effects and vibrant color fields.Equipped with a 12° to 49° motorized zoom and a full CMY color mixing system, it offers exceptional creative control and smooth transitions. The fixture ensures reliable operation in any environment with its robust IP65-rated housing.

Availability:
Quantity:
Inquiry Favorite

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Previous:
Next:
Maris 19
Technical Specification
Photometrics
Dimensions
Video
Download

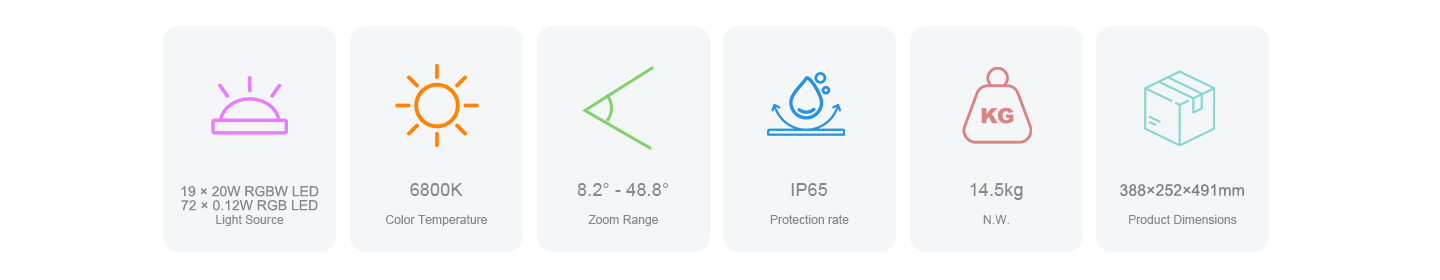

218C033IP


Technical Specification


Power

  • Input Voltage Range: AC90-260V 50/ 60Hz

  • Power Consumption: 250W

Control

  • Display: LCD display

  • Control Mode: DMX512, master-slave, auto,RDM

  • Control channel: 18/ 26CH

Housing

  • Housing: Die-casting aluminum, nylon and glass fiber

  • Working Environment: -10℃- 45℃

  • Protection Rate: IP65

Light Source

  • Light Source: 19×20W RGBW LED, 72×0.12W RGB LED

  • Color Temperature Output of Fixture: 6800K

  • Life Expectancy: 20000 hours

    ( factory rated )

Head Movement

  • Pan/ Tilt: 540°/ 270° 16bit with auto position correction

Connection

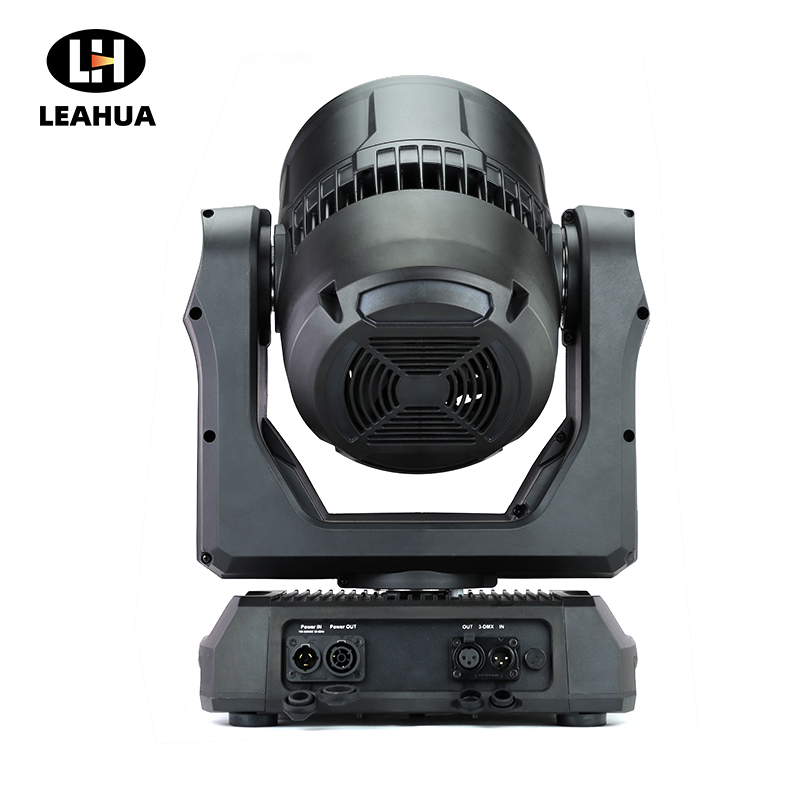

  • Power Connection: Powercon in/ out

  • Signal Connection: DMX 3-pin in / out

Zoom Range

  • Zoom Range: 8.2°-48.8°

Other Function

  • Dimming: 0-100% linear dimming system

  • Strobe: 1-20 F.P.S, Speed adjustable

  • Cooling System: Low noise and efficient fan cooling system

Physical Information

  • Product Dimensions: 388×252×491mm

  • Net Weight: 14.5kg

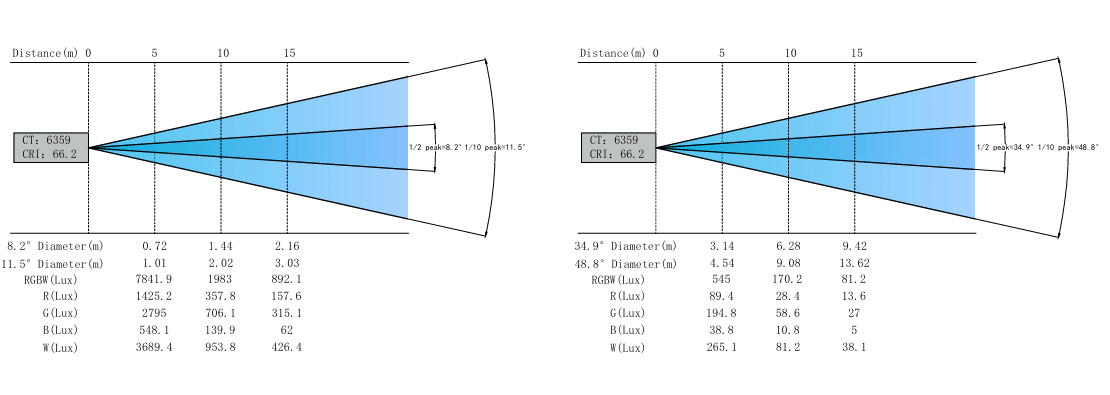

Photometrics




ScreenShot_2026-01-21_115530_412

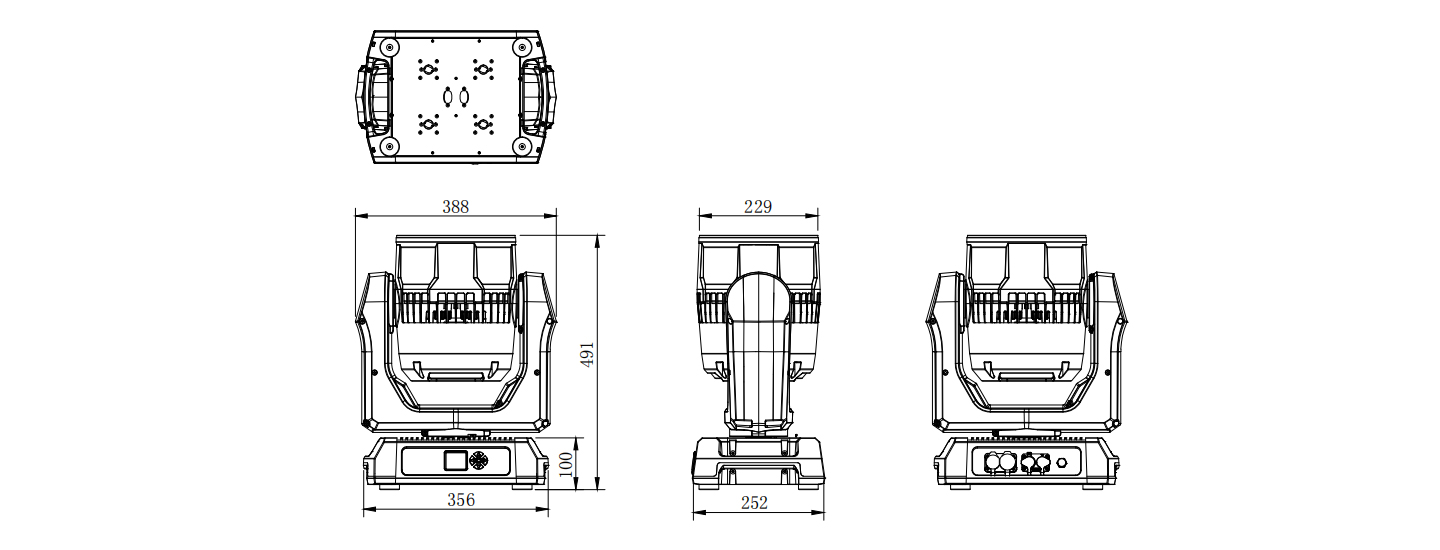

Dimensions


Maris-19-2



Video



Download

Related Products

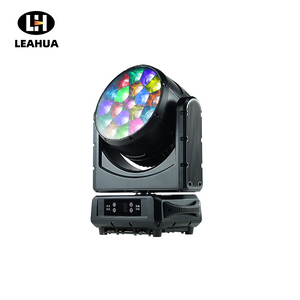

Maris Max
Maris Max

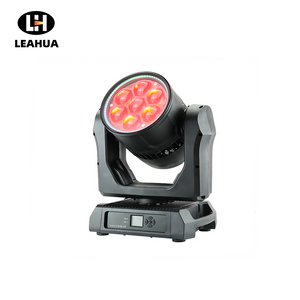

Maris 7
Maris 7

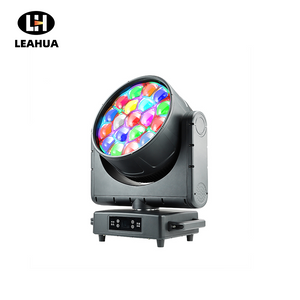

Maris Pro
Maris Pro

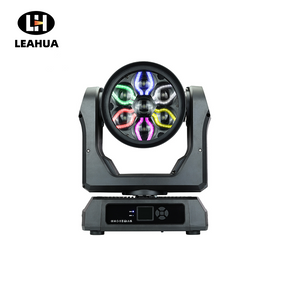

Maris 7W
