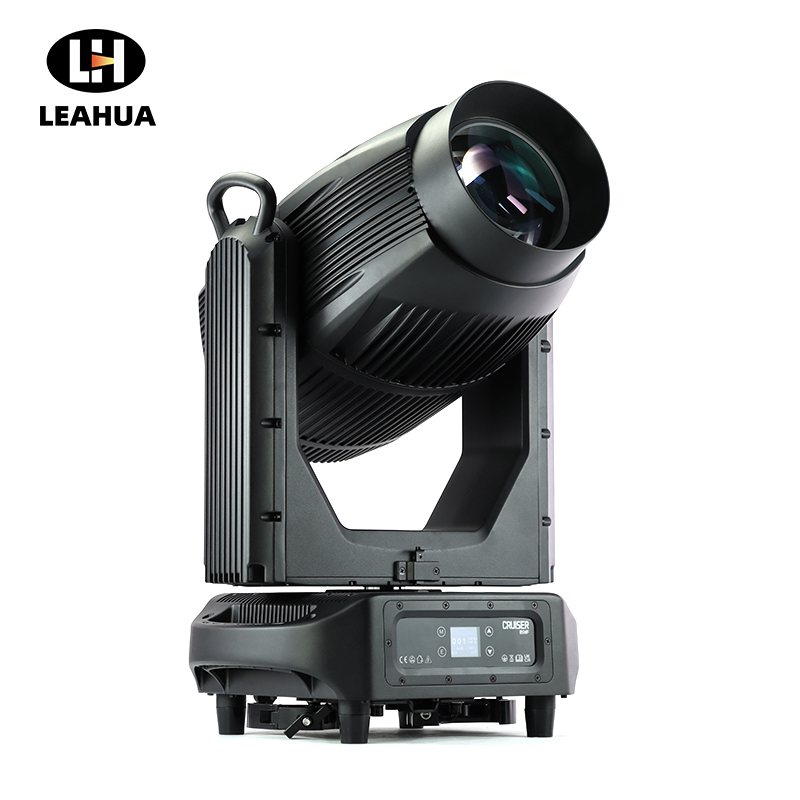

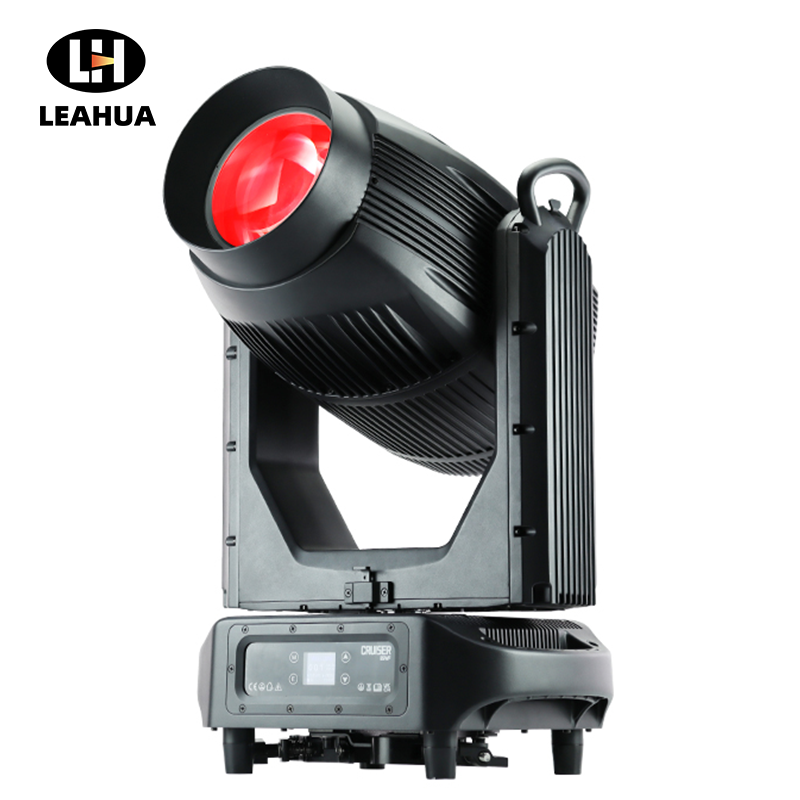

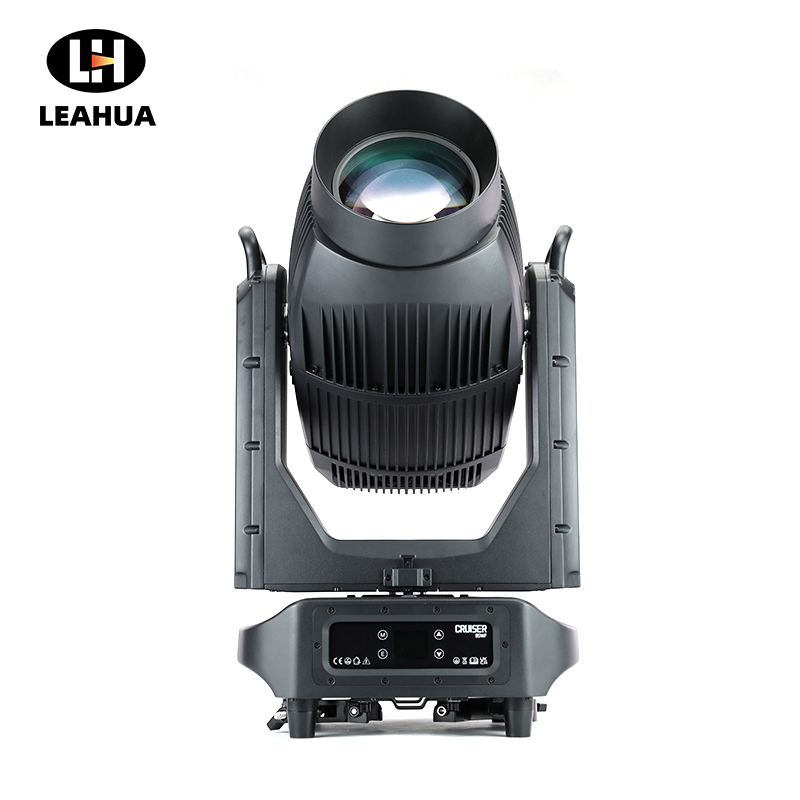

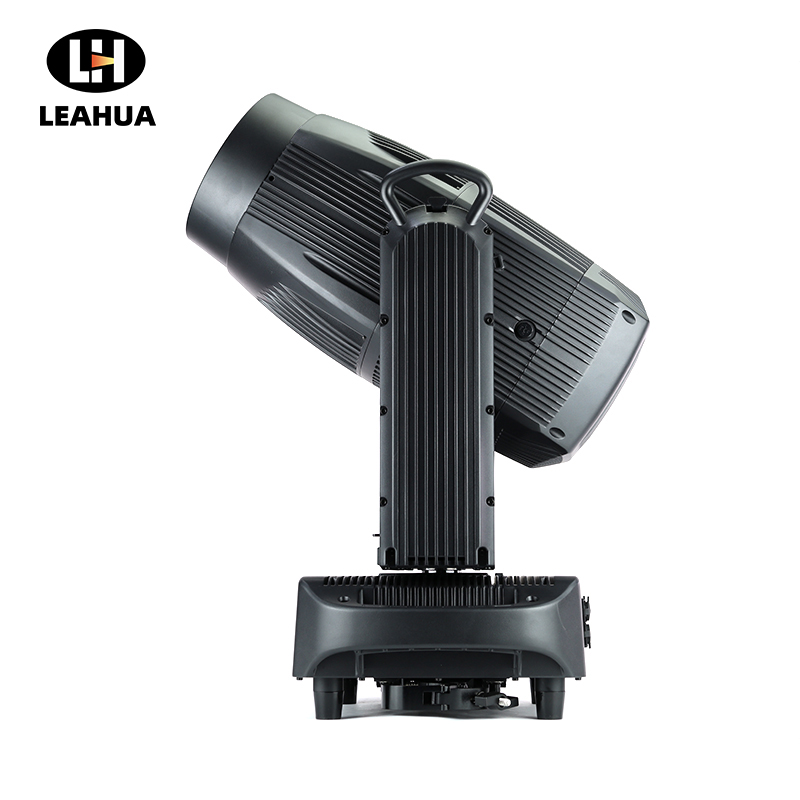

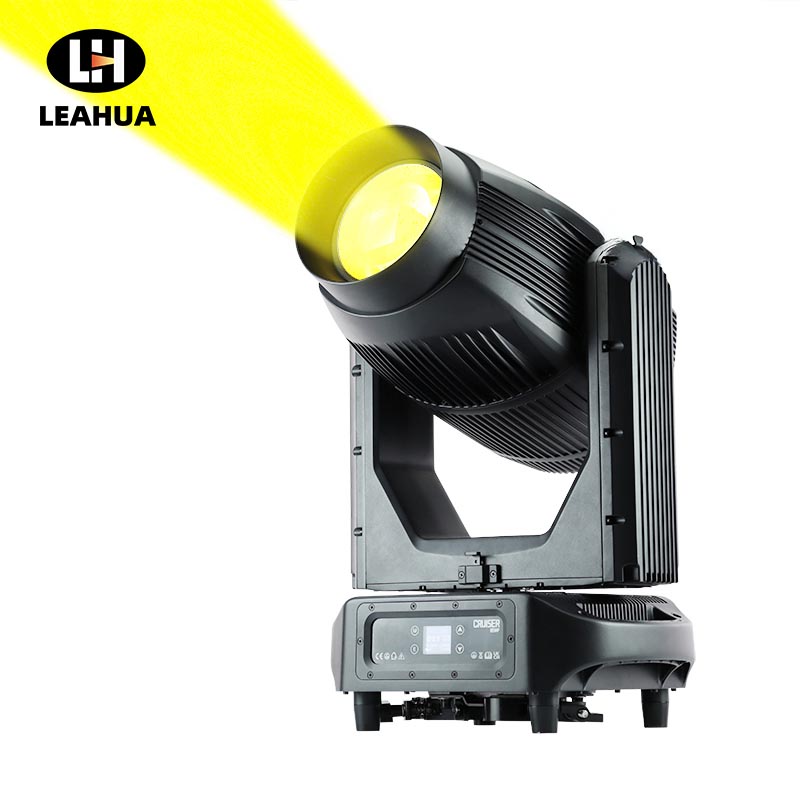

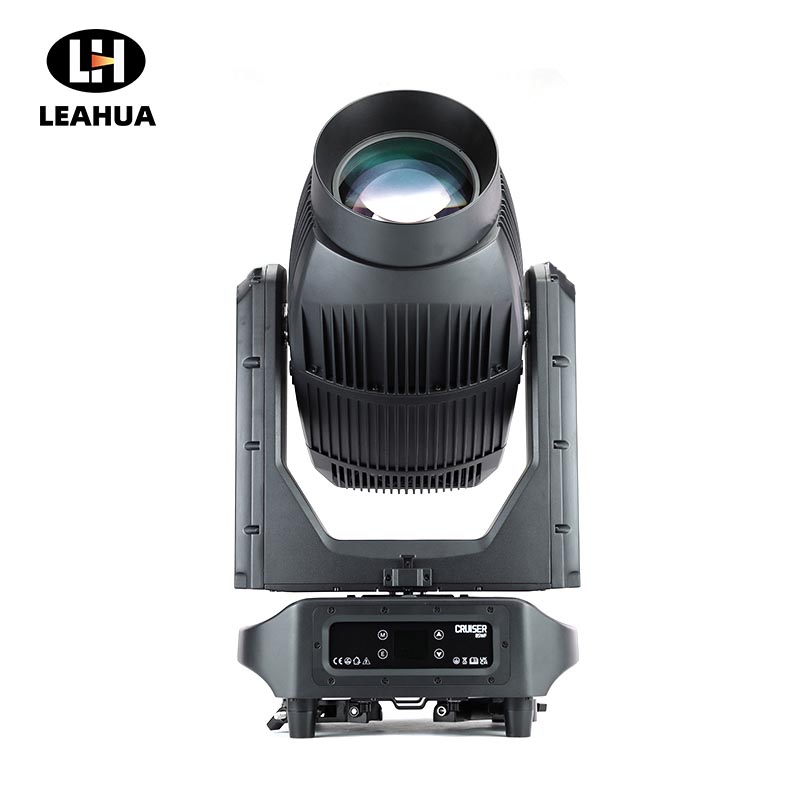

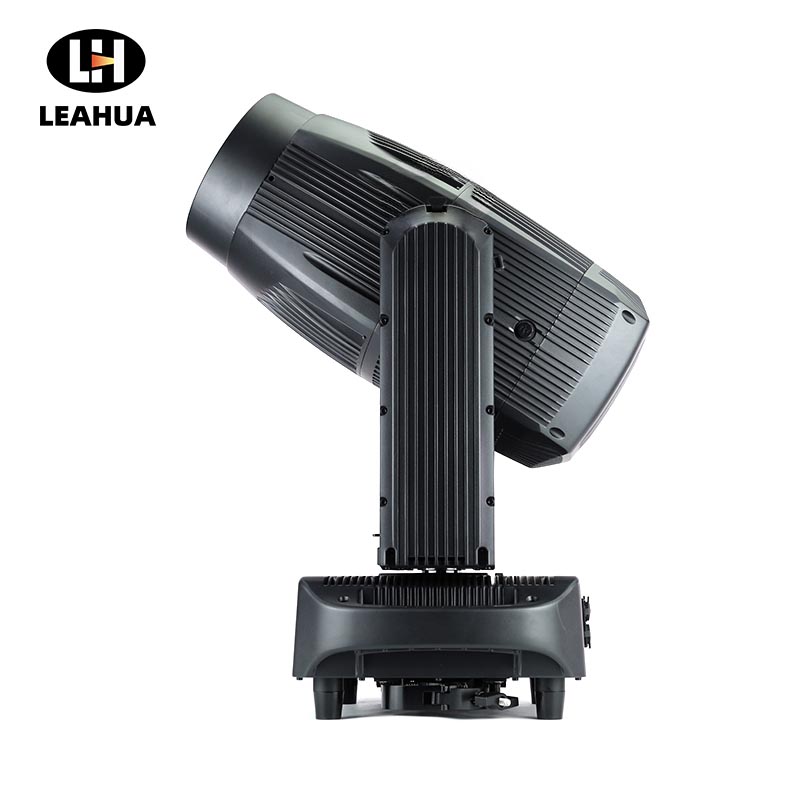

Cruiser LED 1000 BWSF

Light Source

• Light Source:700W LED module

• Color Temperature Output of Fixture: 6200K

• Life expectancy:About 50000Hours

  ( factory rated)

Effect

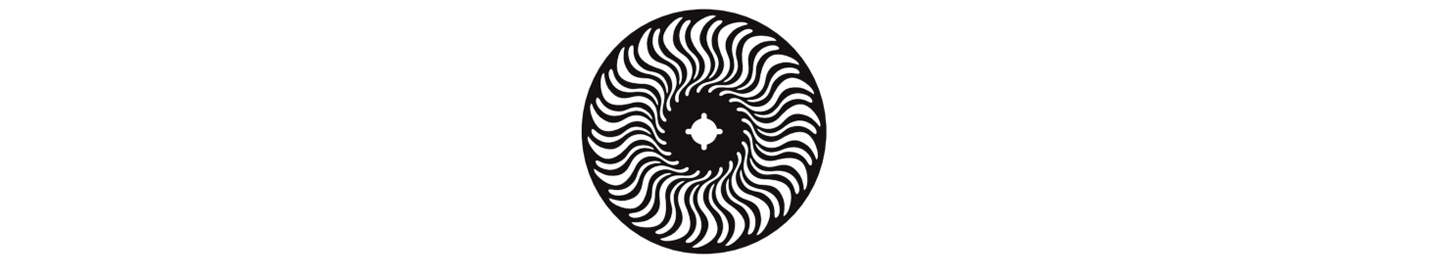

• Effect wheel: 1 aluminium animation wheel


Other Function

• Dimming：0-100% linear dimming system

• Strobe: 1-20F.P.S, speed adjustable

• Focus:Electronic focus function


• Cooling system: Low noise and effcient fan cooling system

Zoom Range

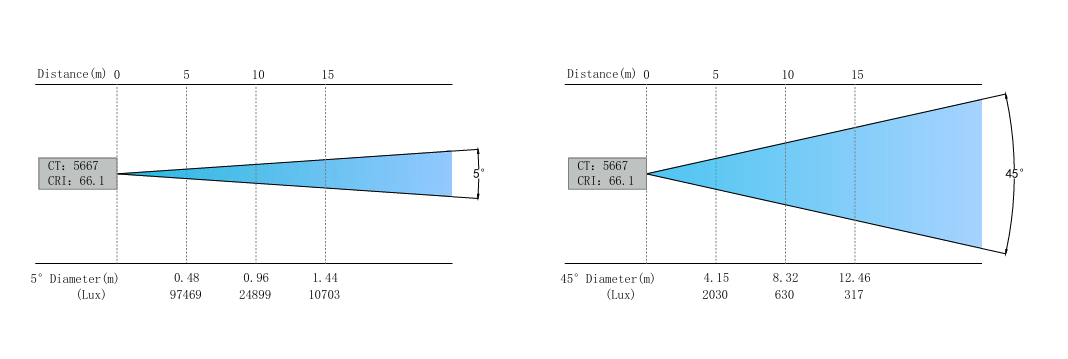

• Zoom range: 5°- 45°

Framing System

• Framing shutters: 4 individual shutter blades plus rotation

• Iris: Motorized, pulse effects up to 3 Hz

Housing

• Housing: Magnesium alloy body

• Working Environment: -10℃-45℃

• Protection Rate: IP65

Control

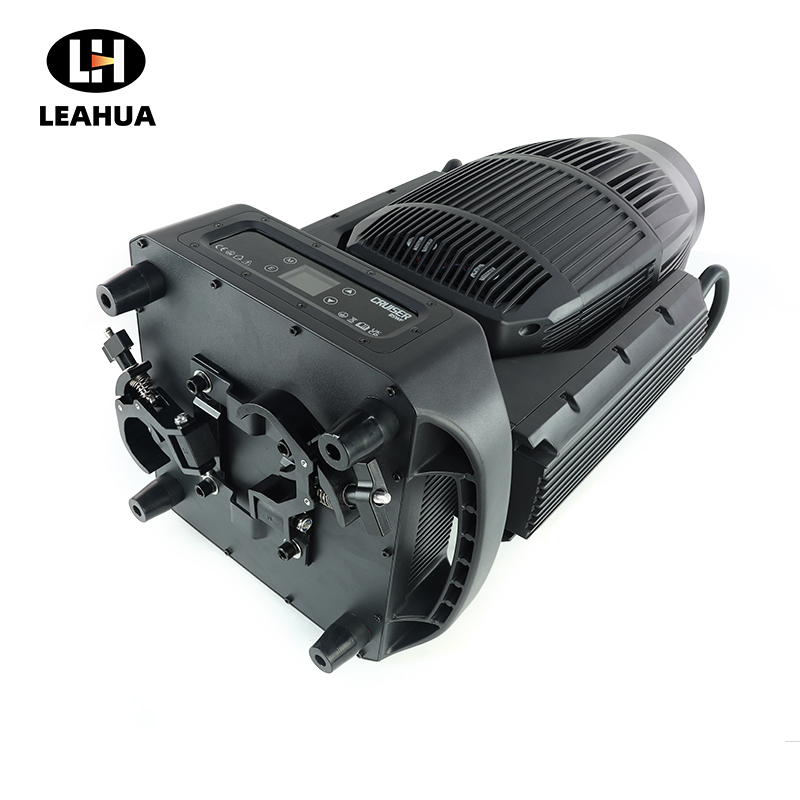

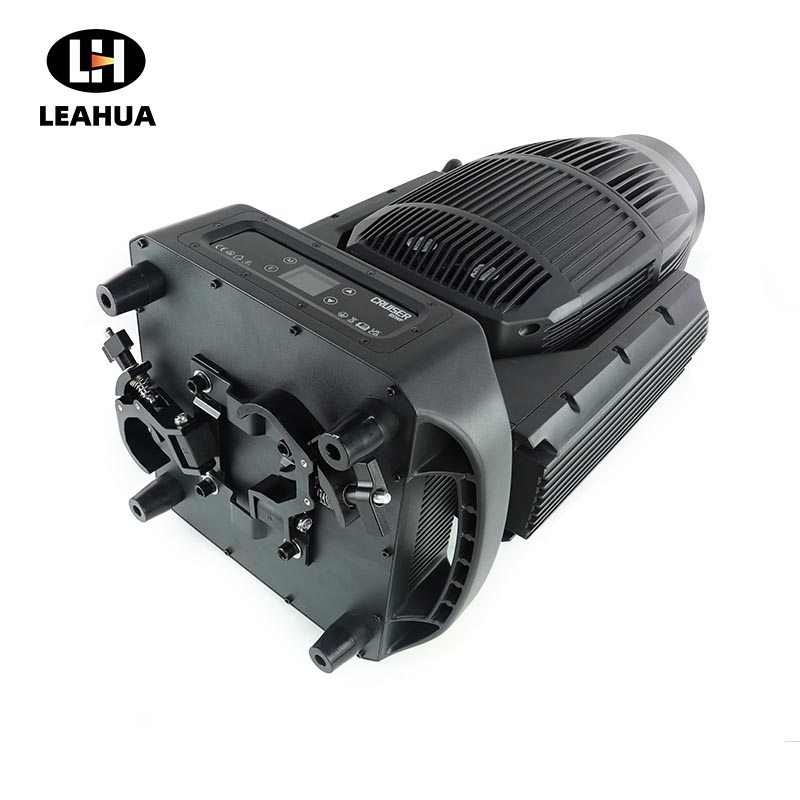

• Display: LCD display

• Control mode: DMX512, master-slave,auto,RDM

• Channel: 51/43/50/42/49CH

Prism

• Prism: 6-facet circular prism

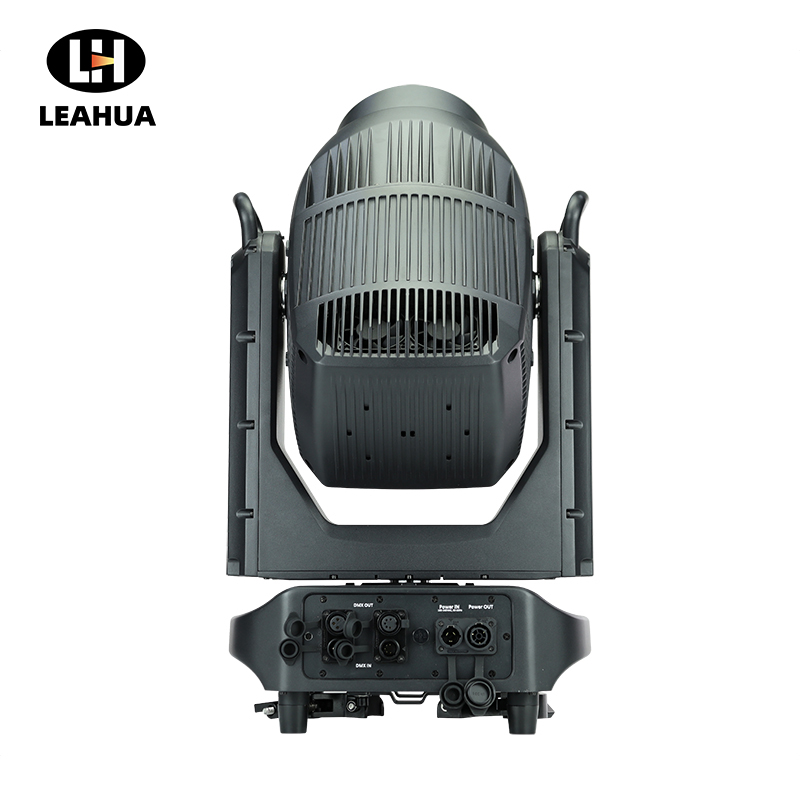

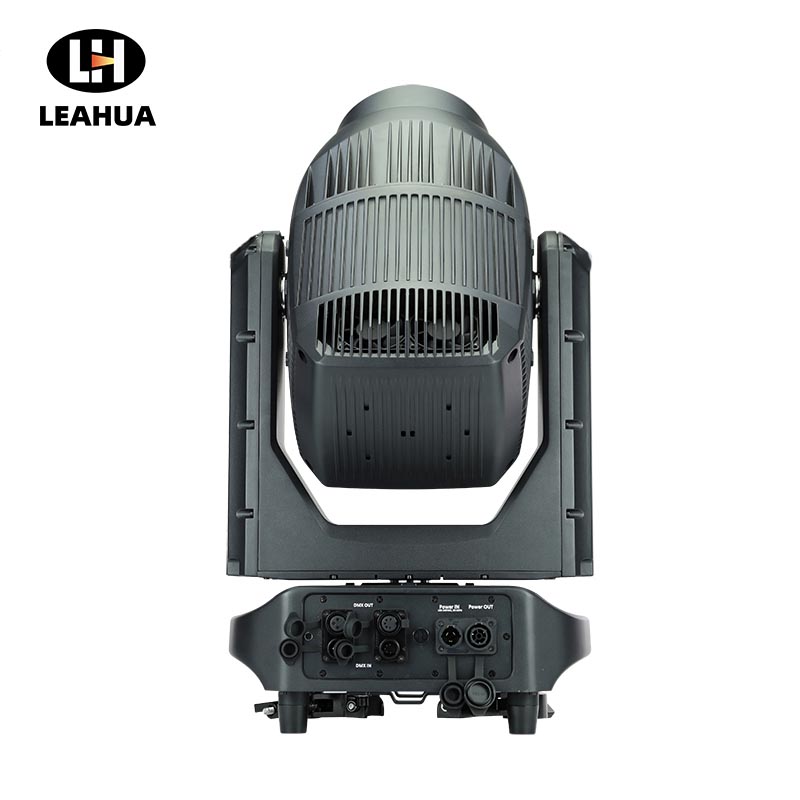

Connection

• Power connection: Powercon in/out

• DMX connection: DMX 3-pin + 5-pin in/out

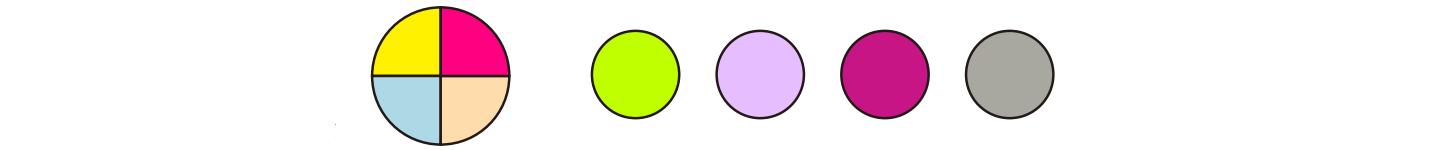

• Color wheel 1 :5 colors+ open

• Color wheel 2: 5 colors + open

• CMY:Linear CMY color mixing

• Variable CTO: 2700-6200K linearly adjustable

Frost

• Frost: 2 frost filter, light and medium

Physical Information

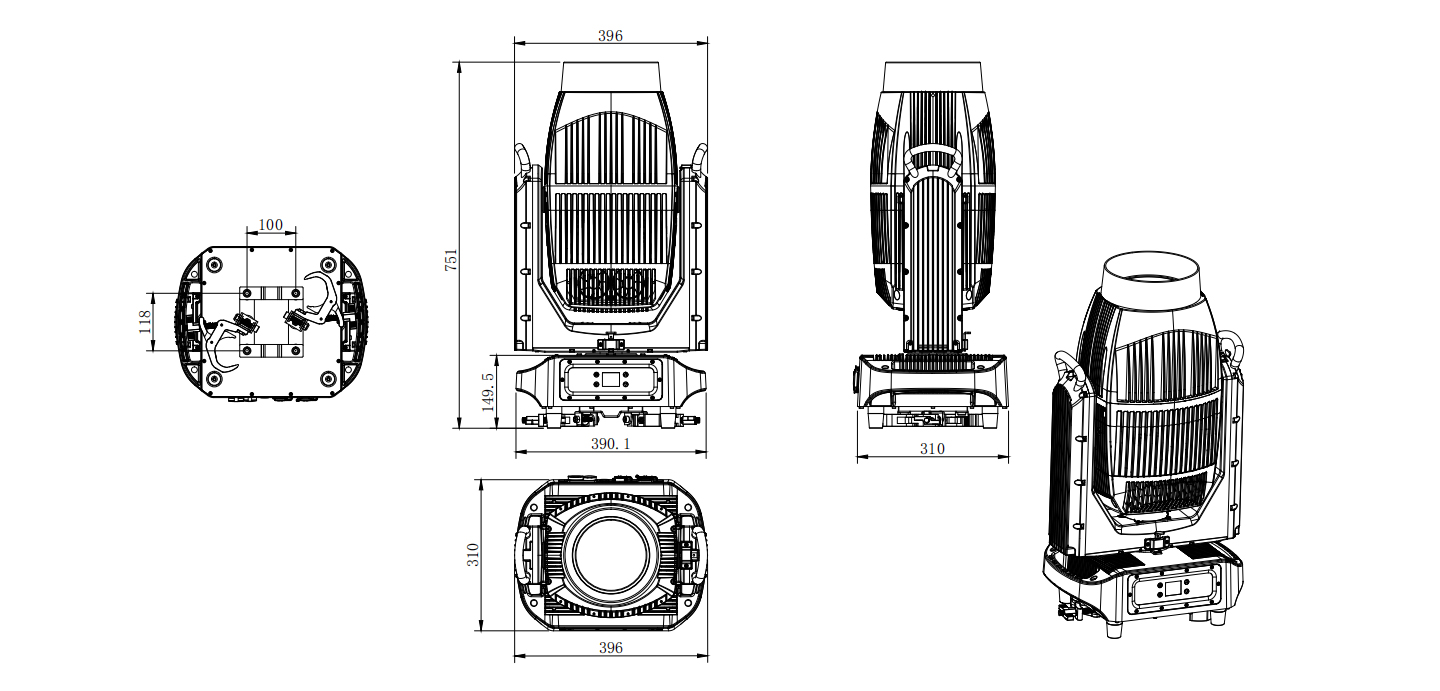

• ProductDimension:

  396*310*751mm

• Net weight:35kg
