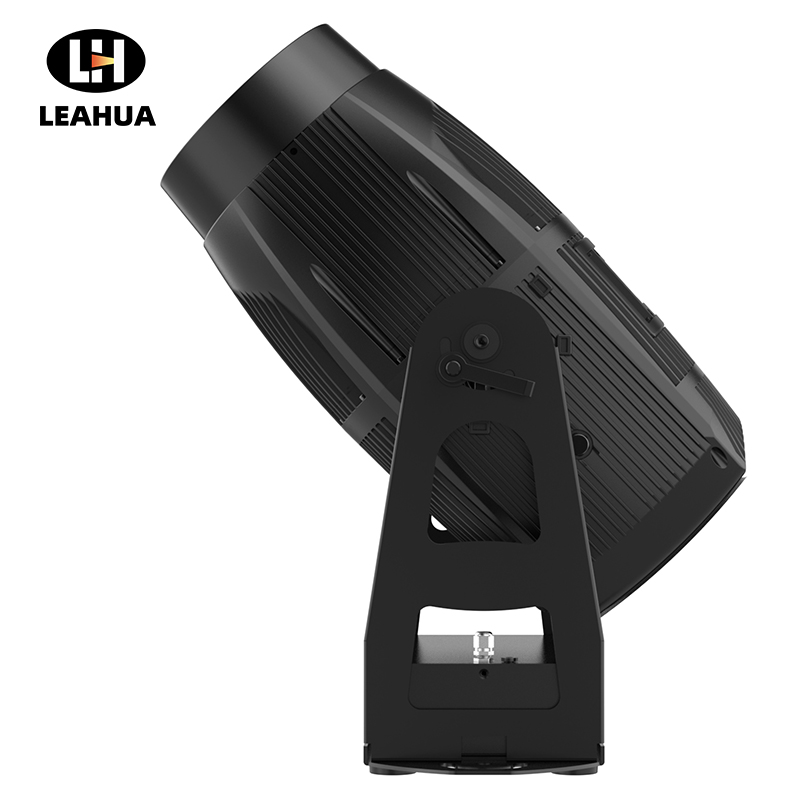

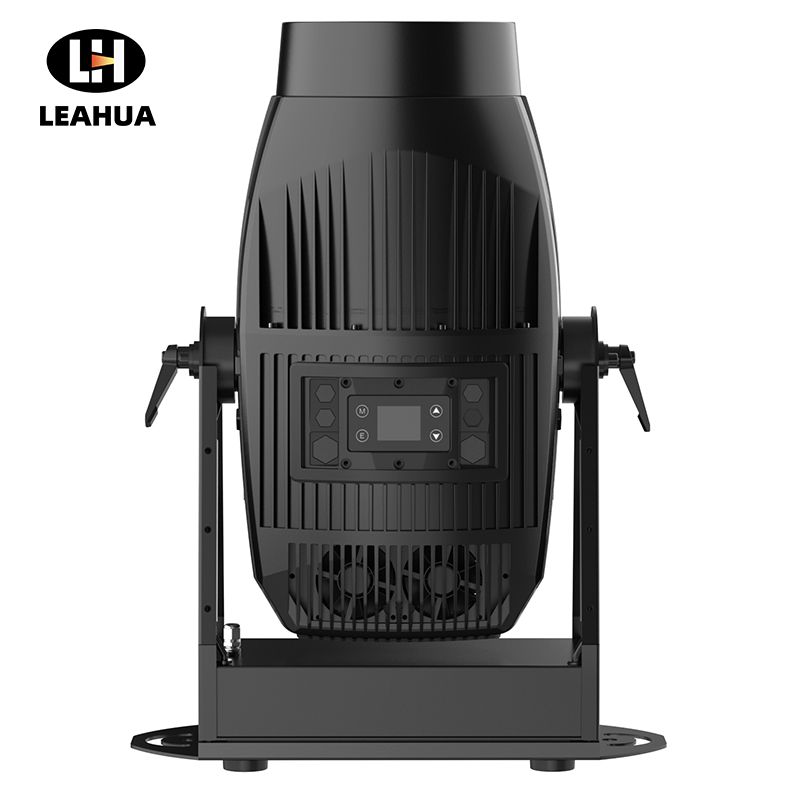

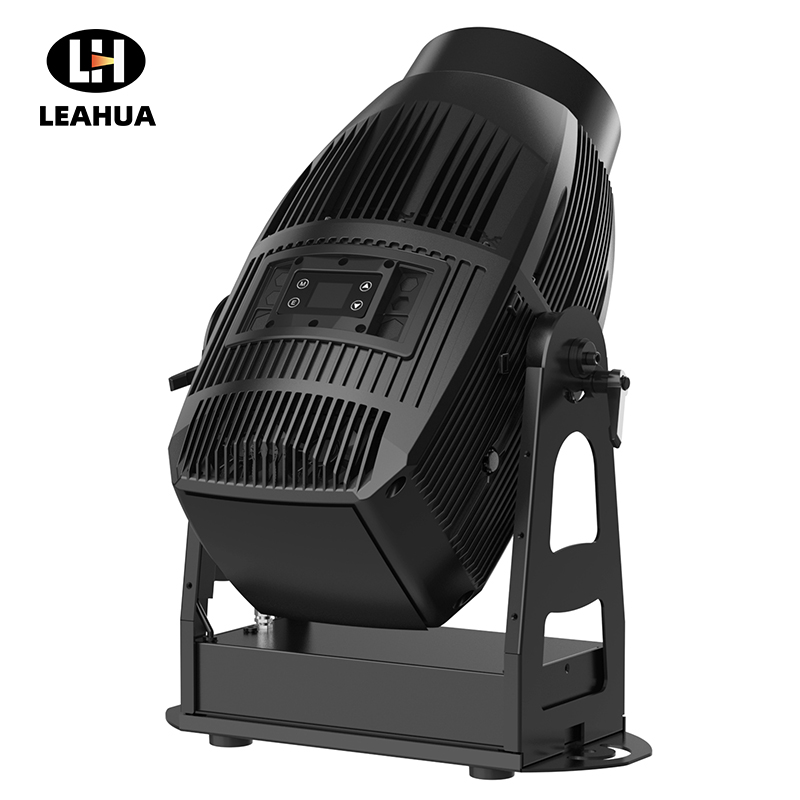

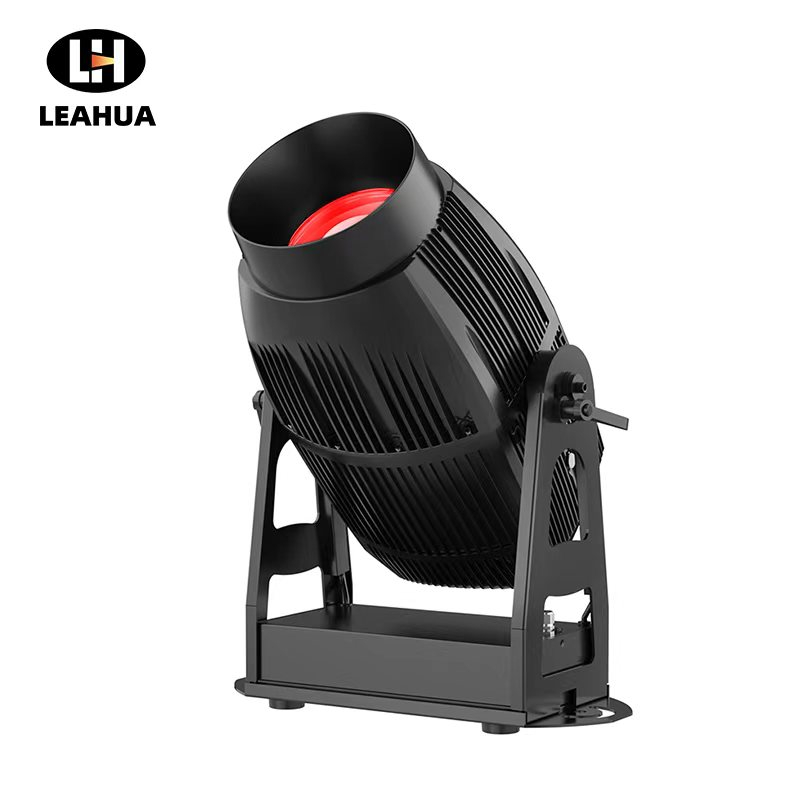

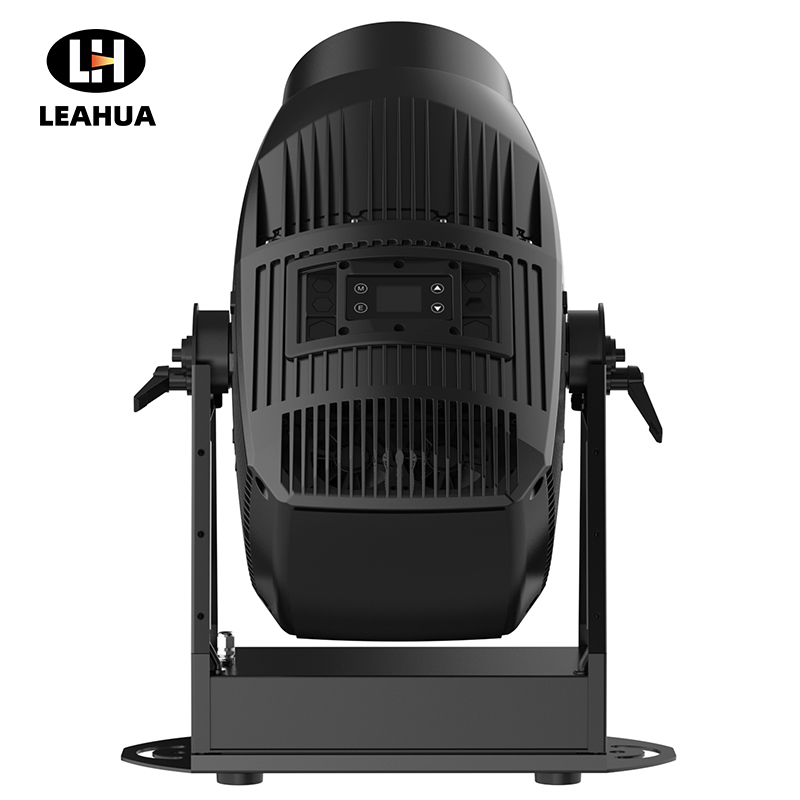

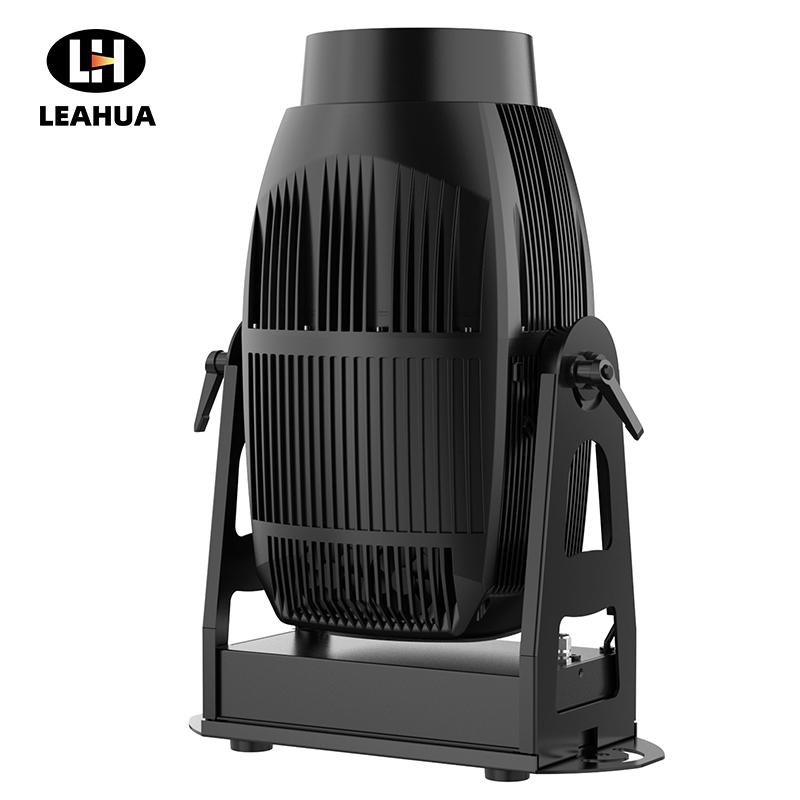

Cruiser Arc LED 700

Model No: LH -CA500
The Crusier Arc LED 700 is a powerful and reliable LED gobo projector designed for professional stage, architectural lighting, and creative installations. Powered by 500W LED module with 9000K color temperature output, it delivers crisp, high-contrast projections with exceptional clarity and brightness. With a versatile motorized zoom range from 3° to 45°, the fixture allows precise control over projection size and coverage.Housed in magnesium alloy body, Crusier Arc LED 700 is built to withstand demanding environments. It carries an IP65 rating for dust and water resistance Compact yet robust.
Availability:
Quantity:
Inquiry Favorite

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Previous:
Next:
Cruiser Arc LED 700
Technical Specification
Photometrics
Dimensions
Video
Download

218K059D


Technical Specification


Power

  • Input Voltage Range: AC100-240V 50/ 60Hz

  • Power Consumption: 620W

Control

  • Display: LCD display

  • Control Mode: DMX512, master-slave, auto, RDM

  • Control Channel: 12CH

Connection

  • Power Connection: Powercon in/ out

  • Signal Connection: DMX 3-pin + 5-pin in/ out

Light Source

  • Light Source: 500W LED module

  • Color Temperature Output of Fixture: 9000K

  • Life expectancy: 20000hours( factory rated)

Gobo

  • Static Gobo Wheel: 7 gobos+open

  • Rotating Gobo Wheel: 7 gobos+open

Housing

  • Housing: Magnesium alloy body

  • Working Environment: -10℃- 45℃

  • Protection Rate: IP65

  • Physical information

  • Product Dimensions: 450×462×513mm

  • Net Weight: 23.4kg

Zoom Range

  • Zoom Range: 3°-45°

Other Function

  • Dimming: 0-100% linear dimming system

  • Strobe: 1-20 F.P.S, speed adjustable

  • Focus: Electronic focus function

  • Cooling System: Low noise and efficient fan cooling system

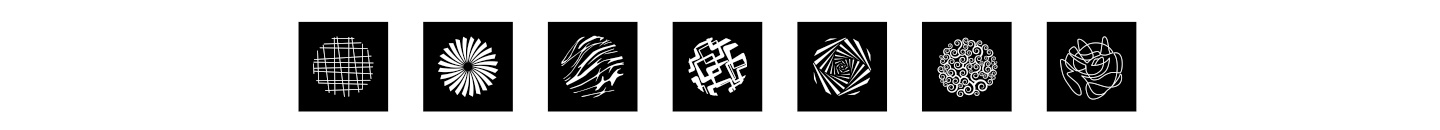

Static Gobo Wheel


Crusier-Arc-LED-7001


Rotating Gobo Wheel


Crusier-Arc-LED-7002

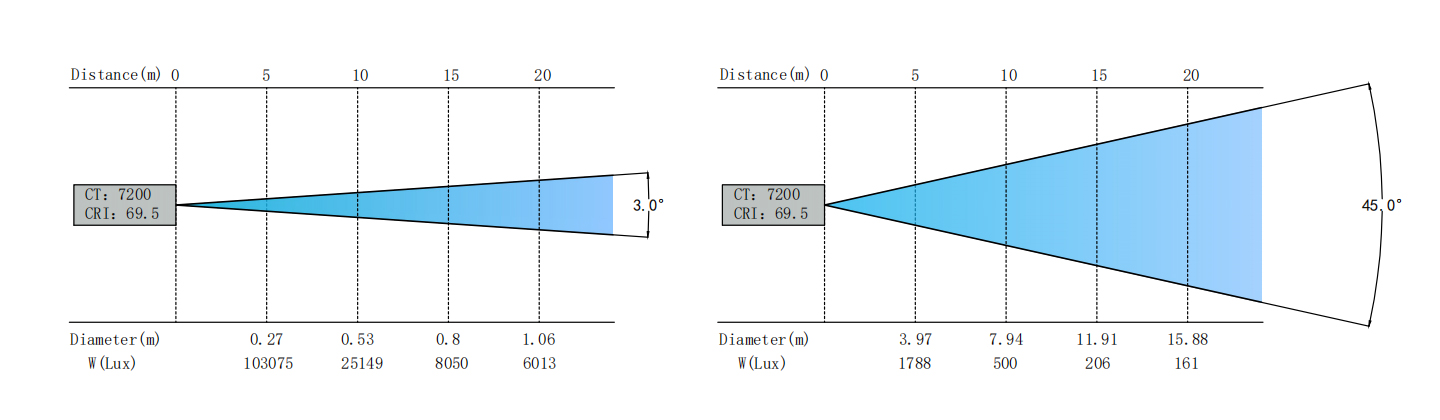

Photometrics

Crusier-Arc-LED-7003

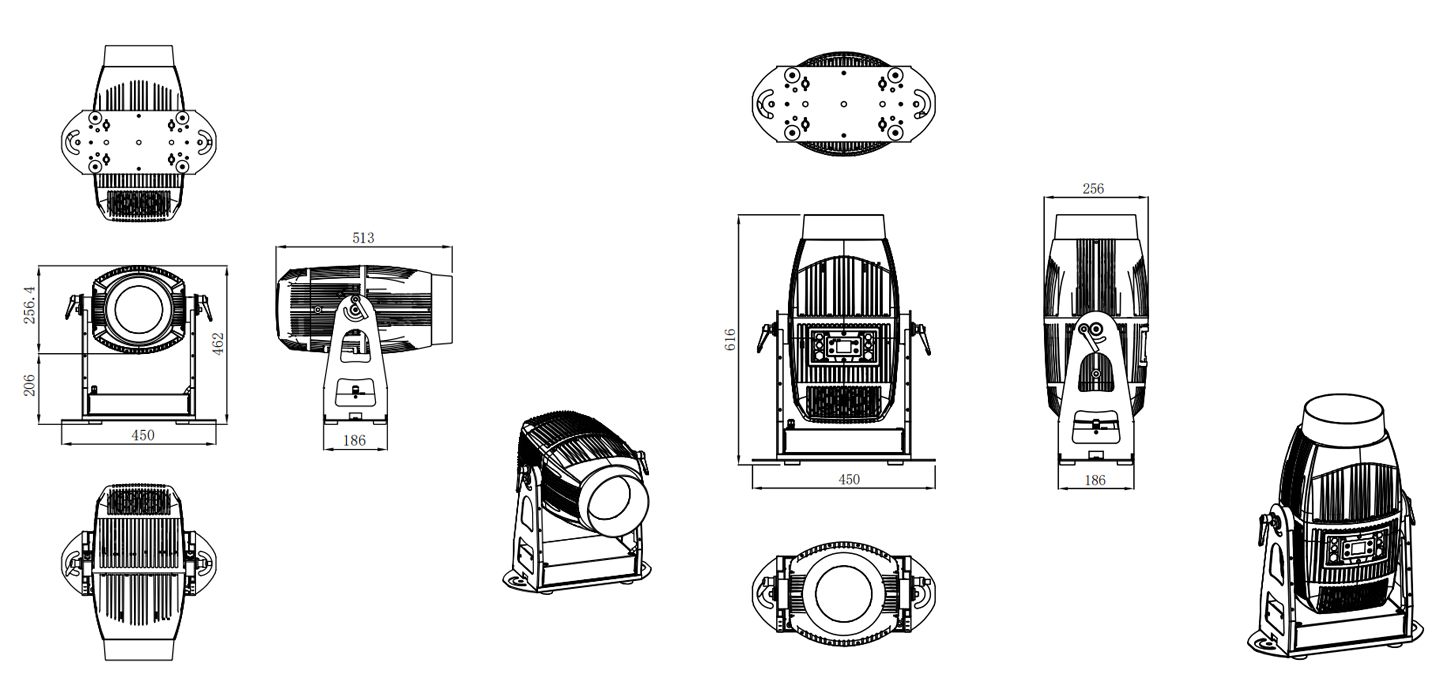

Dimensions


Crusier-Arc-LED-7004
