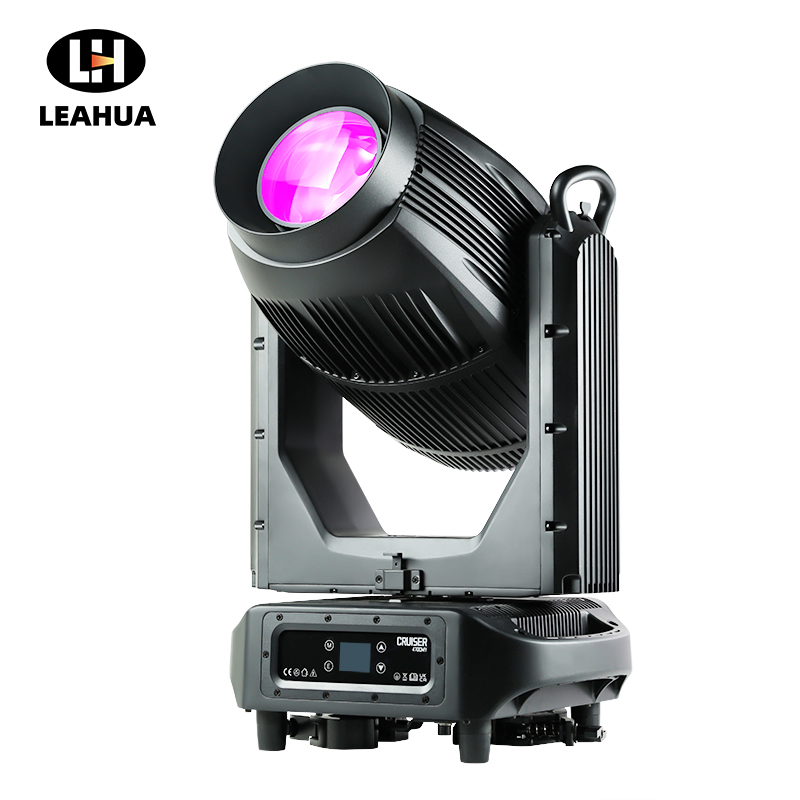

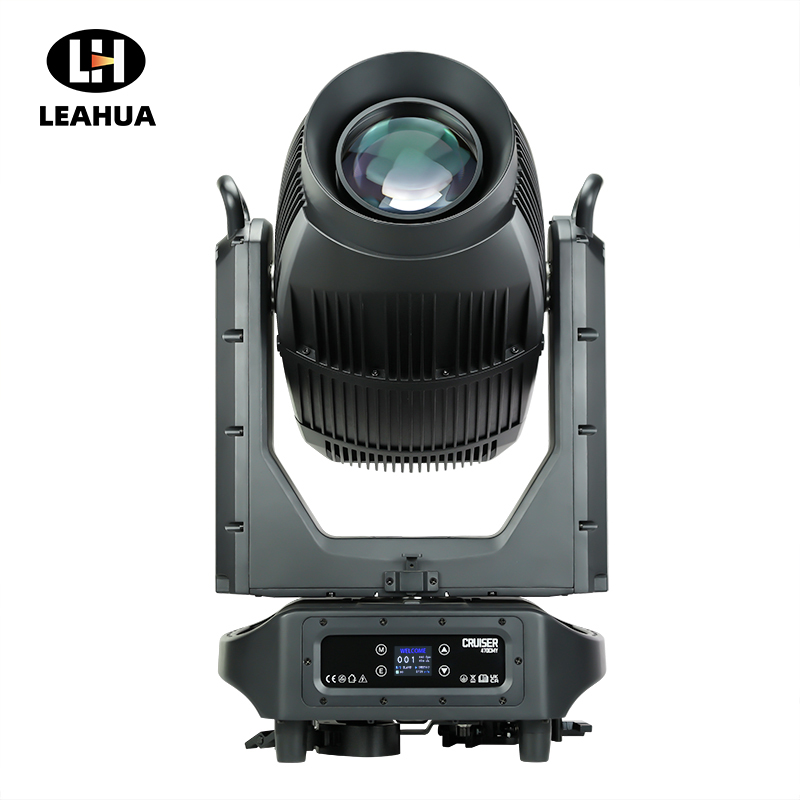

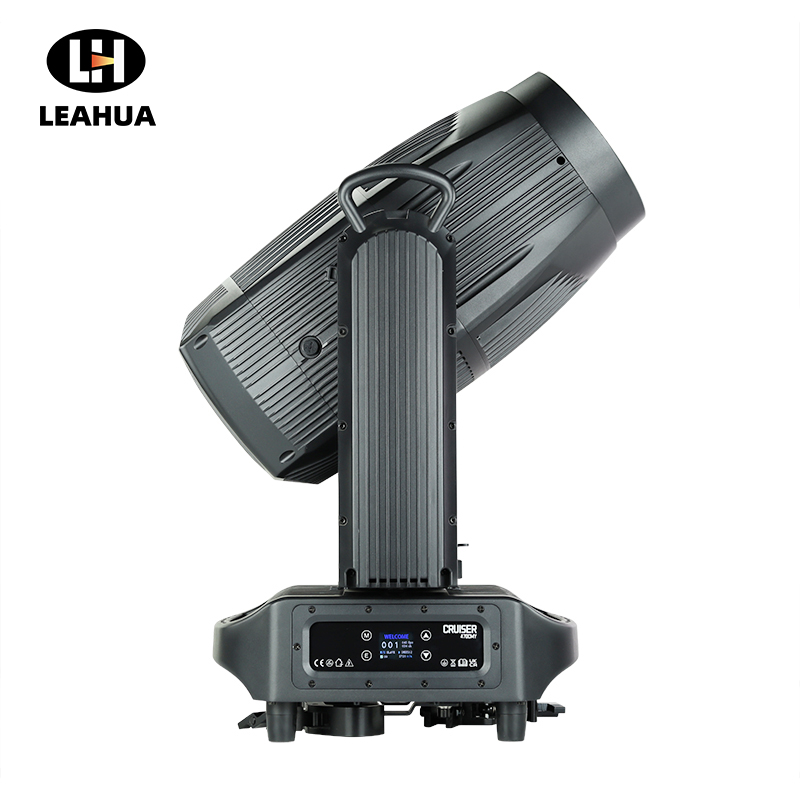

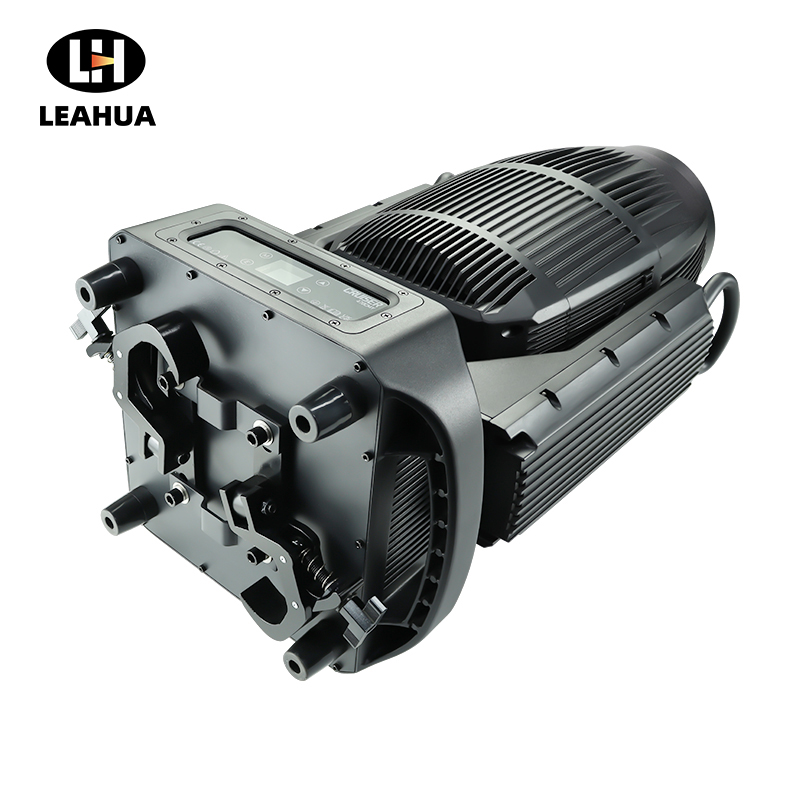

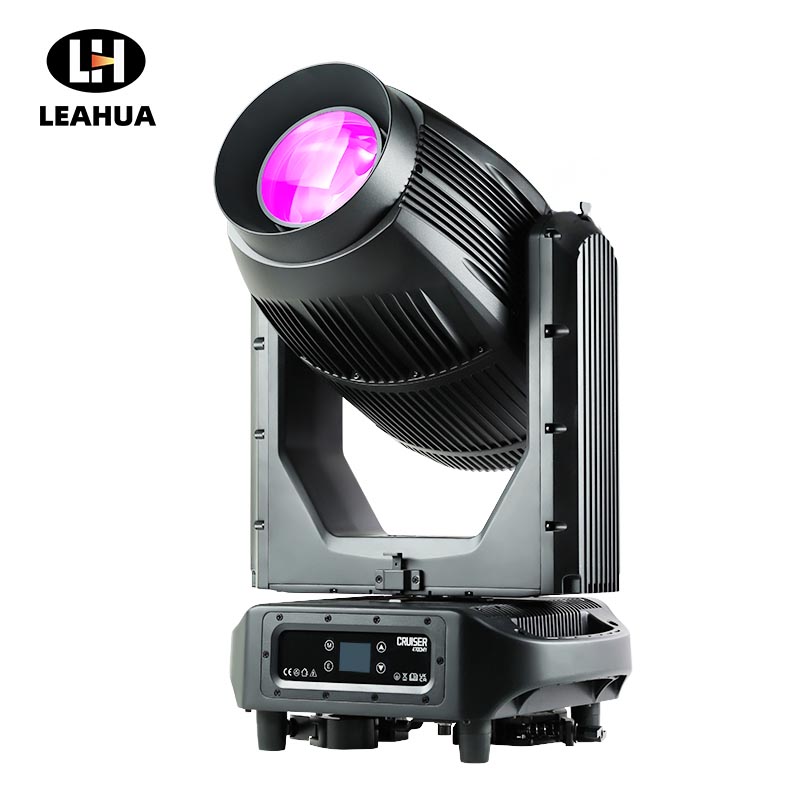

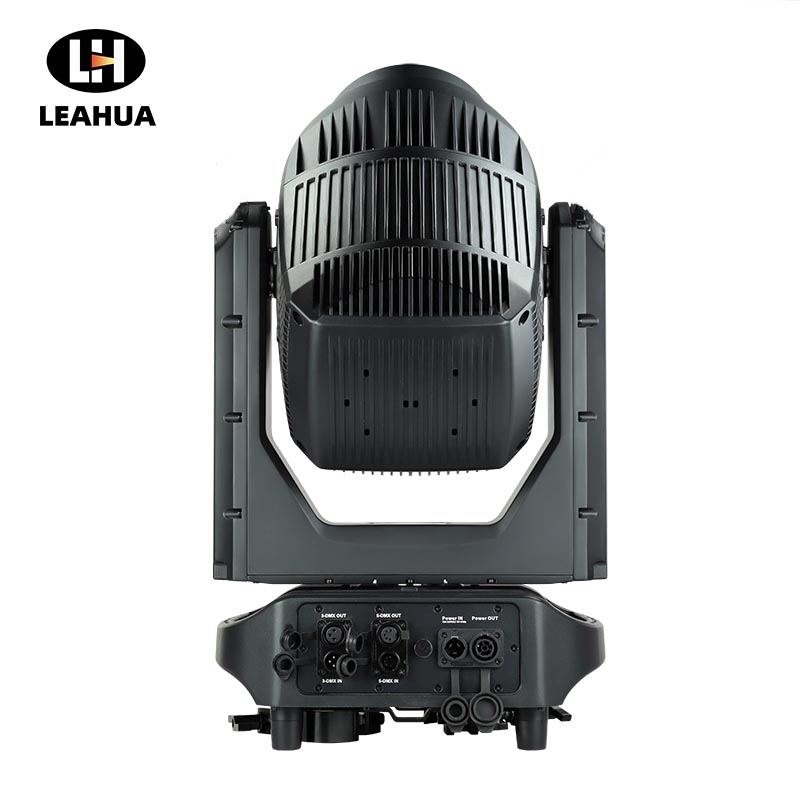

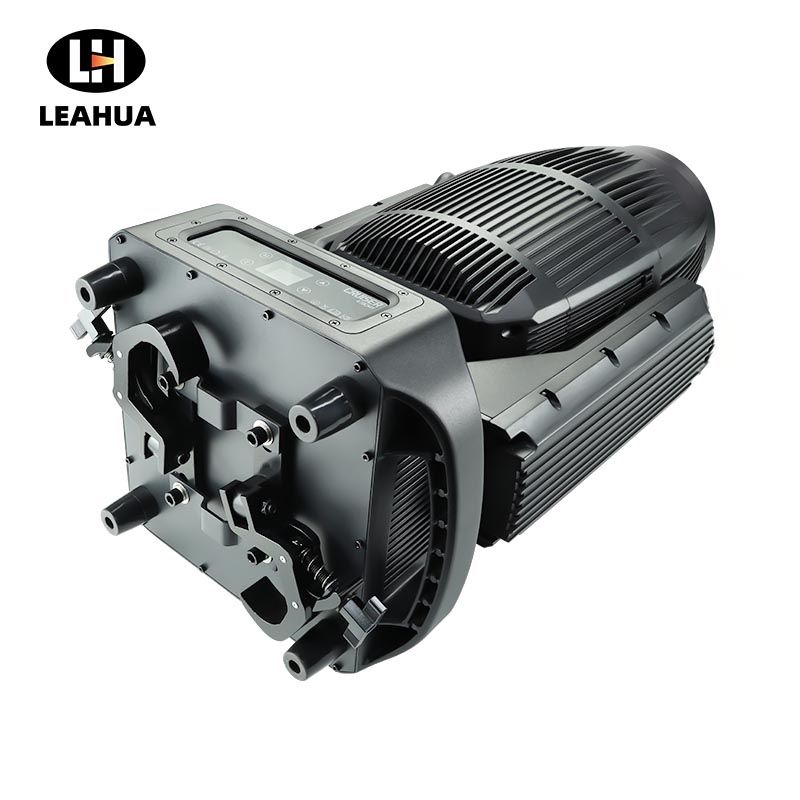

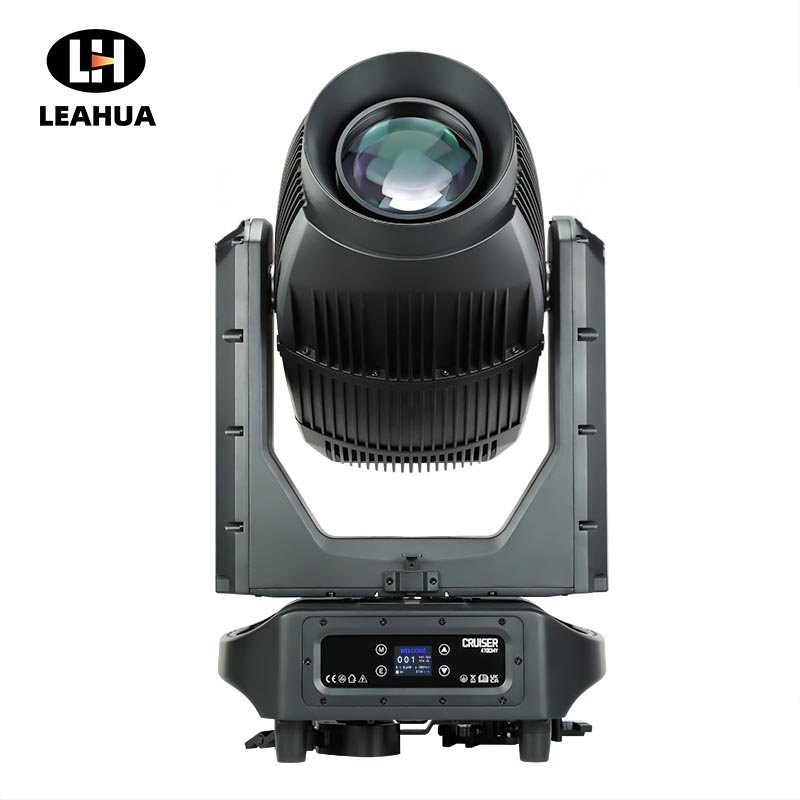

Cruiser 470 BWS

Model No: LH-C473
The Cruiser 470 BWS is equipped with high-performance 420W USHIO gas discharge bubbles, providing pure white light up to 6600K. The magnesium alloy body and IP65 protection level enable it to handle various harsh outdoor performance environments .Zoom range is 2 ° -44 °.Equipped with 13 color (including CTO), linear CMY infinite color mixing, 14 fixed gobos , 9 rotating gobos, effect wheels.
Availability:
Quantity:
Inquiry Favorite

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Previous:
Next:
Cruiser 470 BWS
Technical Specification
Photometrics
Dimensions
Video
Download

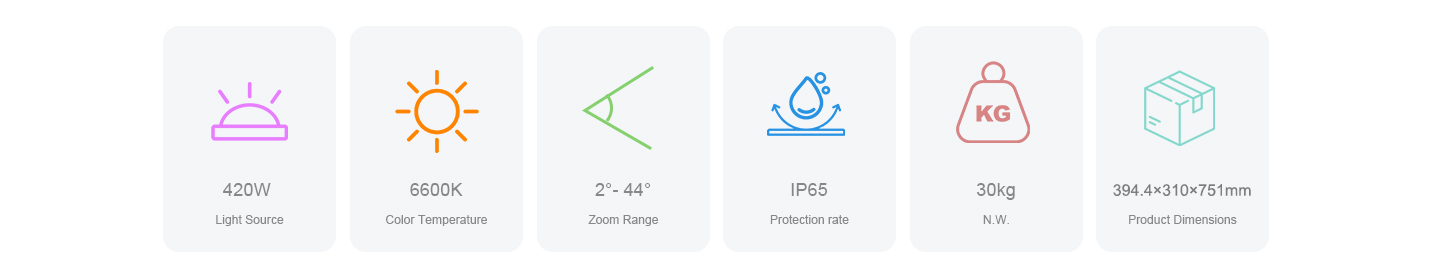

218A044C


Technical Specification



Power

  • Input Voltage Range: AC100-240V 50/ 60Hz

  • Power Consumption: 620W

Color

  • Color Wheel: 13 colors( including 2 CTO filters)+open

  • CMY: Linear CMY color mixing

Other Function

  • Dimming: 0-100% linear dimming system

  • Strobe: 1-20 F.P.S, speed adjustable

  • Focus: Electronic focus function

  • Cooling System: Low noise and efficient fan cooling system

Light Source

  • Light Source: 420W USHIO lamp

  • Color Temperature Output of Fixture: 6600K

  • Life Expectancy: 2500 hours( factory rated)

Gobo

  • Static Gobo Wheel: 14gobos + open

  • Rotating Gobo Wheel: 9 gobos + open

  • Image Diameter: 12mm

  • Outside Diameter: 16mm

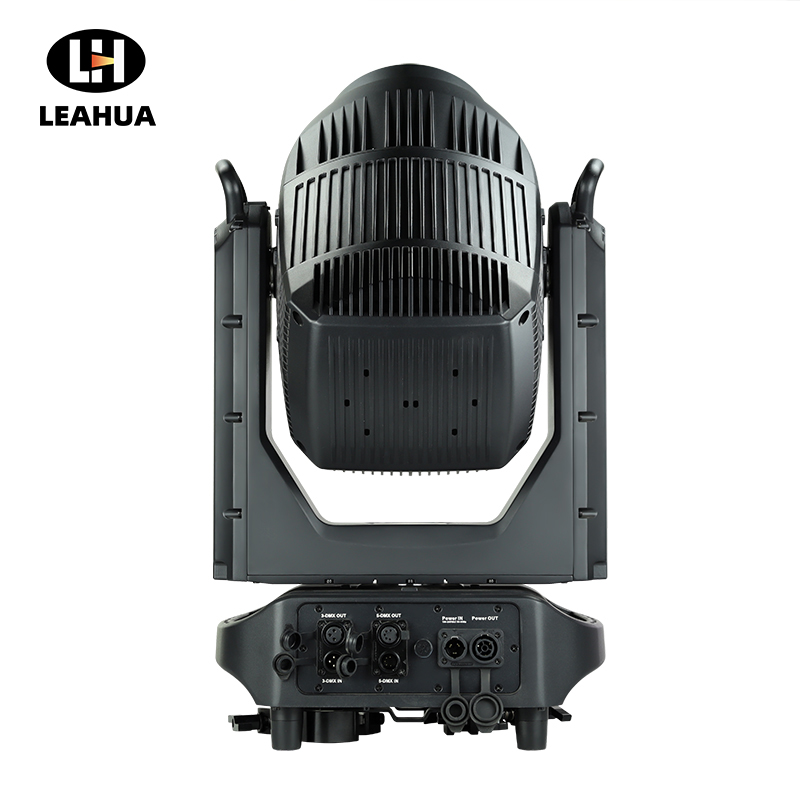

Connection

  • Power Connection: Powercon in/ out

  • Signal Connection: DMX 3-pin + 5-pin in/ out

Zoom Range

  • Zoom Range: 2°-44°

Effect

  • Effect Wheel: 1 dynamic effect wheel

Housing

  • Housing: Magnesium alloy body

  • Working Environment: -10℃-45℃

  • Protection Rate: IP65

Control

  • Display: LCD display

  • Control Mode: DMX512, master-slave, auto,RDM

  • Control Channel: 34/ 39CH

Prism

  • 2×6-facet linear prism

  • 1×18-facet double-layer circular prism

  • 2×8-facet circular prism( different angle 12°& 18°)

  • 1×4-facet circular prism

Physical information

  • Product Dimensions 394.4×310×751mm

  • Net Weight: 30kg

Head Movement

  • Pan/ Tilt: 540°/ 270° 16bit with auto position correction

Frost

  • Frost: 2 frost filter, light+medium

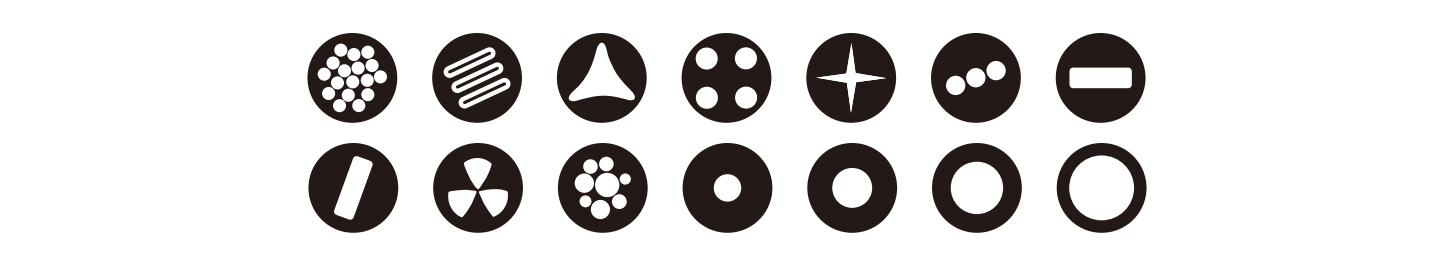

Static Gobo Wheel


CRUISER-470-BSW-3

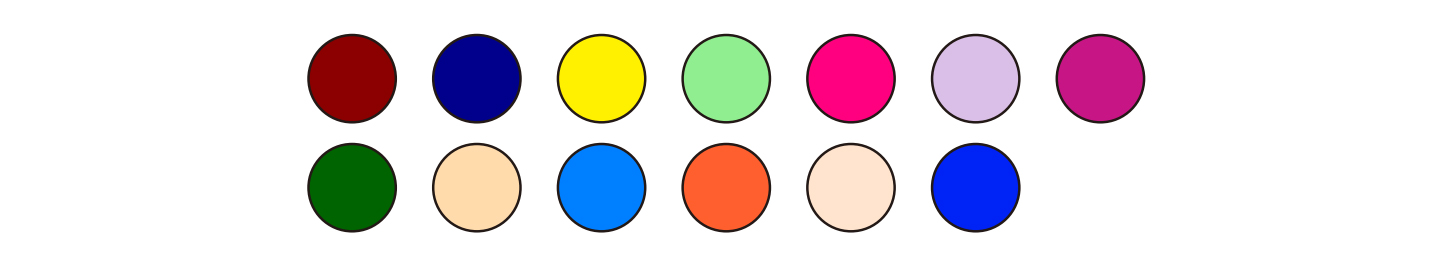

Colour Wheel


CRUISER-470-BSW-2

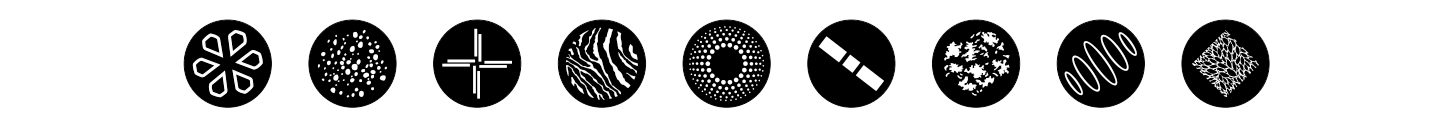

Rotating Gobo Wheel


CRUISER-470-BSW-1

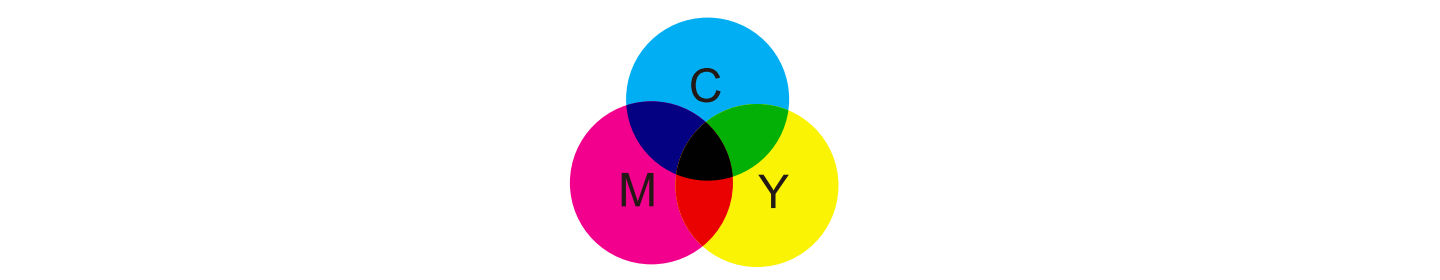

CMY


Cruiser-470-Beam4

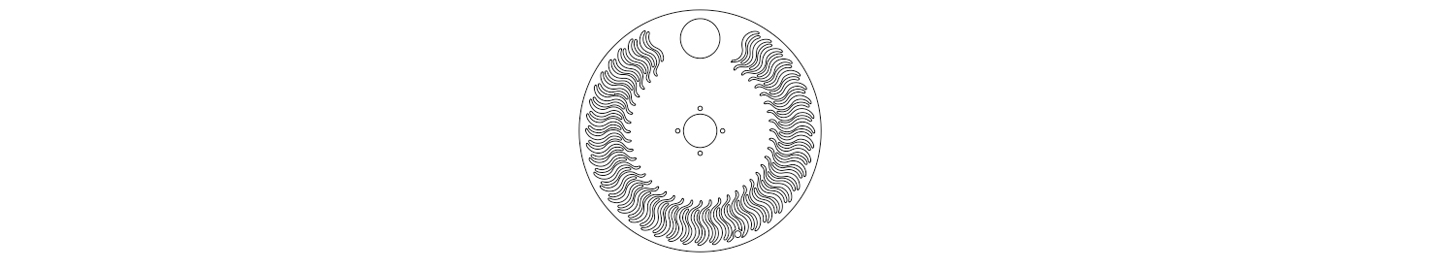

Animation Wheel & CTO


CRUISER-470-BSW-4

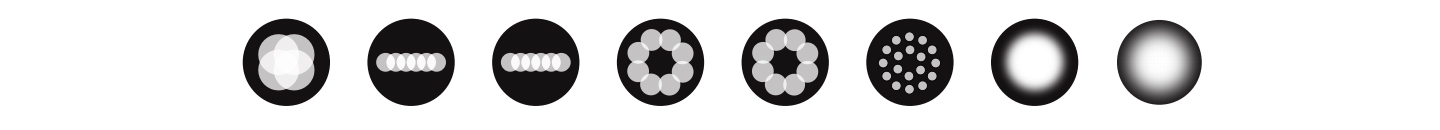

Prism & Frost


CRUISER-470-BSW-5

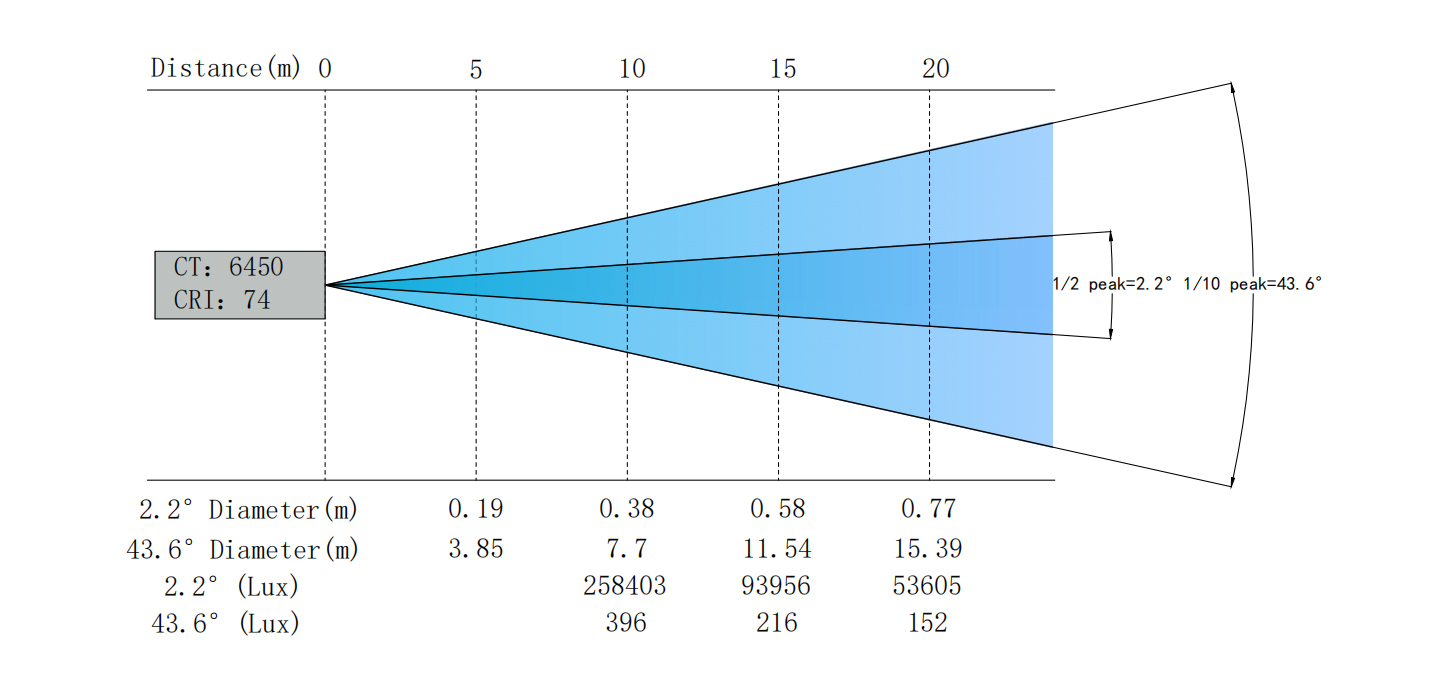

Photometrics

CRUISER-470-BSW-6

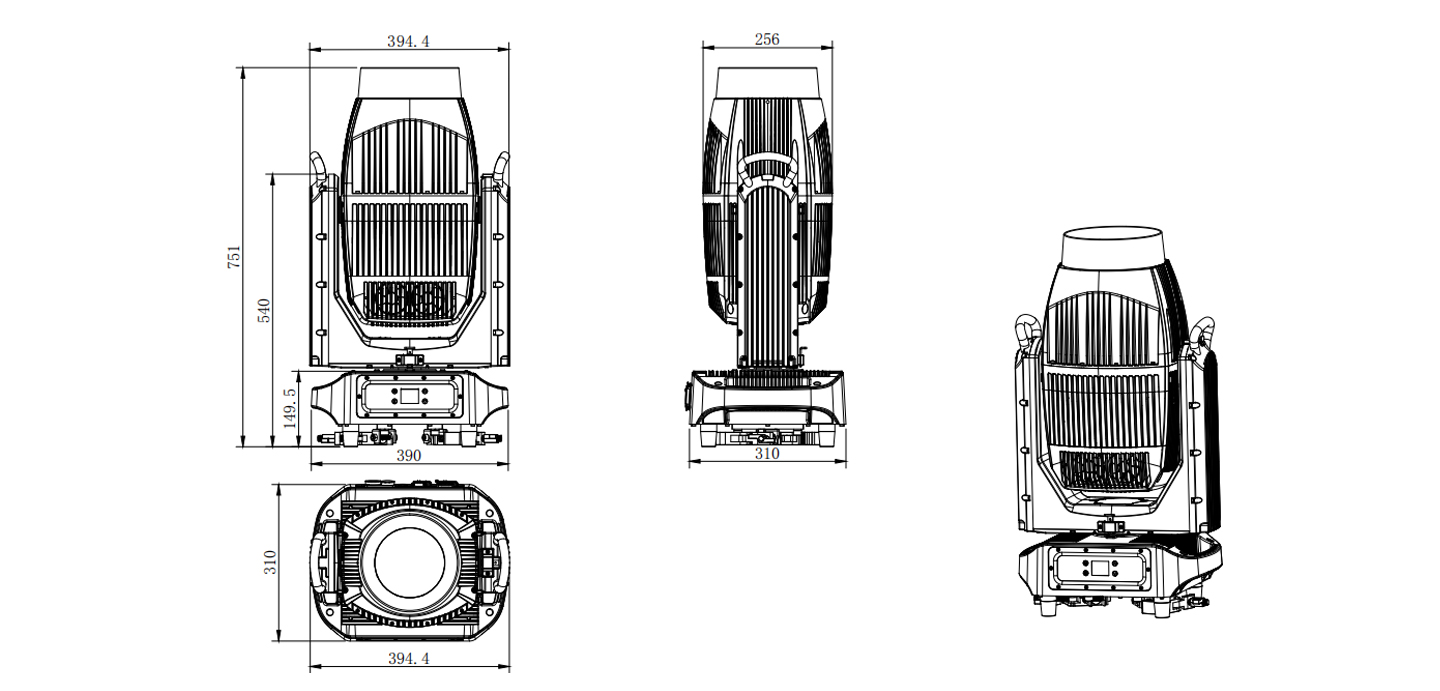

Dimensions


CRUISER-470-BSW-7
