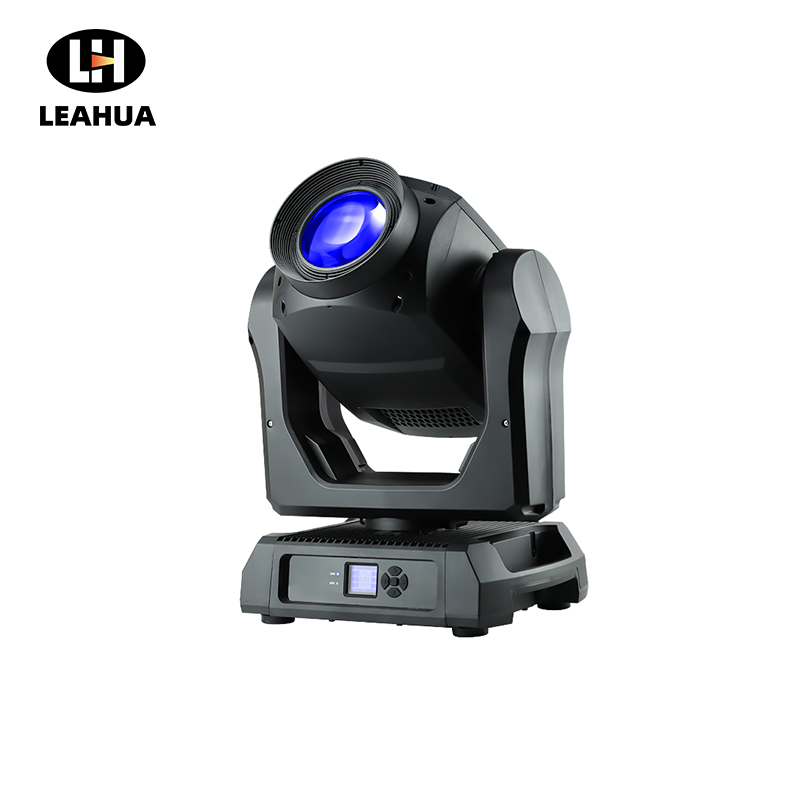

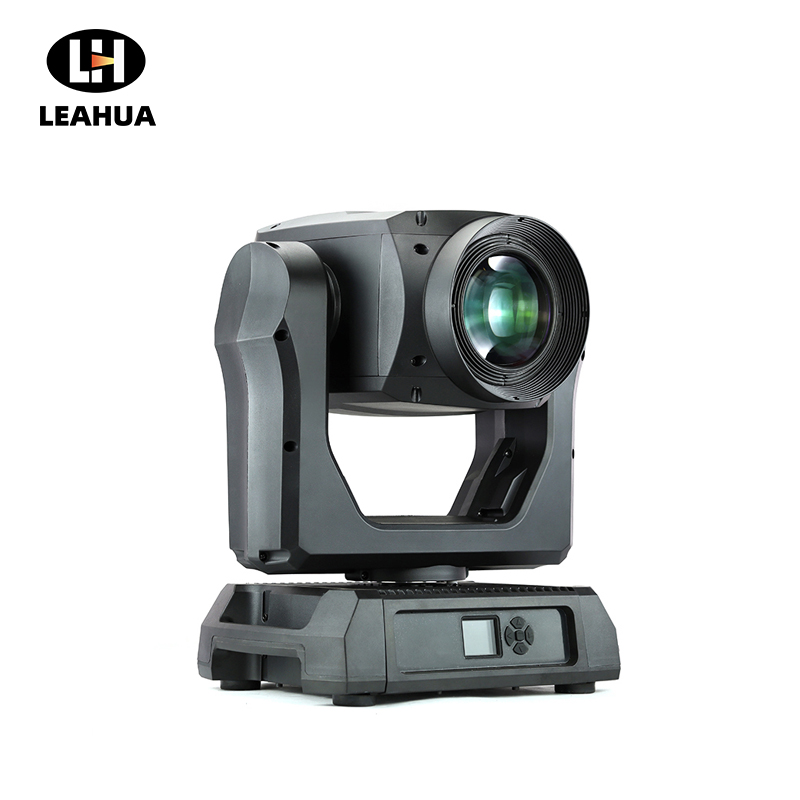

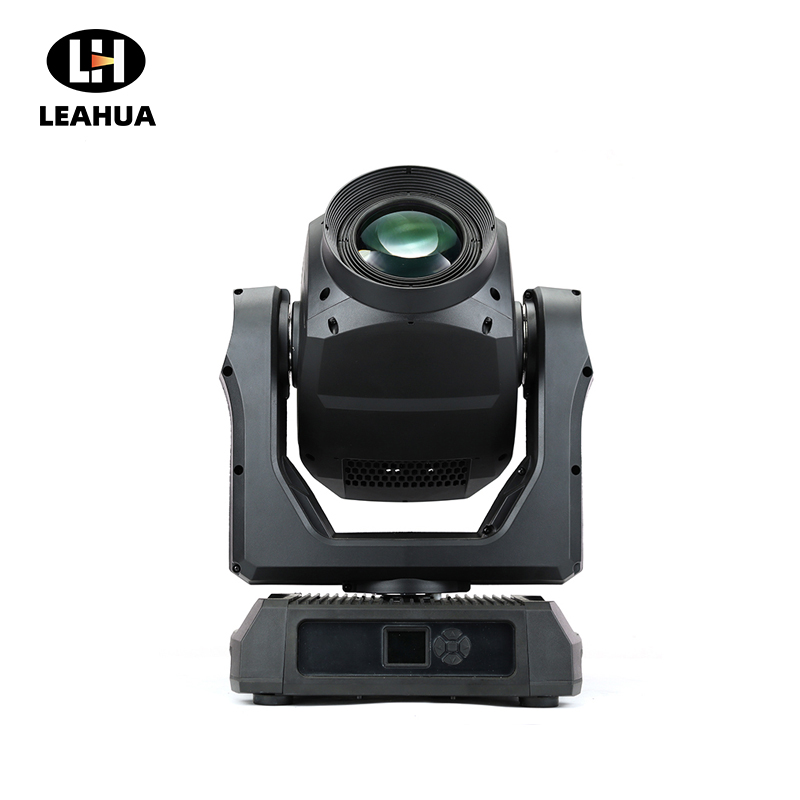

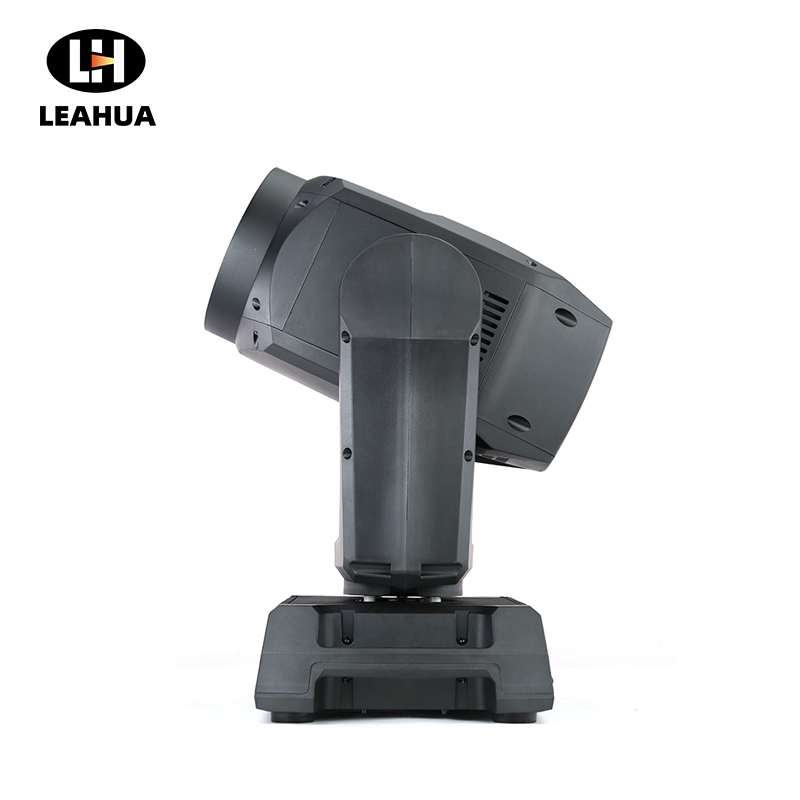

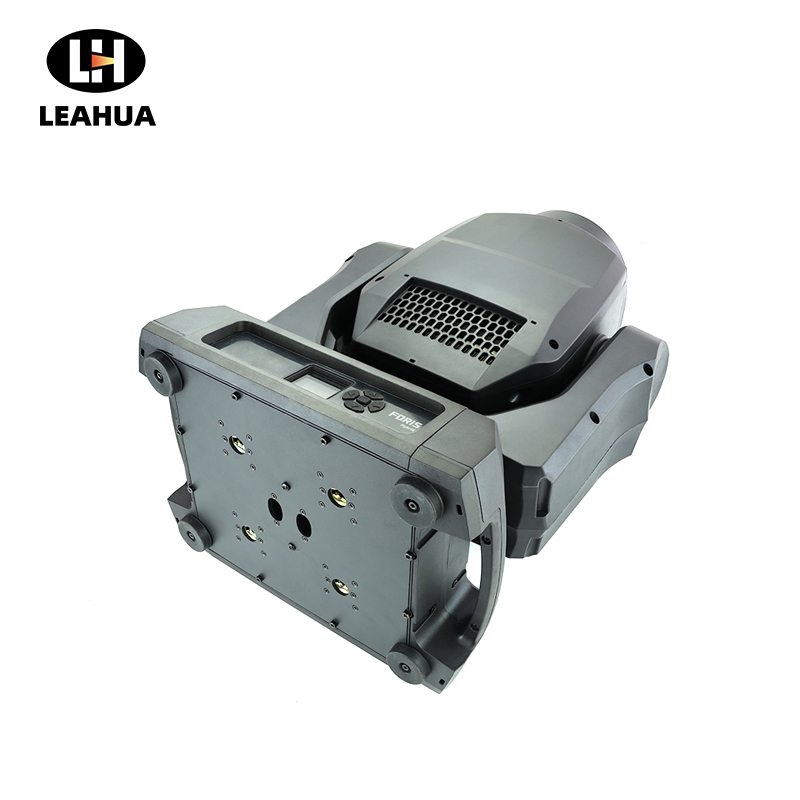

Cruiser LED 300 BWS

Model No: LH -C330
Crusier LED 300 BWS is 300W LED BWS moving head light, delivering 9100K color temperature. Its wide zoom range—from a tight 2° beam to a broad 40°field.Designed for creative control, the Crusier LED 300 BWS features a comprehensive color system including a 13-color wheel, linear CMY color mixing, and continuously variable CTO adjustment from 3200K to 9100K. The housing is constructed from die-cast aluminum, nylon, and glass fiber, rated IP65 for protection against dust and water ingress.With small size and weight of 18.5 kg, the Crusier LED 300 BWS balances power, flexibility, and portability, making it an ideal choice for outdoor events.
Availability:
Quantity:
Inquiry Favorite

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Previous:
Next:
Cruiser LED 300 BWS
Technical Specification
Photometrics
Dimensions
Video
Download

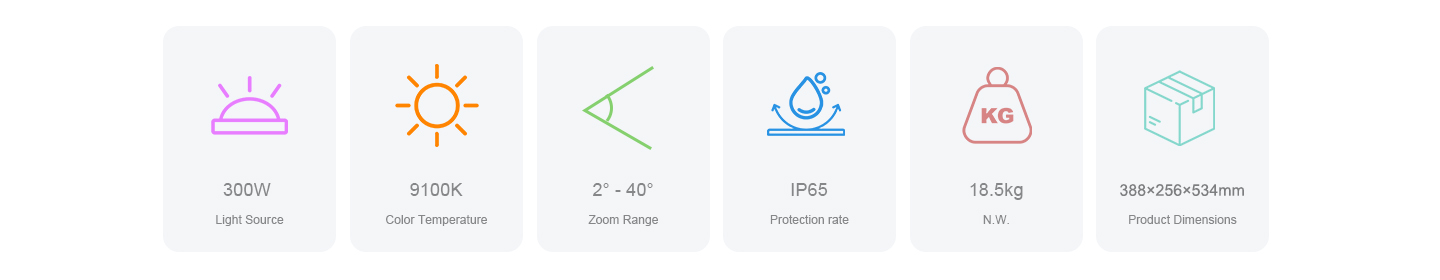

218C083IP


Technical Specification


Power

  • Input Voltage Range: AC100-240V 50/ 60Hz

  • Power Consumption: 380W

Color

  • Color wheel: 13 colors（including 2 CTO filters）+open

  • CMY: Linear CMY color mixing

  • Variable CTO: 3200-9100K linearly adjustable

Other Function

  • Dimming: 0-100% linear dimming system

  • Strobe: 0-20 F.P.S, speed adjustable

  • Focus: Electronic focus function

  • Cooling System: Low noise and efficient fan cooling system

Light Source

  • Light Source: 300W white LED module

  • Color Temperature Output of Fixture: 9100K

  • CRI> 70

  • Life Expectancy: 20000hours( factory rated)

Gobo

  • Static Gobo Wheel: 11 gobos+open

  • Rotating Gobo Wheel: 9 gobos+open

  • Image Diameter:9.5mm

  • Outside Diameter:11.8mm

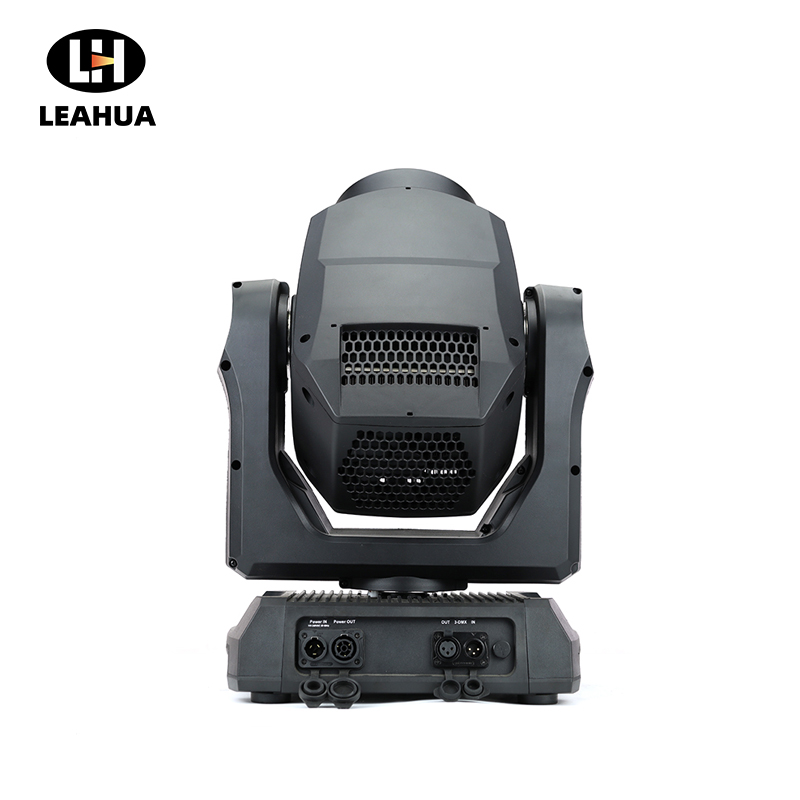

Connection

  • Power Connection: Powercon in/ out

  • Signal Connection: DMX 3-pin in / out

Zoom Range

  • Zoom Range: 2°-40°

Prism

  • 1×6-facet linear prism

  • 1×3-facet circular prism

Housing

  • Housing: Die-casting aluminum, nylon and glass fiber

  • Working Environment: -10℃- 45℃

  • Protection Rate: IP65
Control

  • Display: LCD display

  • Control Mode: DMX512, master-slave, auto, RDM

  • Control Channel: 26CH

Frost

  • Frost: 1 frost filter

Physical Information

  • Product Dimensions: 388×256×534mm

  • Net Weight: 18.5kg

Head Movement

  • Pan 540°, Tilt 270° 16bit with auto position correction

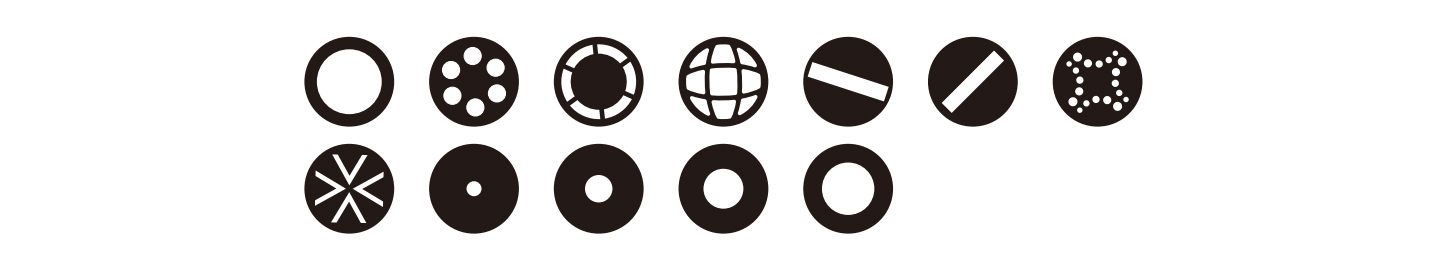

Static Gobo Wheel


Crusier-LED-300-BSW-1

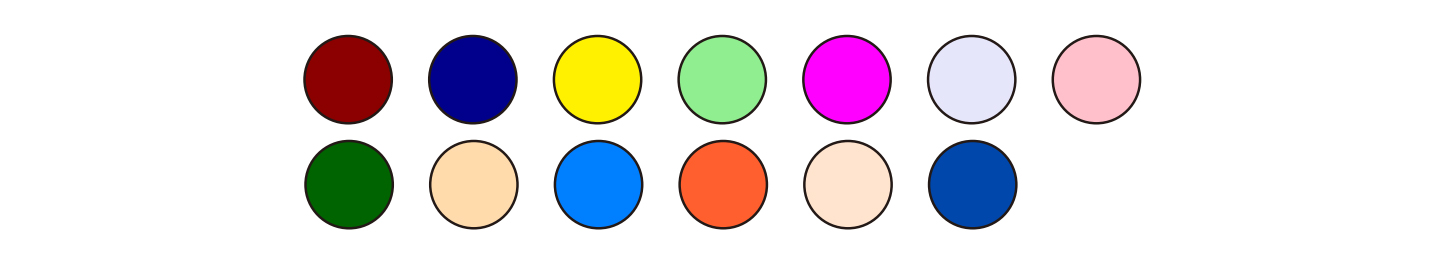

Colour Wheel


Crusier-LED-300-BSW-2

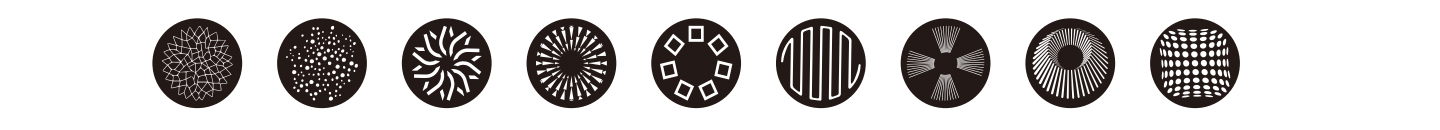

Rotating Gobo Wheel


Crusier-LED-300-BSW-3

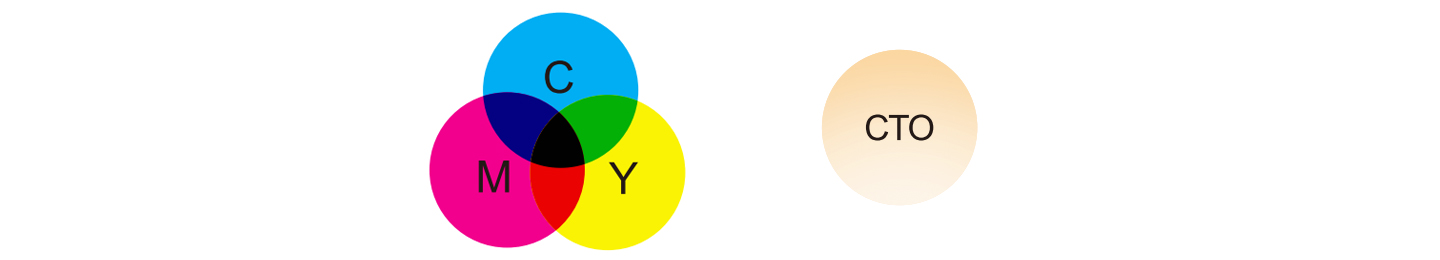

CMY & CTO

Crusier-LED-700-BWS4

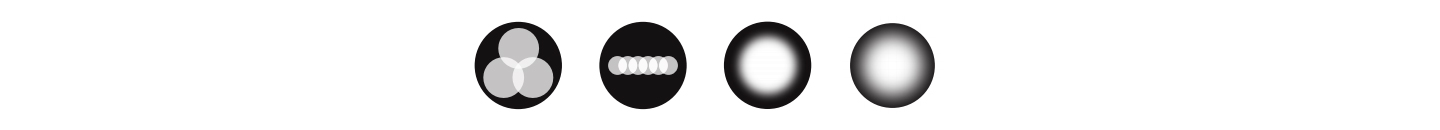

Prism  &  Frost


Crusier-LED-300-BSW-4

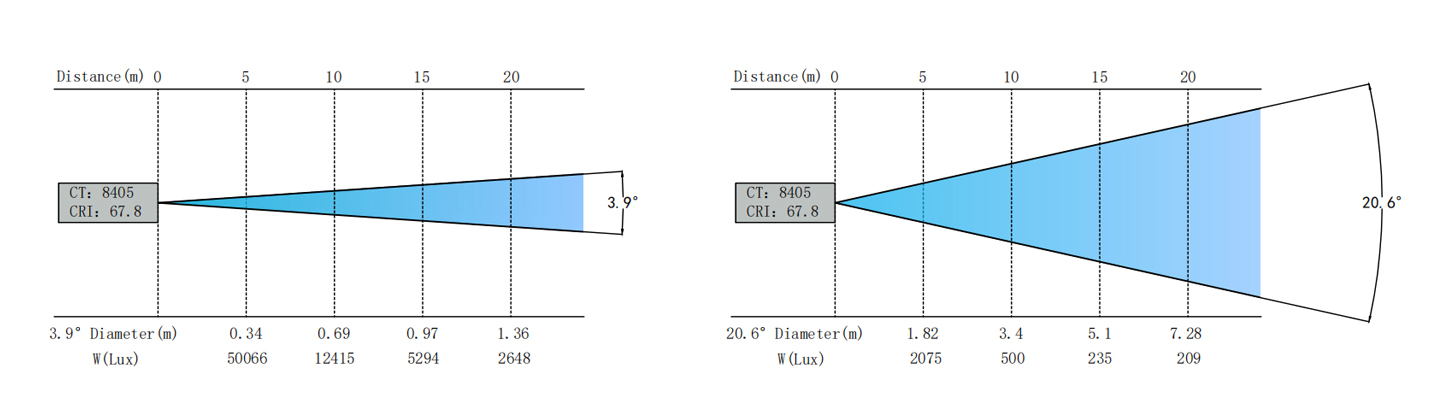

Photometrics

Crusier-LED-300-BSW-5

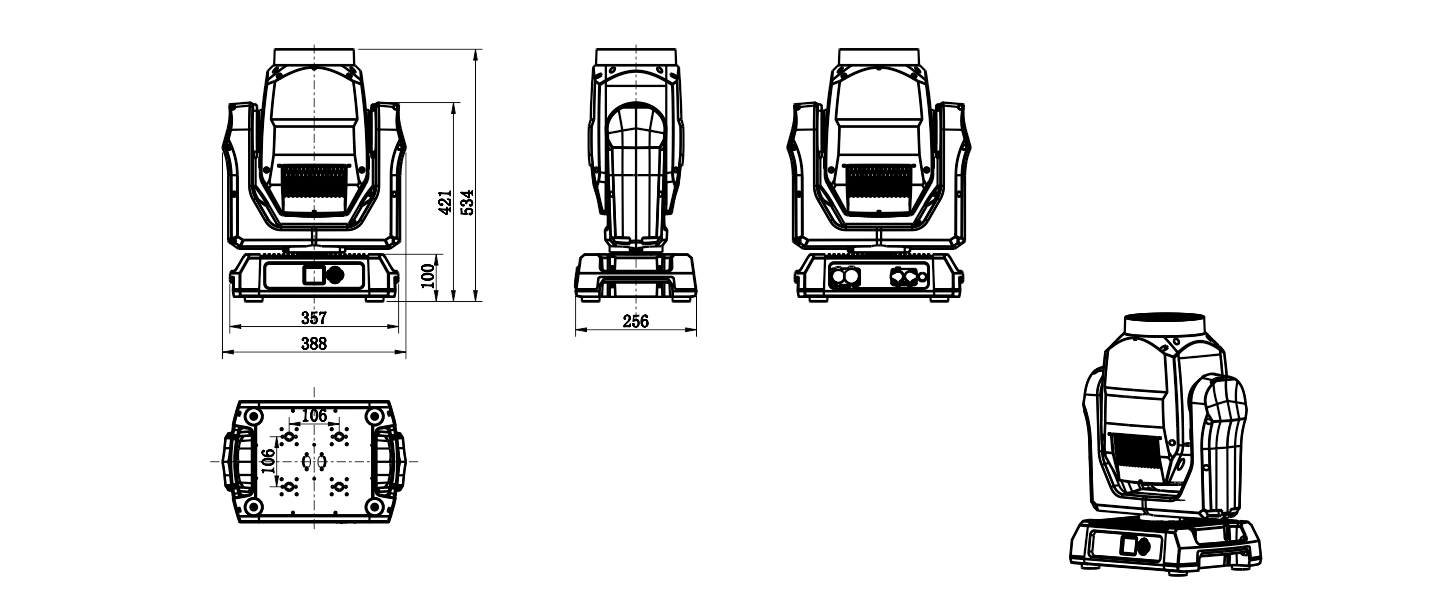

Dimensions


Crusier-LED-300-BSW-6



Video



Download


Related Products

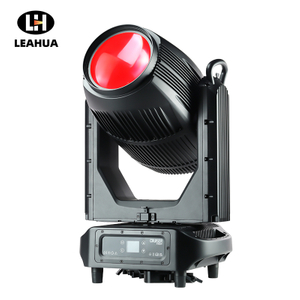

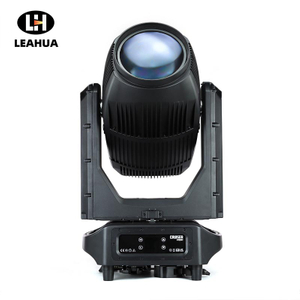

Cruiser laser 300 beam
Cruiser Laser 300 Beam

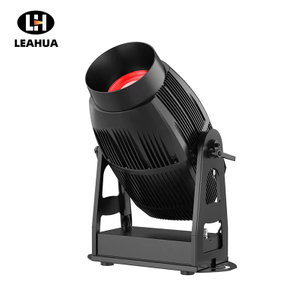

Cruiser Arc LED 700
Cruiser Arc LED 700

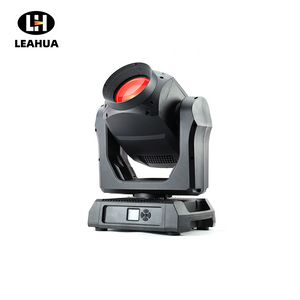

Cruiser LED 300 Beam
Cruiser LED 300 Beam
Cruiser 300 Beam
Cruiser 300 Beam
Cruiser Laser 200 Beam
Cruiser Laser 200 Beam

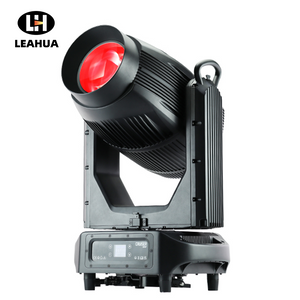

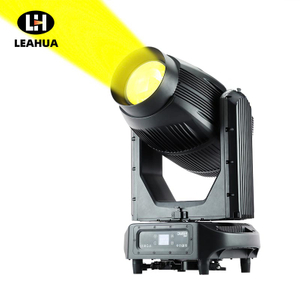

Cruiser LED 1000 BWSF
Cruiser LED 1000 BWSF

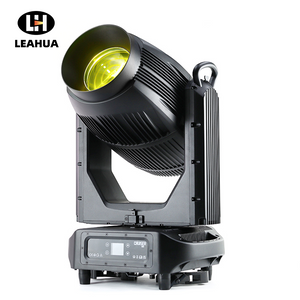

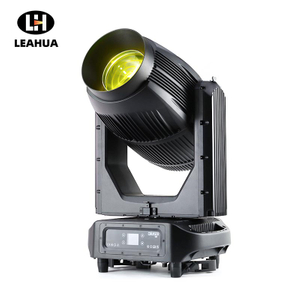

Cruiser LED 700 BWS
Cruiser LED 700 BWS

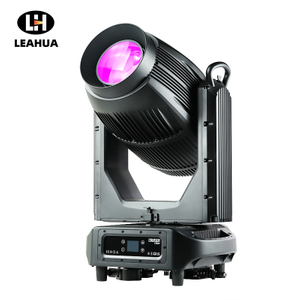

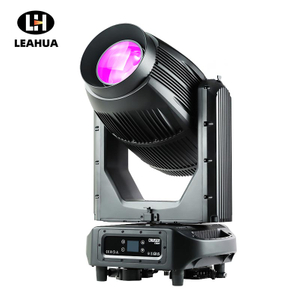

Cruiser 470 BSW
