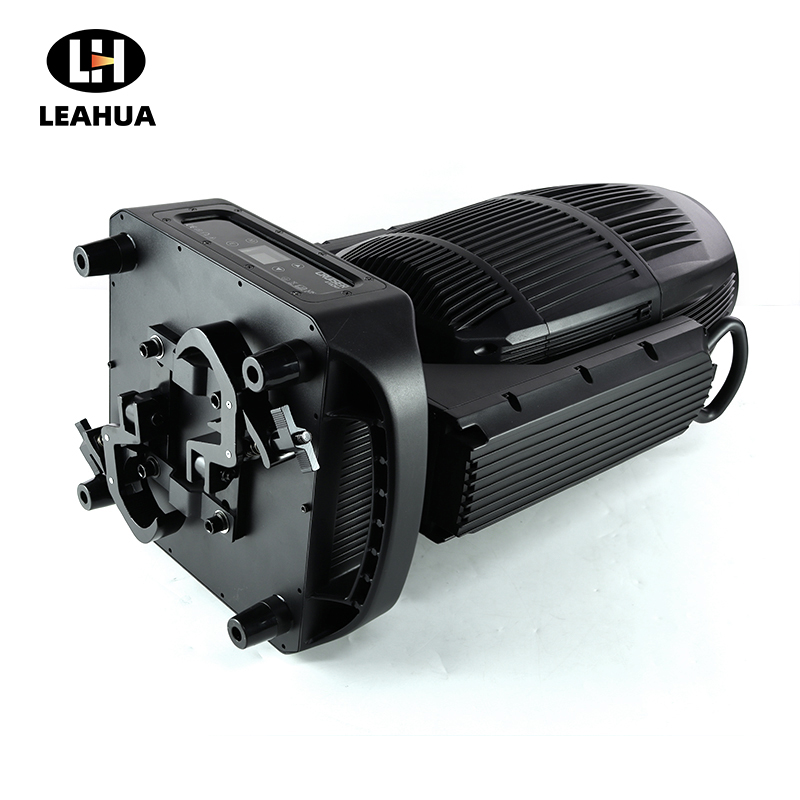

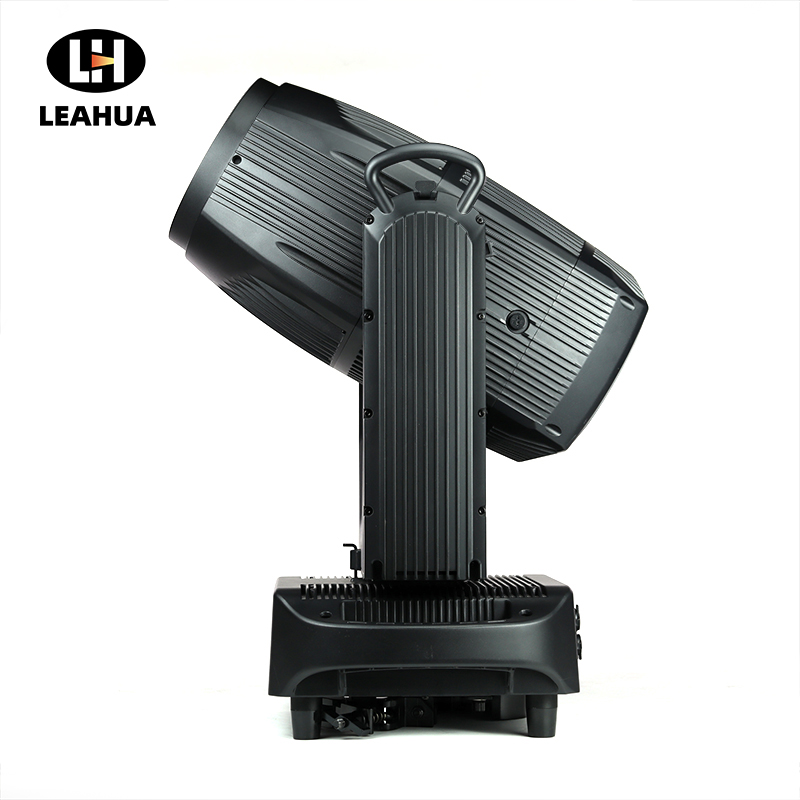

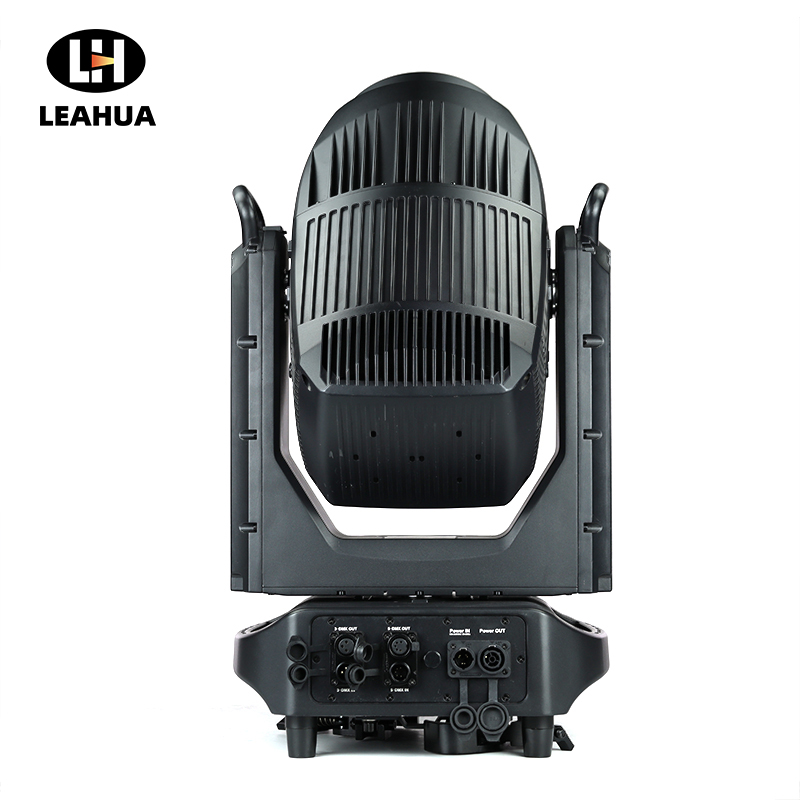

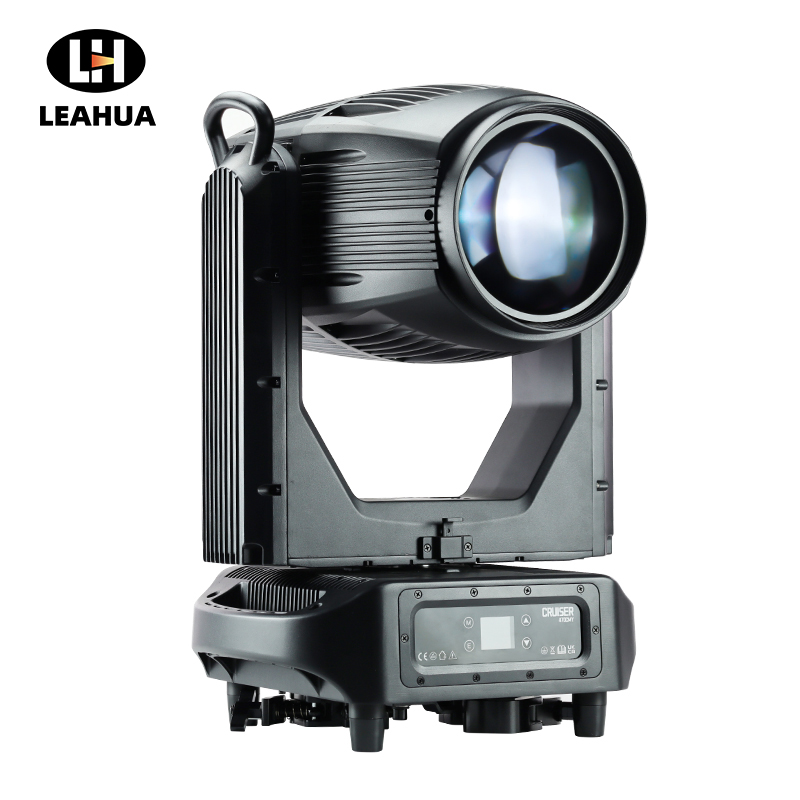

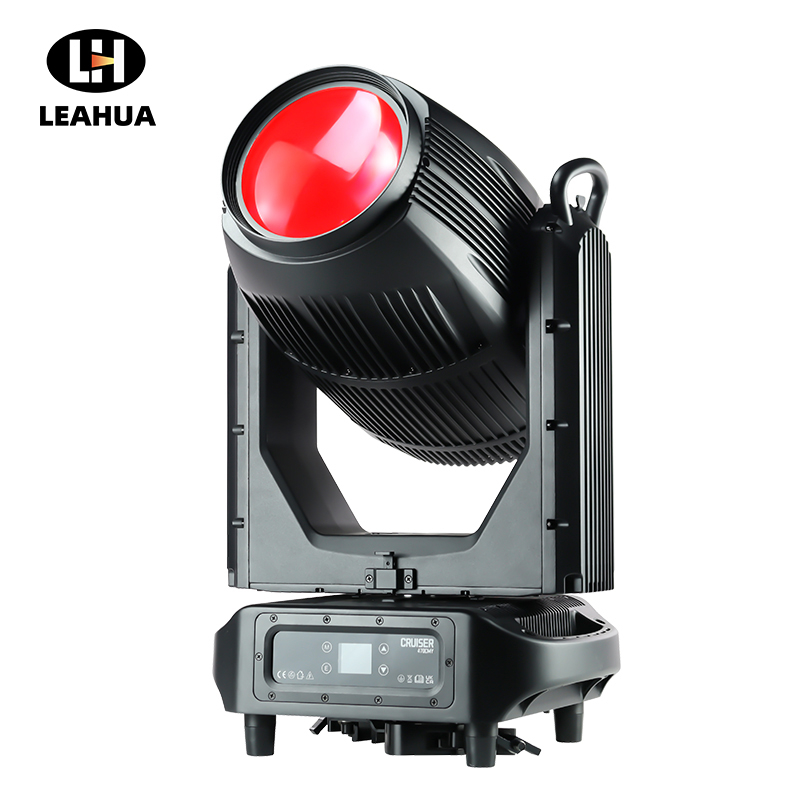

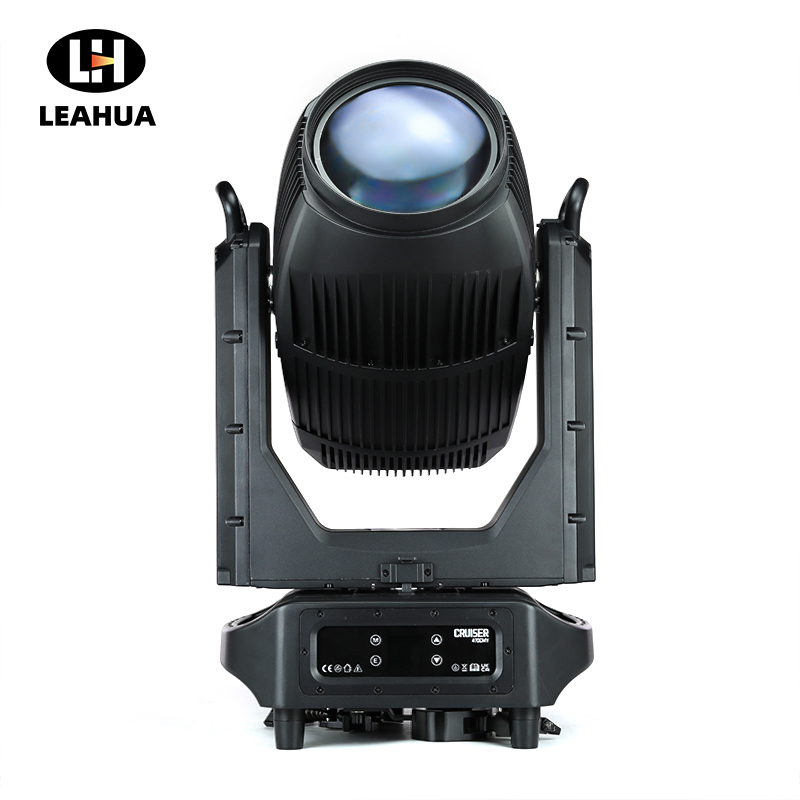

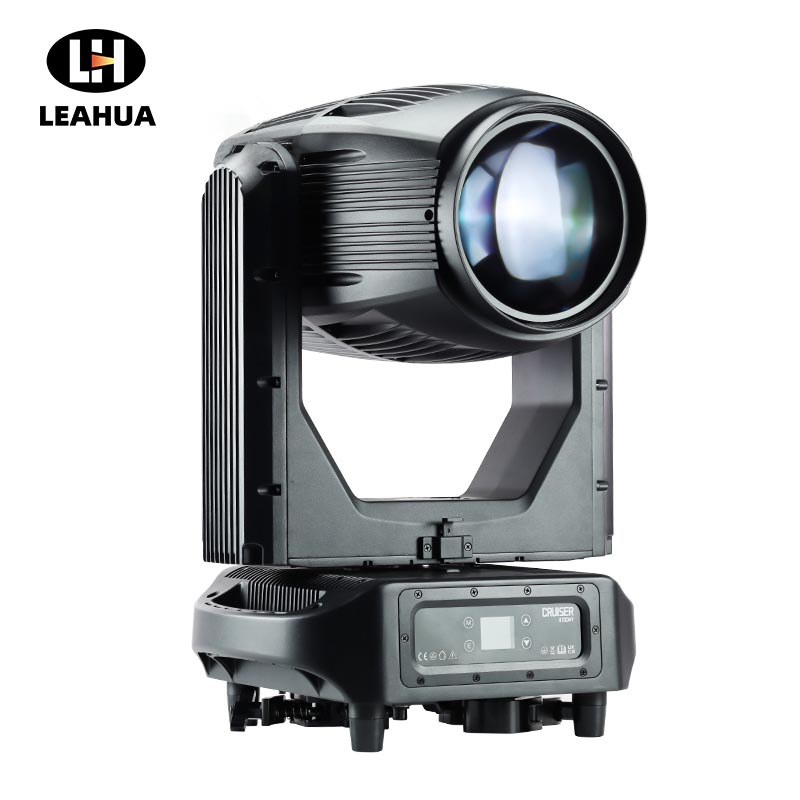

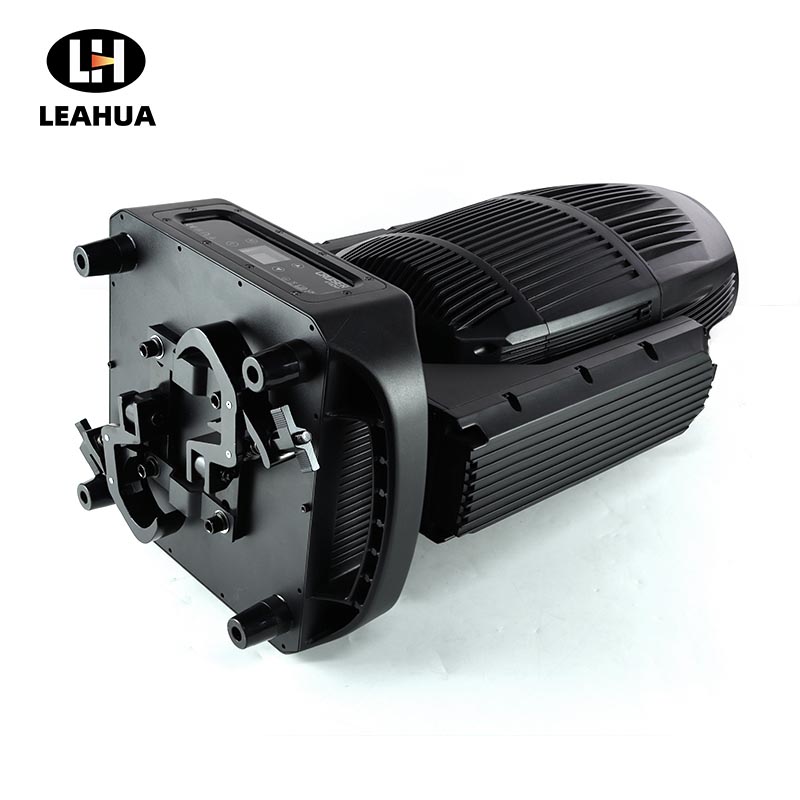

Cruiser 470 Beam

Model Number: LH-C470
Cruiser 470 Beam use 420W Ushio lamp with 170mm high-quality output lens. The advanced CMY color mixing system with CTO color temperature range from 3200K to 5600K, while the exclusive 6-color wheel with rainbow effect creates stunning, dynamic aerial gradients for breathtaking atmospheric moments.Combined with a dedicated frost filter.IP65 rating, offering complete protection against dust and powerful water jets for reliable operation in challenging conditions.
Availability:
Quantity:
Inquiry Favorite

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Previous:
Next:
Cruiser 470 Beam beam moving head light Waterproof moving head light 470W lamp beam Professional stage lighting
Technical Specification
Photometrics
Dimensions
Video
Download

Cruiser 470 Beam


Technical Specification


Power

  • Input Voltage Range: AC100-240V 50/ 60Hz

  • Power Consumption: 580W

Color

  • Color Wheel 1: 14 colors + open

  • Color Wheel 2: 6 color filter

  • CMY: Linear CMY color mixing

  • Variable CTO: 3200-6500K linearly adjustable

Other Function

  • Dimming: 0-100% linear dimming system

  • Strobe: 1-20 F.P.S, speed adjustable

  • Focus: Electronic focus function

  • Cooling System: Low noise and efficient fan cooling system

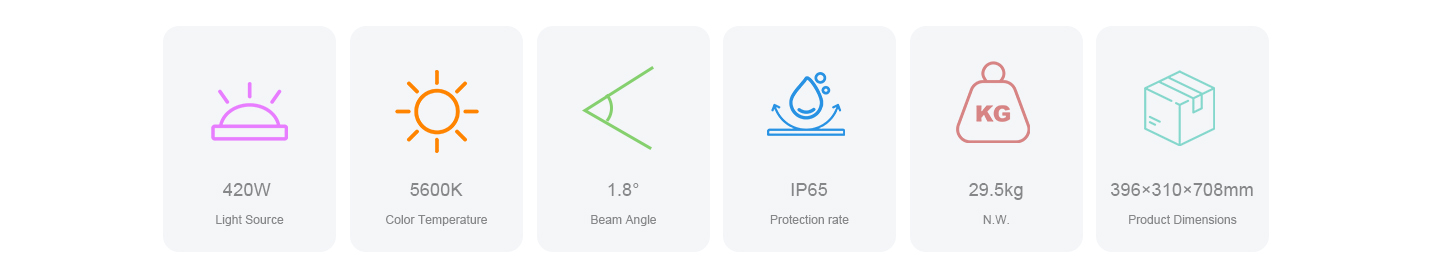

Light Source

  • Light Source: 420W USHIO lamp

  • Color Temperature Output of Fixture: 5600K

  • Life Expectancy: 2500 hours( factory rated)

Gobo

  • Static Gobo Wheel: 13 gobos + open

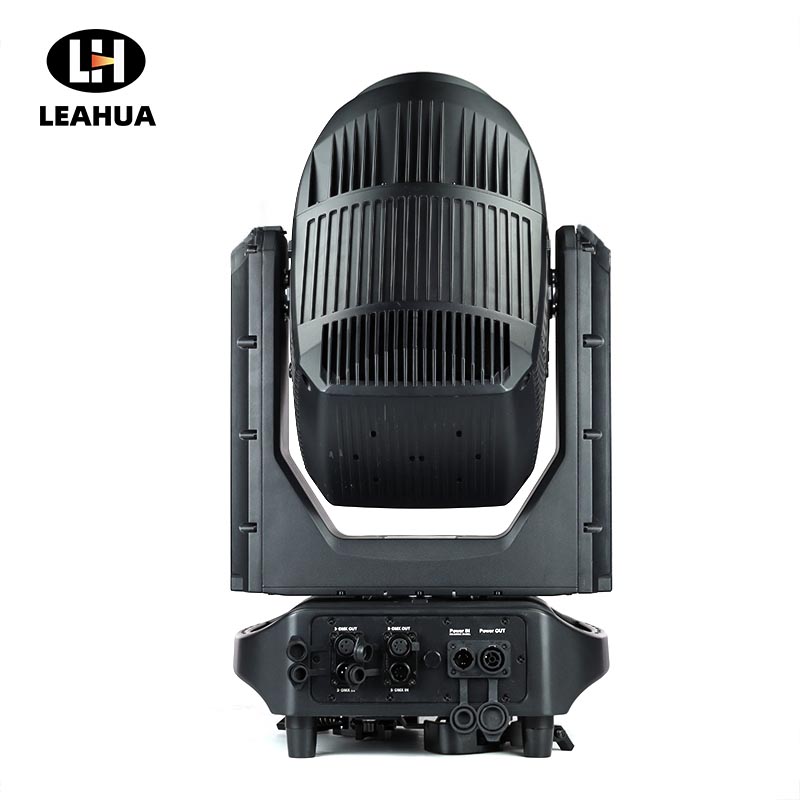

Connection

  • Power Connection: Powercon in/ out

  • Signal Connection: DMX 3-pin + 5-pin in/ out

Beam Angle

  • Beam Angle: 1.8°

Effect

  • Effect Wheel: 1 individual effect wheel, overlapping with static gobo wheel

Housing

  • Housing: Magnesium alloy body

  • Working Environment: -10℃- 45℃

  • Protection rate: IP65

Control

  • Display: LCD display

  • Control Mode: DMX512, master-slave,auto,RDM

  • Control Channel: 24CH

Prism

  • 1× 8-facet circular prism

  • 1×24-facet circular prism

  • 1×48-facet circular prism

  • 1× 6-facet linear prism

  • bi-directional rotation

Physical information

  • Product Dimensions: 396×310×708mm

  • Net Weight: 29.5kg

Head Movement

  • Pan/ Tilt: 540°/ 270° 16bit with auto position correction

Frost

  • Frost: 1 frost filter

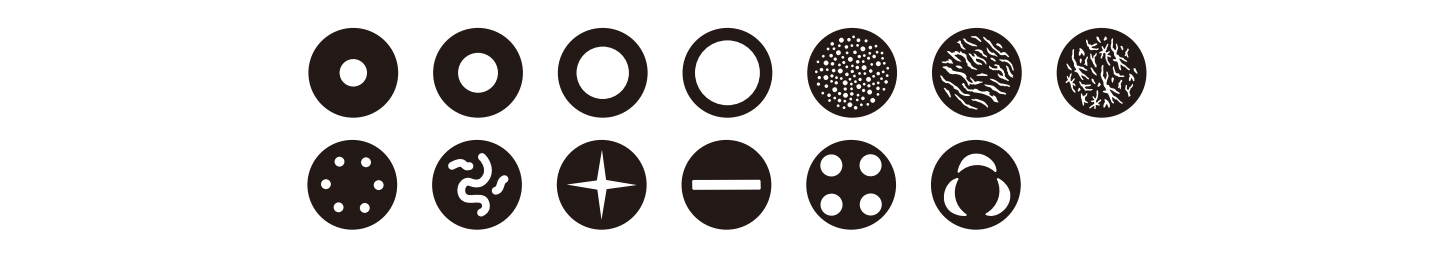

Static Gobo Wheel


Cruiser-470-Beam1

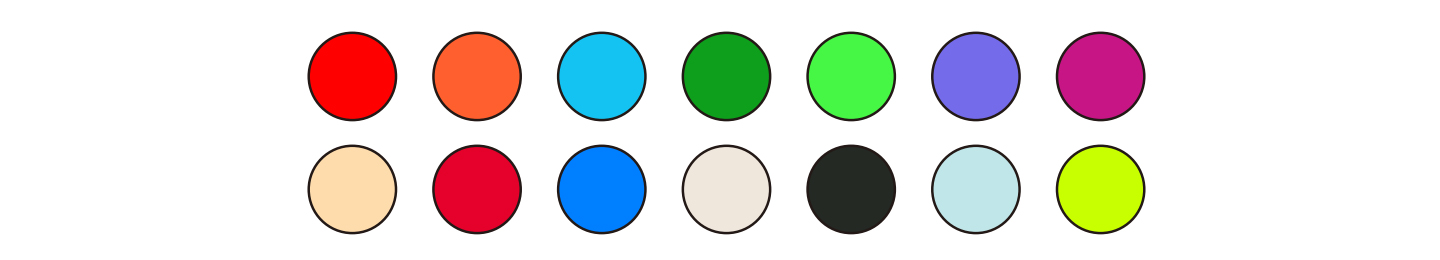

Colour Wheel 1


Cruiser-470-Beam2

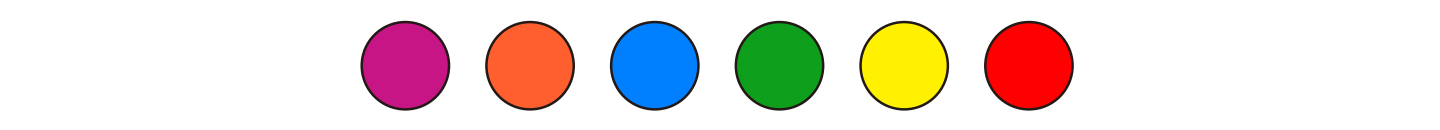

Colour Wheel 2


Cruiser-470-Beam3


CMY


Cruiser-470-Beam4

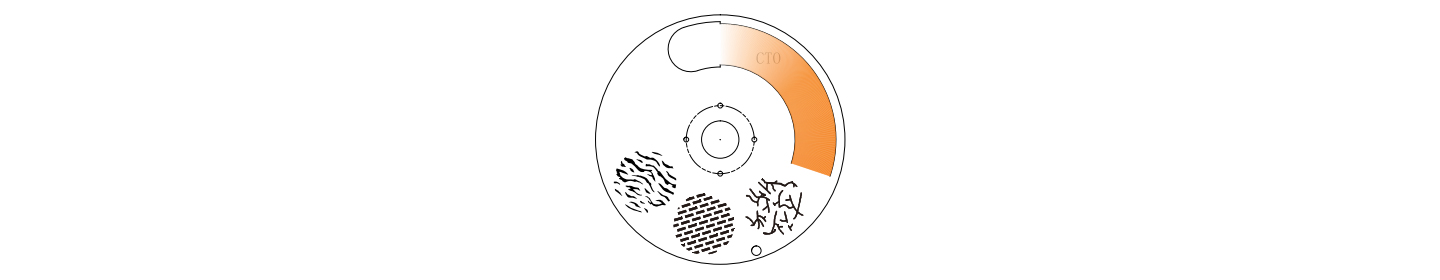

Animation Wheel & CTO


Cruiser-470-Beam5

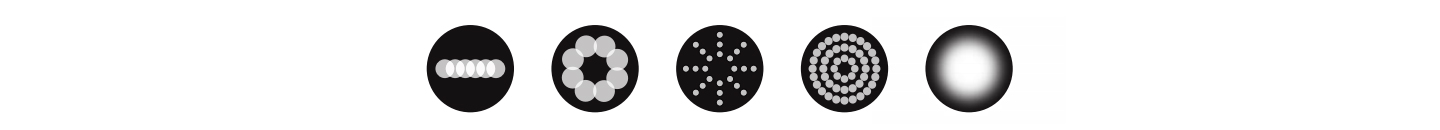

Prism & Frost


Cruiser-470-Beam6

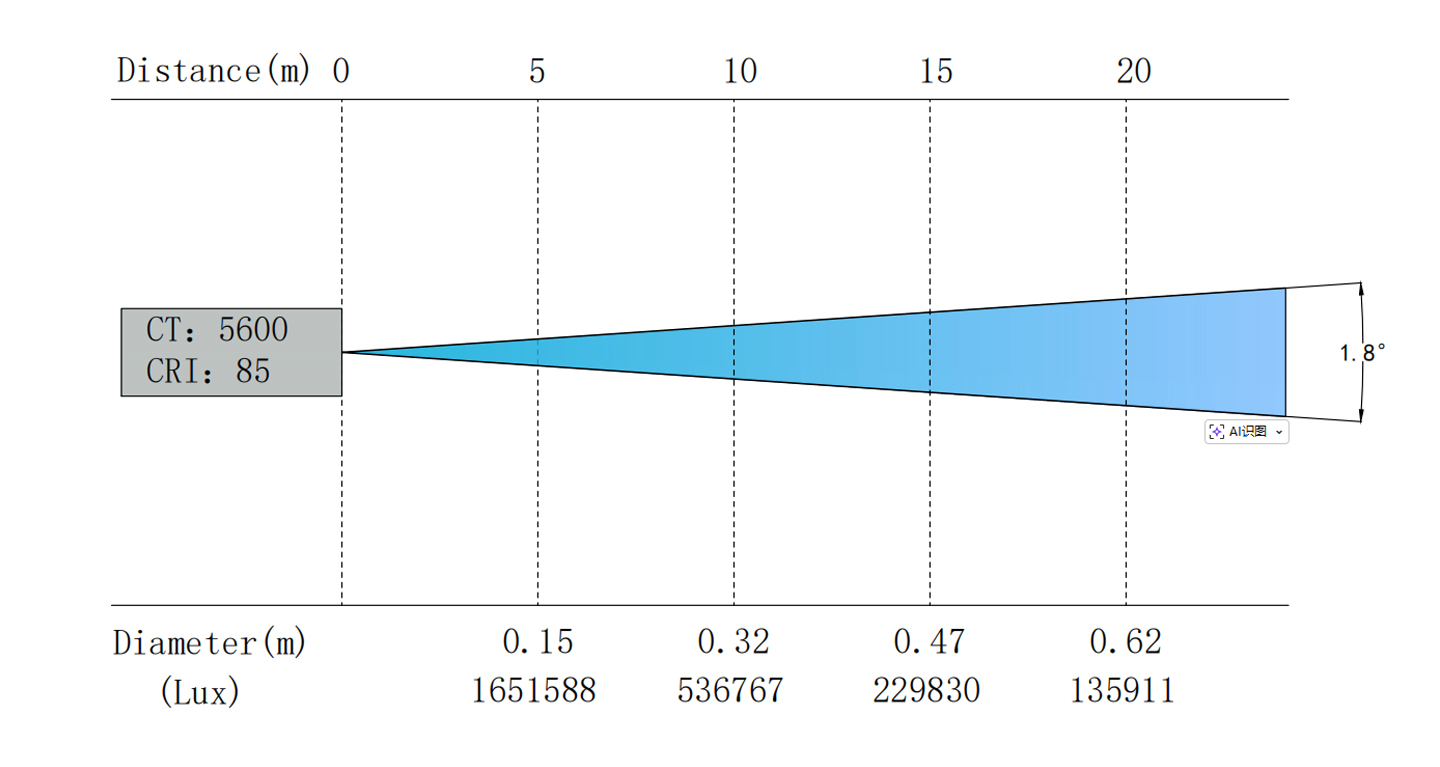

Photometrics

Illuminance-meter

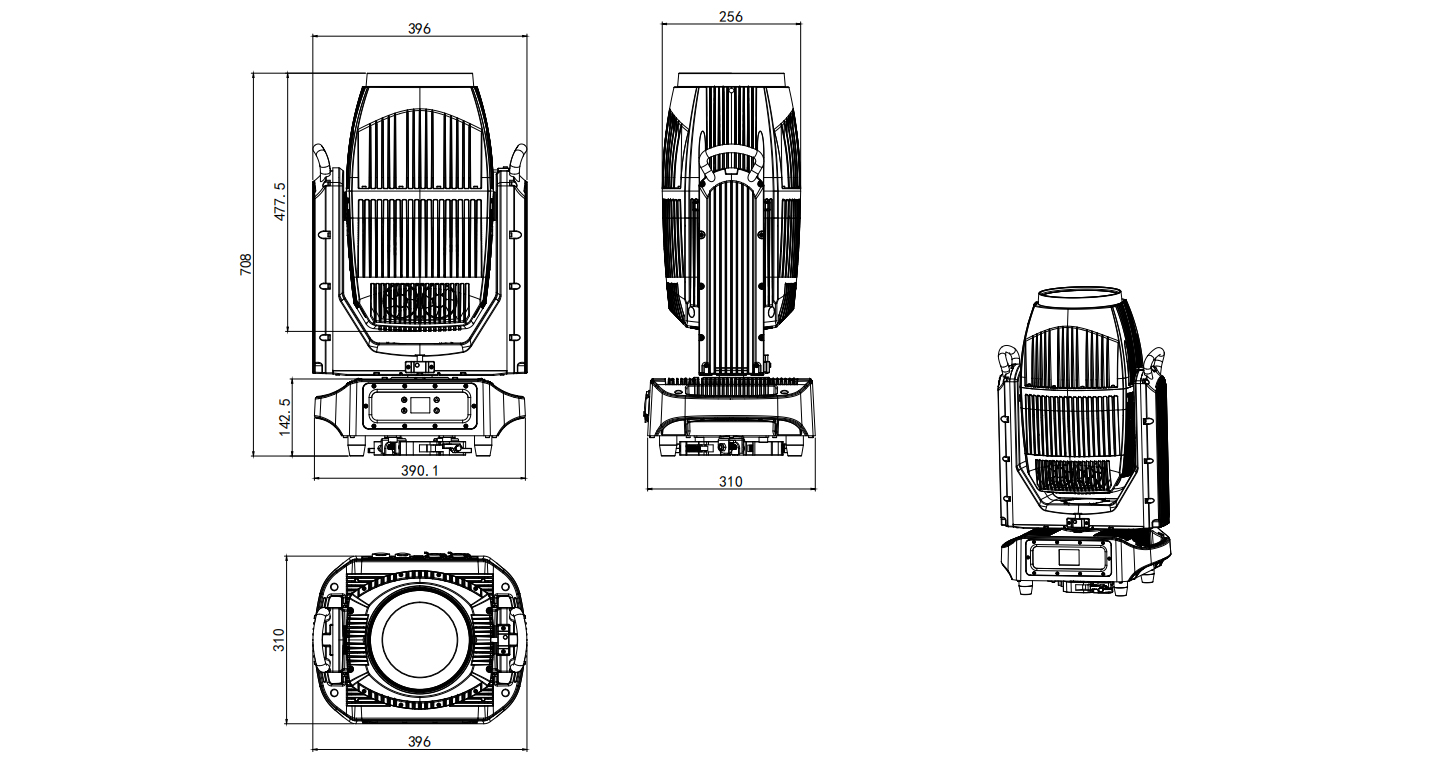

Dimensions


Dimensions


Video


Download
