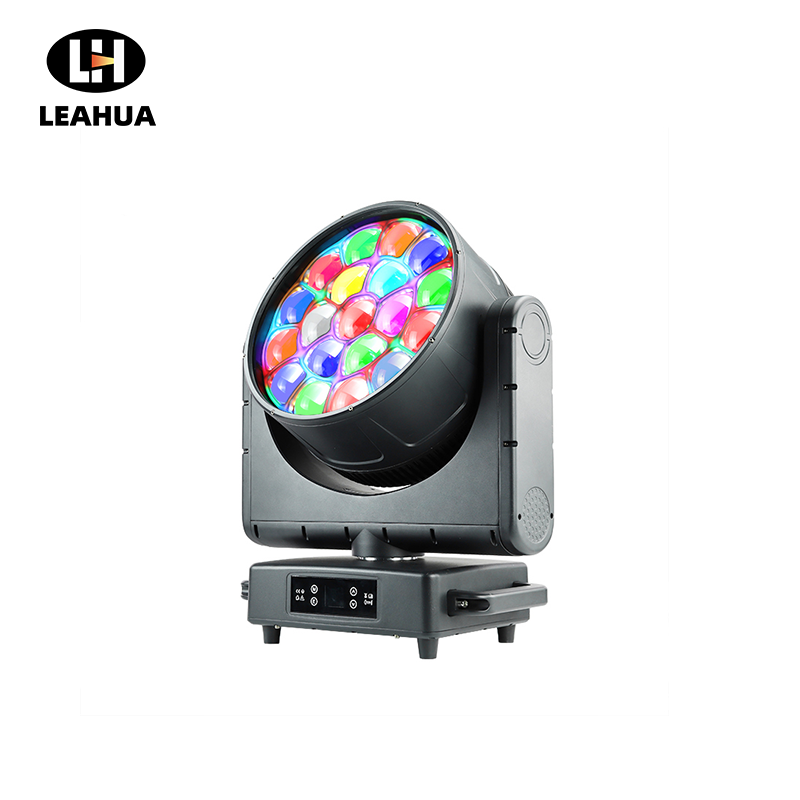

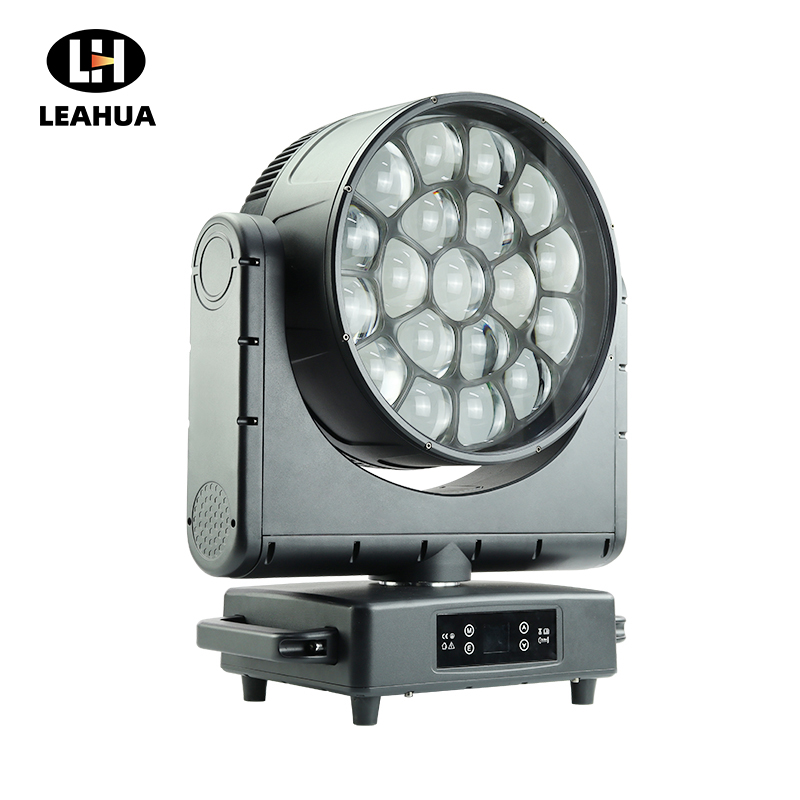

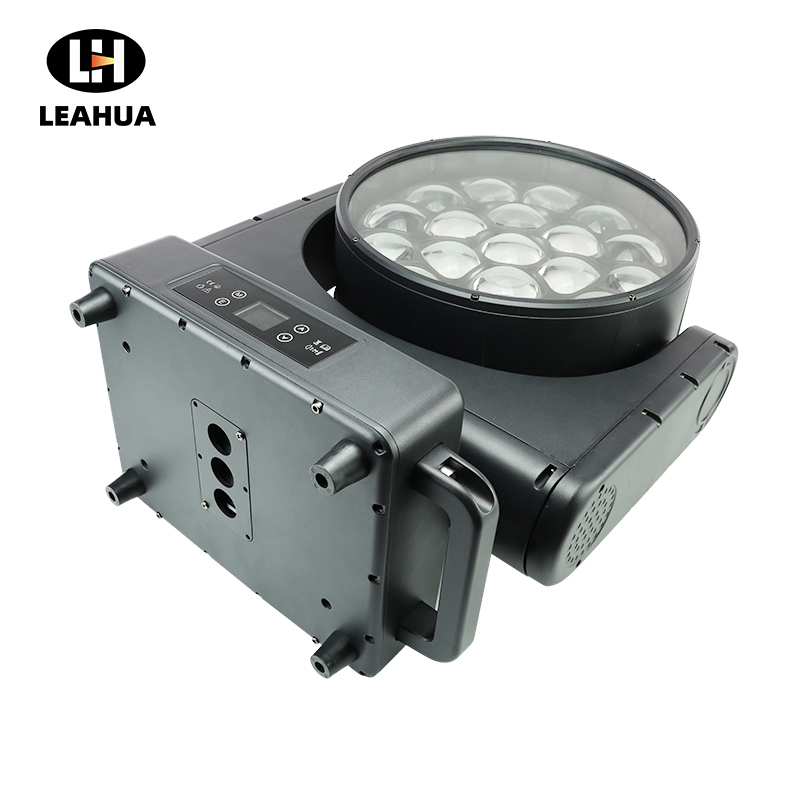

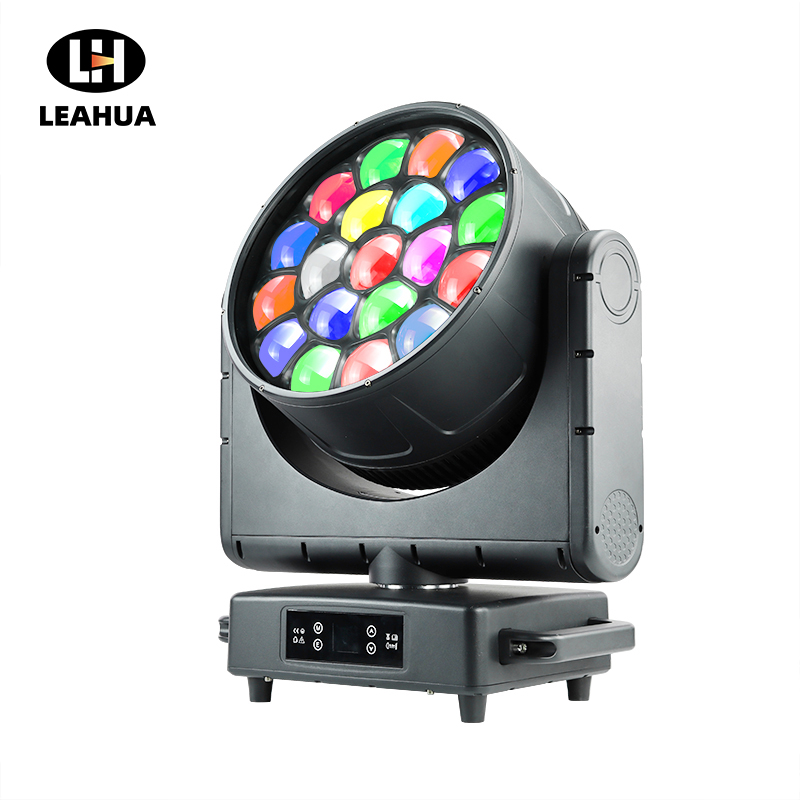

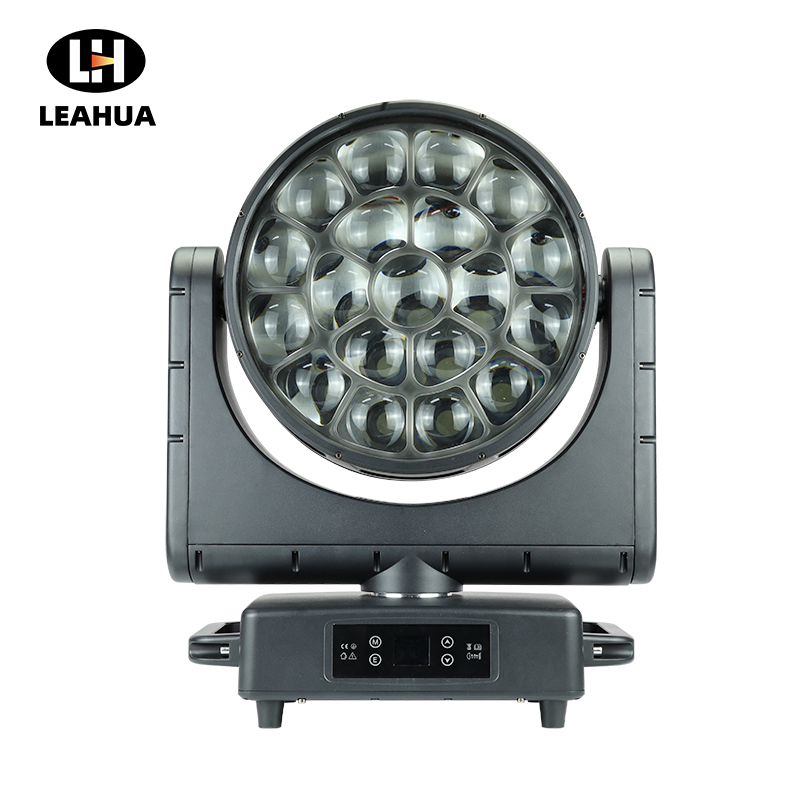

Maris Pro

Model Number: LH -M1980

Maris Pro features 19*80W RGBW LEDs and 303*0.2W RGB LEDs, delivering a brilliant 10000K white light output.The motorized zoom offers exceptional flexibility with a range from an ultra-narrow 7.8° to a wide 38.6° beam. Additional features include beam/wash modes, kaleidoscope effects, and a bi-directional rotating front lens. The Maris Pr uses an aluminum alloy casing, has an IP65 waterproof rating, and offers high brightness, making it suitable for large outdoor concerts and events.

Quantity:
Availability:





Inquiry Favorite

Maris pro

Technical Specification

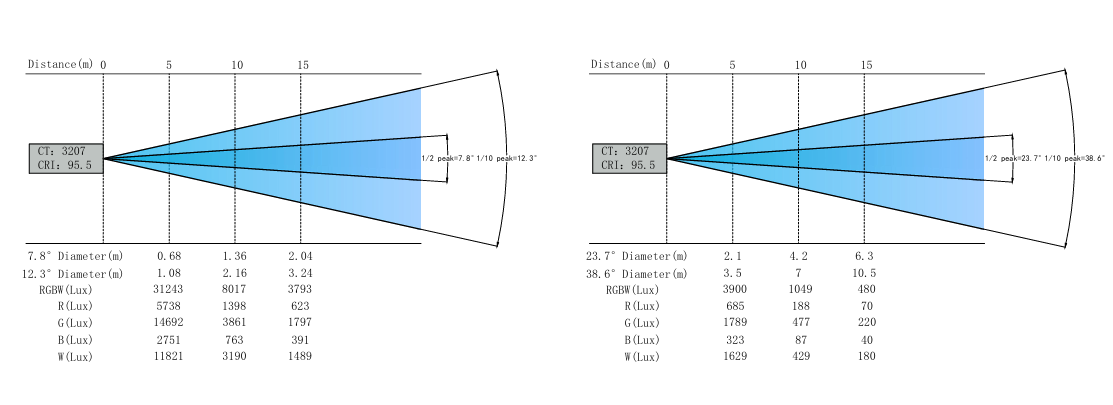

Photometrics

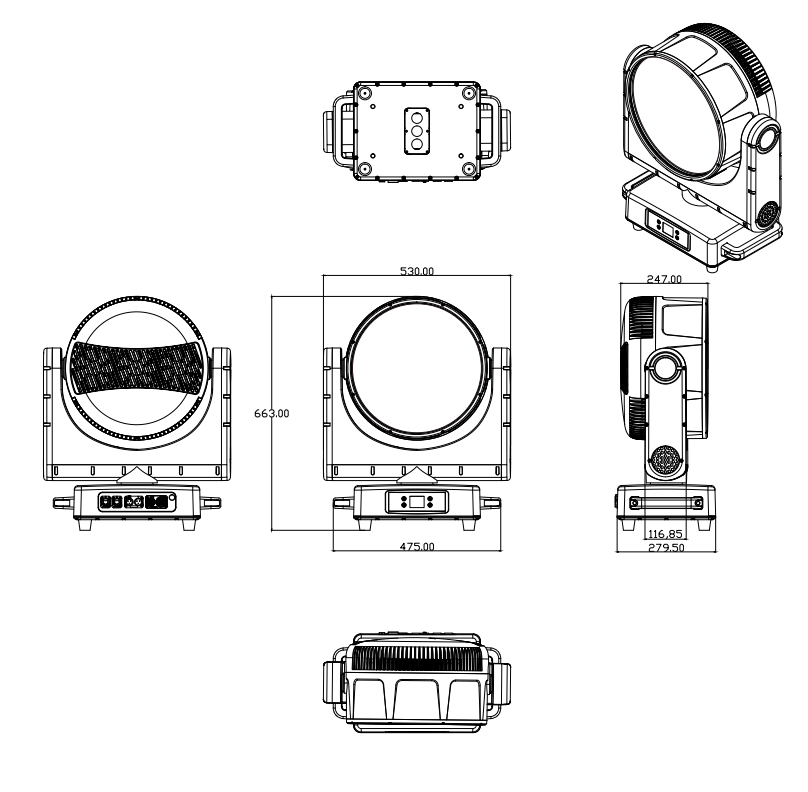

Dimensions

Video

Download

Technical Specification

Power

Input Voltage Range: AC90-260V 50/ 60Hz
Power Consumption: 1600W

Control

Display: LCD display
Control Mode: DMX512, master-slave, auto, RDM
Control Channel: Basic ( 27CH ), Standard ( 41CH ), Pixel Engine: RGB 27+57 (84 )CH, RGBW 27+76 (103 )CH, RGB 41+57 (84 )CH, RGBW 41+76 (117 )CH

Housing

Housing: Die-cast aluminum
Working Environment: -10℃- 45℃
Protection Rate: IP65

Light Source

Light Source: 19 × 80W RGBW LED,303 × 0.2W RGB LED
Color Temperature Output of Fixture: 10000K
Life Expectancy: 20000 hours ( factory rated )

Head Movement

Pan/ Tilt: 540°/ 205° with auto-correction

Connection

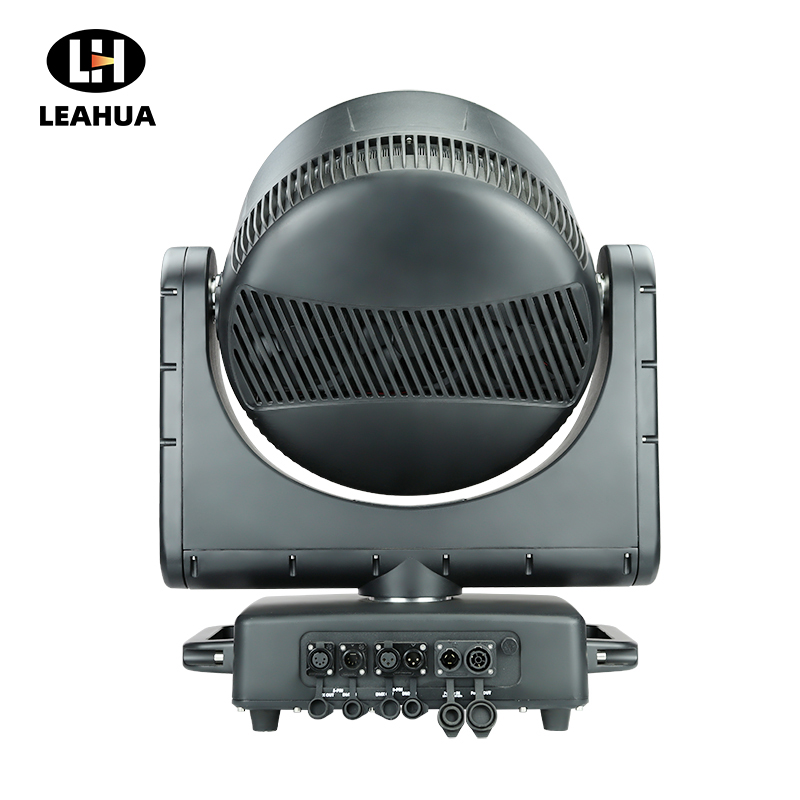

Power Connection: Powercon in/ out
Signal Connection: DMX 3-pin + 5-pin in/ out

Zoom Range

Zoom Range: 7.8°-38.6°

Other Function

Dimming: 0-100% linear dimming system
Strobe: 1-25 F.P.S, speed adjustable
Effect: Beam, wash, FX (Kaleidoscope effects ), bi-directional rotating front lens

Physical Information
