Maris Max

Model Number: LH -M1940

Maris Max is designed for 19*40W RGBW LED, delivering brilliant and dynamic illumination with a wide color temperature range from 2500K to 8000K.Enjoy exceptional flexibility with a motorized zoom range from 5° to 45°.The dynamic functions such as beam and wash modes, kaleidoscope FX, and a bi-directional rotating front lens for captivating visual displays.Housed in a robust die-cast aluminum body rated IP65. It is an ideal choice for stages, events, theaters, and fixed installations where power, precision, and creative control are essential.

Quantity:
Availability:





Inquiry Favorite

Maris Max

Technical Specification

Video

Download

Technical Specification

Power

Input Voltage Range: AC90-260V 50/ 60Hz
Power Consumption: 880W

Control

Display: LCD display
Control Mode: DMX512, master-slave, auto, sound, RDM
Control Channel: Standard 21/22CH, Shapes 35/ 36CH,Pixel Engine: RGB 22+57(79)CH, RGBW 36+76 (112 )CH

Housing

Housing: Die-cast aluminum
Working Environment: -10℃- 45℃
Protection Rate: IP65

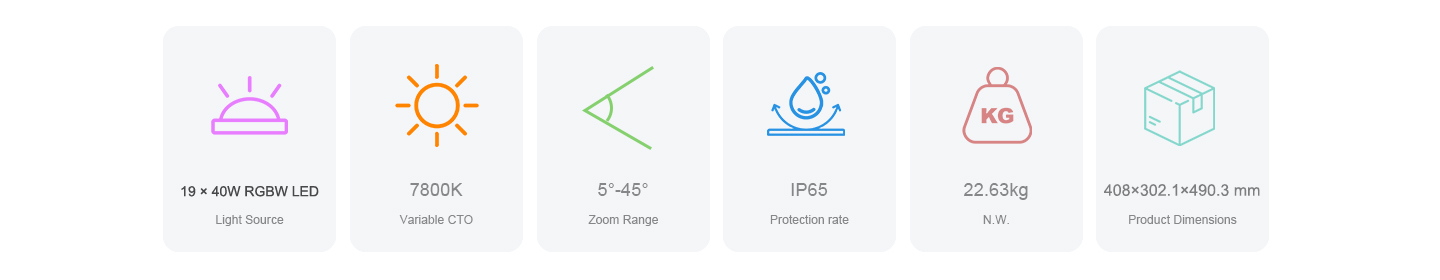

Light Source

Light Source: 19 × 40W RGBW LED
Color Temperature Output of Fixture: 7800K
Variable CTO: 2500-8000K
Life Expectancy: 20000 hours
( factory rated )

Head Movement

Pan/ Tilt: 540°/ 205° 16bit with auto-correction

Connection

Power Connection: Powercon in/ out
Signal Connection: DMX 3-pin + 5-pin in/ out

Zoom Range

Zoom Range: 5°-45°

Other Function

Dimming: 0-100% linear dimming system
Strobe: 1-25 F.P.S, speed adjustable
Effect: Beam, wash, FX (Kaleidoscope effects ), bi-directional rotating front lens

Physical Information
