Picture the modern stage as an absolute black box. Here, light remains the only visible variable. Effective Stage Lighting goes far beyond simple visibility. It forms a meticulously engineered system. We combine hardware, data protocols, and spatial physics to direct audience attention and shape perception. Transitioning from basic illumination to a Professional Stage Lighting setup poses unique challenges. You must fully understand the integration between power distribution, intelligent fixtures, and control networks. Poorly designed systems often result in harsh shadows, wasted energy, or unresponsive controls. This guide provides a complete technical and operational breakdown. You will learn how modern control networks communicate. We will show you how to evaluate hardware for long-term return on investment. Finally, we will outline the standard operating procedures required for safe, effective deployment.
System Architecture relies on DMX512: Modern stage lighting works through a daisy-chained data protocol (DMX) that allows a single console to command hundreds of specific fixture parameters.
Fixture selection dictates capabilities: Choosing between LED and traditional tungsten impacts thermal management, power draw, and color-mixing flexibility, heavily influencing total cost of ownership.
Placement follows mathematical frameworks: Professional lighting relies on standardized angles (like the 1-to-4 Point Lighting methods or McCandless method) to eliminate shadows and optimize for both live audiences and camera feeds.
Implementation requires a rigid SOP: Safe deployment follows a strict sequence: Planning, Rigging, Patching, Focusing, and Programming.
Modern stages rely on a dual-layer architecture. Every fixture requires two distinct physical connections. First, they need robust electrical power. Second, they require a reliable data control network. Separating these physical layers ensures operational safety. It also prevents electrical interference from disrupting delicate control signals. When you route high-voltage power alongside low-voltage data cables, electromagnetic interference can occur. Professional crews always maintain proper physical separation between these lines.
Historically, venues used analog dimming systems. Technicians physically reduced the voltage running to conventional lamps to lower their brightness. Today, we observe a massive intelligence shift in the industry. Modern intelligent fixtures receive constant, unvarying electrical power from the grid. They never rely on altered voltage for dimming. Instead, internal microprocessors read incoming digital data signals. These onboard computers interpret the data to adjust intensity, mix internal color diodes, and execute precise physical movements. This constant-power approach significantly prolongs the lifespan of internal electronic components.
You must separate physical setup from digital control to master stage lighting. Hard patching involves physically plugging heavy cables into specific power circuits or older analog dimmers. It represents the permanent physical infrastructure of your venue. Soft patching happens digitally at your main control console. You assign a specific DMX address and a specific fixture profile to a digital control channel. This digital assignment gives you ultimate flexibility. You can easily reprogram a show without ever climbing a ladder to move physical cables.
Data flows through your venue via the DMX512 protocol. It stands for Digital Multiplex. We organize this data into discrete units called "Universes." A single Universe contains exactly 512 individual channels of data. Simple fixtures might use just one single channel to control their overall intensity. Complex intelligent lights consume data rapidly. A modern moving head fixture often requires up to 30 or 40 channels. It needs distinct channels to control pan, tilt, zoom, color mixing, and physical gobo wheels.
To visualize how these control channels distribute data, consider this simple DMX allocation chart:
DMX Channel | Fixture Attribute Assigned | Data Value Range (0-255) |
|---|---|---|
Channel 1 | Master Dimmer (Intensity) | 0 (Blackout) to 255 (Full Brightness) |
Channel 2 | Pan (Horizontal Movement) | 0 (Left Limit) to 255 (Right Limit) |
Channel 3 | Tilt (Vertical Movement) | 0 (Bottom Limit) to 255 (Top Limit) |
Channel 4 | Color Wheel Selection | Specific values trigger specific colors (e.g., 20 = Red) |
Signal integrity often causes real-world implementation failures. Data signals travel down long, daisy-chained cables from one light to the next. When this data signal hits the end of an unterminated line, it can reflect backward. This reflection causes erratic fixture behavior. Lights might flicker unexpectedly or spin out of control. You must always install a physical DMX terminator plug at the end of every daisy chain. This simple resistor absorbs the signal and guarantees a stable control network.
Console operators choose different execution modes based on the specific event type. Cues and timecode work best for heavily scripted theatre or highly structured music tours. The console triggers precise, pre-programmed sequences synced flawlessly to an audio click-track. Alternatively, submasters and busking offer live, improvised control. You assign specific colors, movements, or intensities to physical faders. This manual setup remains ideal for music festivals, unscripted corporate events, and live visual DJs.
Choosing the right hardware heavily dictates your total cost of ownership (TCO). You must evaluate both upfront capital costs and long-term operating expenses. Venue managers frequently make the mistake of only looking at the initial purchase price.
LED fixtures demand a higher initial investment compared to conventional tungsten or halogen lights. However, they deliver vastly superior energy efficiency. They eliminate the physical need for consumable plastic color gels. They also run significantly cooler. This lower heat output drastically reduces your venue's HVAC cooling loads. Over a typical five-year lifecycle, LED installations almost always provide a vastly superior return on investment. Furthermore, LEDs do not require frequent lamp replacements, saving hundreds of hours in maintenance labor.
To build a versatile lighting rig, you need to understand core fixture categories and their specific use cases:
Ellipsoidal (Profile) Lights: These feature precision glass optics and sharp beam edges. They allow you to insert metal templates called Gobos to project patterns or corporate logos. You use them primarily to highlight key talent or project sharp textures against backgrounds.

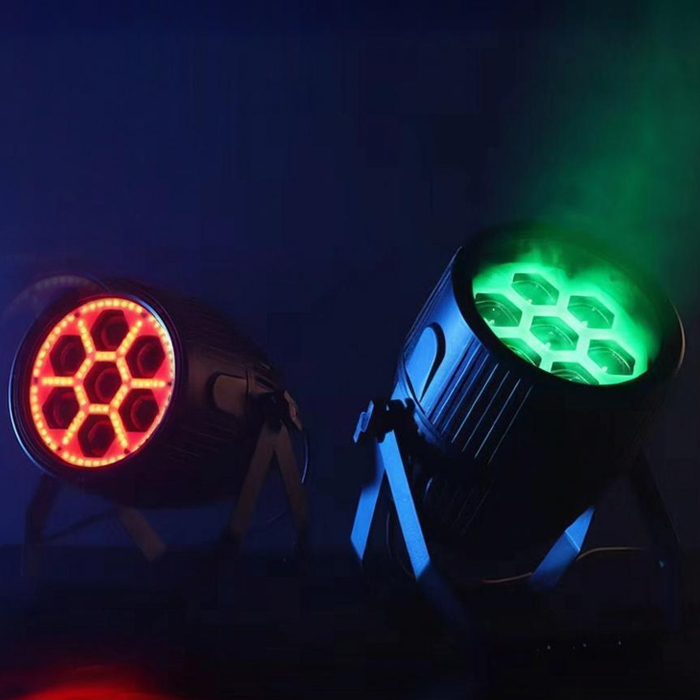

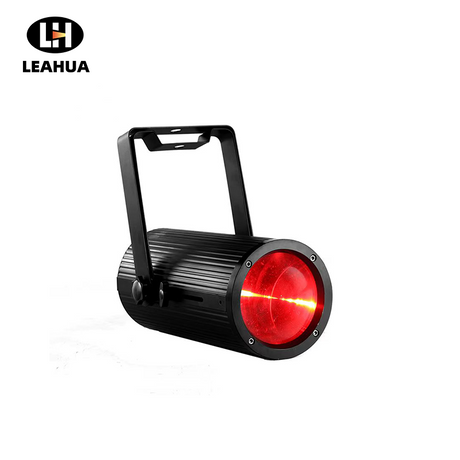

PAR Cans & Wash Lights: These provide broad, highly cost-effective stage coverage. They lack adjustable focus lenses. You use them primarily for rich color washes and general stage illumination.
Fresnels: These emit soft-edged, easily zoomable beams. A stepped glass lens characterizes them. They remain ideal for blending different stage zones together seamlessly without creating harsh lines on the floor.

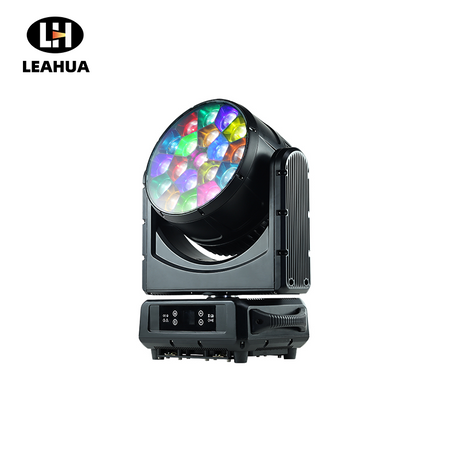

Intelligent/Moving Heads: These offer unmatched versatility. They can function as a tight beam, a sharp spot, or a soft wash in a single housing. However, they require a massive DMX footprint and demand much higher annual maintenance budgets due to moving mechanical parts.
Professional lighting designs rely on strict mathematical frameworks rather than guesswork. These spatial methods create visual depth and accurately render human skin tones. The famous McCandless Method established the foundational industry baseline. It dictates using two front lights angled precisely at 45 degrees, combined with a steep backlight. This balances natural shadows while pulling the performer away from the backdrop.
You can objectively evaluate your venue's setup using these standardized point frameworks:
1-Point and 2-Point Lighting: These provide basic illumination. A 1-point setup uses a single frontal source. It looks highly dramatic but creates flat facial features and harsh drop shadows. A 2-point setup adds a backlight. This addition separates the talent from the background, creating basic depth.
3-Point Lighting: This serves as the undisputed industry standard for live events. It features two 45-degree front angles and one steep backlight. It eliminates harsh facial shadows, separates talent perfectly from the backdrop, and provides excellent three-dimensional form.
4-Point Lighting: This adds a direct front-axis fill light to the 3-point model. You must use this specific method when evaluating setups for hybrid events, television broadcasts, or heavy video recording. Video cameras process contrast differently than human eyes. The fourth light erases all remaining chin and nose shadows.
Designers also separate their artistic intent into two distinct schools. Motivated lighting actively mimics reality. It simulates natural sunlight streaming through a window or the glow of a streetlamp. The audience instinctively understands the light source. Theatrical lighting deliberately ignores reality. It utilizes unnatural angles and heavily saturated colors. Designers use this approach to evoke specific psychological states or heighten the emotional tension of a performance.
Safe deployment actively prevents onsite disasters. You must enforce a strict, repeatable standard operating procedure. We highly recommend standardizing the following 5-stage deployment workflow to mitigate costly errors:
Planning: Map out your digital addressing, electrical power requirements, and spatial design on paper before touching any equipment.
Rigging: Physically hang and secure all fixtures onto structural ceiling supports or portable ground towers.
Patching: Run all physical power distribution cables and route the digital DMX data lines from the console to the rig.
Focusing: Manually point every instrument toward specific stage zones. Lock down all pan and tilt knobs securely.
Plotting (Programming): Sit at the console to program your scenes, color chases, and timecode cues into the system memory.
Physical rigging realities demand absolute compliance. You must never compromise on structural integrity. You must mount suspended fixtures exclusively on heavy-duty, load-rated truss systems. Technicians secure them using industrial-grade C-clamps. Furthermore, you must attach a secondary steel safety cable to every single suspended fixture. This cable loops over the truss structure. It prevents catastrophic falls if the primary C-clamp ever fails during a vibration-heavy music performance.
Cable management directly impacts both equipment lifespan and operational safety. You must continuously monitor power draws. You need to balance loads across multiple electrical circuits to prevent mid-show breaker trips. Always secure your floor cable runs using heavy gaffer tape or dedicated plastic floor tracks. This diligence maintains a completely safe working environment for both moving talent and backstage crew members.
Successful partnerships with external lighting designers always start with a narrative focus. Your technical specifications must continually serve the story. You should begin your project evaluation by reviewing the script, the event run-of-show, or the specific broadcast camera requirements.
Avoid requesting specific hardware brands or dictating unit quantities immediately. Instead, communicate your core business needs by defining specific "zones" and "looks." Divide your entire stage into independent control areas. Tell the designer exactly what emotional outcome or brand coloring each zone requires. For example, instruct them to make the central podium bright and neutral for cameras, while keeping the background bathed in your corporate blue.
Trust the professional. Hand over the "blank canvas" to your hired designer. Focus your feedback on the desired emotional impacts and specific transition timing. Discuss how fast a dramatic scene should fade to black. Explain the energy level required during a keynote speaker walk-on. Do not attempt to micromanage the intricate DMX patch sheet or debate the pixel-map configurations. Provide them with clear artistic boundaries, and let their technical expertise handle the programming execution.
Understanding how stage lighting works ultimately requires grasping the relationship between three distinct pillars. You must manage physical infrastructure, master digital data protocols like DMX, and apply the optical physics of spatial placement. Moving beyond basic illumination to a truly professional setup demands careful planning and rigorous safety compliance.
Treat power distribution and data networks as separate but equally critical lifelines to prevent signal failure.
Evaluate your hardware choices based on a long-term return on investment. LEDs drastically lower HVAC and maintenance costs.
Rely on mathematical placement frameworks. Use 4-point lighting to guarantee flawless, shadow-free broadcast visuals.
Strictly follow the 5-stage deployment workflow to guarantee operational crew safety and prevent rigged fixtures from falling.
If you plan to upgrade an existing venue or design a completely new stage build, take decisive action now. Schedule a comprehensive site audit. Consult with an integration specialist to accurately map out your required DMX universes, calculate your power loads, and define your exact hardware needs.
A: A Wash light produces a broad, soft-edged beam. It covers wide stage areas evenly and blends easily with adjacent lights. A Spot light (often called a Profile) emits a tightly focused, hard-edged beam. You use spots to highlight specific performers, project sharp logo textures, or create dramatic, isolated pools of light on the floor.
A: Programmers use several distinct methods to sync lights to music. Audio-triggers allow the console to pulse lights automatically based on specific sound frequencies. MIDI timecode syncs pre-programmed lighting cues directly to a band's master backing track for flawless precision. Alternatively, operators manually "busk" by tapping physical faders live to match the musical beat.
A: Harsh video shadows typically result from poor placement angles and a distinct lack of fill lighting. If you only use steep top lighting or a single front source, deep shadows form under the eyes and chin. Upgrading to a comprehensive 4-point lighting model provides the necessary front-axis fill to eliminate these shadows entirely.
A: A single DMX cable carries one "Universe," which contains exactly 512 channels of data. The number of lights depends entirely on their complexity. A basic dimmer might use one channel, allowing 512 fixtures. However, a multi-parameter LED moving head might consume 30 channels, limiting you to just 17 fixtures per line.
