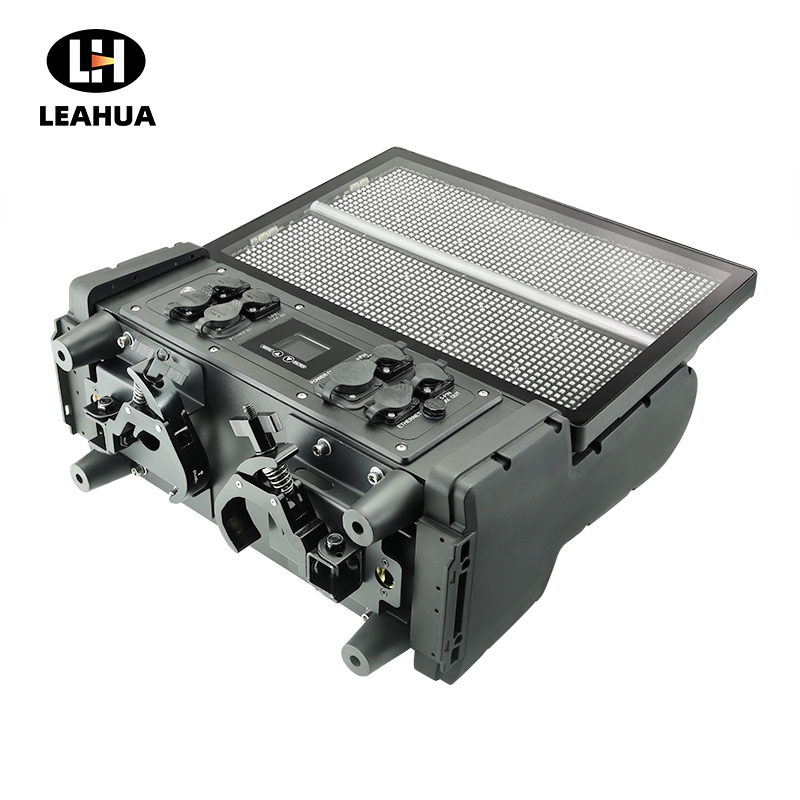

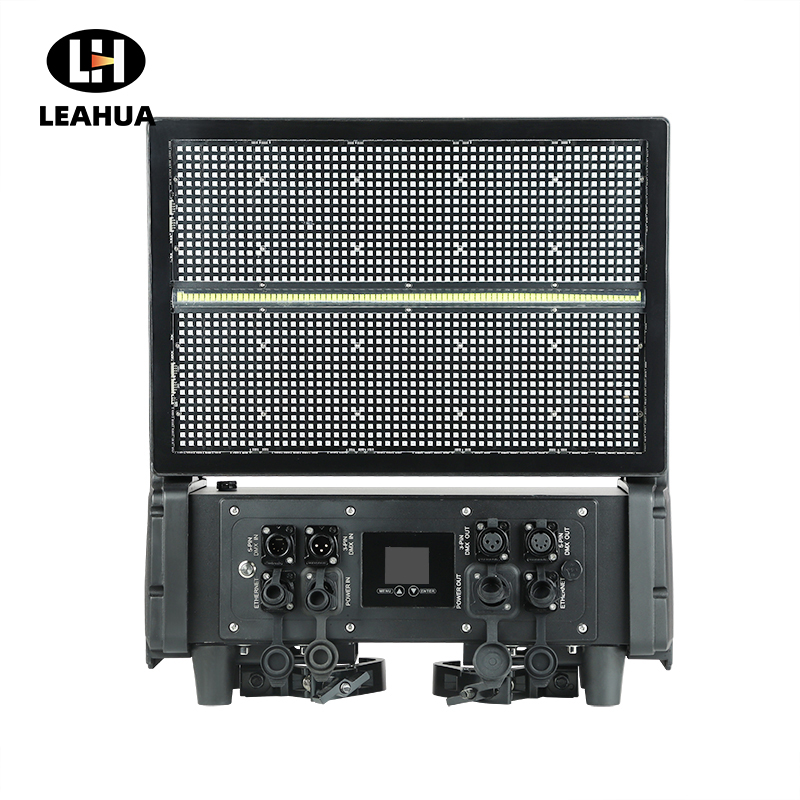

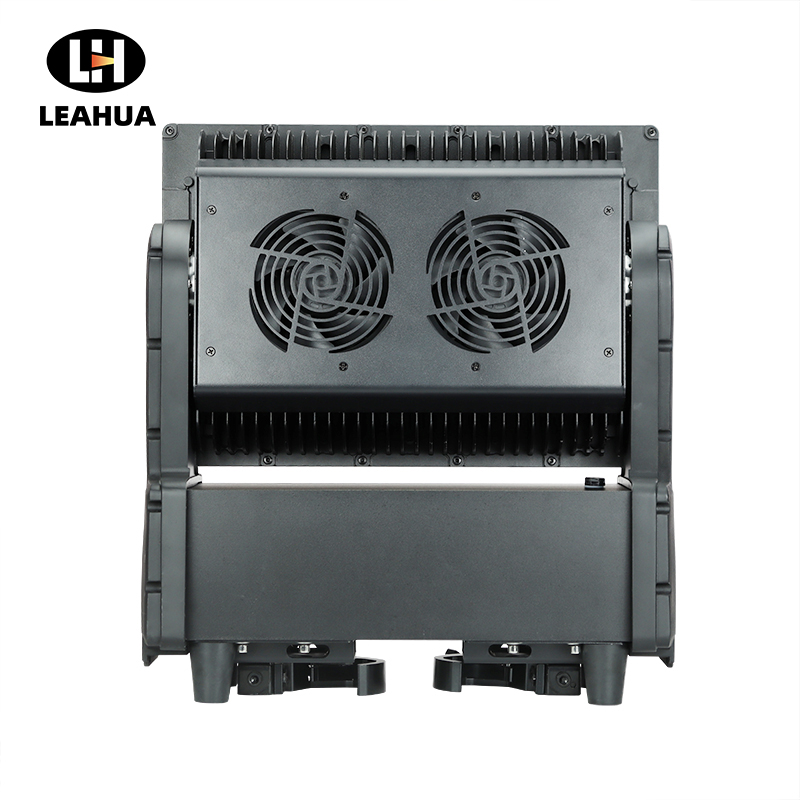

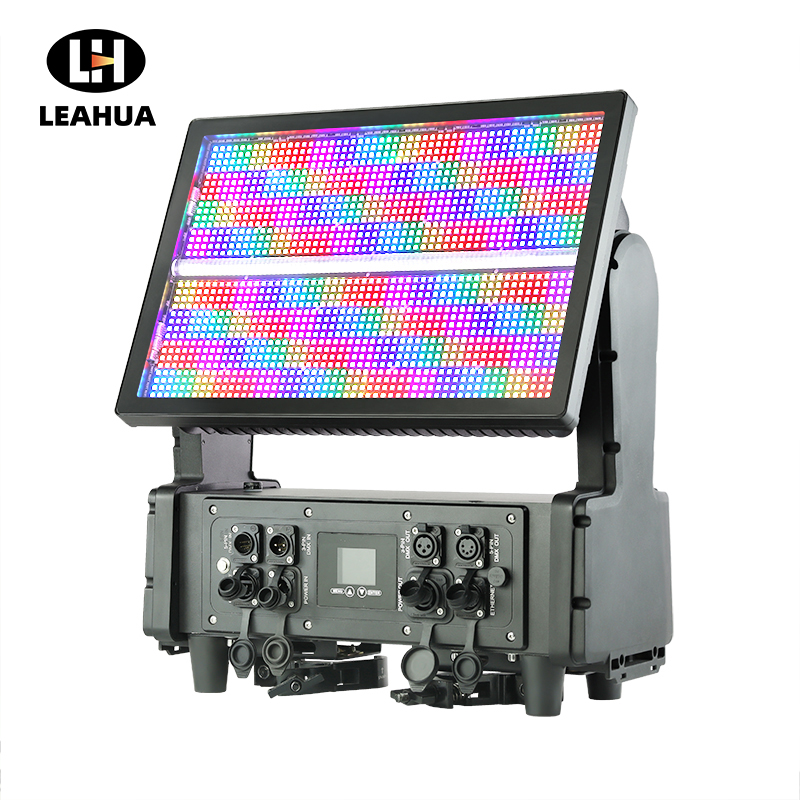

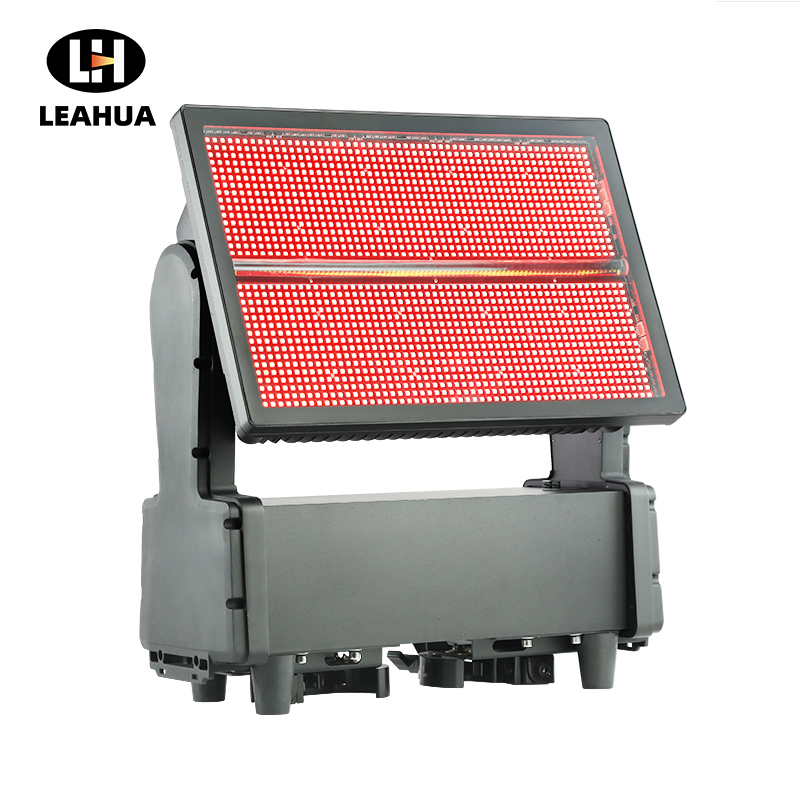

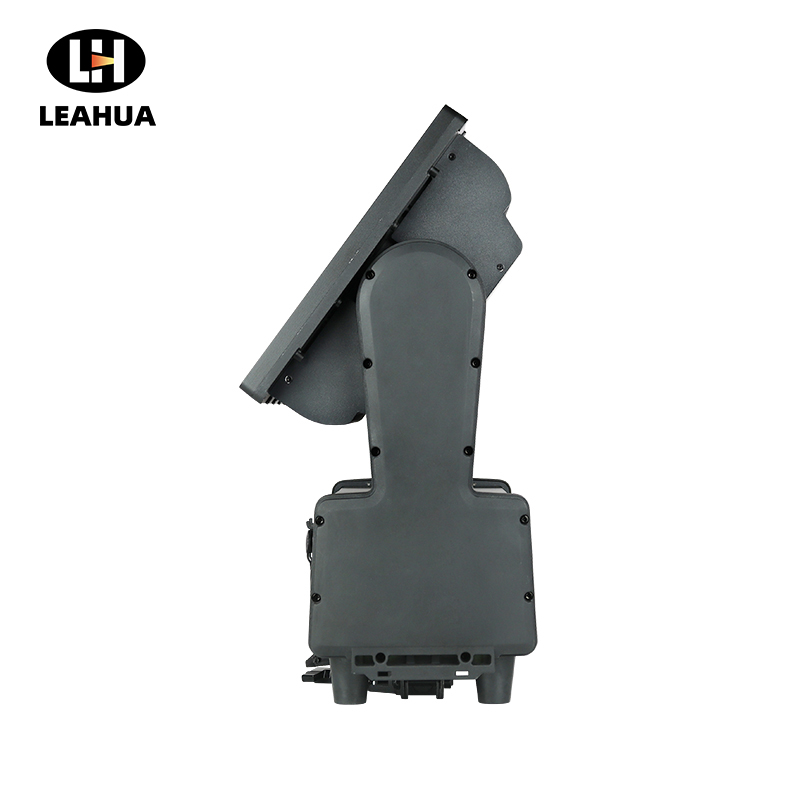

Raptor Max

Model Number: LH -R031
Raptor MAX light source combines 84*8W white LED with a vibrant, saturated strip section of 1728 *1.5W RGB LED. This hybrid system provides expansive, uniform washes with a 93° field angle for white light and a full 100° field for RGB color blending, alongside a tighter 65° beam for focused applications.The fixture offers dynamic creative control with multiple pre-programmed effects, including wash, beam, and strobe functions.Housed in a robust die-cast aluminum and plastic composite body rated IP65.
Availability:
Quantity:
Inquiry Favorite

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Previous:
Next:
Raptor Max
Technical Specification
Photometrics
Dimensions
Video
Download

Raptor Max


Technical Specification


Power

  • Input Voltage Range: AC100-240 V, 50/ 60 Hz

  • Power Consumption: 2000W

Control

  • Display: LCD display

  • Control Mode: DMX512, master-slave, auto, sound, Art-Net, RDM

  • Control Channel: 24/ 46/ 91/ 127/ 68CH

Housing

  • Housing: Die-casting aluminum, plastic

  • Working Environment: -10°C - 45°C

  • Protection Rate: IP65

Light Source

  • Main Light Section: 84×8 W White LED

  • Strip Light Section: 1728×1.5W RGB LED

  • Life Expectancy: About 50000 hours ( factory rated )

Head Movement

  • Tilt: 184°, 16bit movement resolution

Connection

  • Power Connection: Powercon in/ out

  • Signal Connection: DMX 3-pin + RJ45 in/ out

Zoom Range

  • Beam Angle for White LED: 65°

  • Field Angle for White LED: 93°

  • Field Angle for RGB LED: 100°

Other Function

  • Wash, beam, strobe effect

  • wide range of different pattern pre-programmed effect

Physical Information

  • Product Dimensions: 430×292×419mm

  • Net Weight: 18.9kg

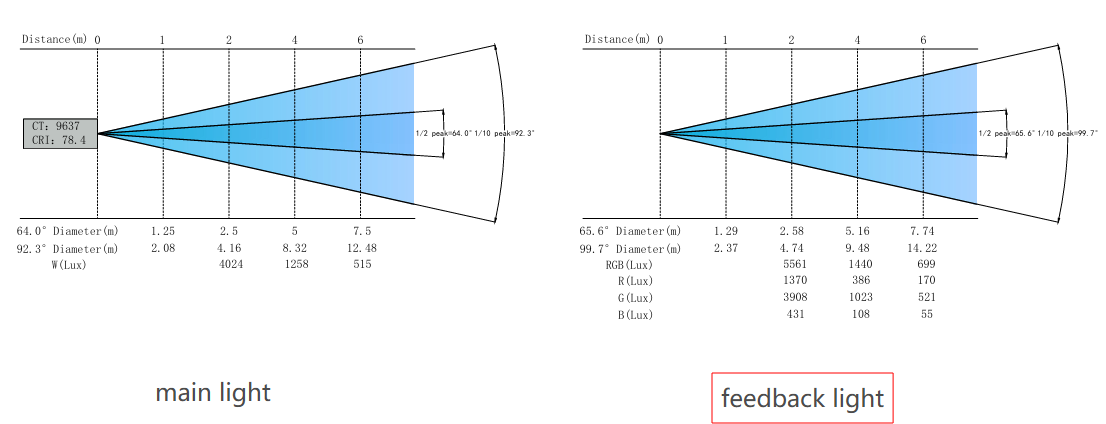

Photometrics

9.Raptor Max

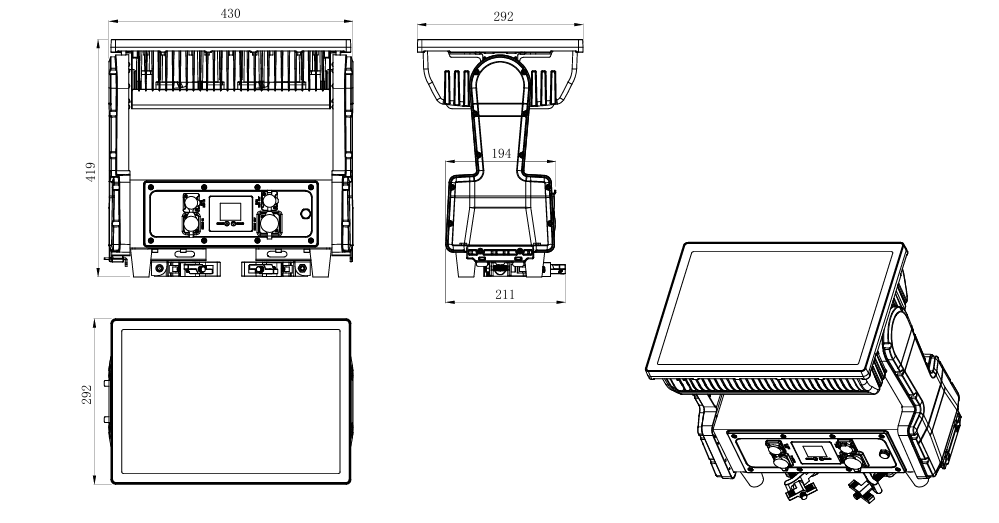

Dimensions

10.Raptor Max


Video



Download

Related Products

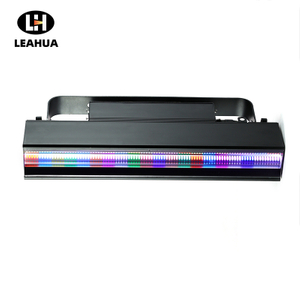

Raptor Bar 300
