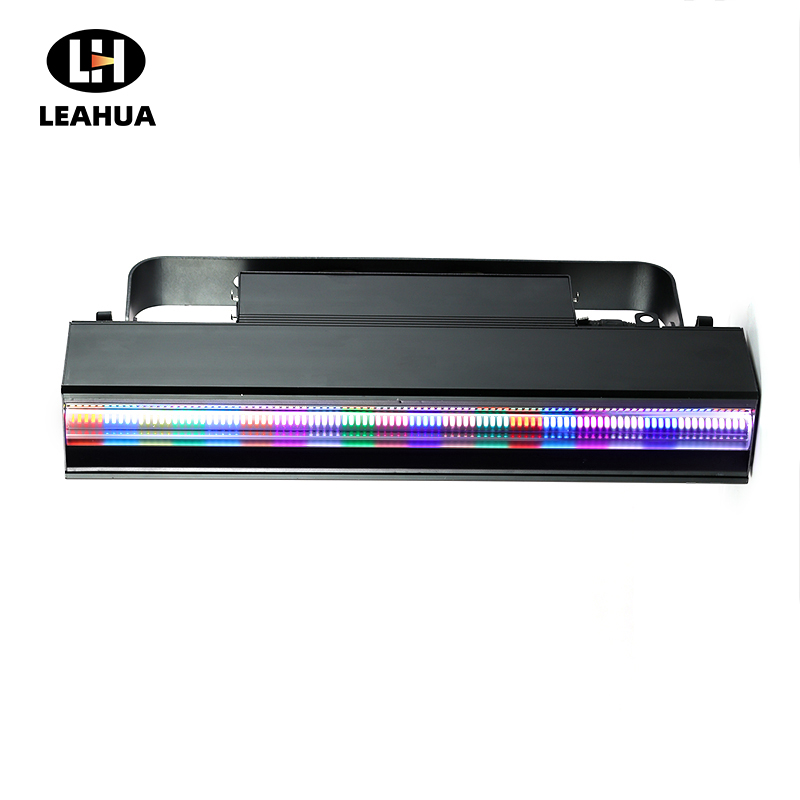

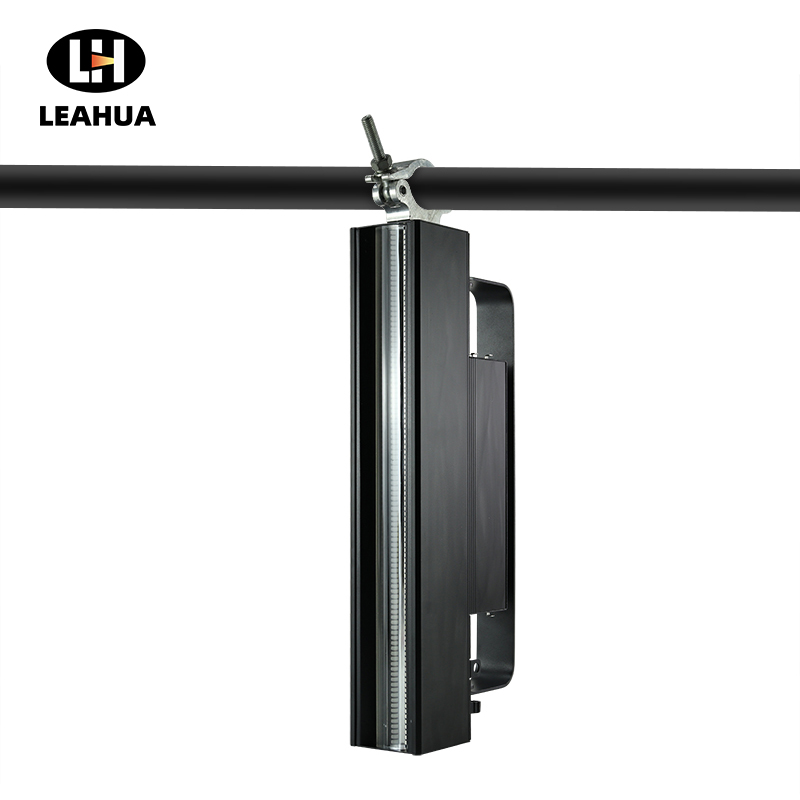

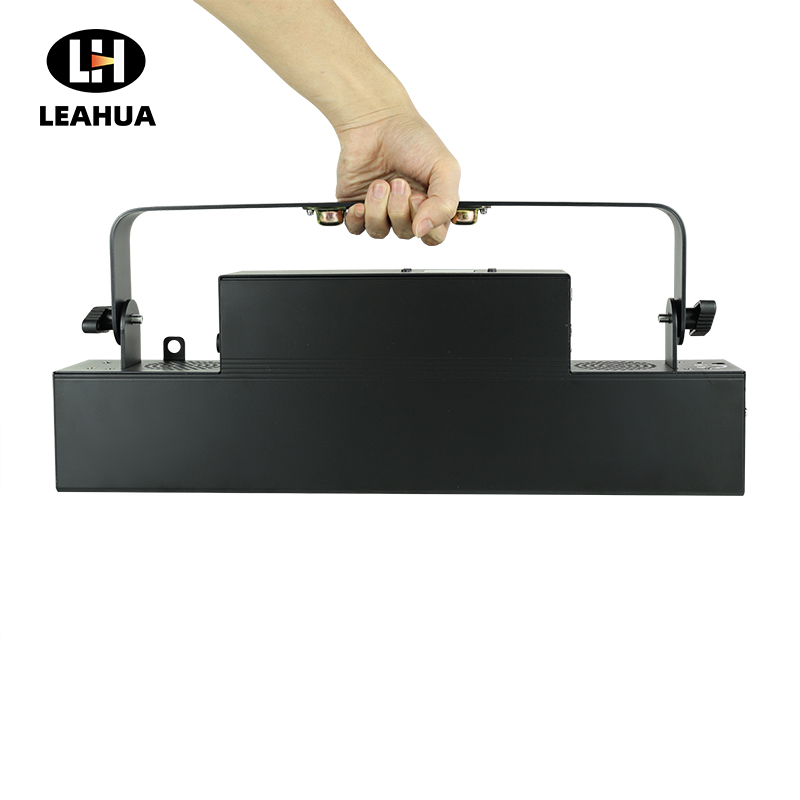

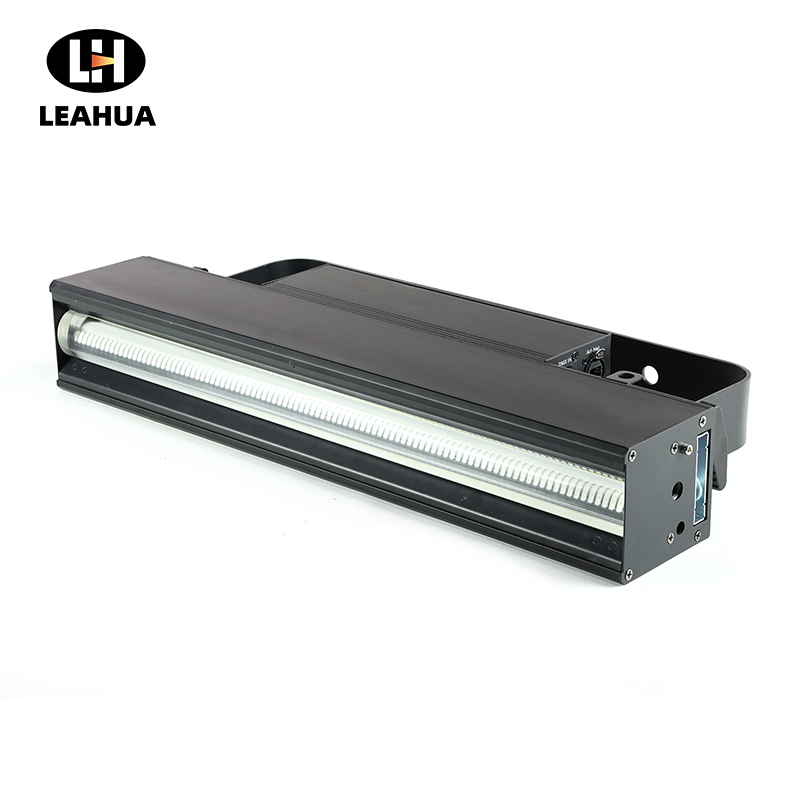

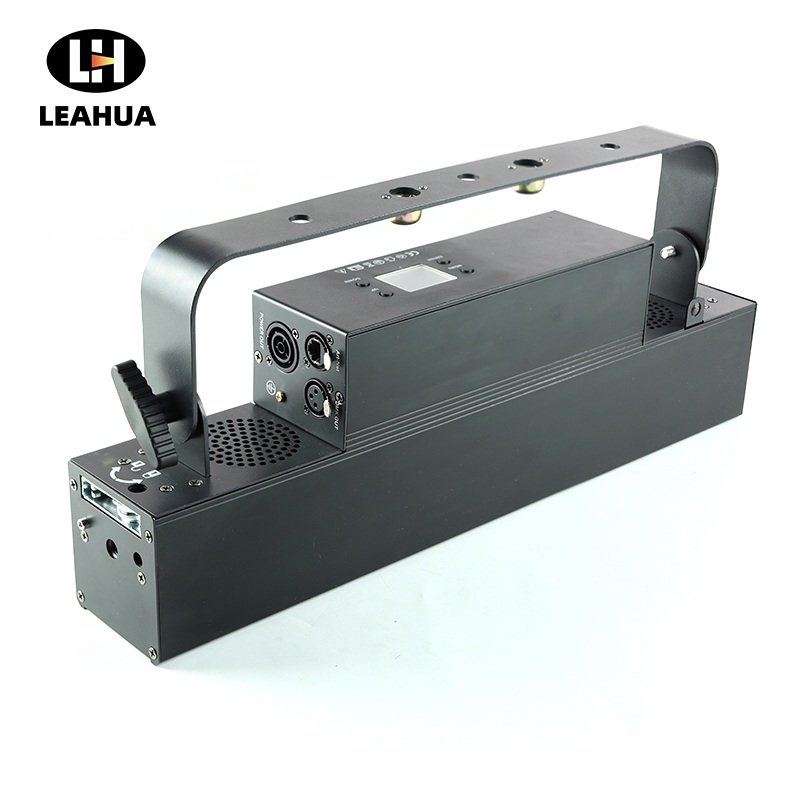

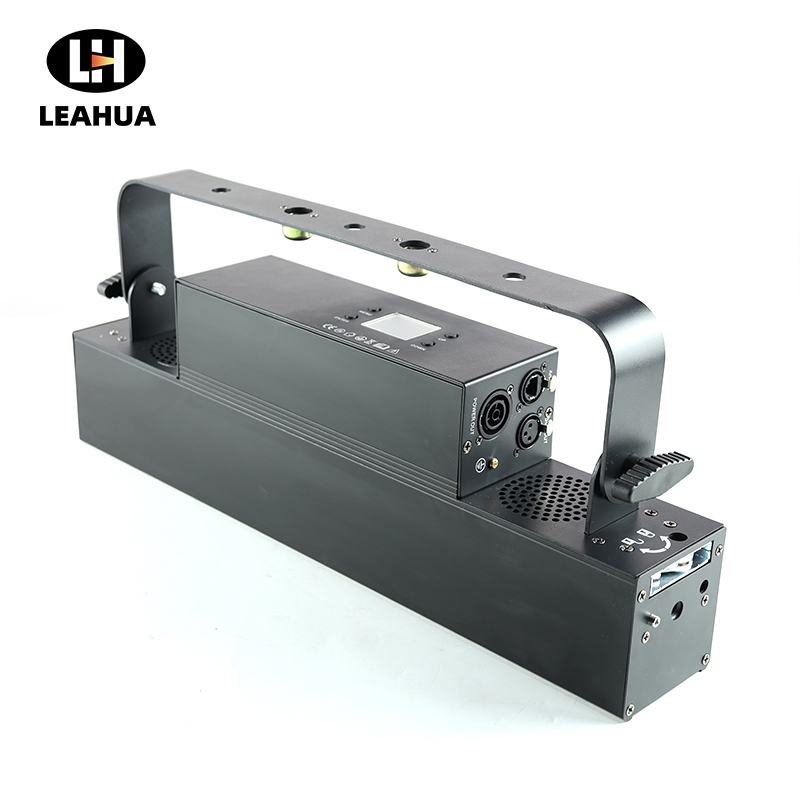

Raptor Bar 300

Model No: LH -R040

Raptor Bar 300 delivers powerful illumination with 800W power, featuring 100×5W white LEDs (8000K, 77° beam angle) and 200×1.5W RGB LED (57° beam angle) for rich, layered lighting effects. High-brightness white light and powerful strobe function, combined with the splicing effect, make him even more powerful on stage.

Quantity:
Availability:





Inquiry Favorite

Previous:

Next:

Technical Specification

Photometrics

Dimensions

Video

Download

Technical Specification

Power

Input Voltage Range: AC100-240V 50/ 60Hz
Power Consumption: 800W

Control

Display: LCD display
Control Mode: DMX512, master-slave, auto, sound, art-Net, RDM
Control Channel: 16 / 34 / 84 / 47 / 98 / 158 / 38CH

Connection

Power Connection: Powercon in/ out
Signal Connection: DMX 3-pin + RJ45 in/ out

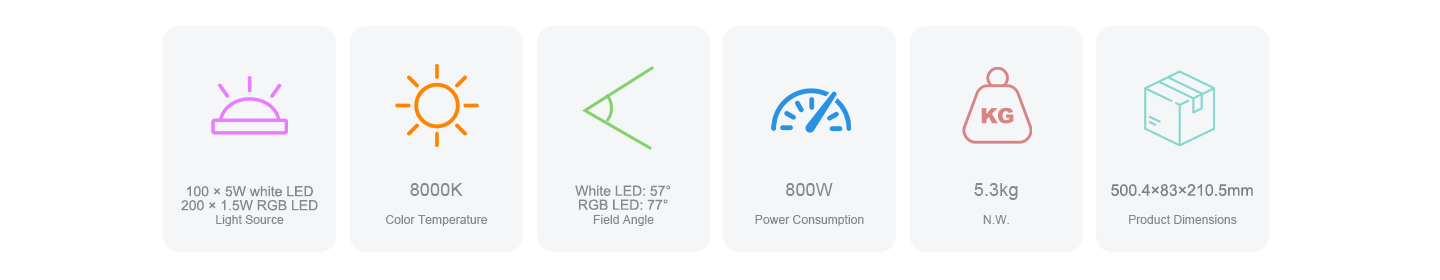

Light Source

Main Light Section: 100 × 5W white LED
Strip Light Section:200 × 1.5W RGB LED
Color Temperature Output of Fixture: 8000K
Life Expectancy: 50000 hours ( factory rated )

Other Function

Dimming: 16bit 0-100% linear dimming system
Strobe: 1-25 F.P.S, speed adjustable

Physical Information

Product Dimensions : 500.4×83×210.5mm
Net Weight: 5.3kg

Field Angle

Field Angle for White LED: 57°
Field Angle for RGB LED: 77°

Housing

Housing: Mental
Working Environment: -10℃- 45℃
Protection Rate: IP20

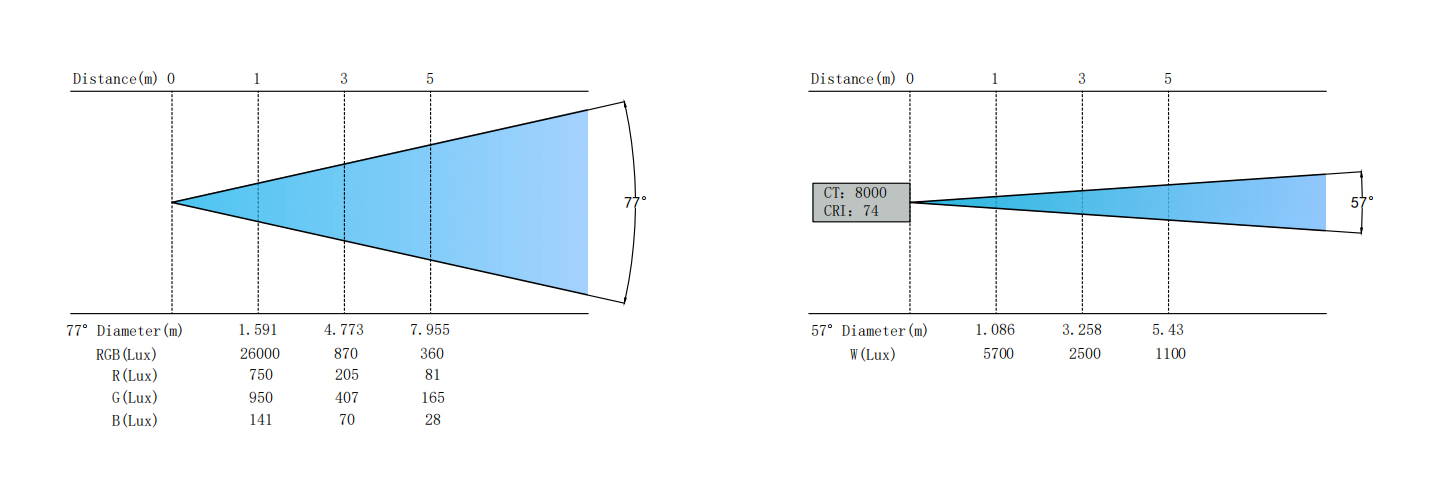

Photometrics

Dimensions

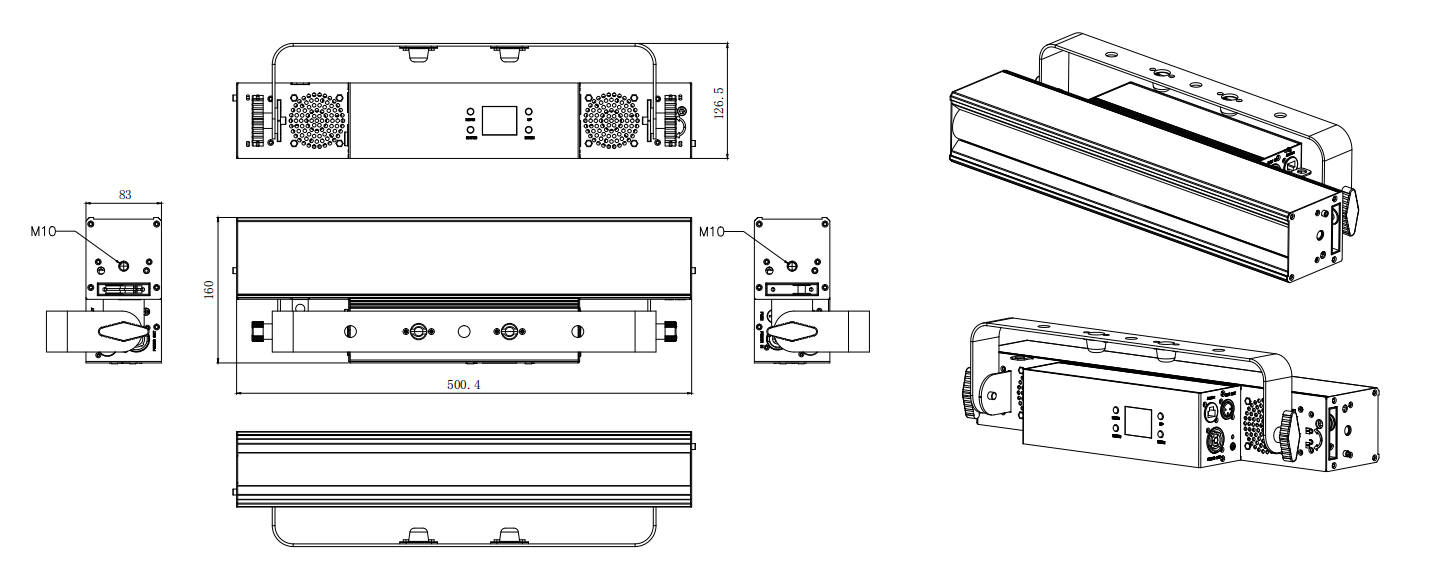

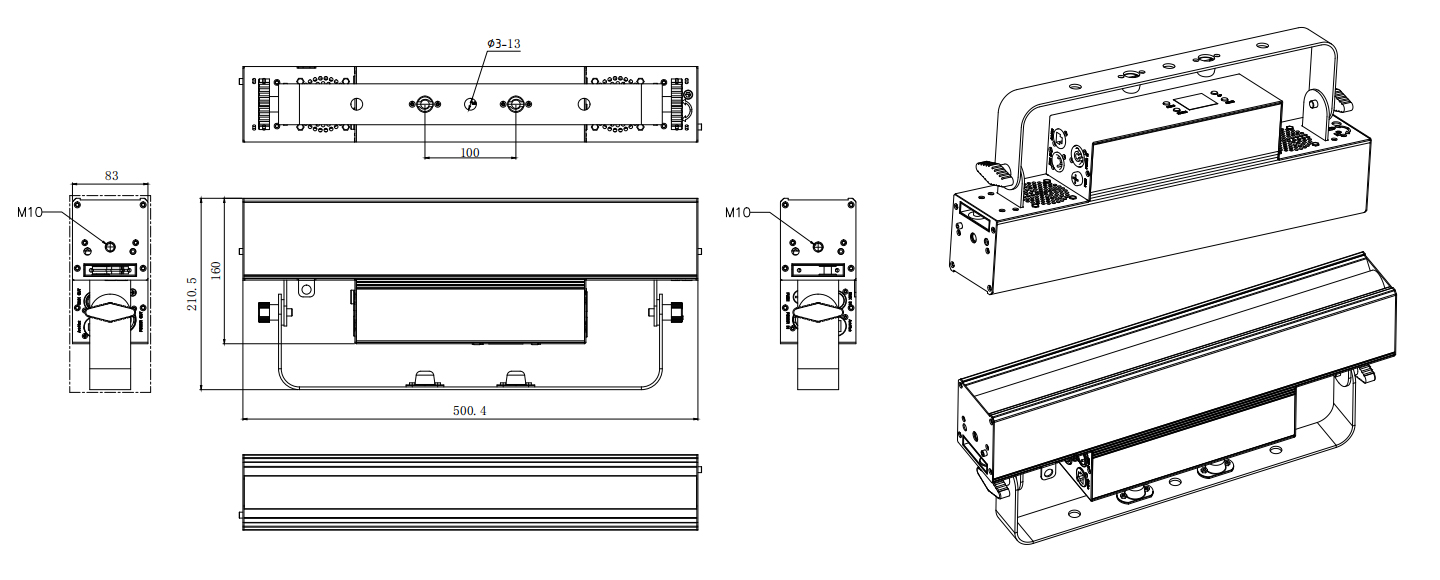

Raptor-Bar-300-2 Raptor-Bar-300-3

Video

Download

Manual

LH-R040 Raptor Bar 300_Manual.pdf
