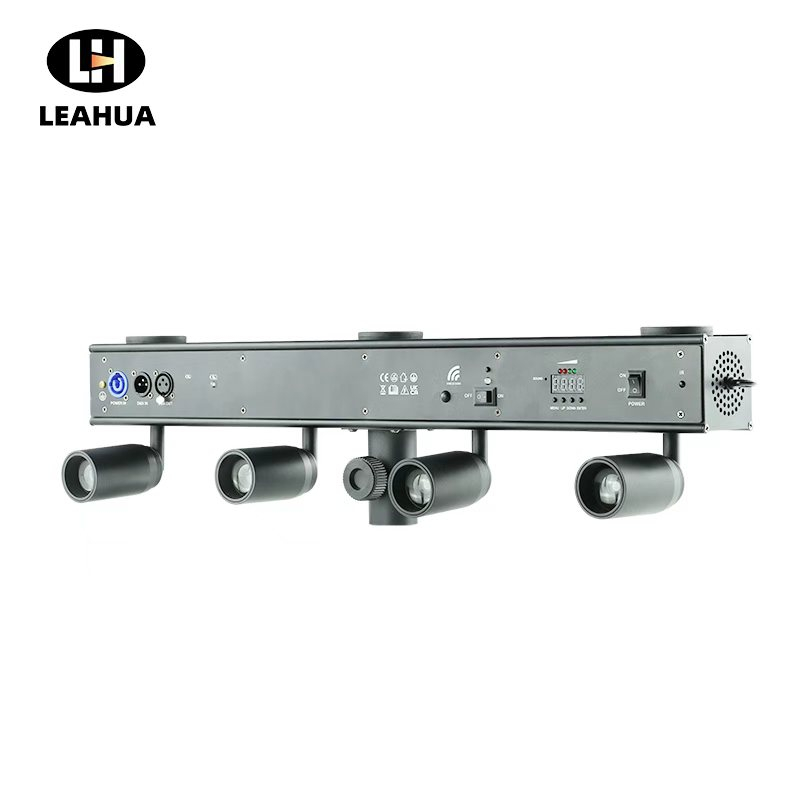

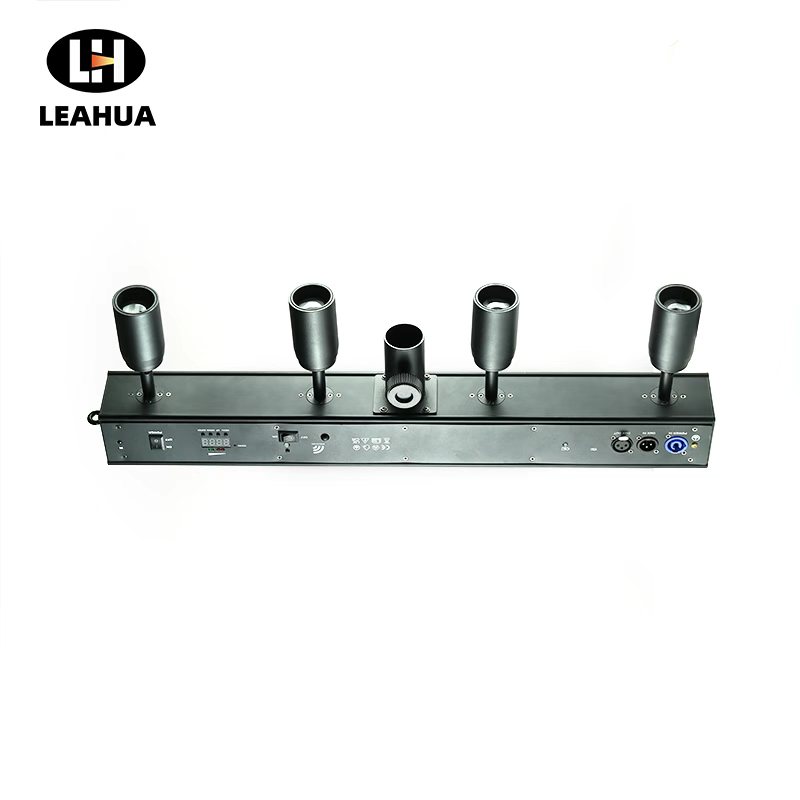

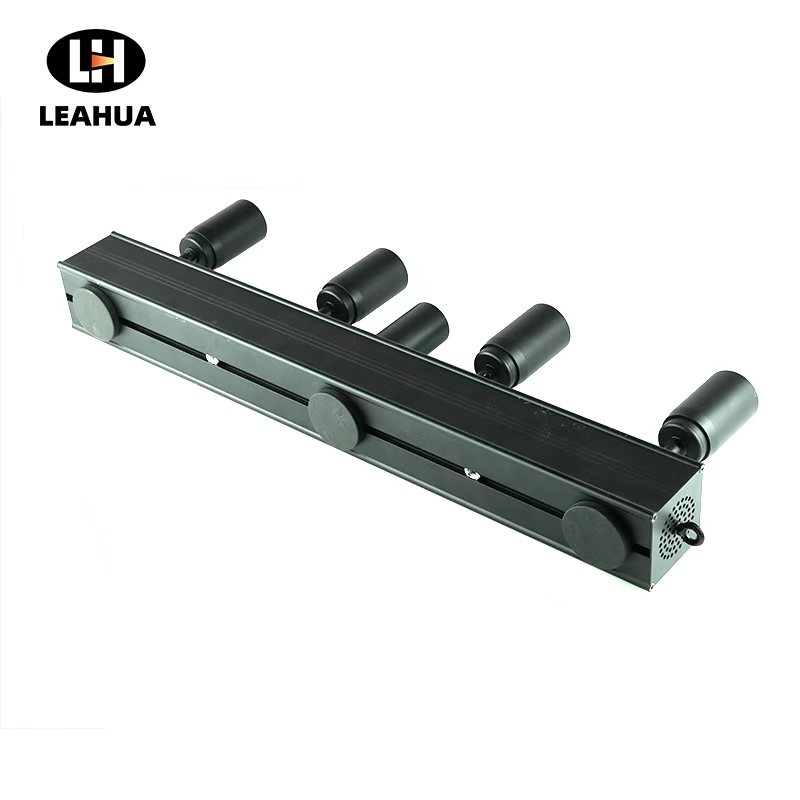

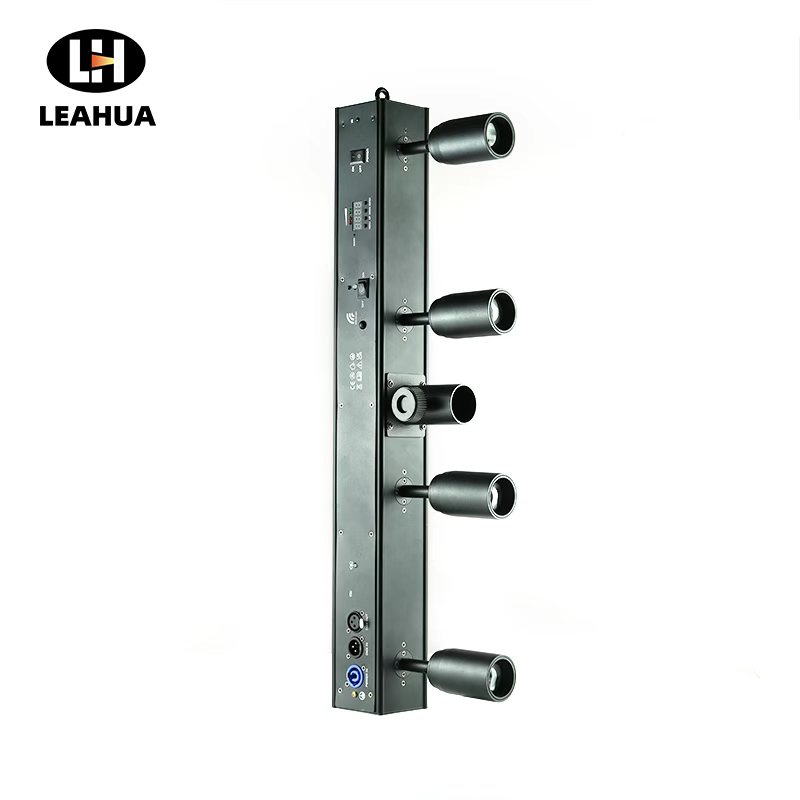

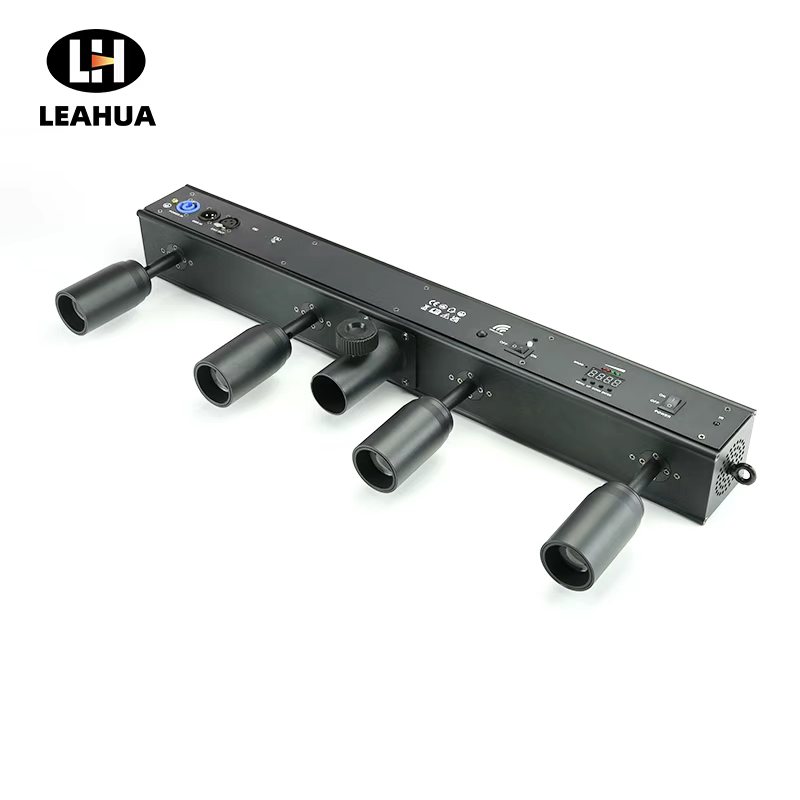

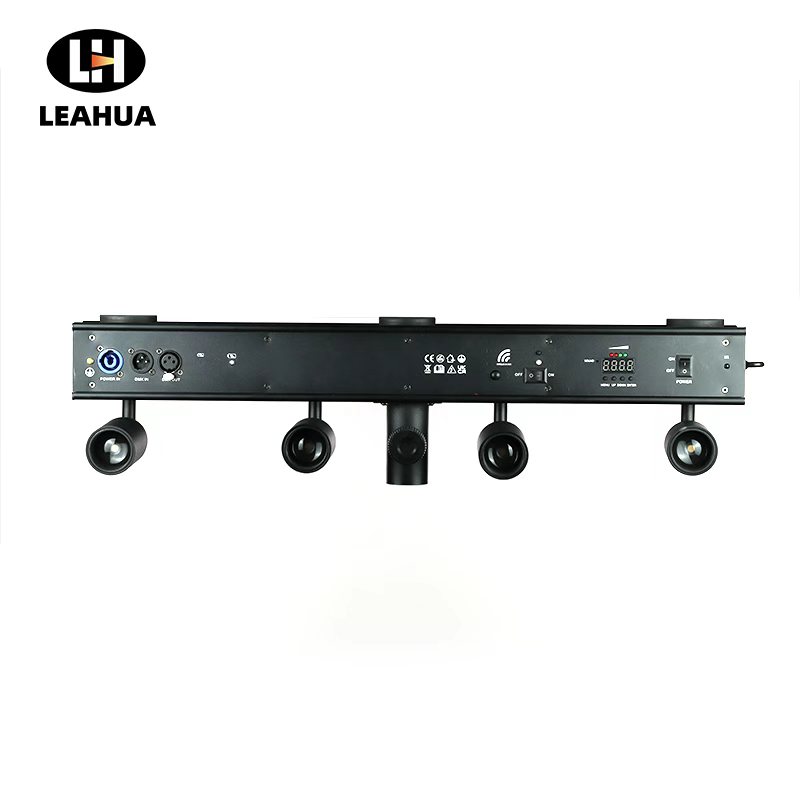

Pinspot 4Z

Model No: LH -PS410


The Pinspot 4Z features 4 *15W warm white LED, pure 2700K color temperature ideal for creating natural, flattering light for stages, studios, and architectural accents.Manual Zoom (6°–37°）Powered by a high-capacity 97.68Wh lithium-ion battery, the fixture provides up to 2.5 hours of full-power runtime on a single charge.Supports DMX512, master/slave, auto , sound, wireless and IR remote.Ideal for photographers, videographers, event planners, and venue operators, the Pinspot 4Z provides professional-grade lighting with the freedom of cordless operation, making it perfect for dynamic, fast-paced environments.
Availability:
Quantity:
Inquiry Favorite

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Previous:
Next:
Pinspot 4Z battery pinspot battery light warm white led pinspot pinspot for wedding light wireless pinspot light
Technical Specification
Photometrics
Dimensions
Video
Download

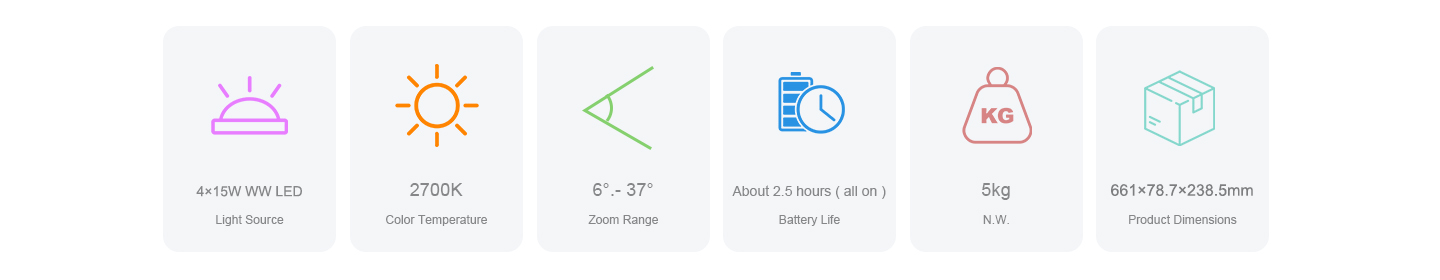

218K035Q


Technical Specification


Power

  • Input Voltage Range: 100-240V~ 50/ 60Hz

  • Power Consumption: 35W

Control

  • Display: Digital Display

  • Control Mode: DMX512, master-slave, auto, sound, wireless, remote

  • Control Channel: 9CH

Housing

  • Housing: Aluminum alloy

  • Working Environment: -10℃- 45℃

  • Protection Rate: IP20

Light Source

  • Light Source: 4×15W Warm White LED

  • Color Temperature Output of Fixture: 2700K

  • Life Expectancy: About 20000hours ( factory rated )

Battery

  • Battery Type: Lithium ion

  • Battery Power: 97.68Wh; 11.1V, 8800mAh

  • Battery Charge Time: About 6 hours ( full power )

  • Battery Life: About 3 hours ( all on ),

    8 hours ( single LED on )

Connection

  • Power Connection: Powercon in/ out

  • Signal Connection: DMX 3-pin in/ out

Zoom Range

  • Zoom Range: 6°-37°

Other Function

  • Dimming: 0-100% linear dimming system

  • Strobe: 0-20 F.P.S, speed adjustable

Physical Information

  • Product Dimensions: 661×78.7×238.5mm

  • Net Weight: 3.3kg

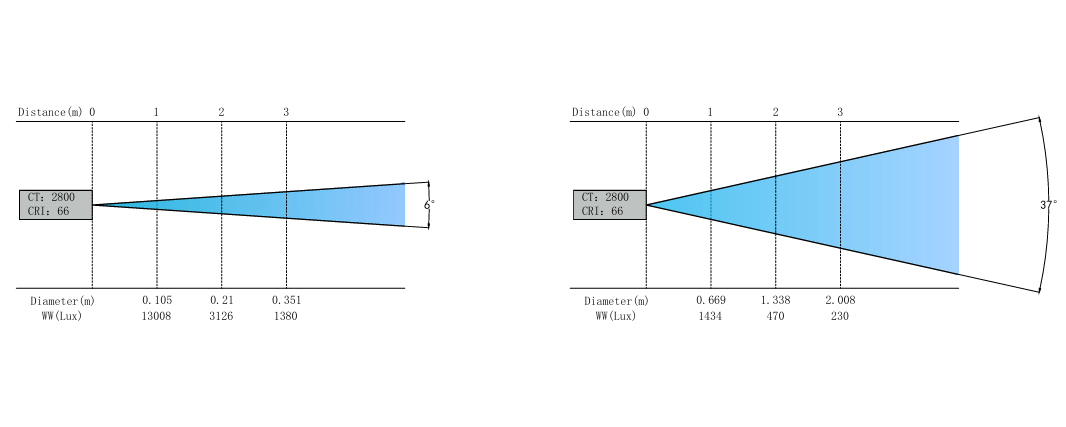

Photometrics

7.pinspot 4Z

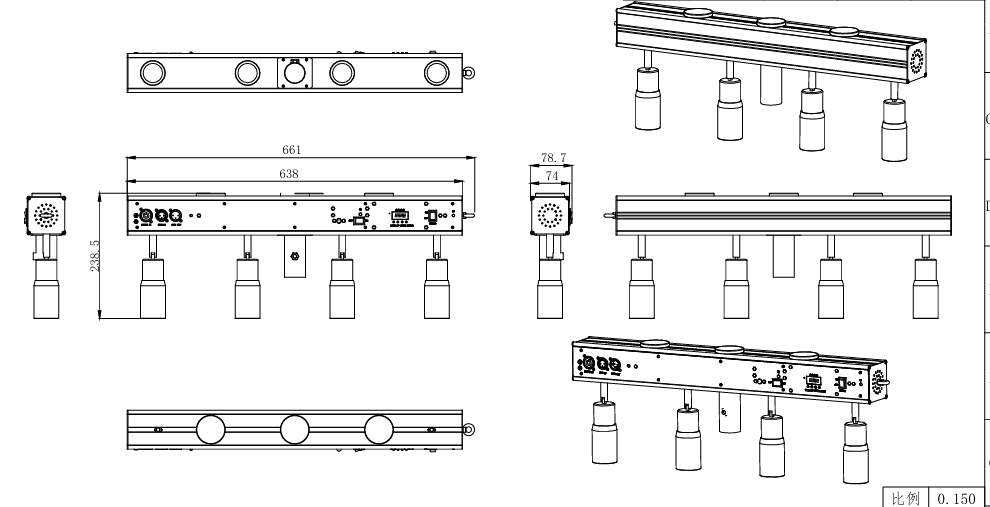

Dimensions


8.Pinspot 4Z



Video




Download
