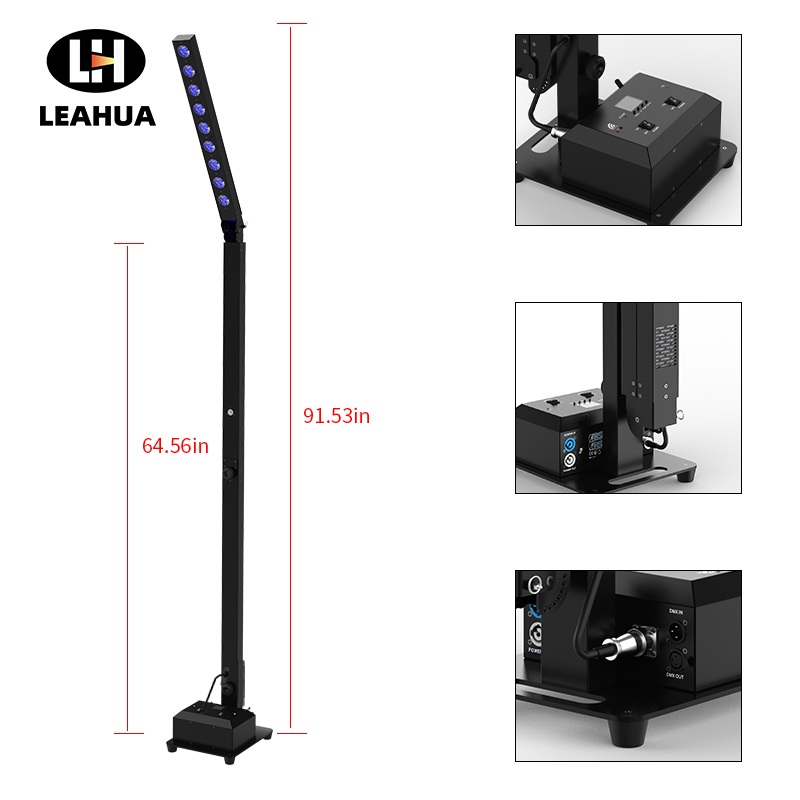

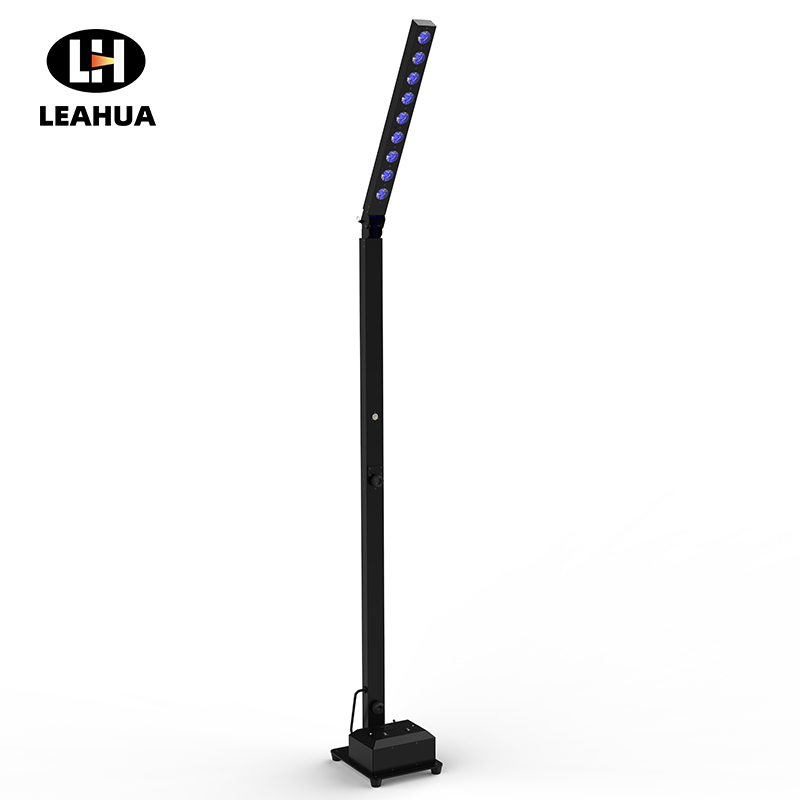

Li-Master 9

Model Number: LH -L034A
Li-Master 9 is 9 x 10W RGBWA+UV LED battery mast light .Thects a defined beam with 25° beam angle and 50° field angle, ensuring impactful and focused coverage.Operate it via DMX512, master-slave, sound , auto , or convenient wireless including WiFi with a dedicated app and remote .Housed in durable aluminum alloy, the fixture is integrated with a smart foldable pole for rapid setup, effortless transport, and a compact footprint.Its true freedom comes from the integrated 300Wh lithium-ion battery. Enjoy up to 4 hours of full multi-color output, or 24 hours in single-color mode.
Availability:
Quantity:
Inquiry Favorite

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Previous:
Next:
Li-Master 9
Technical Specification
Photometrics
Dimensions
Video
Download

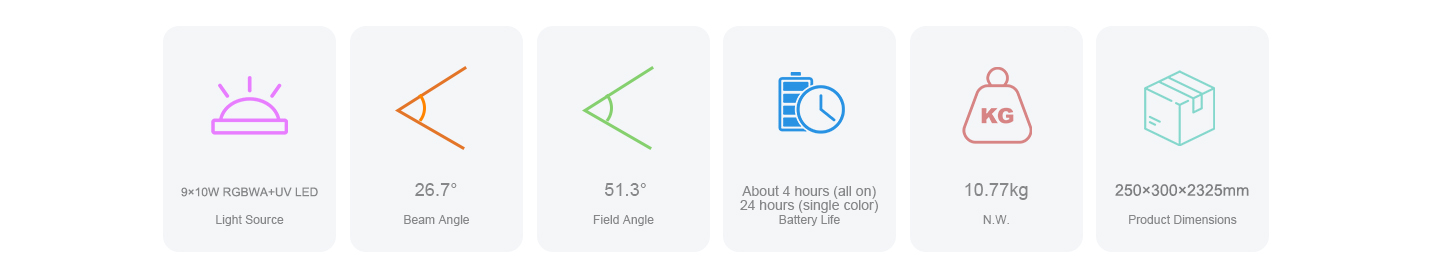

218E034


Technical Specification


Power

  • Input Voltage Range: AC 100-240V/ 50-60Hz

  • Power Consumption: 90W

Control

  • Display: OLED display

  • Control Mode: DMX512, master-slave, auto, sound, wireless, wifi ( app ), remote, RDM

  • DMX Channel: 2/ 6/ 10CH

Connection

  • Power Connection: Powercon in/ out

  • Signal Connection: DMX 3-pin in/ out

Light Source

  • Light Source: 9×10W RGBWA+UV LED

  • Life Expectancy: 20,000 hours

    ( factory rated )

Other Function

  • Dimming: 0-100% linear dimming system

  • Strobe: 0-24 F.P.S, speed adjustable

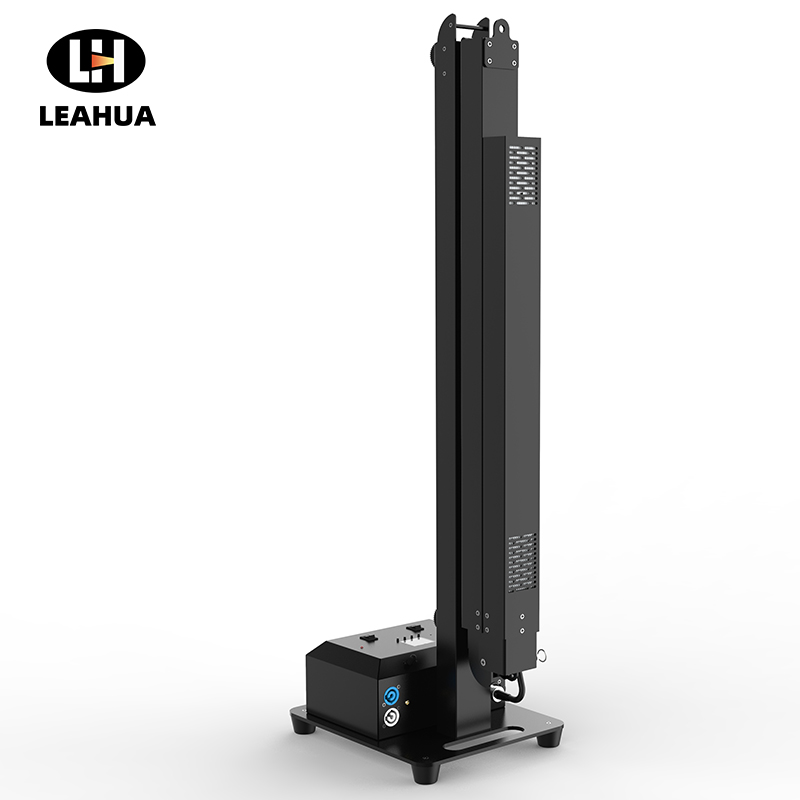

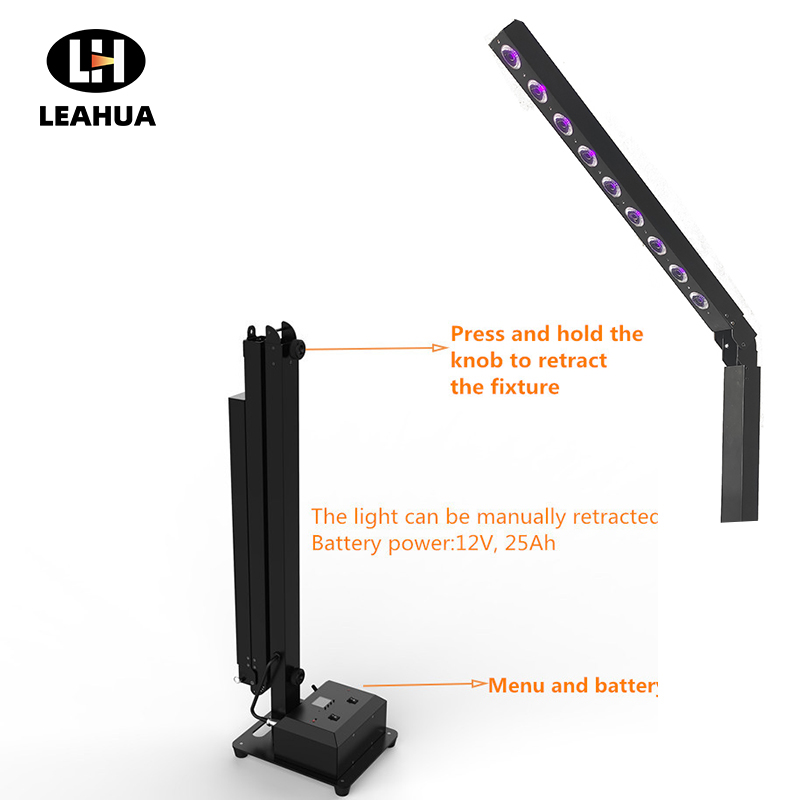

  • Smart foldable pole for easy transport and setup

Battery

  • Battery Type: Lithium ion

  • Battery Power: 300Wh; 12V, 25Ah

  • Battery Charge Time: About 6 hours ( full power )

  • Battery Life: About 4 hours ( all on ), 24 hours ( single color )
Beam Angle

  • Beam Angle: 26.7°

  • Field Angle: 51.3°

Housing

  • Housing: Aluminum alloy

  • Working Environment: -10℃- 45℃

  • Protection Rate: IP20

Physical Information

  • Product Dimensions: 250×300×2325mm

  • Net Weight: 10.77kg

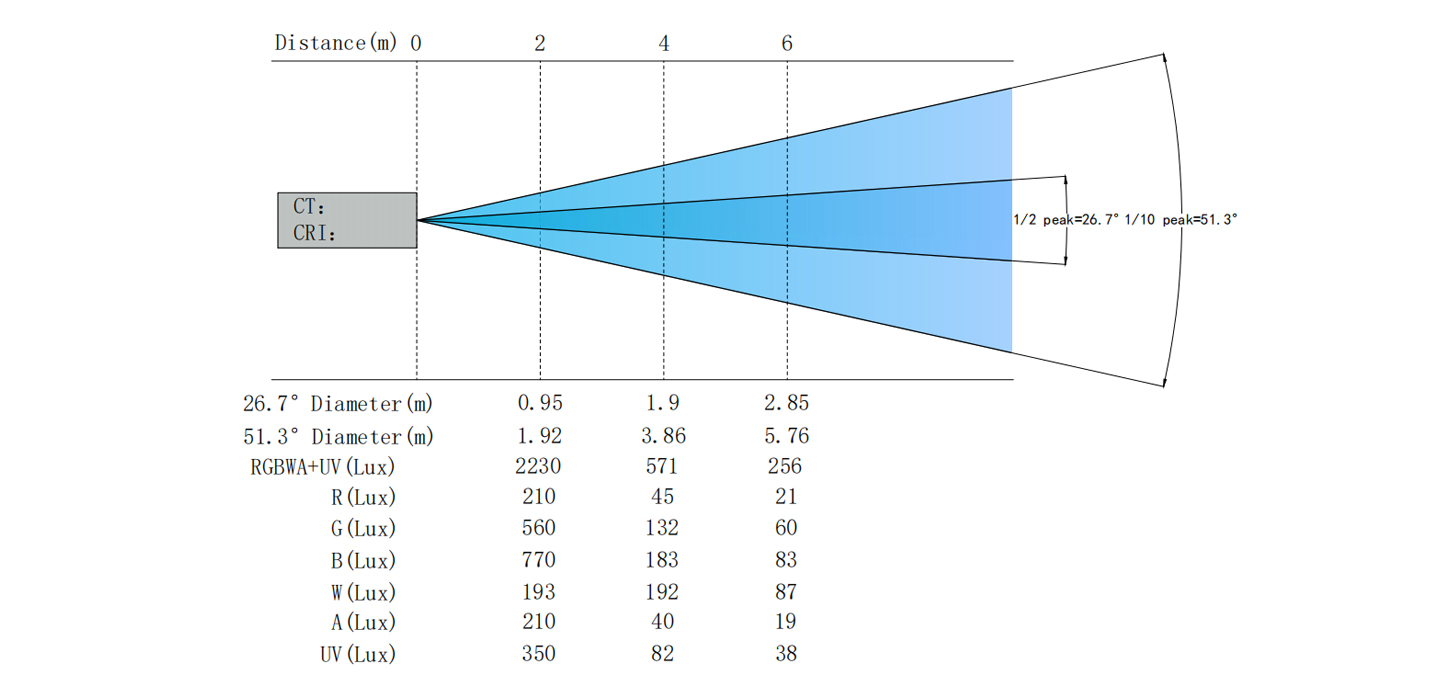

Photometrics


Li-Master-9-1

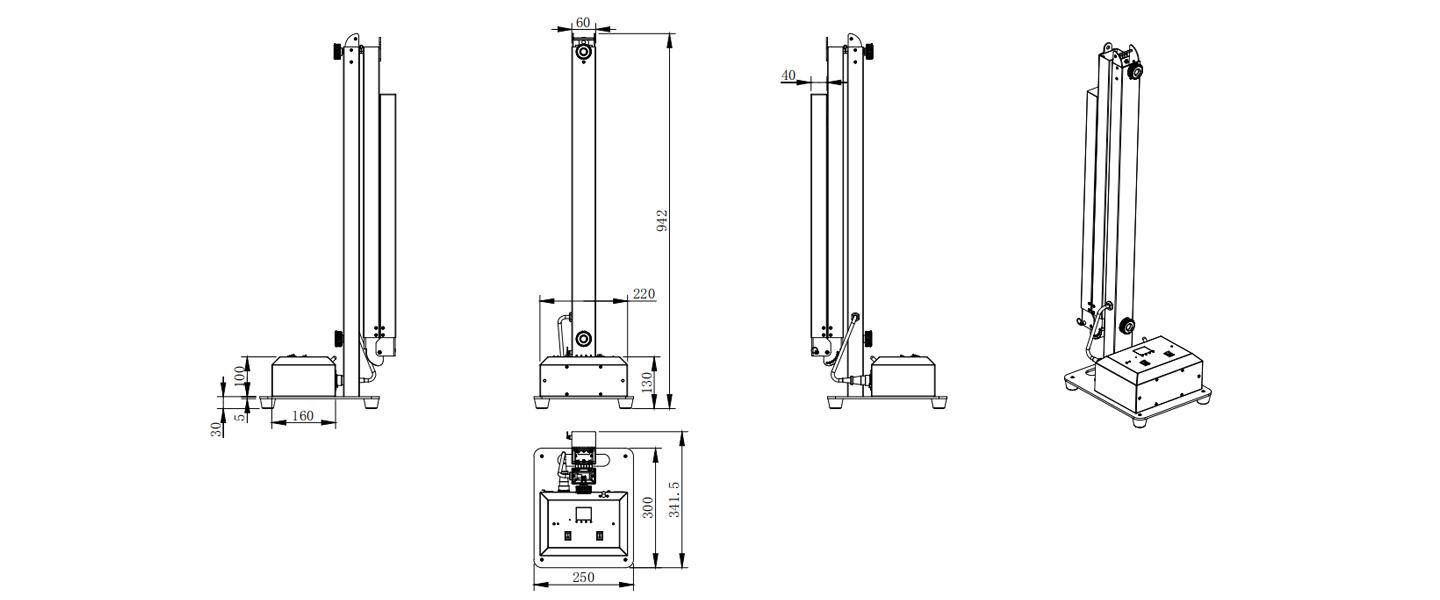

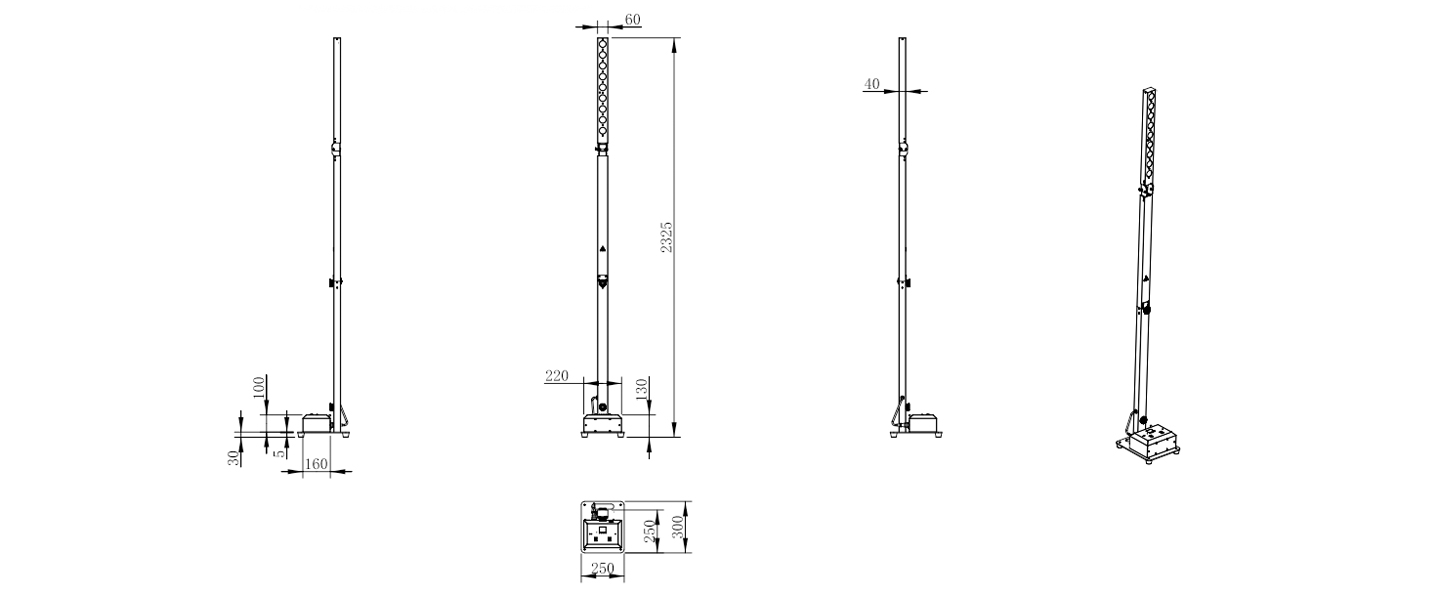

Dimensions


Li-Master-9-2Li-Master-9-3



Video




Download

Related Products

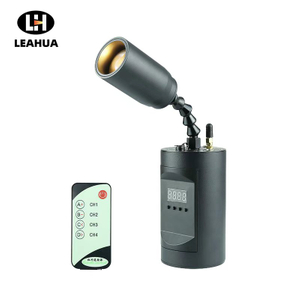

Pinspot
Pinspot 1

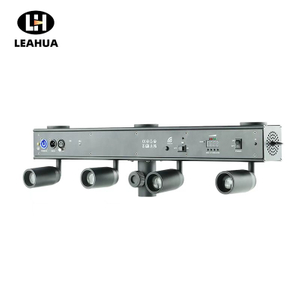

Pinspot 4Z
Pinspot 4Z

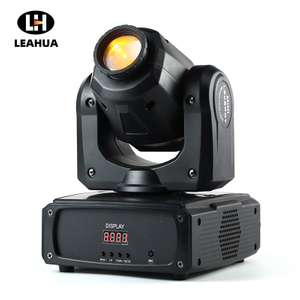

Li-Spot
Li-Spot

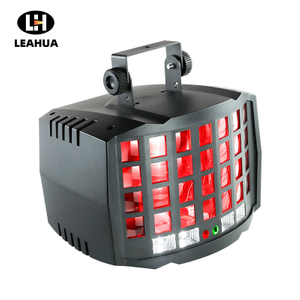

Butterfly 2
Butterfly 2

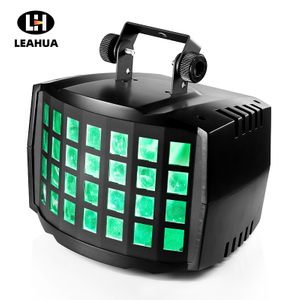

Butterfly 1
Butterfly 1

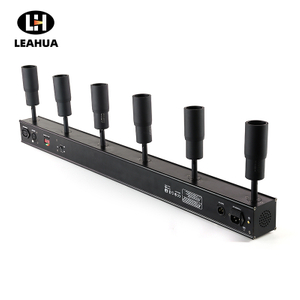

Pinspot 6Z
Pinspot 6Z

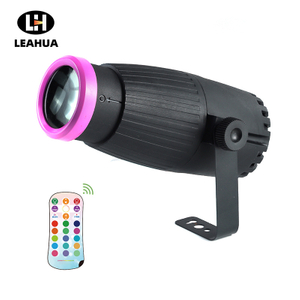

Pinspot 1S
