In professional stage lighting, brightness and beam angle are only part of the equation. When a fixture must place light precisely on a performer, scenic element, or architectural surface, controlling the shape of the beam becomes equally important. This is where framing shutters provide a major advantage.

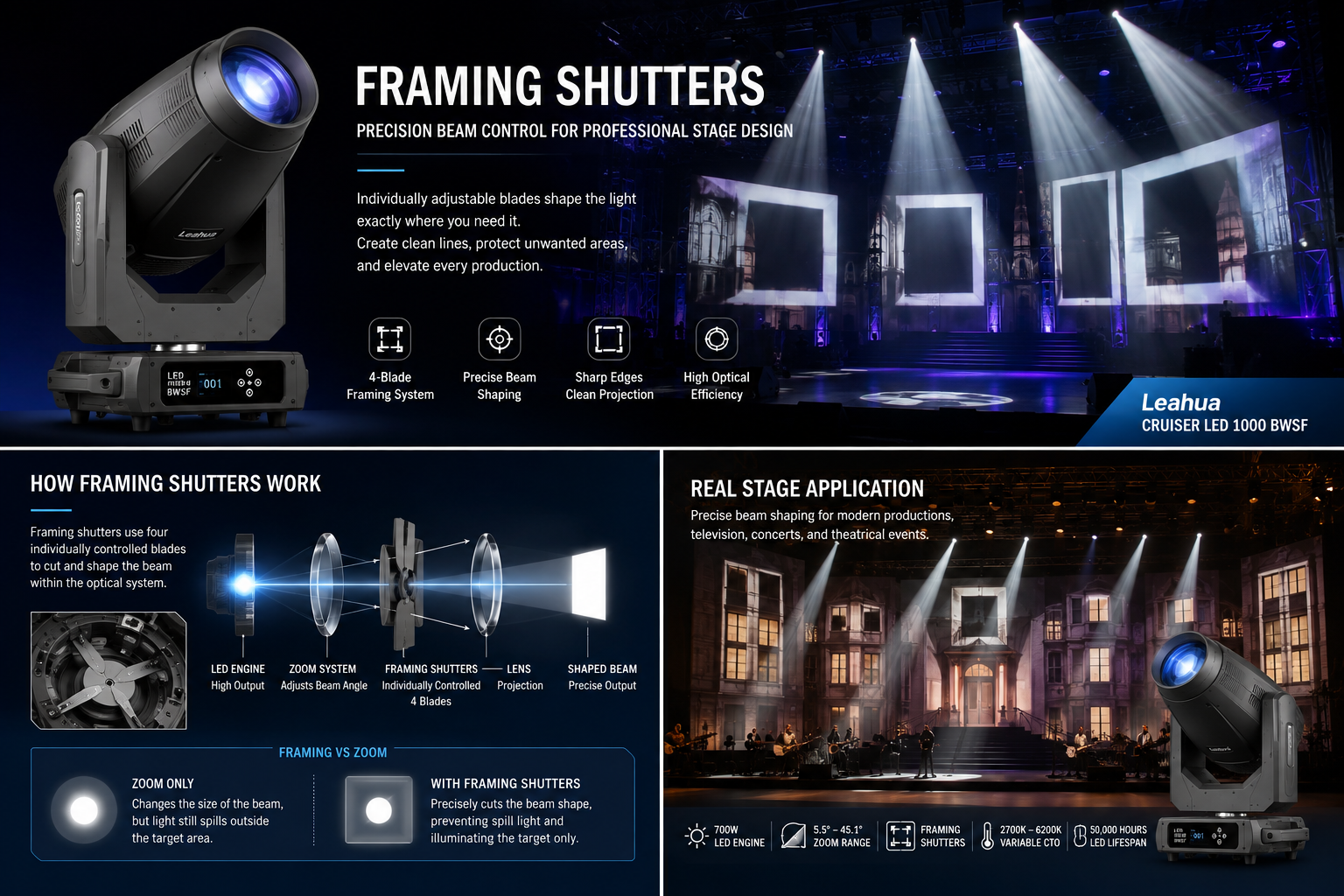

Framing shutters are an optical beam-shaping system consisting of individually adjustable blades positioned inside a moving head fixture. Instead of simply changing the beam diameter with zoom, each blade can be moved independently to cut and shape the projected light. This allows lighting designers to create rectangular, trapezoidal, or other precisely defined beam shapes.
The difference becomes particularly important in theatrical and concert applications. A conventional zoom system changes the overall beam size, but it cannot prevent light from spilling onto unwanted areas. Framing shutters allow designers to mask LED screens, scenery, performers, or audience areas while keeping the illuminated target sharply defined.
This requires more than simply adding mechanical blades. The optical system must maintain sufficient image quality and light intensity while the shutters move through different positions. Poorly designed systems can produce uneven edges, excessive light loss, or visible artifacts when the beam is tightly framed.
The Leahua Cruiser LED 1000 BWSF combines a high-output LED engine with zoom and framing shutter technology, giving designers both broad coverage and precise beam control within one moving head fixture. This makes it suitable for applications where traditional Beam or Wash fixtures cannot provide the same level of projection control.
As stage productions become increasingly precise and visually complex, framing technology is becoming an important feature in professional moving head lighting. It transforms a fixture from simply producing light into a tool for controlling exactly where that light goes.
