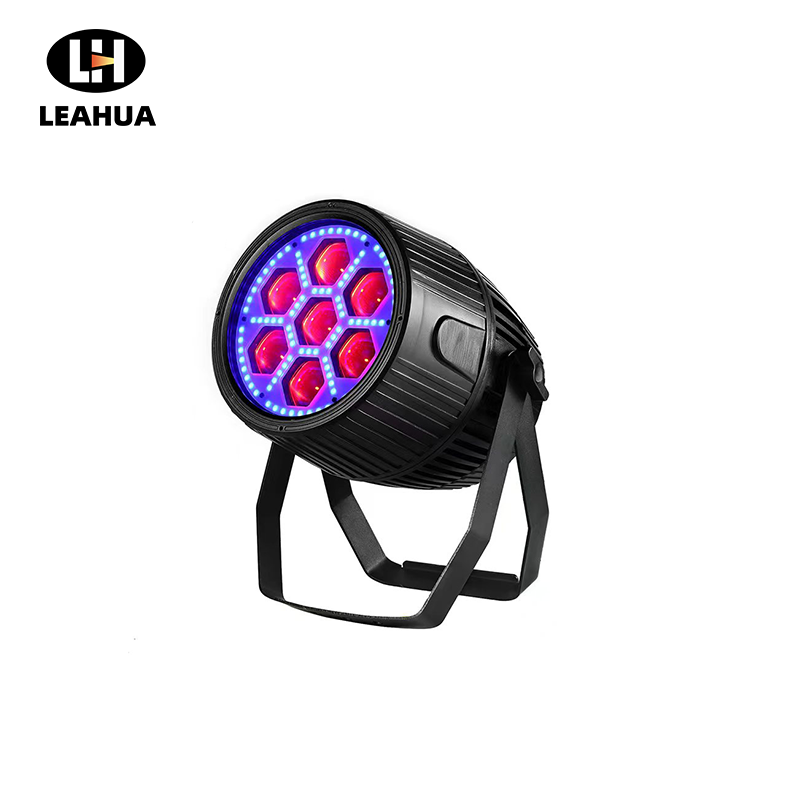

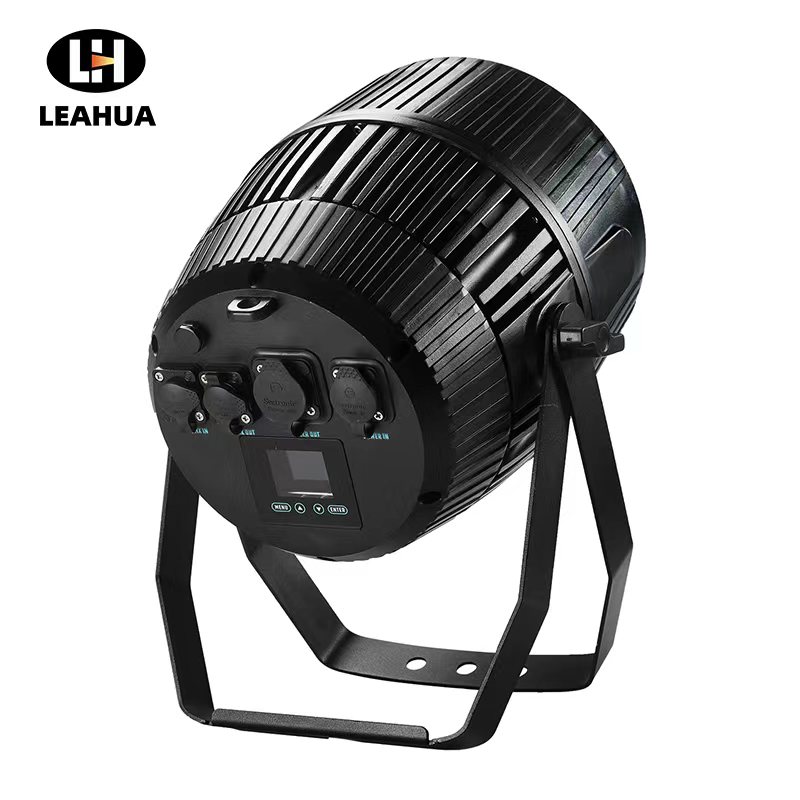

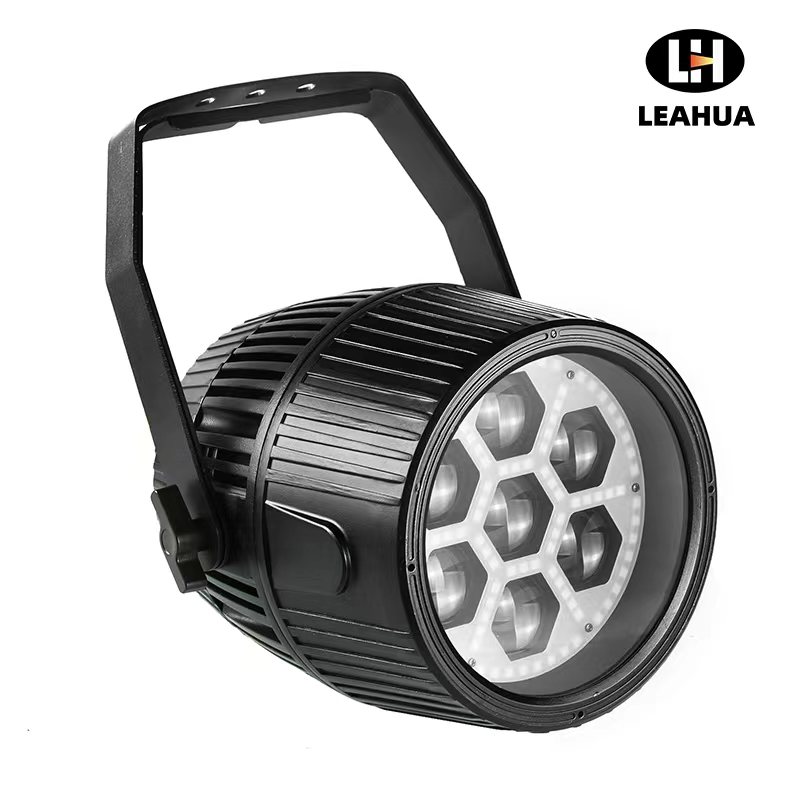

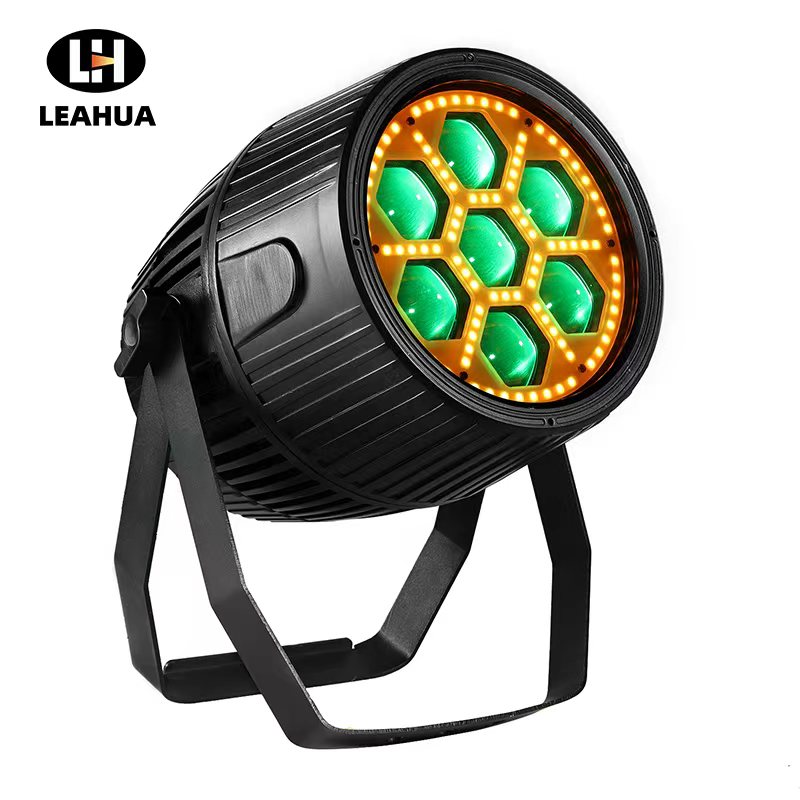

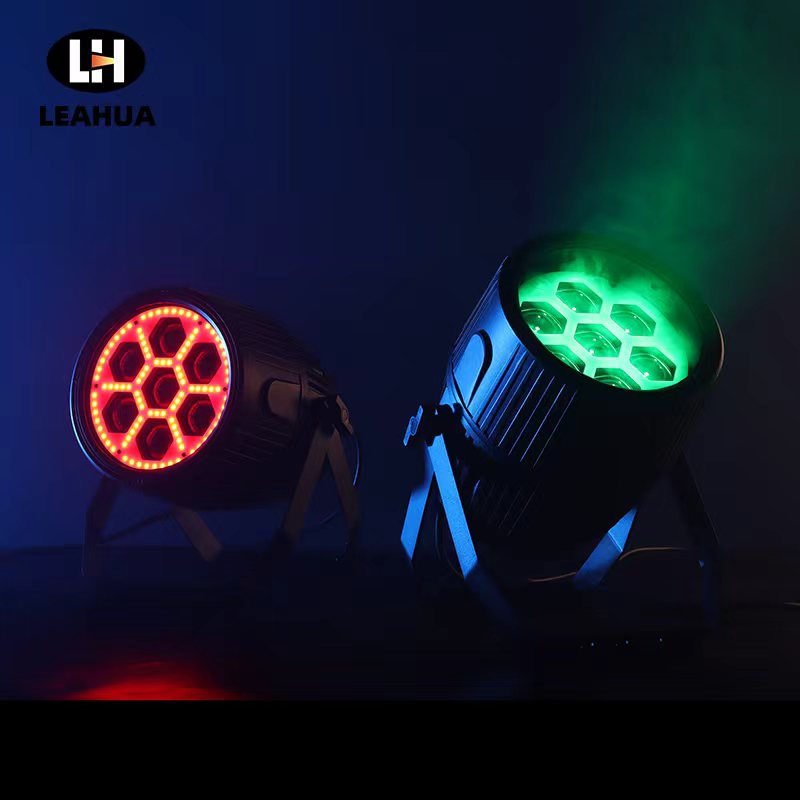

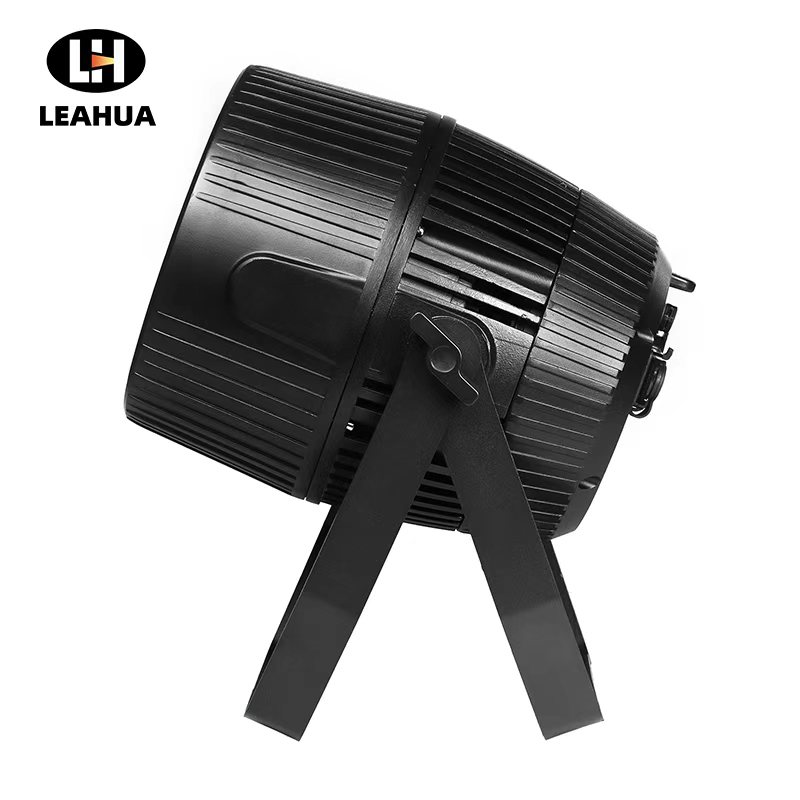

Stellar 740

Model No: LH -ST740
Stellar 740 combines 7×40W RGBW LED with 96×0.2W RGB LED, producing brilliant, saturated colors and powerful output. The zoom range extends from a narrow 3° spot to a wide 60° wash, offering great flexibility in beam shaping.This high-performance LED moving headlight is designed to deliver exceptional versatility and reliability for dynamic stage lighting and professional entertainment applications. Engineered with robust aluminum alloy housing and an IP65 protection rating.Stellar 740 is suitable for both indoor and outdoor activities.
Availability:
Quantity:
Inquiry Favorite

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Previous:
Next:
Stellar 740
Technical Specification
Photometrics
Dimensions
Video
Download

218D068D


Technical Specification


Power

  • Input voltage range: AC90-260V 50/ 60Hz

  • Power consumption: 280W

Control

  • Display: LCD display

  • Control Mode: DMX512, master-slave, auto, sound

  • Control Channel: 9/ 19CH

Connection

  • Power Connection: Powercon in/ out

  • Signal Connection: DMX 3-pin in / out

Light Source

  • Main Light Source:7×40W RGBW LED

  • Strip Light Source: 96×0.2W RGB LED

  • Life Expectancy: 60000 hours

    ( factory rated )

Other Function

  • Dimming: 0-100% linear dimming system

  • Strobe: 0-20 F.P.S, speed adjustable

  • Cooling System: Low noise and efficient fan cooling system

  • With wash and beam effect

Physical Information

  • Product Dimensions: 394.4×291×237.9mm

  • Net weight: 9.1kg
Zoom Range

  • Zoom Range: 5°-33°

Housing

  • Housing: Aluminum alloy

  • Working Environment: -10℃- 45℃

  • Protection Rate: IP65

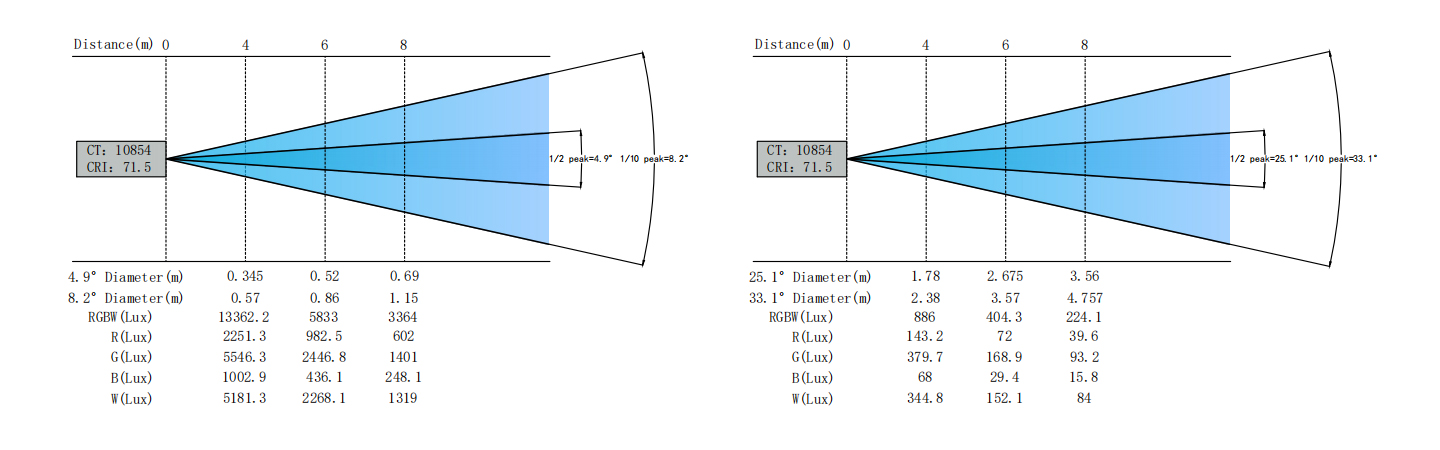

Photometrics


Stellar-G--1

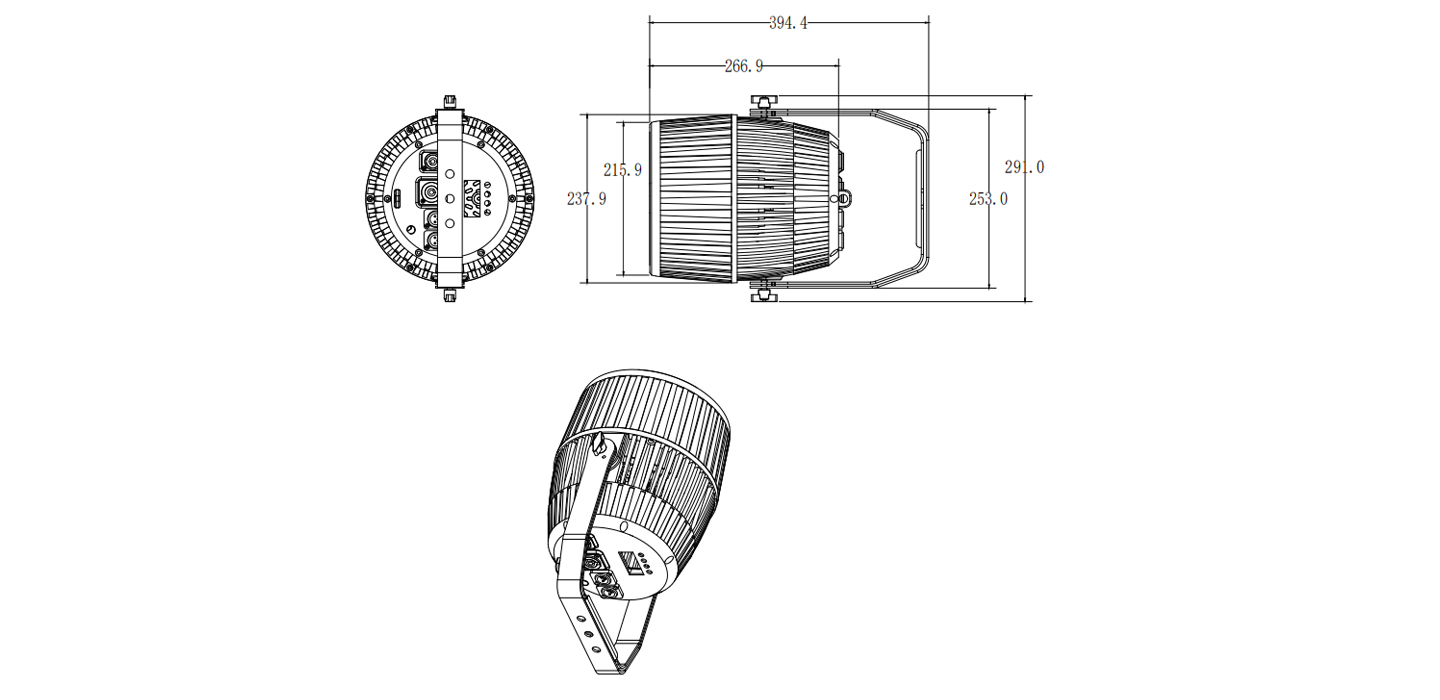

Dimensions


Stellar-G--2



Video



Download
