SP amplifier 4

Model No: LH-AP004

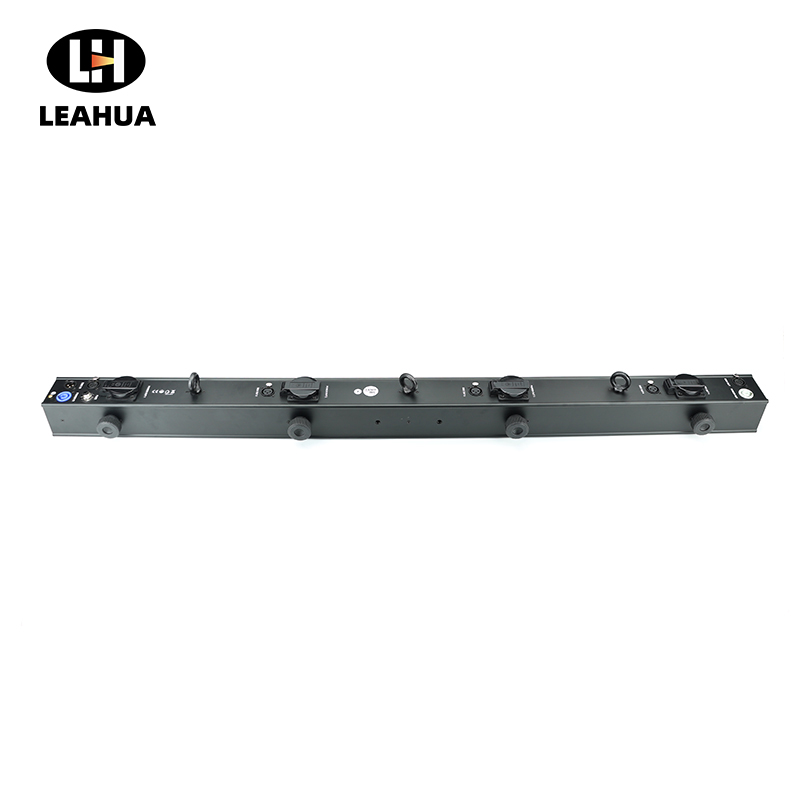

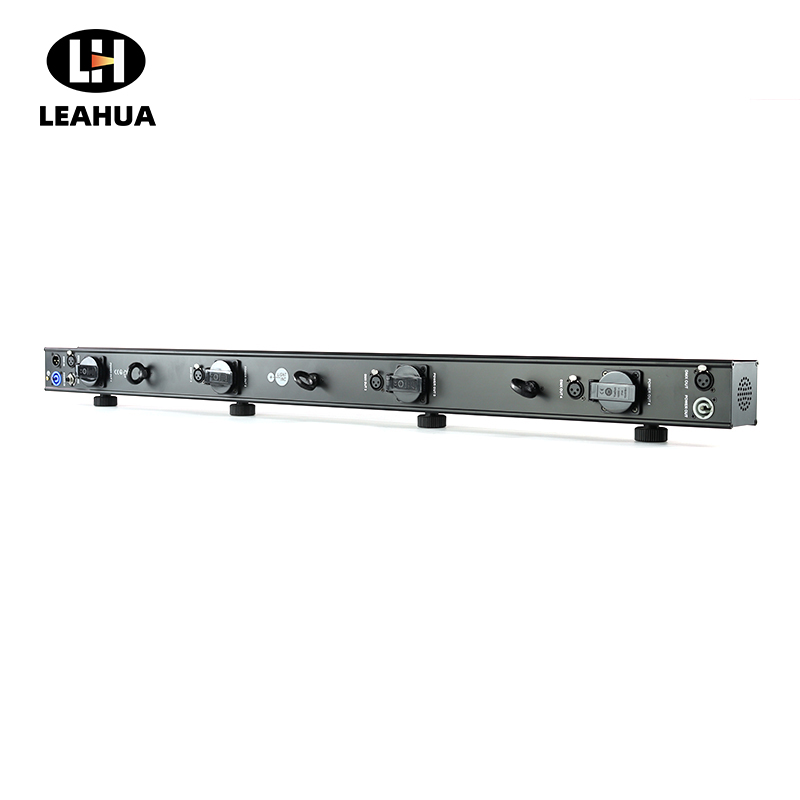

This 4-channel lighting cabinet is a core power distribution and control solution designed specifically for stage performances, film and television shooting, and various event venues. Its compact and sturdy aluminum body (size 1207x87.6x76mm, net weight only 4kg) integrates powerful power and signal distribution functions.
The device adopts a wide voltage design (100-240V, 50/60Hz), supports global universal use, and achieves safe power chain connection through efficient PowerCON IN/OUT interface. The body is equipped with 4 European standard industrial sockets to meet the power supply needs of multiple lighting devices simultaneously. In terms of control, it has built-in 4-channel signal processing, providing 1 3-pin signal input and 5 3-pin signal output interfaces (optional 5-pin), ensuring stable and lossless transmission of DMX signals to the entire lighting system.

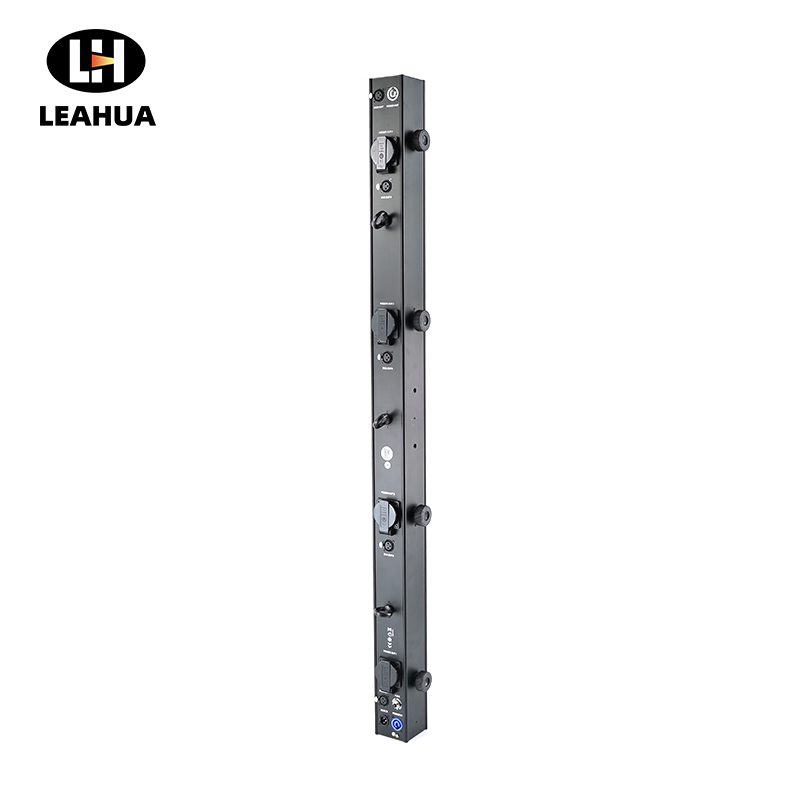

The design fully considers the flexibility of on-site installation. The product can be easily mounted on the light hook slide rail through the dedicated groove on the top, and can also be fixed to the triangular bracket through an adapter, perfectly adapting to different application scenarios such as suspension and landing. The IP20 protection level ensures its safe and reliable operation in indoor dry environments.
In summary, this electrical cabinet is an ideal choice for lighting professionals who pursue efficient and clean wiring solutions due to its excellent integration, flexible installation methods, and reliable performance.

Quantity:
Availability:





Inquiry Favorite

SP amplifier 4

Technical Specification

Download

Input voltage range: 100-240V; 50/ 60Hz

Function:

Installation: light hook slide rail hanging and tripod support to meet the needs of different scenes.

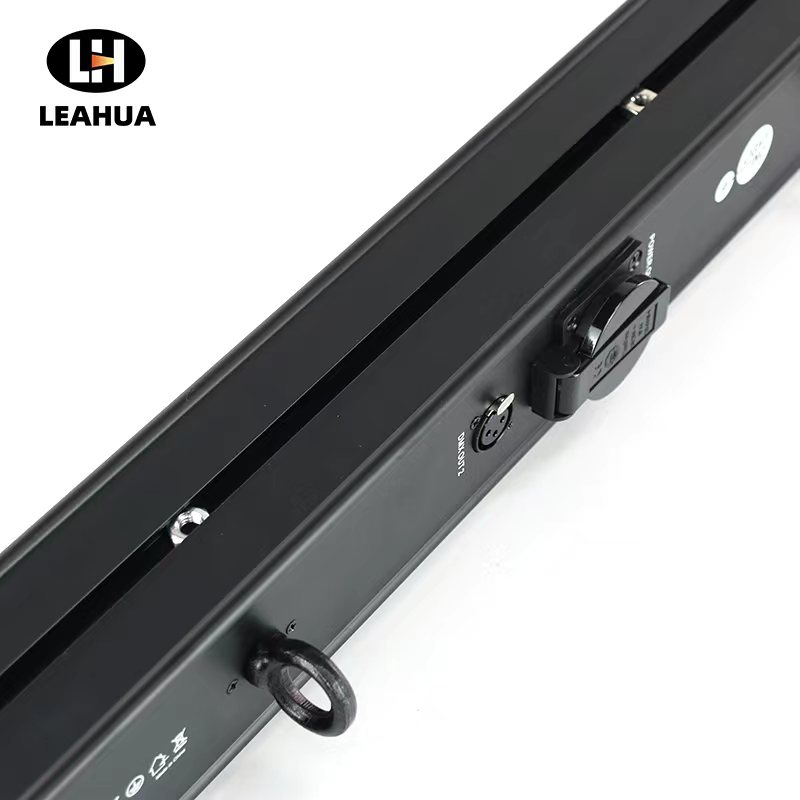

Feature: The upper part of the frame has a slide groove

IP rate: IP20

Connection:

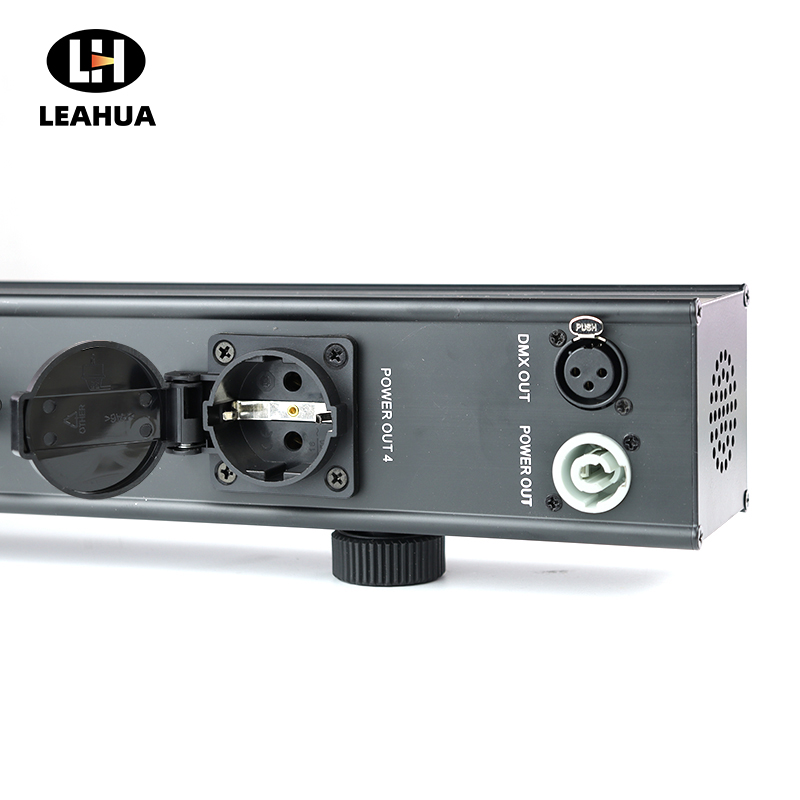

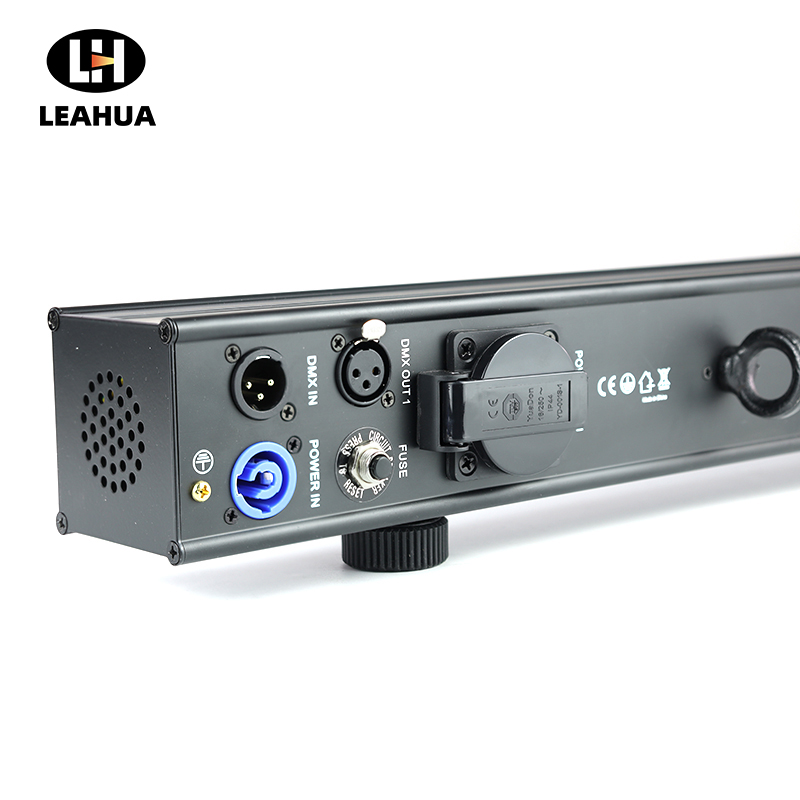

Power Connection: Powercon in/out; 4 European plug-in industrial sockets

Signal Connection: 1pcs 3-pin signal input , 5pcs 3-pin signal output (optional 5-pin); Built-in 4-channel signal

Physical information:

Product Dimensions: 1207x87 .6x76mm

Net Weight: 4kg

Manual

SP-AP004 SP amplifier 4_Manual.pdf
