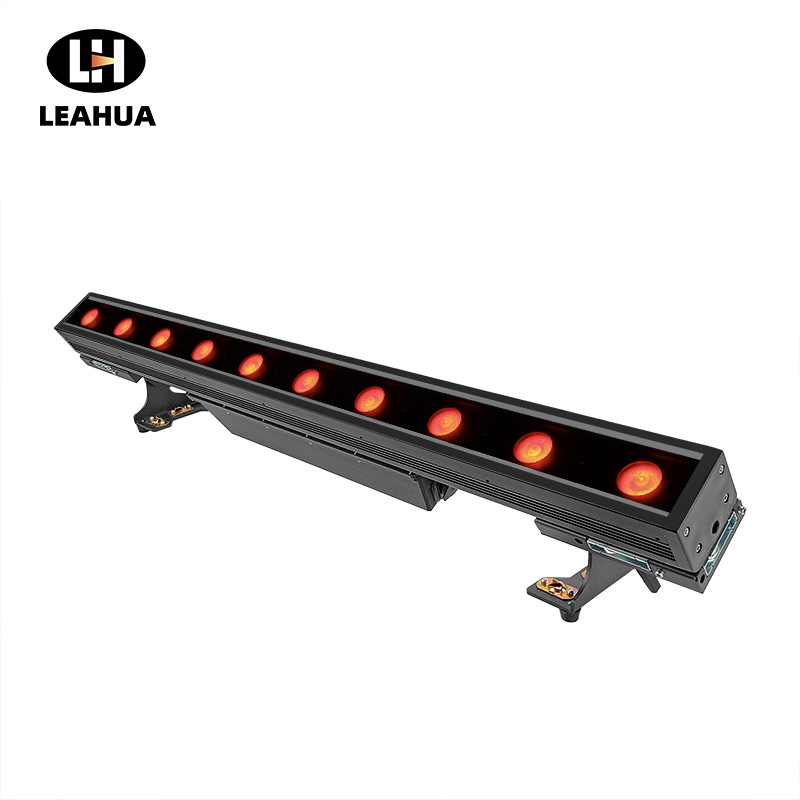

Polar COB 10

Model No: LH-PL10D

Polar COB 10 features 10 *15W CW+WW LED with 80 * 0.2W RGB LEDs.Its optical system provides 61.1° field angle and 31.8° beam angle, ideal for smooth wall washing, area illumination, and dynamic color effects.Advanced features include critically, the ability to control each LED individually, enabling breathtaking pixel mapping and seamless color transitions. It boasts IP65 rating for complete dust and water protection and performs.This advanced linear LED fixture is expertly engineered for architectural accent, studio fill, and stage wash lighting.
Availability:
Quantity:
Inquiry Favorite

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Previous:
Next:
Polar COB 10
Technical Specification
Photometrics
Dimensions
Video
Download

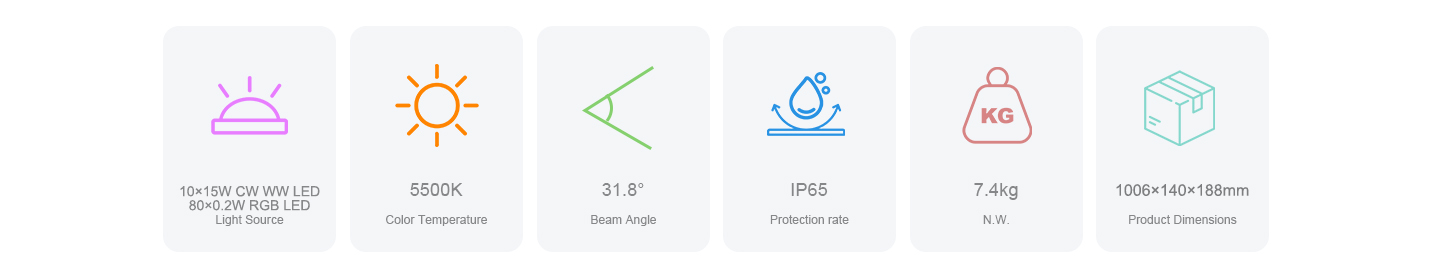

218E035


Technical Specification


Power

  • Input Voltage Range: AC 100-240V/ 50-60Hz

  • Power Consumption: 200W

Control

  • Display: OLED display

  • Control Mode: DMX512, master-slave, auto, sound, RDM

  • DMX Channel: 1/ 5/ 8/ 80/ 83CH

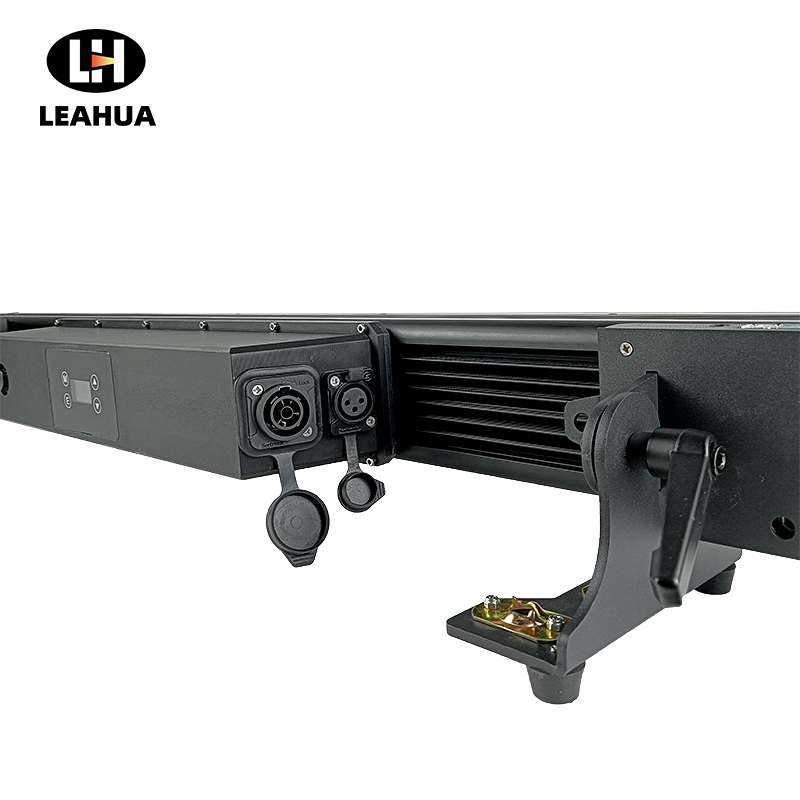

Connection

  • Power Connection: Powercon in/ out

  • Signal Connection: DMX 3-pin in/ out

Light Source

  • Main Light Source:10×15W CW WW LED

  • Strip Light Source 80×0.2W RGB LED

  • Color Temperature Output of Fixture: 5500K

  • Life Expectancy: 50000 hours

    ( factory rated )

Other Function

  • Dimming: 0-100% linear dimming system

  • Strobe: 0-20 F.P.S, speed adjustable

  • Each LED individual control

Physical Information

  • Product Dimensions: 1006×140×188mm

  • Net Weight: 7.4kg
Beam Angle

  • Beam Angle: 31.8°

  • Field Angle: 61.1°

Housing

  • Housing: Aluminum alloy

  • Working Environment: -10℃- 45℃

  • Protection Rate: IP65

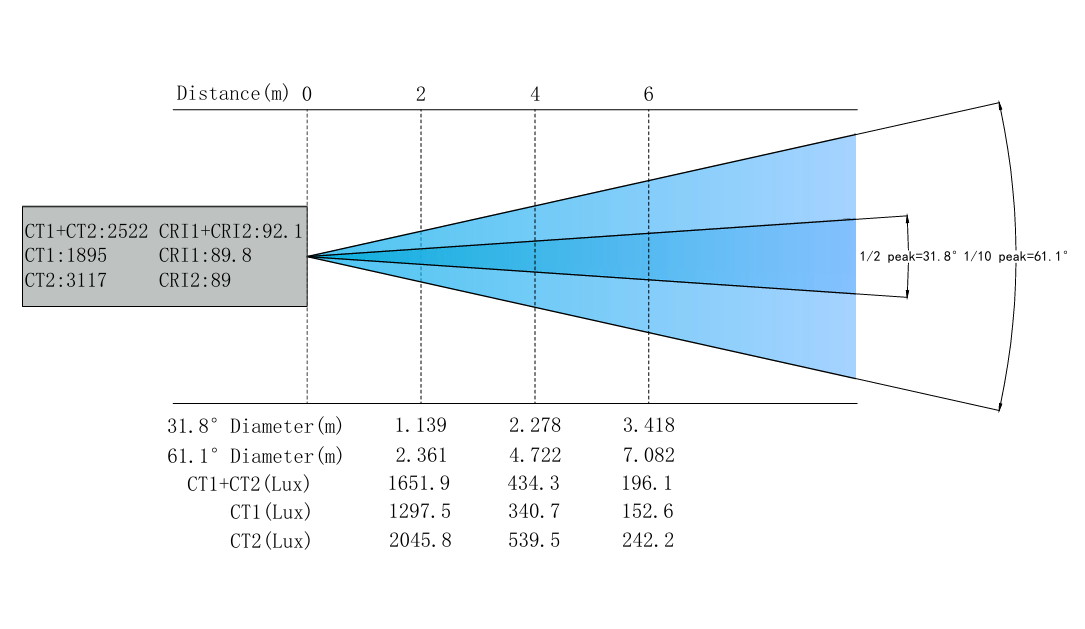

Photometrics


8. Polar COB 10

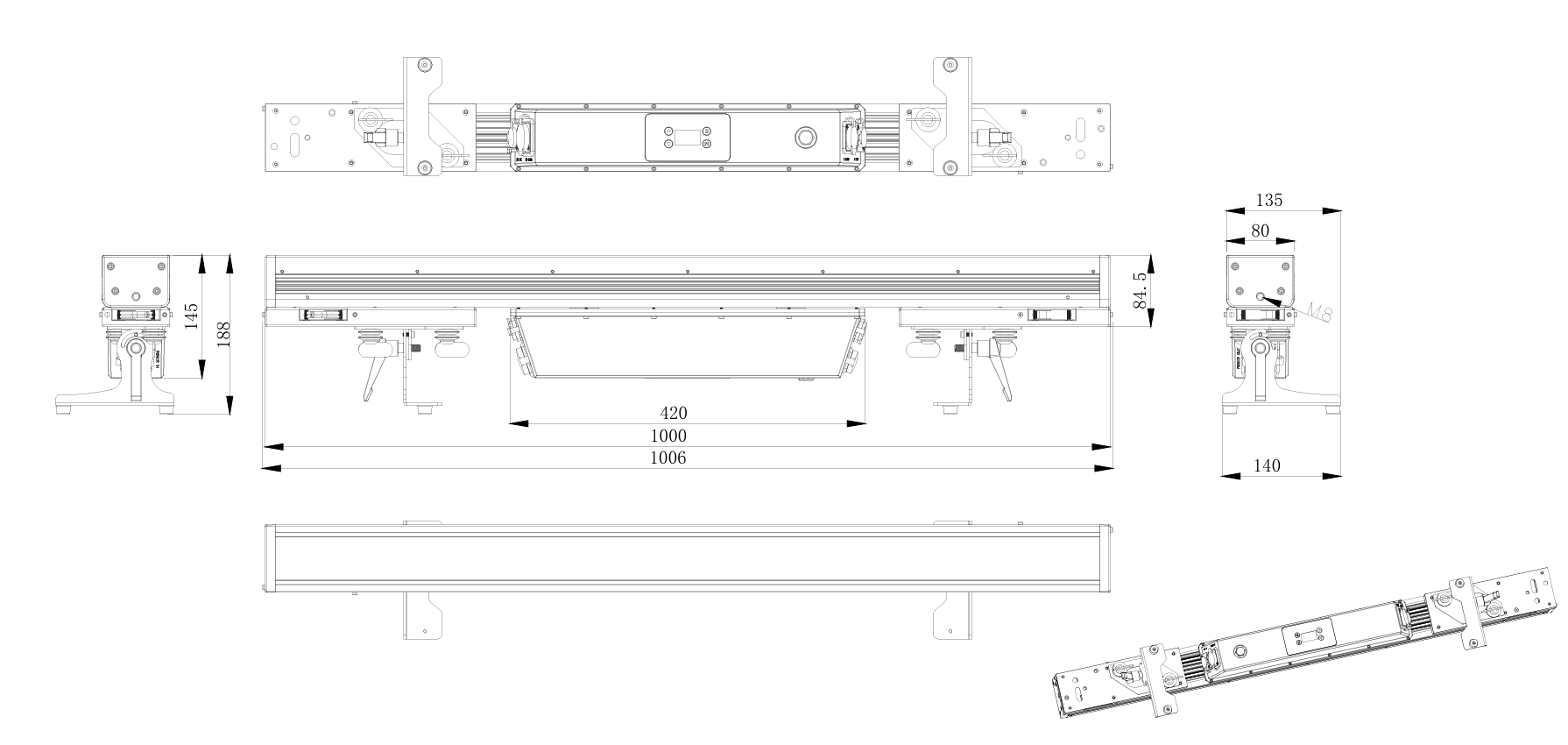

Dimensions


7. Polar COB 10
