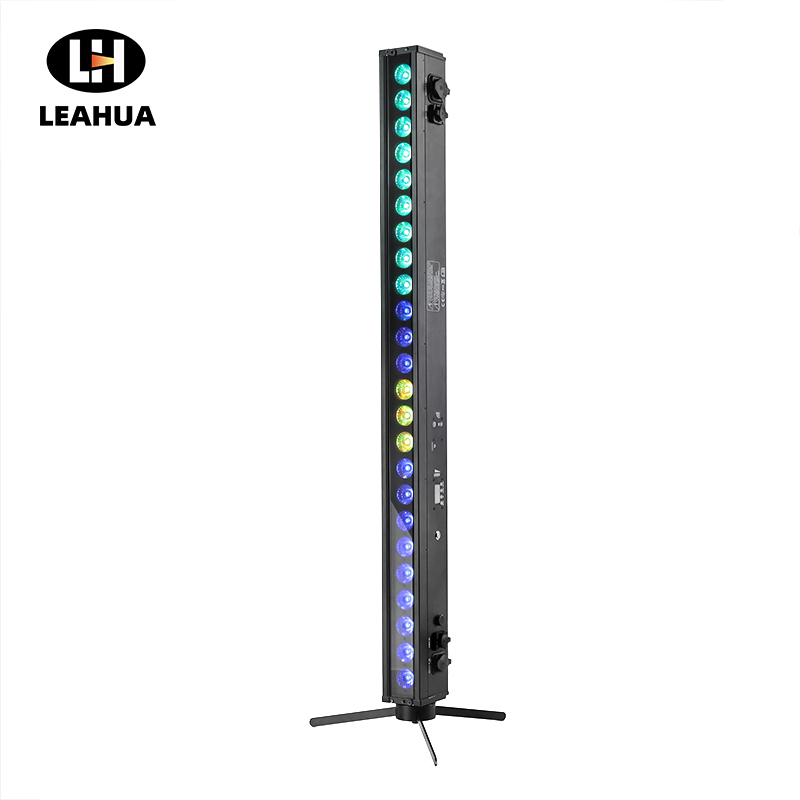

Li-Bar 24 IP

Model No: LH -LB24
Li-Bar 24IP delivers vivid, customizable illumination via 24 * 4W RGBW LED, supporting 2 or 8 zones of individual control to craft dazzling, dynamic light effects with 15° beam angles.For flexible operation, it offers multiple control options: DMX512,Master-slave,sound,auto,remote control, and wireless control.Powered by a 12V 27Ah lithium-ion battery, it takes 6 hours to fully charge and provides 4.5 hours of use when all functions are active, or up to 18 hours for single-color lighting.
Availability:
Quantity:
Inquiry Favorite

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Previous:
Next:
Li-Bar 24 IP
Technical Specification
Photometrics
Dimensions
Video
Download

218E022IP


Technical Specification


Power

  • Input Voltage Range: AC 100-240V/ 50-60Hz

  • Power Consumption: 100W

Control

  • Control Mode: DMX512, master-slave, auto, sound, remote, wireless

  • Control Channel: 6/ 8/ 14/ 50CH

Connection

  • Power Connection: Powercon in/ out

  • DMX Control: DMX 3pin in/ out

Light Source

  • Light Source: 24×4W RGBW LED

  • Life Expectancy: 20000 hours ( factory rated )

Other Function

  • Dimming: 0-100% linear dimming system

  • Strobe: 0-24 F.P.S, speed adjustable

  • Create dazzling effects with 8 section control.

Battery

  • Battery Type: Lithium ion

  • Battery Power: 324Wh; 12V, 27Ah

  • Battery Charge Time: About 6 hours ( full power )

  • Battery Life: About 4.5hours ( all on ), about 18hours ( signal color )
Beam Angle

  • Beam Angle: 15°

  • Field Angle: 34°

Housing

  • Housing: Aluminium alloy

  • Working Environment: -10℃- 45℃

  • Protection Rate: IP65

Physical Information

  • Product Dimensions: 1020×75×195mm

  • Net Weight: 6.55kg

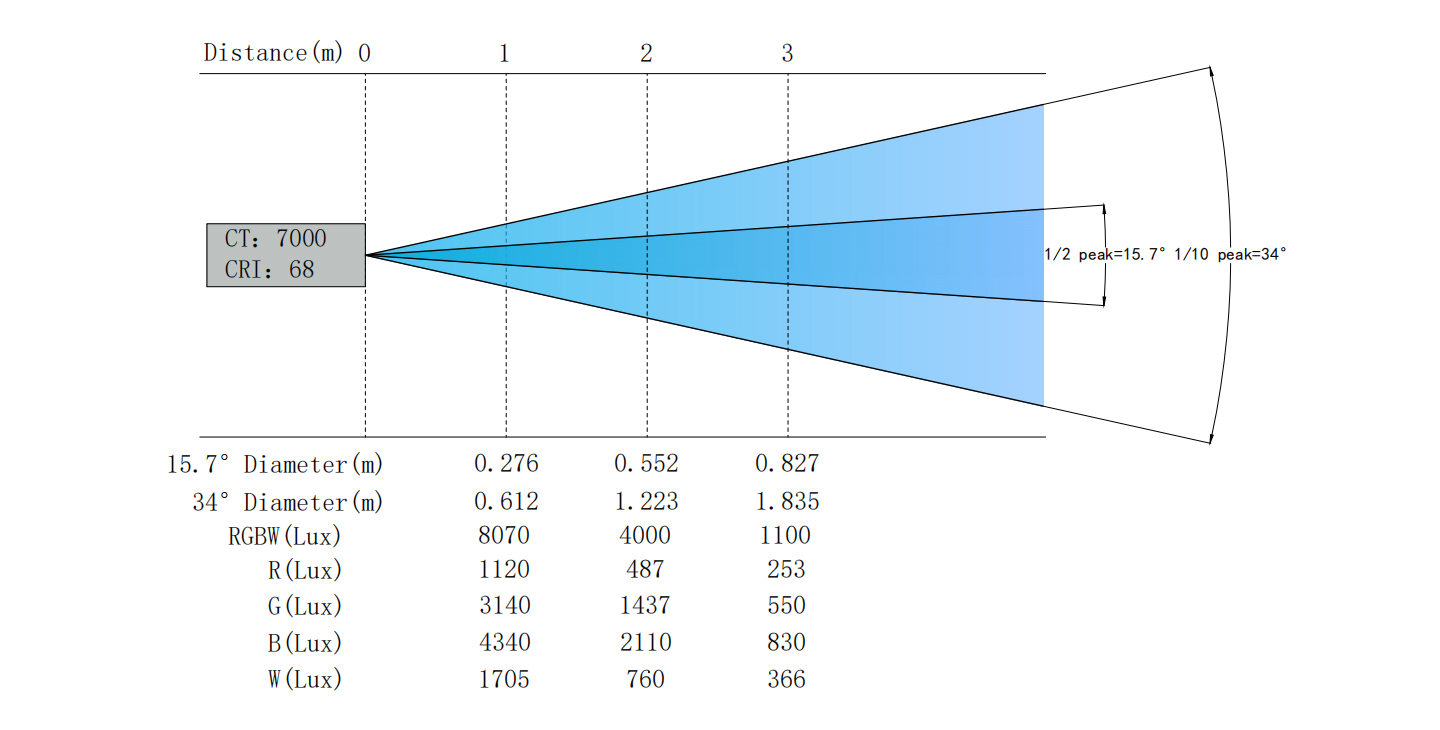

Photometrics


Li-Bar-24-IP-1

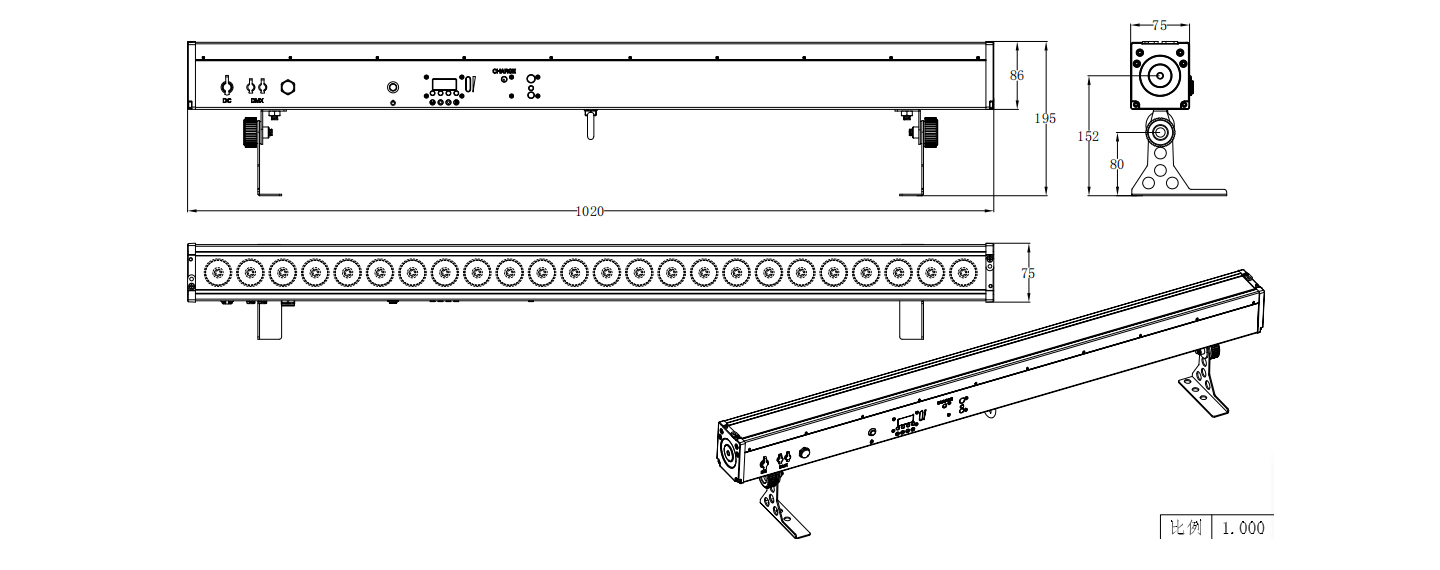

Dimensions


Li-Bar-24-IP-2



Video



Download
