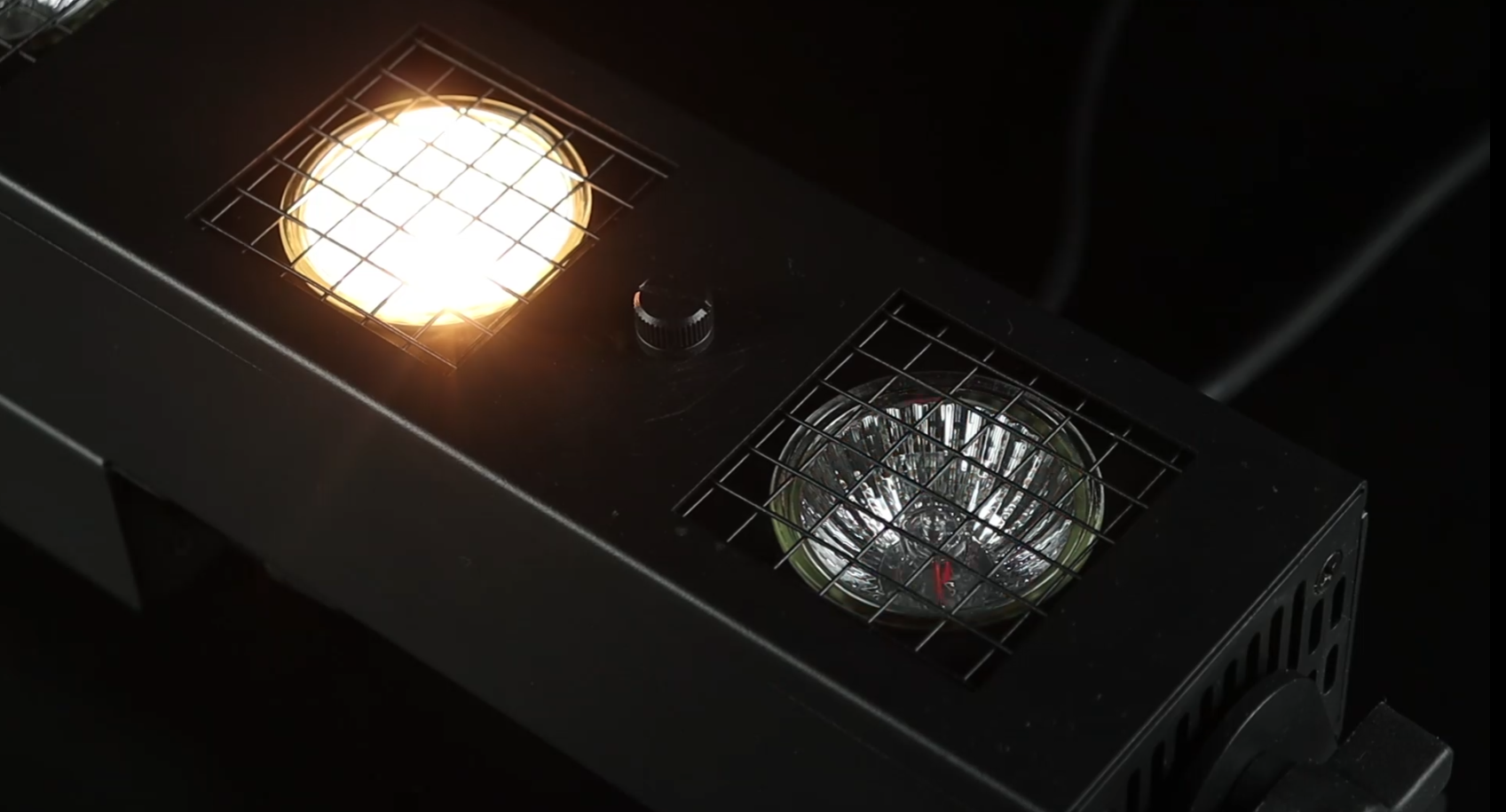

The transition from traditional halogen and discharge lamps to modern stage illumination represents a massive industry shift. It is no longer just a basic energy-saving measure. Instead, it serves as a strict baseline requirement for operational scalability, precise control, and reduced maintenance. Modern venues simply cannot operate efficiently on legacy infrastructure.

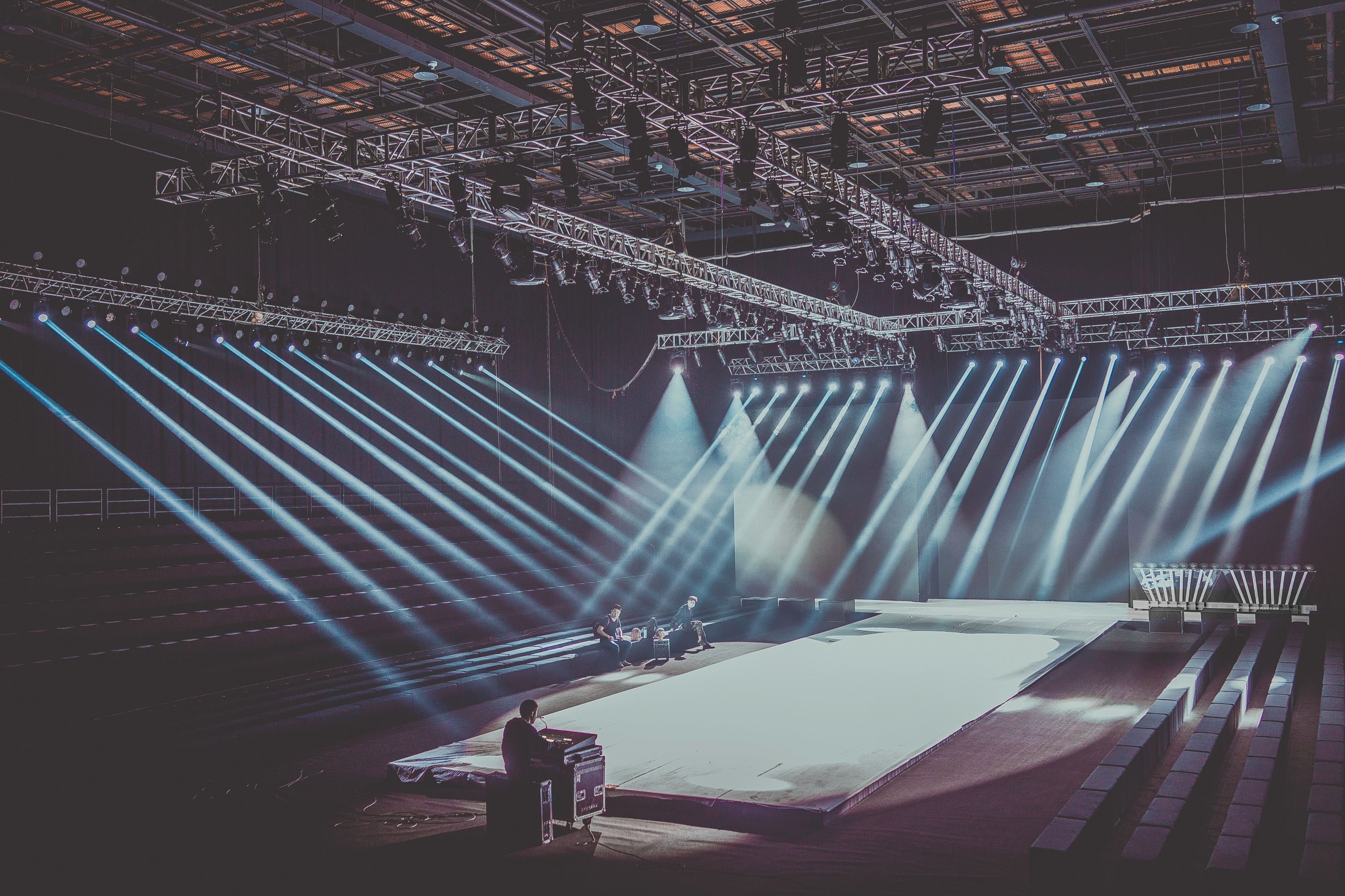

For technical directors, production managers, and B2B buyers, selecting the right LED Stage Light involves moving far beyond raw wattage. You must evaluate complex optical mechanisms, venue-specific constraints, and integration compatibility. Production environments demand equipment that performs flawlessly under intense operational pressure while syncing seamlessly with advanced digital control ecosystems.
This guide breaks down the core fixture types and their specific optical roles. We standardize technical evaluation criteria to help you vet manufacturer claims accurately. Finally, we provide a reliable, data-driven framework for procurement and deployment to ensure your next lighting upgrade meets professional production standards.
Operational Efficiency Over Upfront Cost: Replacing traditional 750W halogens with 300W LEDs yields a 60%+ reduction in power draw and eliminates routine lamp replacement costs (50,000-hour vs. 1,000-hour lifespans).
Application Dictates Optics: Venue types strictly define fixture selection—theaters prioritize silent (fanless) operation, while broadcast environments require high PWM frequencies for flicker-free recording.
Data-Driven Procurement: Evaluating LED stage lights requires analyzing IES photometric data, TM-30/CRI scores, and control latency rather than relying solely on manufacturer lumen claims.
Stakeholders often need clear, quantifiable operational advantages to justify comprehensive lighting upgrades. Moving away from conventional fixtures provides immediate improvements in power management, labor reduction, and venue safety.
Modern LED arrays match the output of legacy halogens while drawing significantly less power. A typical 300W LED easily replaces a 750W conventional fixture. This yields massive reductions in primary electricity consumption. Furthermore, you must factor in secondary operational savings. Conventional lamps convert mostly to heat rather than light. By eliminating this massive heat emission, you drastically lower the venue's HVAC and cooling loads. Performers remain comfortable, and ambient stage temperatures drop significantly.
Traditional lamps degrade quickly. Crews must replace them every 1,000 to 2,000 hours. High-quality LED arrays operate efficiently for over 50,000 hours with minimal color shift. This longevity eliminates emergency mid-show lamp swaps. You also reduce ongoing labor costs related to rigging, focusing, and replacing physical gel filters. Modern fixtures handle seamless RGBWA-UV color mixing internally, allowing programmers to change stage moods instantly from the control console.

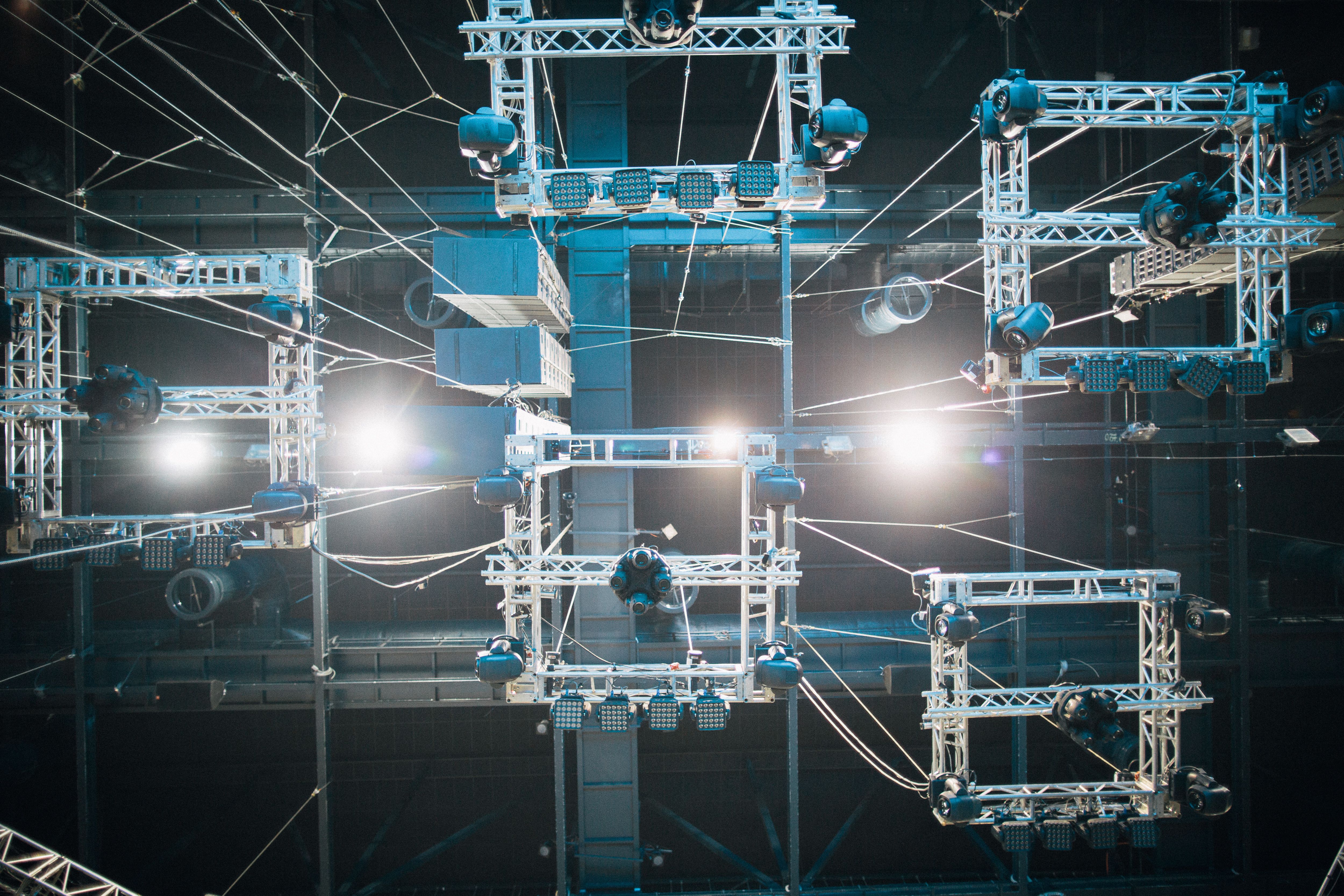

Lower power draw transforms rigging safety and electrical distribution. You can place far more fixtures on a single electrical circuit. This heavily reduces the need for heavy, expensive copper cabling. You completely bypass the need for complex, heavy dimming racks. Streamlined power distribution means faster load-ins, cleaner overhead trusses, and a drastically reduced risk of circuit overloads during complex show sequences.
Understanding fixture categories helps you match the right optical mechanism to your specific design goals. Each type serves a distinct foundational purpose.

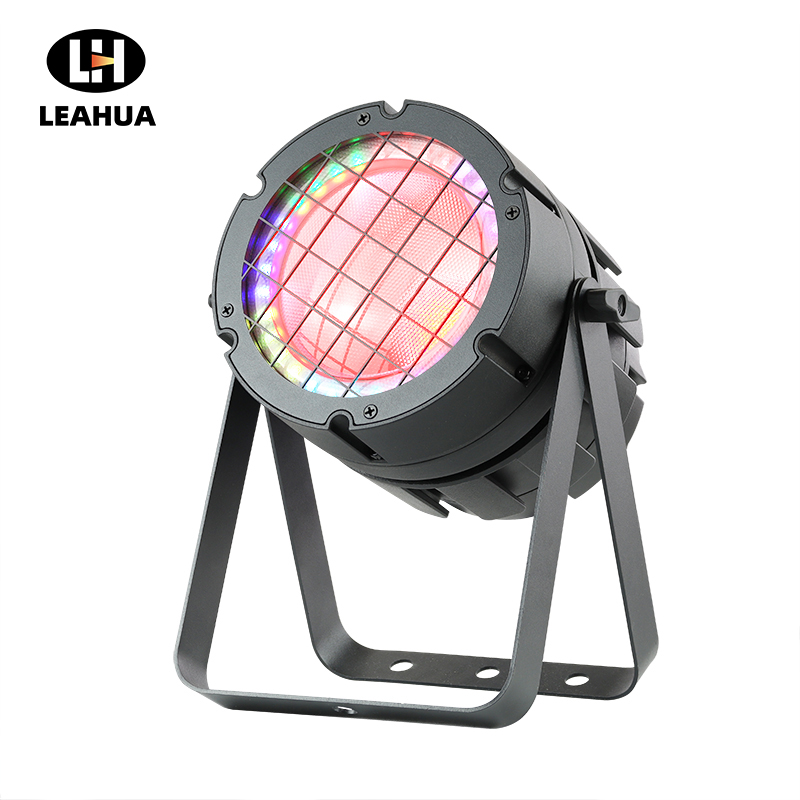

These fixtures utilize a Parabolic Aluminized Reflector (PAR) combined with LED diodes. They create a wide, even light distribution. Their primary role involves foundational color mixing and establishing the baseline illumination for the stage. You use them to flood large areas quickly without harsh edges.

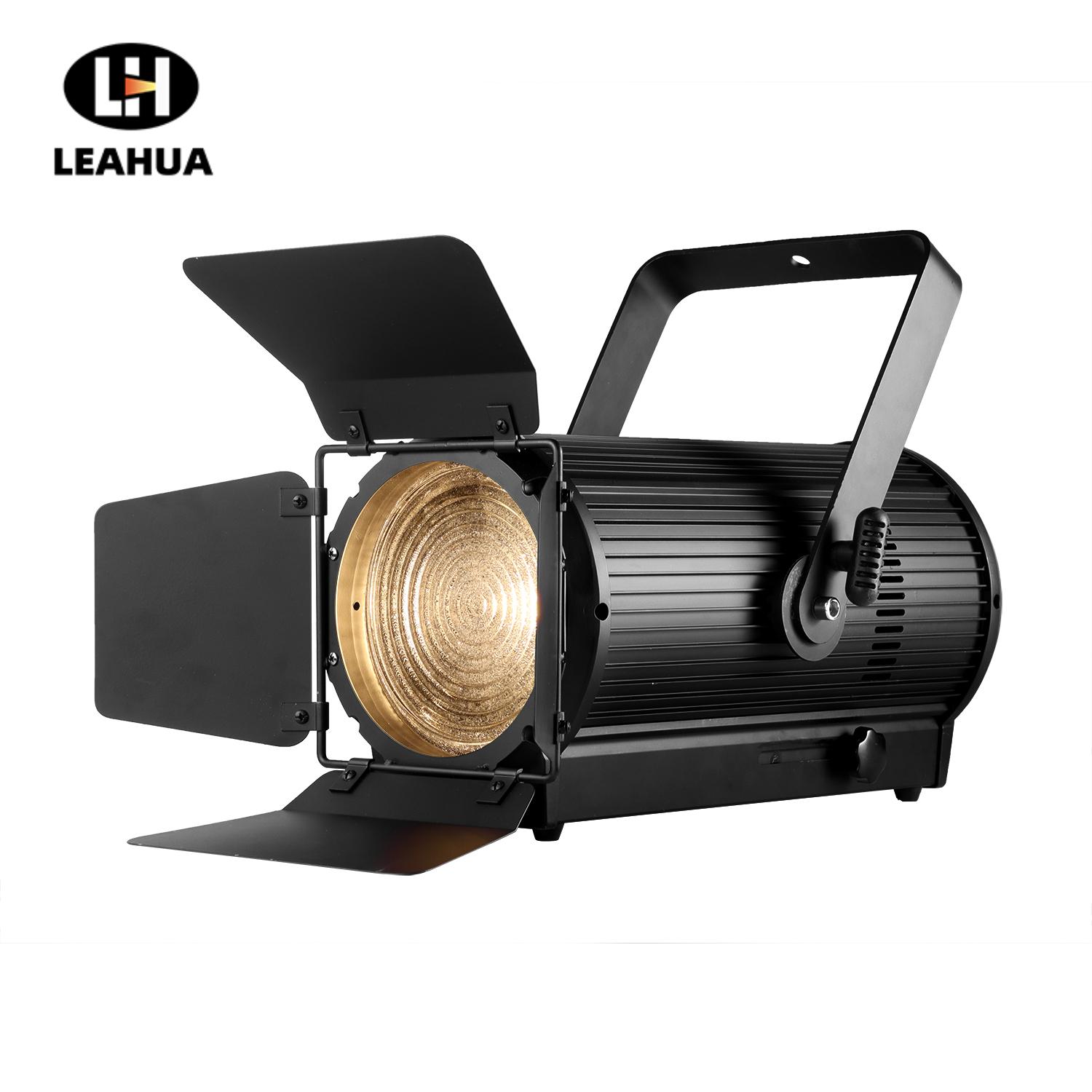

These units utilize concentric ring lenses. You adjust the beam size—typically between 10° and 55°—by physically moving the light source relative to the lens inside the housing. Their role is to produce a soft-edged beam. This edge quality makes them ideal for blending multiple wash areas seamlessly across a wide performance space.

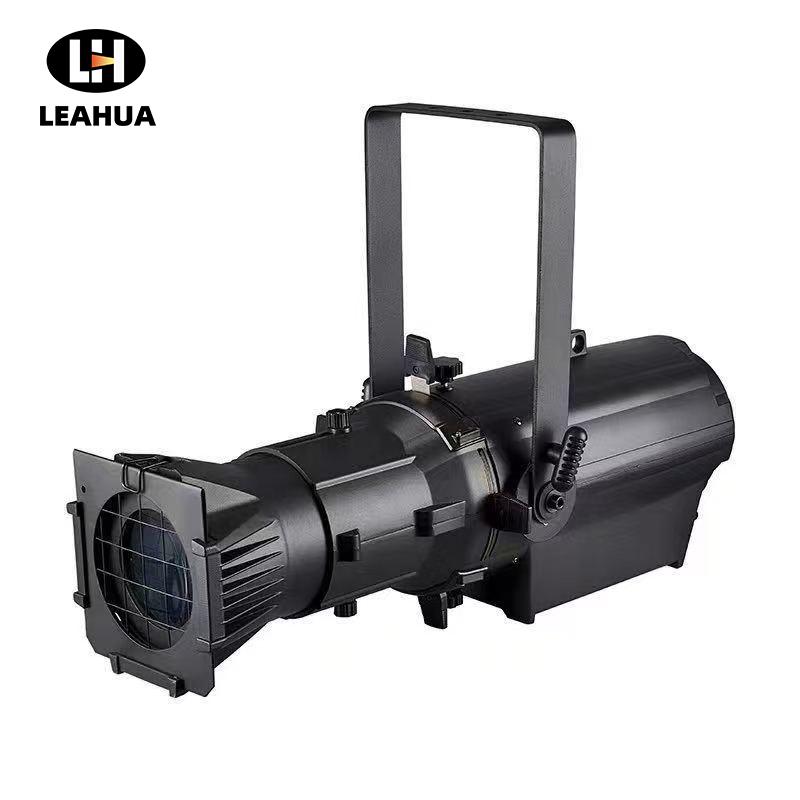

Profile fixtures feature complex internal optics. They include internal framing shutters, variable iris control, and gobo projection capabilities. Their primary role involves high-intensity isolation. You use them to pierce through ambient stage light, isolating individual subjects, podiums, or precise scenic elements.

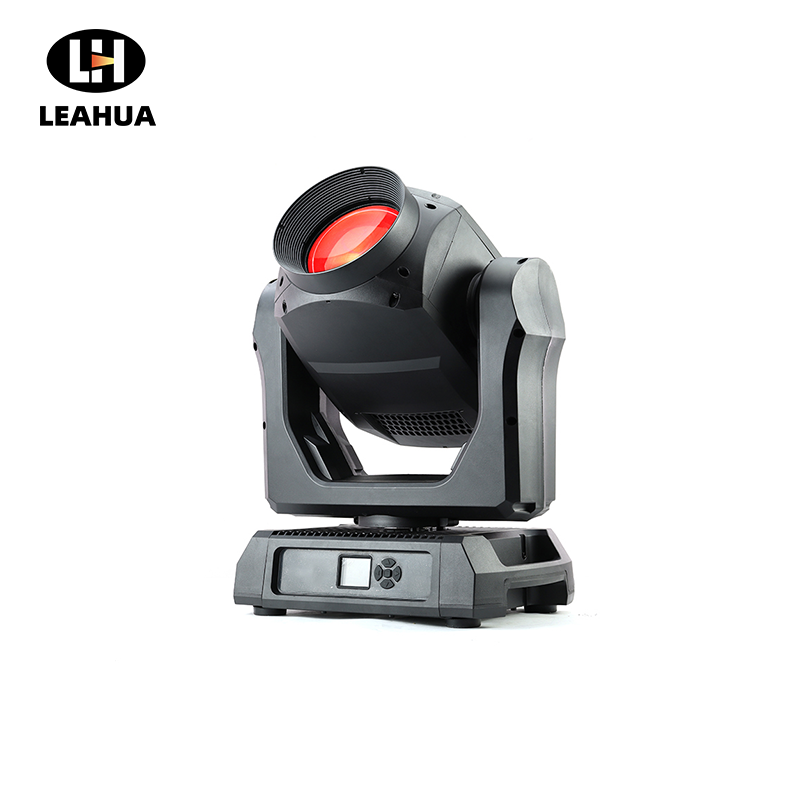

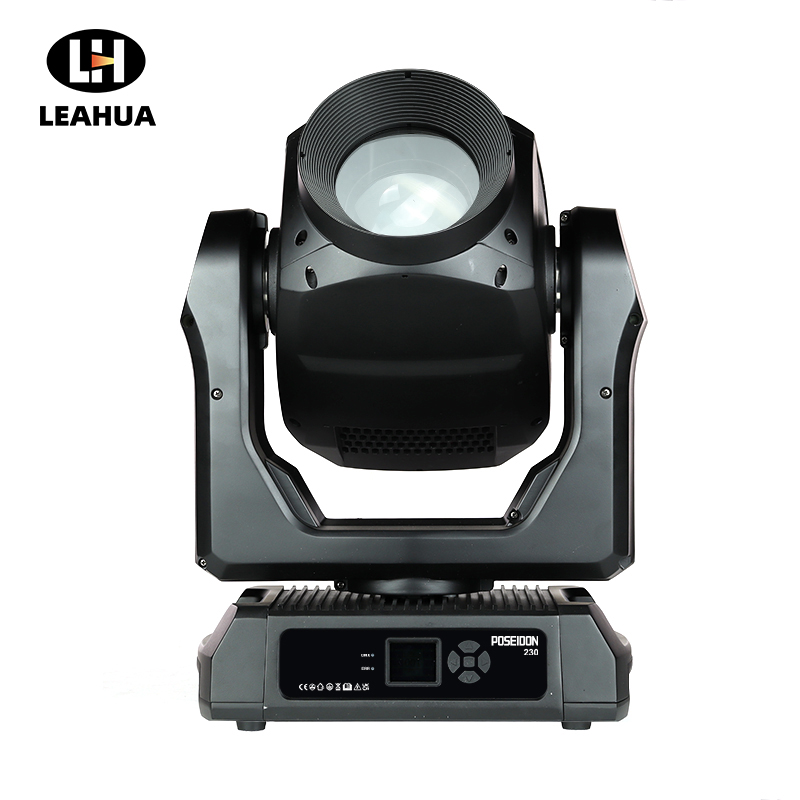

These fixtures feature motorized yokes offering automated pan and tilt. Manufacturers typically release them in specific "Beam," "Spot," or "Wash" variants. Note an important trade-off: "3-in-1" hybrid moving heads reduce overall inventory needs. However, they may sacrifice peak intensity and optical sharpness compared to dedicated, single-purpose optical profiles.

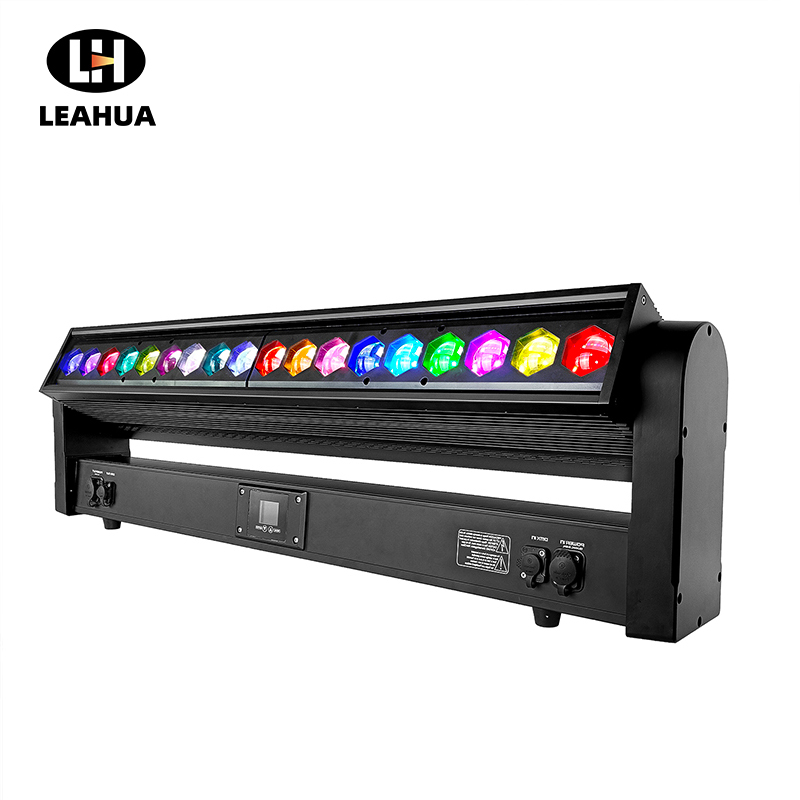

Linear fixtures deploy mostly for Cyclorama (Cyc) lighting and massive backdrop washing. You also use them for pixel-mapped visual effects. Programmers trigger individual diode groups to act as dynamic strobes, blinders, or sweeping color gradients behind the performers.
| Fixture Category | Optical Mechanism | Primary Stage Role | Edge Quality |
|---|---|---|---|
| PAR / Wash | Parabolic Reflector + Diodes | Baseline illumination, broad color mixing | Very Soft / Diffused |
| Fresnel / PC | Concentric Ring Lens | Blending wash areas seamlessly | Soft / Adjustable |
| Profile / Ellipsoidal | Lenses, Shutters, Iris | Subject isolation, gobo projection | Sharp / Hard Edge |
| Moving Head | Motorized Yoke | Dynamic aerial effects, tracking subjects | Varies (Beam/Spot/Wash) |
Product types must directly connect to the physical and technical constraints of real-world environments. A fixture that excels in an outdoor festival might fail catastrophically in a quiet theater.

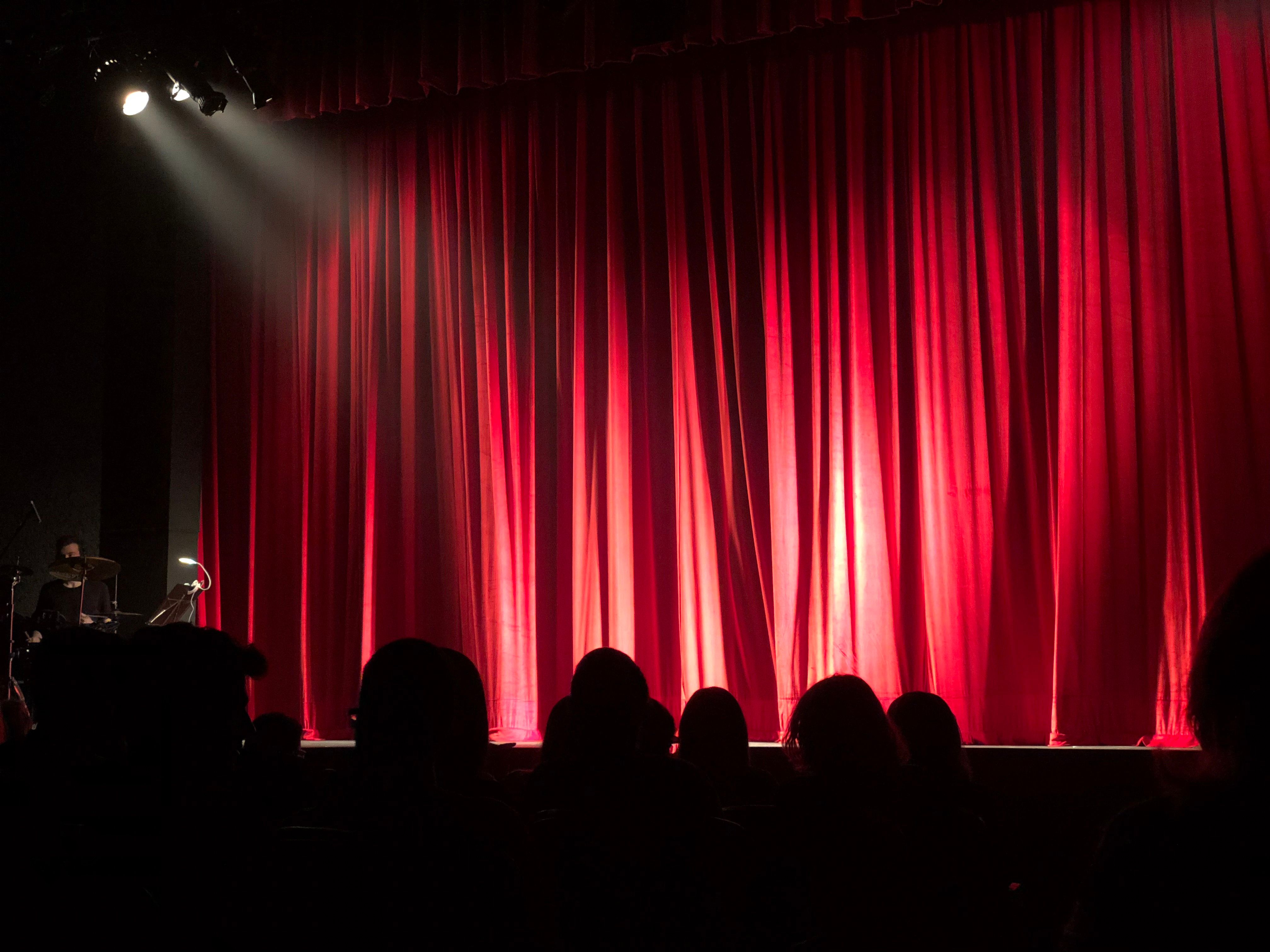

Theatrical and Performing Arts: The key constraint here involves acoustic sensitivity and subtle atmospheric transitions. The strict requirement demands fanless or ultra-quiet active cooling systems. You also need high-resolution dimming curves. Standard 8-bit dimming creates a visible "step" before a blackout. You must utilize 16-bit dimming to guarantee perfectly smooth, imperceptible fades to zero.
Broadcast, Film, and Houses of Worship: These environments heavily feature camera-facing setups. The key constraint revolves around camera sensor interaction and accurate skin tone rendering. The strict requirement involves high PWM (Pulse Width Modulation) frequencies. High PWM guarantees a "flicker-free" output on camera frames. You must also prioritize high TLCI (Television Lighting Consistency Index) scores over standard CRI to ensure sensors process colors naturally.
Concerts, Touring, and Outdoor Festivals: The primary constraint involves brutal environmental exposure and fast, repetitive deployment. The absolute requirement dictates an IP65 weather-rated chassis. You need rugged metal housings, high-output beam fixtures that cut through heavy atmospherics, and robust locking mechanisms capable of withstanding daily rigging abuse.
Equipping yourself with exact, measurable metrics prevents you from falling for inflated supplier claims. You must evaluate light based on real-world performance parameters.
Manufacturers often advertise peak diode wattage, but this metric misleads buyers. Lenses and reflectors trap or scatter light. Instead, you must examine Center Beam Candlepower (CBCP) and comprehensive IES distribution files. IES files map exactly how the light beam behaves, drops off, and spreads across specific throw distances. This data matters far more than theoretical lumen outputs.
Differentiating between diode systems directly impacts your production value.
| System Type | Diodes Included | Best Application | Color Rendering Impact |
|---|---|---|---|
| RGB | Red, Green, Blue | Basic DJ setups, simple architectural | Poor white rendering, unnatural skin tones. |
| RGBW | Red, Green, Blue, White | Concerts, standard stage wash | Better pastel creation, harsh cool whites. |
| RGBWA-UV | Red, Green, Blue, White, Amber, Ultra-Violet | Theater, Broadcast, Fine Arts | Exceptional. Amber warms skin tones; UV makes whites glow. CRI > 90 easily achieved. |
Emphasize that a CRI greater than 90 remains absolutely mandatory for natural skin tones in professional settings. Anything lower makes performers look sickly or washed out.

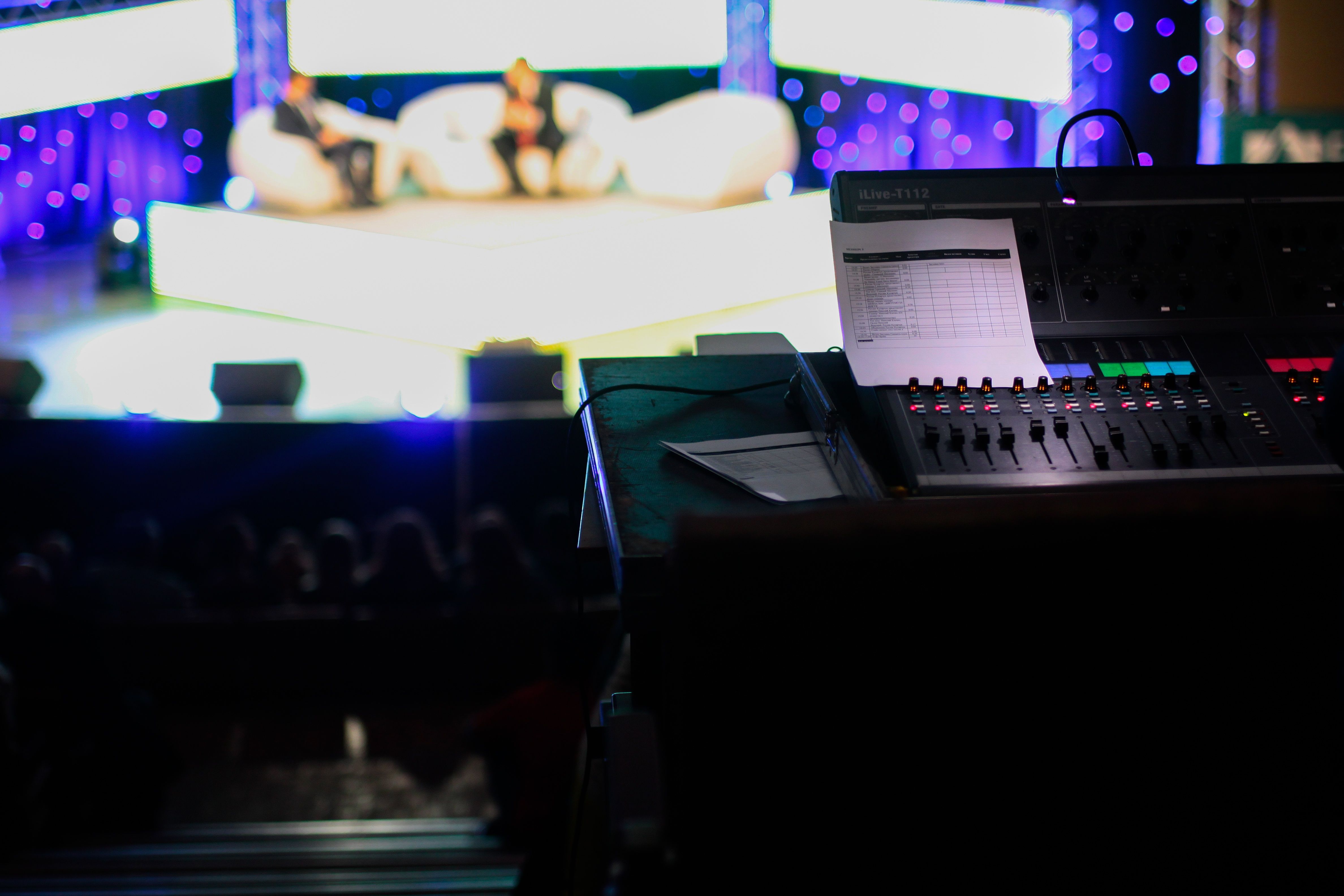

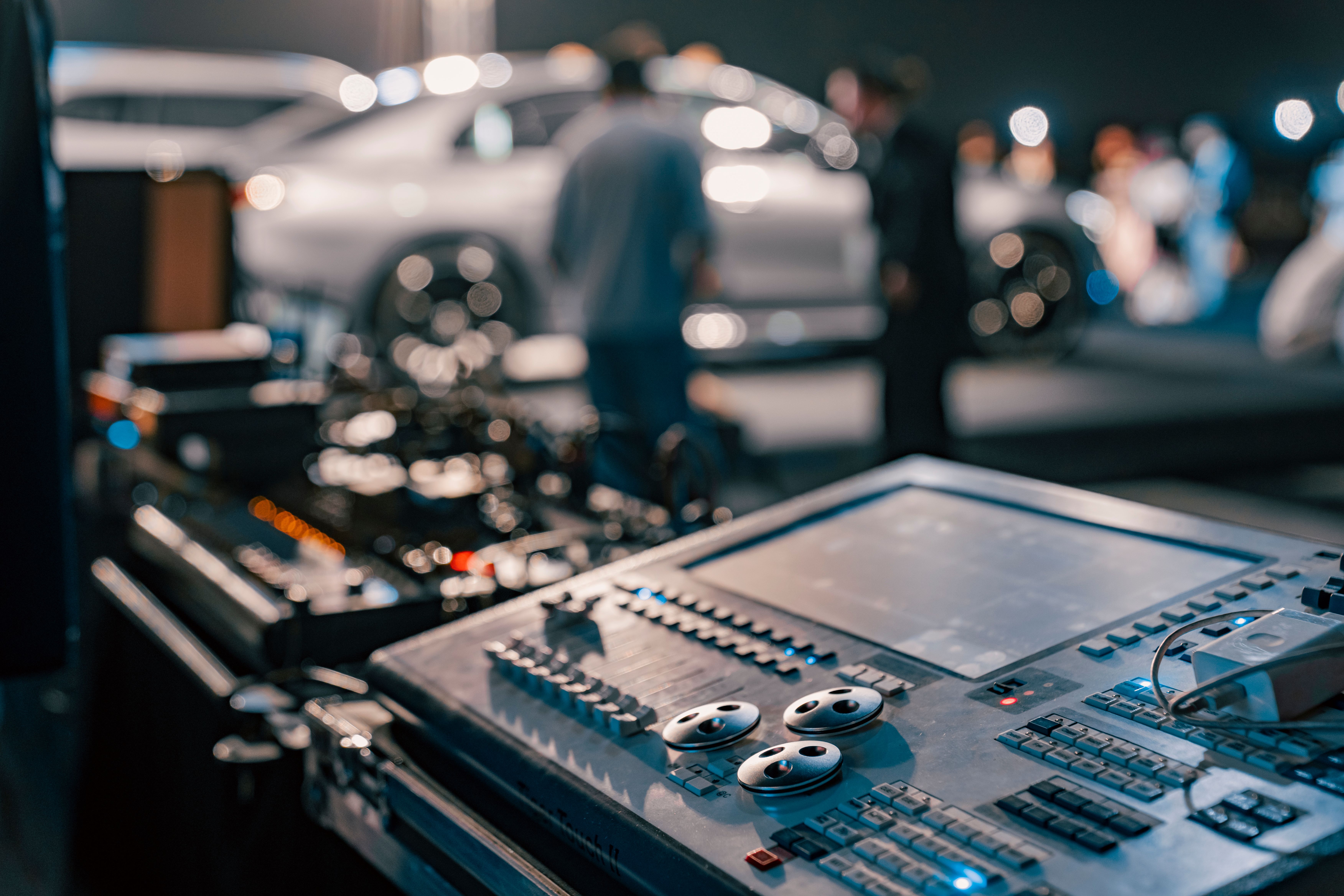

Your hardware must integrate gracefully with your console network. The baseline requirement remains DMX512. However, advanced pixel mapping demands Art-Net and sACN protocols. These network-based protocols handle high-channel-count mapping across complex lighting grids. For quick-deployment corporate events or outdoor architectural uplighting, you must prioritize wireless DMX reliability to eliminate cable runs across public areas.
A structured B2B buying framework mitigates risk during complex deployments. Follow these sequential steps to ensure project success.
Defining the Brief: You must translate artistic vision into measurable technical targets. Do not simply ask for "bright lights." Instead, require specific metrics, such as demanding 400 lux at center stage from a 50-foot throw distance.
Tendering and The "Shootout": Always request demo units from manufacturers. Conduct side-by-side on-site testing. You must verify photometric data against real-world venue throw distances. Shine the demo units onto a neutral surface and measure the output with a calibrated light meter.
Compliance and Certification Review: Do not install unverified electronics overhead. Ensure shortlisted fixtures hold legitimate CE, RoHS, FCC, or regional electrical safety certifications. Verify that heavy moving parts include secondary safety tether points.
Post-Purchase Calibration: Work directly with professional lighting designers. You need to standardize color temperatures across mixed inventories. If you execute a phased rollout, you must meticulously match new LEDs with your legacy halogen fixtures to avoid jarring color discrepancies during a show.
Upgrading to a modern lighting system yields massive operational flexibility. You gain unprecedented power efficiency, eliminate costly maintenance loops, and unlock vast creative potential through instant color mixing. Carefully auditing your current electrical capacity and structural rigging constraints remains the vital first step. Always analyze IES files and require on-site shootouts before committing to an ecosystem. We strongly advise buyers to initiate discussions with technical lighting designers or certified distributors. They will help you spec the exact required units for your specific venue needs.
A: PAR stands for Parabolic Aluminized Reflector. Originally, this referred to the curved, mirrored back of a traditional lamp housing that focused the light beam. Modern LED equivalents retained the acronym because they serve the exact same broad-wash functional role on stage, even though they now use advanced diode arrays and different internal lenses.
A: You must specify fixtures with high, adjustable PWM (Pulse Width Modulation) frequencies. When a camera shutter speed clashes with a low PWM frequency, visible banding or flickering appears on screen. Adjusting the fixture's PWM to 1200Hz, 3000Hz, or higher ensures smooth, continuous illumination that perfectly aligns with modern broadcast camera frame rates.
A: Yes. Modern LED profiles easily match or exceed the output and beam sharpness of traditional 750W tungsten fixtures. High CRI engines provide excellent skin tone rendering. Furthermore, LED profiles eliminate the need for physical gels by adding native, seamless color mixing right from the lighting console.
